Armored Vehicles

MT-LB with 14.5 mm BPU-1 turret

Also known as
  • MT-LB BPU-1
  • MT-LB with BPU-1 turret
  • MT-LB with KPVT turret
  • MT-LB with 14.5mm BPU-1 turret
  • MT-LB with BRDM-2 turret
  • MT-LB with BTR turret

The MT-LB with 14.5 mm BPU-1 turret is an improvised armored fighting vehicle that places a conical BPU-1 machine-gun turret, normally associated with BRDM-2 and BTR-family vehicles, onto the Soviet MT-LB tracked carrier. Open-source loss records document both Russian and Ukrainian examples in the 2014 Russia-Ukraine War, making the vehicle a narrow but useful example of how both sides converted available armored chassis into heavier direct-fire platforms.

MT-LB with 14.5 mm BPU-1 turret, Improvised tracked armored fire-support vehicle, Armored Vehicles
Image source: Oryx Russian Equipment Losses In Ukraine

Role in Conflicts

Profile / Specs

Profile

Origin
Soviet Union base vehicle and turret; improvised conversions documented in Russia and Ukraine
Type
Improvised tracked armored fire-support vehicle
Service note
Cold War components adapted during the full-scale phase of the 2014 Russia-Ukraine War
Designer
Soviet MT-LB and BPU-1 design teams; conversion workshops not publicly identified
Designed
MT-LB from the 1960s; BPU-1 turret from BRDM-2/BTR-family vehicles; improvised conversion documented by 2022
Produced
Field and workshop conversion of existing MT-LB hulls and BPU-1 turret stocks

Specifications

Armament
BPU-1 turret with 14.5 mm KPVT heavy machine gun and coaxial 7.62 mm PKT machine gun
Base vehicle
MT-LB tracked armored carrier and artillery tractor
Conversion type
Field or workshop conversion using existing MT-LB hulls and BPU-1/KPVT turret assemblies
Gun caliber
14.5x114 mm for the KPVT; 7.62x54 mmR for the PKT coaxial machine gun
KPVT rate of fire
About 550-600 rounds per minute cyclic for the KPVT gun
Effective range
Weaponsystems.net gives the KPV/KPVT family practical effective ranges of about 2 km against ground targets and 1.5 km against aircraft, depending on mount and sights
Mobility
Tracked MT-LB chassis; mobility varies by donor hull condition and conversion weight
Protection
Light MT-LB welded-steel armor with turret protection dependent on the salvaged BPU-1 installation
Variants

Public evidence treats the vehicle as an improvised conversion rather than a standardized production model. The key distinction is whether the fitted turret is recorded as a generic BPU-1/KPVT turret or as a donor upper hull section from a BRDM-2 or BTR-family vehicle.

VariantConfigurationDesignation notes
Russian MT-LB with 14.5 mm BPU-1 turretTracked fire-support conversion

Oryx records three Russian examples destroyed during the full-scale invasion, using the label MT-LB with 14.5 mm BPU-1 turret.

Sources: Oryx Russian Equipment Losses In Ukraine

Ukrainian MT-LB with BPU-1 turretTracked fire-support conversion

Oryx records one Ukrainian example destroyed, while Popular Mechanics describes Ukrainian MT-LBs fitted with BPU-1 turrets taken from BTR wheeled APCs.

Sources: Oryx Ukrainian Equipment Losses In Ukraine, Popular Mechanics MT-LB Mutant Vehicles, Popular Mechanics Ukrainian Slapped-Together Vehicles

Base Chassis And Gun Family

This conversion joins two already cataloged Soviet components: the MT-LB tracked carrier and the KPV/KPVT 14.5 mm machine-gun family used in the BPU-1 turret.

Compatible itemItem typeCompatibility evidence
MT-LB, Amphibious tracked armored personnel carrier and artillery tractor, Armored VehiclesMT-LBTracked armored carrier chassis

The conversion uses the MT-LB as the tracked base vehicle, replacing the normal light armament with a heavier turreted 14.5 mm gun installation.

Sources: Oryx Russian Equipment Losses In Ukraine, Oryx Ukrainian Equipment Losses In Ukraine, Popular Mechanics MT-LB Mutant Vehicles

KPV, 14.5 mm heavy machine gun, Infantry WeaponsKPV14.5 mm heavy machine-gun family

The BPU-1 installation centers on the KPVT vehicle derivative of the KPV family; Weaponsystems.net identifies KPVT use on BRDM-2, BTR-60PB, BTR-70, and BTR-80 vehicles.

Sources: Vladimirov KPV

Why the conversion matters

The configuration gives a light tracked utility carrier heavier 14.5 mm direct-fire capability, but public evidence points to a small number of improvised vehicles rather than a standardized fleet.

Sources: Oryx Russian Equipment Losses In Ukraine, Oryx Ukrainian Equipment Losses In Ukraine, Popular Mechanics MT-LB Mutant Vehicles

Conversion Pattern

The sourced record points to a practical battlefield adaptation: crews or workshops reused available BPU-1 turret assemblies from BRDM-2 or BTR-family vehicles and mounted them on MT-LB hulls. That changed the MT-LB from a light carrier and tractor into a heavier machine-gun fire-support vehicle, while retaining the base chassis' light armor and tracked mobility.

Turret fit

Army Guide identifies the BPU-1 mount as carrying a 14.5 mm KPVT, a 7.62 mm PKT, and smoke grenade equipment in BTR-80-style installations.

Source: BTR-70 Modernization.

Conflict evidence

Oryx records destroyed Russian and Ukrainian MT-LB/BPU-1 examples in the full-scale Russia-Ukraine War loss lists.

Sources: Oryx Russian Equipment Losses In Ukraine; Oryx Ukrainian Equipment Losses In Ukraine.

Sourcing limit

The sources support documented examples and component identity, not a known official designation, production count, or common factory standard.

Timeline

MT-LB with 14.5 mm BPU-1 turret Key Events

  1. Ukrainian BPU-1 conversions reported

    Defense writer Sebastien Roblin described Ukrainian MT-LBs fitted with 14.5 mm BPU-1 turrets from BTR-family armored personnel carriers during the full-scale war.

    Sources: Popular Mechanics MT-LB Mutant Vehicles, Popular Mechanics Ukrainian Slapped-Together Vehicles

  2. Russian loss image date appears in Oryx evidence

    One linked Oryx image record for a Russian MT-LB with BPU-1 turret carries a June 7, 2024 destruction label, illustrating the conversion's continued appearance after the initial invasion year.

    Sources: Oryx Russian Equipment Losses In Ukraine

Media

MT-LB with 14.5 mm BPU-1 turret Images

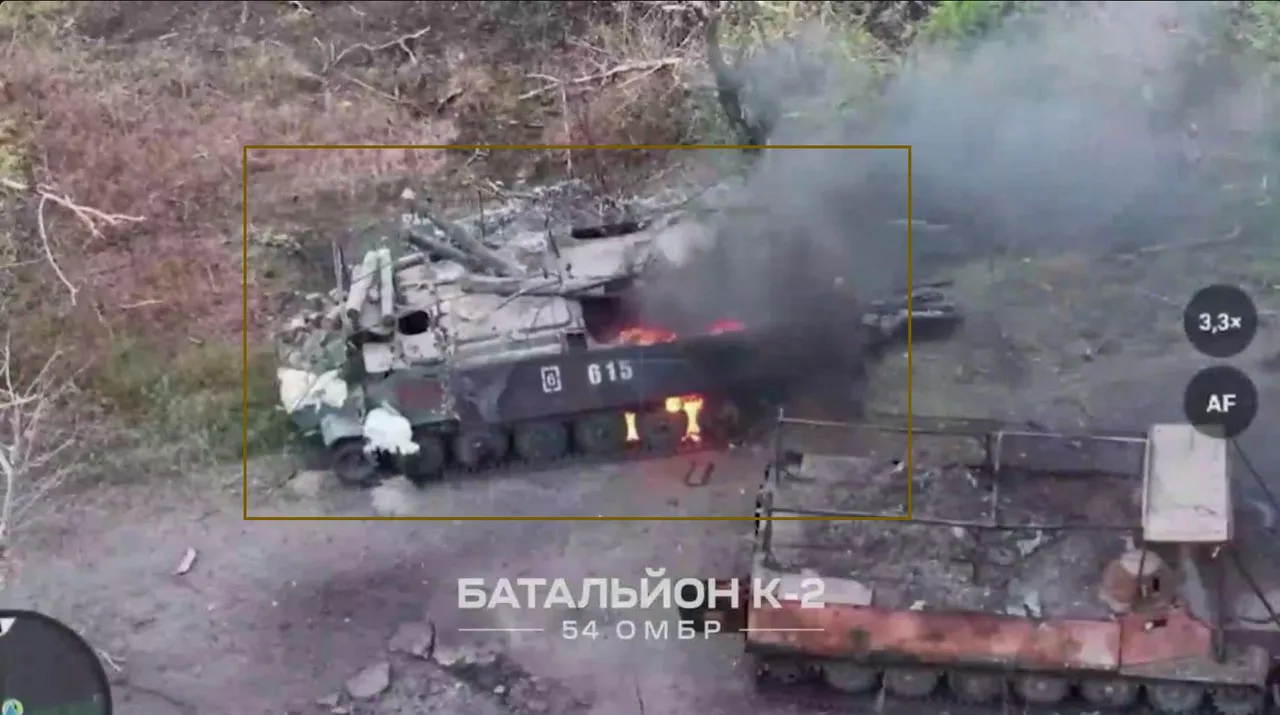

MT-LB with 14.5 mm BPU-1 turret, Improvised tracked armored fire-support vehicle, Armored Vehicles - view 1
Source: Oryx Russian Equipment Losses In Ukraine

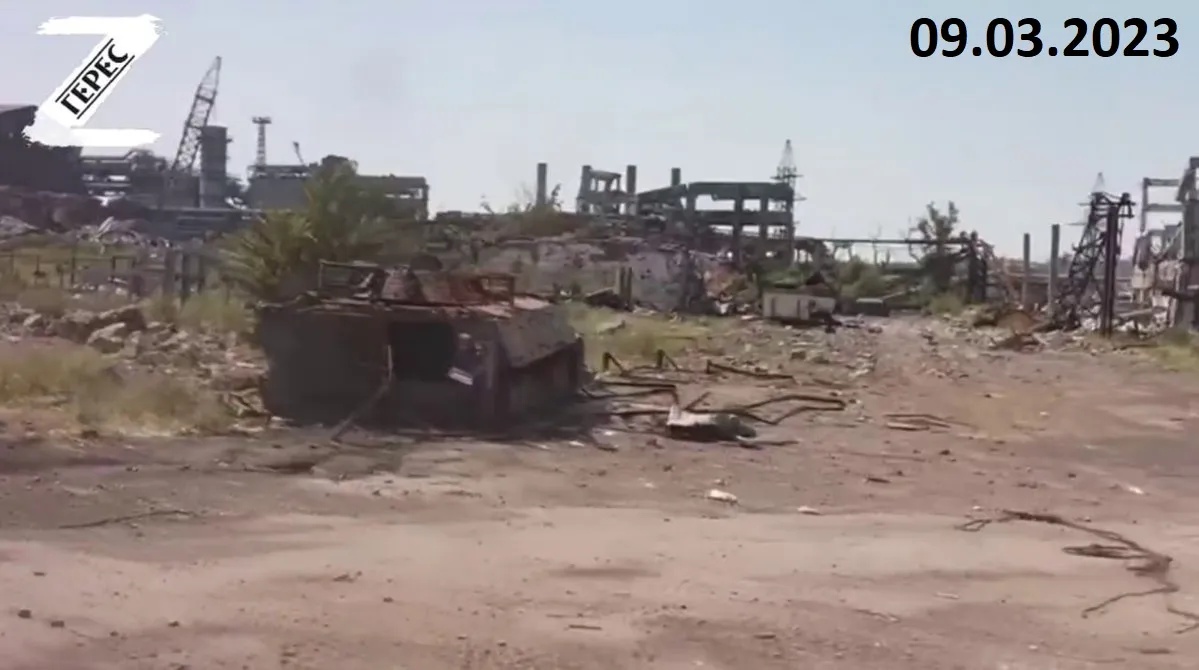

MT-LB with 14.5 mm BPU-1 turret, Improvised tracked armored fire-support vehicle, Armored Vehicles - view 2
Source: Commons Soviet MT-LB Image
