Air Defense

MT-LB with 14.5 mm 2M-7 naval gun mount

Also known as
  • MT-LB 2M-7
  • MT-LB with 2M-7 naval turret
  • MT-LB with 14.5mm 2M-7 naval gun mount
  • MT-LB with twin KPV naval mount
  • MT-LB with twin 14.5 mm KPV

The MT-LB with 14.5 mm 2M-7 naval gun mount is a Russian improvised fire-support and short-range air-defense conversion that combines the Soviet MT-LB tracked carrier with an over-under twin KPV naval machine-gun mount. Public evidence ties the configuration to the 2014 Russia-Ukraine War through a captured example near Vuhledar and Oryx's visually documented Russian equipment loss list.

MT-LB with 14.5 mm 2M-7 naval gun mount, Improvised tracked self-propelled heavy machine-gun carrier, Air Defense
Image source: 2M-7 14.5 mm Jelenia Gora

Role in Conflicts

Conversion Pattern

The 2M-7 conversion is best read as a field expedient: a stored naval machine-gun mount is placed on a ubiquitous tracked carrier to add heavy automatic fire where purpose-built armored vehicles are scarce.

Gun mount

NavWeaps identifies the 2M-7 as a Soviet/Russian twin 14.5 mm naval mount for patrol boats, with manual 360-degree train and elevation from -10 to +85 degrees.

Land adaptation

The Armourers Bench ties the MT-LB installation to Russian wartime adaptations seen in Ukraine, including a Vuhledar example captured by Ukrainian troops.

Evidence limit

Open sources found for this pass document at least one captured Russian example rather than a standardized production run or confirmed Ukrainian operational reuse.

Profile / Specs

Profile

Origin
Soviet Union components; Russian field conversion
Type
Improvised tracked self-propelled heavy machine-gun carrier
Service note
Cold War naval mount adapted during the 2022 full-scale Russia-Ukraine War
Designer
MT-LB by Soviet vehicle designers; KPV by S. V. Vladimirov; 2M-7 naval mount adapted by Russian forces
Designed
MT-LB from the 1960s; 2M-7 development began in 1947; MT-LB conversion documented in 2023
Produced
Field conversion of existing MT-LB chassis and stored 2M-7 naval mounts

Specifications

Armament
Twin 14.5 x 114 mm KPV heavy machine guns in a 2M-7 naval mount
Base vehicle
MT-LB multipurpose tracked armored carrier
Mount weight
About 600 kg without ammunition for the 2M-7 twin mount
Mount traverse and elevation
360-degree manual train with approximately -10 to +85 degrees elevation
Rate of fire
NavWeaps lists about 600 rounds per minute cyclic and 150 rounds per minute practical for the 14.5 mm/93 2M-7
Effective range
About 2,200 m against surface targets and 2,000 m against air targets with AP-I ammunition
Mobility
Tracked MT-LB chassis; base MT-LB references list about 60-62 km/h road speed and roughly 500 km road range before conversion-specific changes
Protection
Light MT-LB armor with the naval mount and gunner position exposed compared with purpose-built turreted air-defense vehicles
Variants

The record covers the 2M-7/KPV conversion as one member of the broader wartime pattern of fitting naval or anti-aircraft weapons to MT-LB hulls.

VariantConfigurationDesignation notes
Vuhledar captured exampleCaptured Russian conversion

The Armourers Bench identifies the February 2023 Vuhledar vehicle as a Russian MT-LB fitted with a 2M-7 naval turret carrying two 14.5 mm KPV heavy machine guns.

Sources: The Armourers Bench Adapted MT-LBs

MT-LB with 2M-7 naval mountGeneric loss-list designation

Oryx tracks the system as an MT-LB with a 14.5 mm 2M-7 naval gun mount and records one captured Russian example.

Sources: Oryx Russian Equipment Losses In Ukraine

Base Chassis And Related MT-LB Conversions

This vehicle belongs to the wartime family of MT-LB chassis adapted into improvised gun carriers rather than to a standardized factory self-propelled anti-aircraft gun line.

Compatible itemItem typeCompatibility evidence
MT-LB, Amphibious tracked armored personnel carrier and artillery tractor, Armored VehiclesMT-LBTracked armored carrier chassis

The conversion uses the MT-LB as its base tracked armored carrier, the same chassis family widely adapted with other weapons in Ukraine.

Sources: MT-LB, The Armourers Bench Adapted MT-LBs

MT-LB with ZU-23 anti-aircraft gun, Improvised tracked self-propelled anti-aircraft gun, Air DefenseMT-LB with ZU-23 anti-aircraft gunTracked 23 mm gun conversion

The ZU-23 conversion is another cataloged example of the MT-LB chassis being used as an improvised anti-aircraft and direct-fire platform.

Sources: The Armourers Bench Adapted MT-LBs

MT-LB with Zastava M55 anti-aircraft gun, Tracked self-propelled anti-aircraft gun conversion, Air DefenseMT-LB with Zastava M55 anti-aircraft gunTracked 20 mm gun conversion

The Zastava M55 conversion shows the same broad pattern of mounting legacy anti-aircraft guns on MT-LB hulls for mobile short-range fire support.

Sources: The Armourers Bench Adapted MT-LBs

Why the conversion stands out

Unlike standard MT-LB armament, the 2M-7 brings a shipboard twin KPV mount with manual traverse and high elevation onto a lightly armored land chassis, creating a vehicle that is visually distinctive but still constrained by exposed manual aiming and limited fire-control equipment.

Sources: NavWeaps 2M-7, The Armourers Bench Adapted MT-LBs

Timeline

MT-LB with 14.5 mm 2M-7 naval gun mount Key Events

  1. 2M-7 development begins

    Tank Encyclopedia describes the 2M-7 as a twin-barrel naval pedestal mount for the 14.5 mm KPV heavy machine gun, with development starting in September 1947.

    Sources: Tank Encyclopedia KPV

  2. 2M-7 accepted for naval service

    Tank Encyclopedia places the 2M-7's official Soviet naval acceptance in August 1951 after factory and navy testing.

    Sources: Tank Encyclopedia KPV

  3. Vuhledar capture appears publicly

    The Armourers Bench reports that Ukrainian troops shared video of a Russian MT-LB captured near Vuhledar with a 2M-7 naval turret and twin 14.5 mm KPV guns.

    Sources: The Armourers Bench Adapted MT-LBs

Media

MT-LB with 14.5 mm 2M-7 naval gun mount Videos

MT-LB with 14.5 mm 2M-7 naval gun mount Images

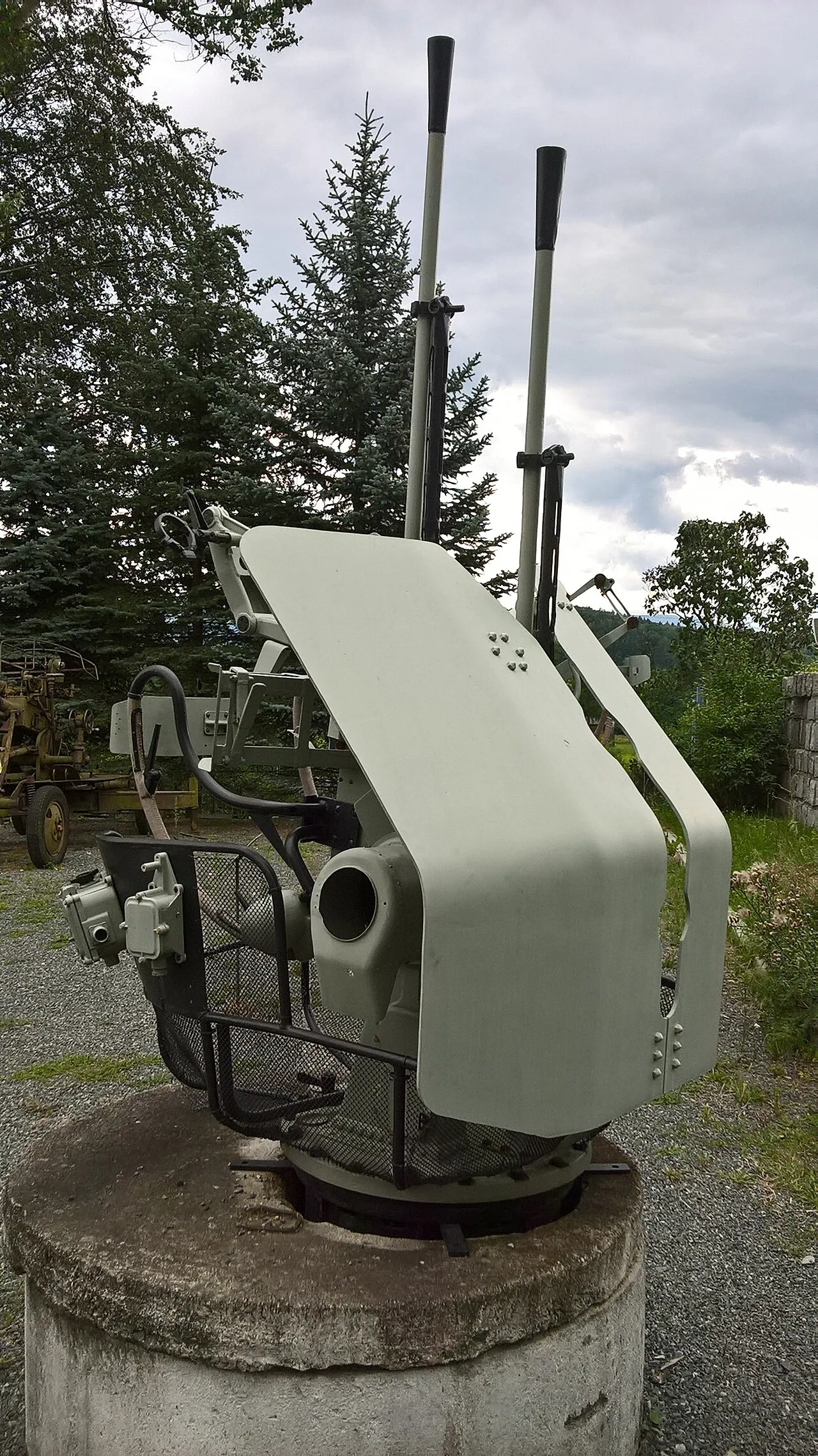

MT-LB with 14.5 mm 2M-7 naval gun mount, Improvised tracked self-propelled heavy machine-gun carrier, Air Defense - view 1
Source: Skarzysko 2M-7 01

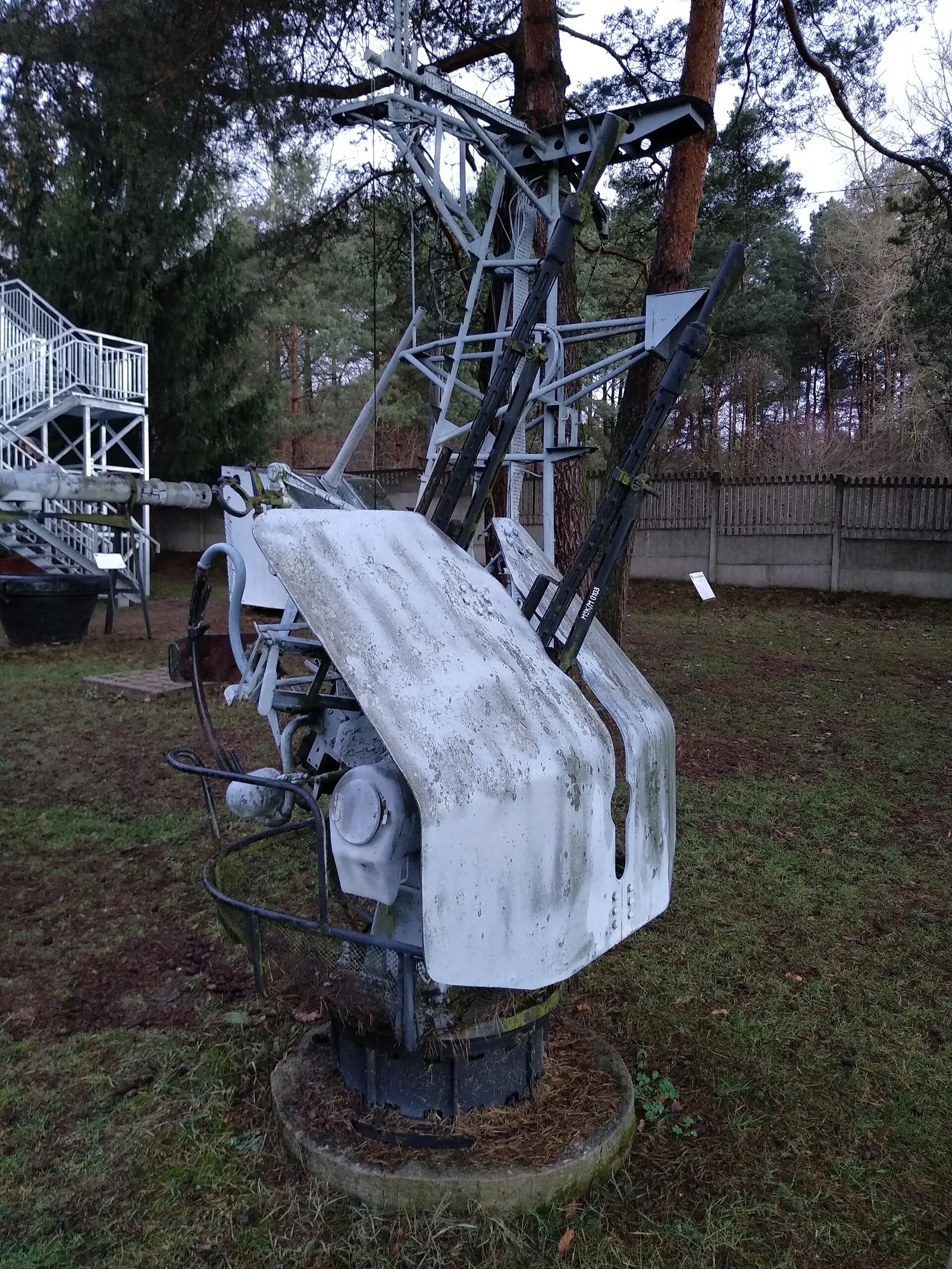

MT-LB with 14.5 mm 2M-7 naval gun mount, Improvised tracked self-propelled heavy machine-gun carrier, Air Defense - view 2
Source: Soviet MT-LB
