The Ground Master 200 is a Thales mobile medium-range radar family used for air surveillance, air-defense cueing, and, in newer Multi Mission variants, counter-battery and weapon-locating tasks. France supplied GM200 radars to Ukraine for air-defense surveillance during the 2014 Russia-Ukraine War, while European operators have adopted the later MM/A and MM/C configurations for ground-based air defense and artillery support.

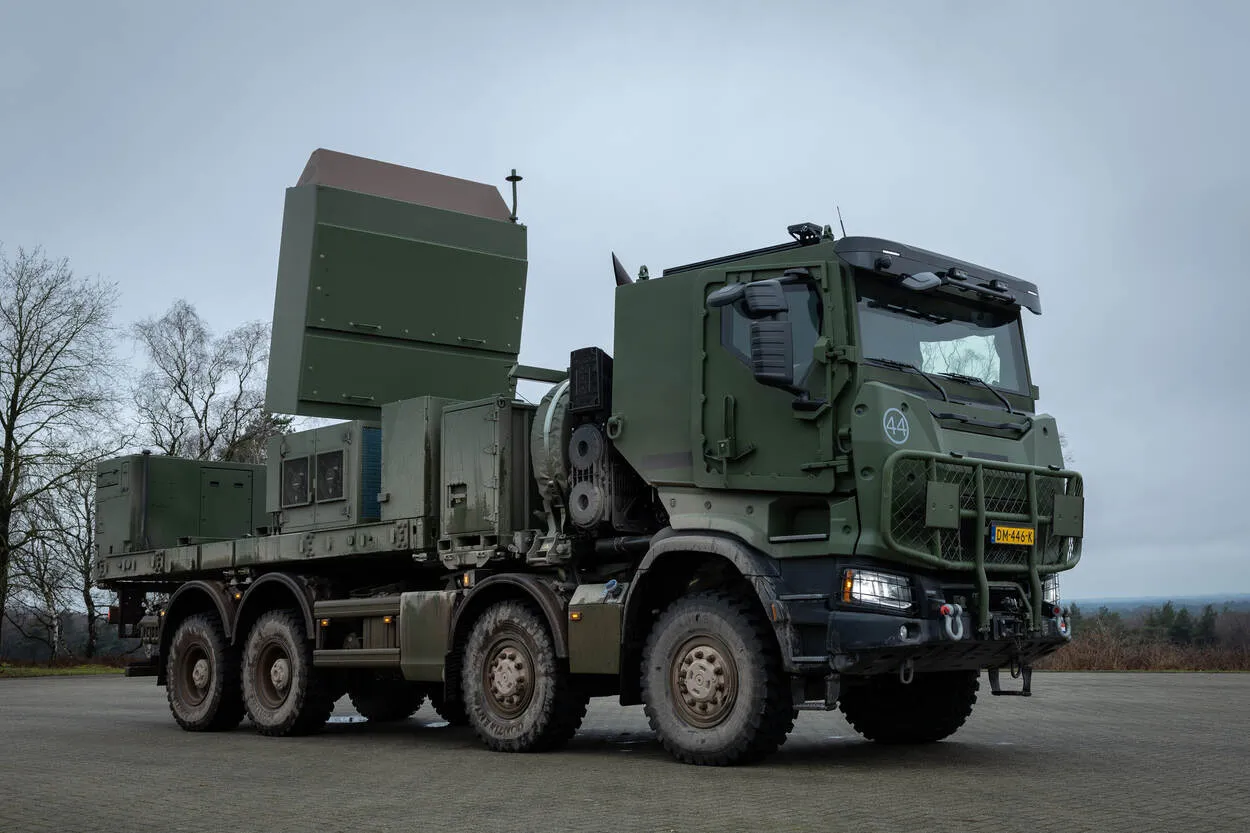

Ground Master 200, Mobile medium-range air-surveillance radar, Air Defense
Image source: File:Thales Ground Master GM200 ILA-2018.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
France
Built by
Thales
Type
Mobile medium-range air-surveillance radar
Service note
Introduced in the late 2000s; documented in Ukrainian air-defense support during the full-scale phase of the 2014 Russia-Ukraine War
Designer
Thales
Designed
Ground Master 200 introduced in 2008; Multi Mission variants introduced from the late 2010s
Produced
2008-present
Number built
More than 30 Ground Master 200 family radars sold by 2024 according to Thales reporting cited by specialist coverage

Specifications

Radar class
Mobile medium-range air-surveillance and air-defense radar family
Original GM200 radar band
S-band phased-array radar
Original GM200 range
250 km surveillance mode; 100 km engagement mode
Original GM200 ceiling
Up to 80,000 ft
Original GM200 coverage
360-degree azimuth coverage with 70-degree elevation coverage
Original GM200 mobility
20 ft ISO shelter under 9 tonnes; transportable by road, rail, and C-130-class tactical aircraft
Original GM200 deployment
Installed in 15 minutes or less in the data sheet; AP reports 15-minute deployment and 10-minute relocation language from Thales
GM200 MM/C range
Up to about 300 km in Dutch Ministry reporting; specialist radar references list up to 400 km instrumented air-surveillance range and 100 km weapon-locating range
Target set
Aircraft, helicopters, UAVs, cruise missiles, rockets, artillery, and mortar threats
Multi Mission architecture
4D AESA, dual-axis multi-beam, software-defined radar in Thales GM200 MM/C reporting
Radar Family Context

The Ground Master 200 is best read as a radar family rather than one fixed configuration. The original GM200 is a mobile air-defense sensor; the later GM200 Multi Mission line adds all-in-one and compact variants for air surveillance, ground-based air defense, counter-battery work, and weapon locating.

Original GM200

S-band phased-array radar with 250 km surveillance and 100 km engagement figures in the older ThalesRaytheonSystems data sheet.

MM/A

All-in-one Multi Mission variant for air surveillance and ground-based air defense missions.

MM/C

Compact Multi Mission variant used for counter-battery, weapon locating, VSHORAD, SHORAD, and air-defense tasks.

Variants

Ground Master 200 sources distinguish the original GM200 from the later GM200 Multi Mission family; range, packaging, and mission claims differ by variant.

VariantConfigurationDesignation notes
GM200Original medium-range tactical air-defense radar

The older ThalesRaytheonSystems data sheet describes the GM200 as an S-band phased-array radar with 250 km surveillance range and 100 km engagement range, packaged in a 20 ft ISO shelter.

Sources: Ground Master 200 Data Sheet

GM200 MM/AMulti Mission all-in-one air-surveillance and ground-based air-defense radar

Thales describes the MM/A as the all-in-one member of the GM200 Multi Mission family, while the Norway-Netherlands release separates it from the compact MM/C configuration.

Sources: Norway and Netherlands Partner on GM200 MM/C, Ground Master 200 MM/A - Thales YouTube

GM200 MM/CCompact multi-mission radar for counter-battery, weapon locating, and air-defense tasks

Thales and Dutch sources describe the MM/C as a compact radar suited to counter-battery and weapon-locating work as well as VSHORAD, SHORAD, and air-defense surveillance missions.

Sources: Norway and Netherlands Partner on GM200 MM/C, Dutch Ministry New Radar for Artillery and Air Defence, Thales Lithuania GM200 MM/C Release

Timeline

Ground Master 200 Key Events

  1. Ground Master 200 introduced

    Open Thales and specialist reporting identifies 2008 as the introduction period for the Ground Master 200 medium-range radar family.

    Sources: Ground Master 200 Data Sheet

  2. Norway and the Netherlands partner on GM200 MM/C

    Thales announced a Norway-Netherlands partnership around the GM200 MM/C, describing it as a 4D AESA multi-mission radar for UAV, RAM, missile, aircraft, and helicopter threats.

    Sources: Norway and Netherlands Partner on GM200 MM/C

  3. Ukraine GM200 agreement signed at Limours

    The French and Ukrainian defence ministers signed an agreement for a GM200 radar at Thales's Limours site, and AP reported the radar as a French-supplied improvement to Ukraine's air-defense radar network.

    Sources: French Ministry Ukraine GM200 Purchase, AP Ukraine French Radar Gift

  4. Dutch GM200 MM/C presented for artillery and air defense

    The Netherlands Ministry of Defence presented the GM200 MM/C for artillery and air-defense missions, describing rapid operation, truck integration, and target detection to about 300 km.

    Sources: Dutch Ministry New Radar for Artillery and Air Defence

Media

Ground Master 200 Videos

Ground Master 200 Images

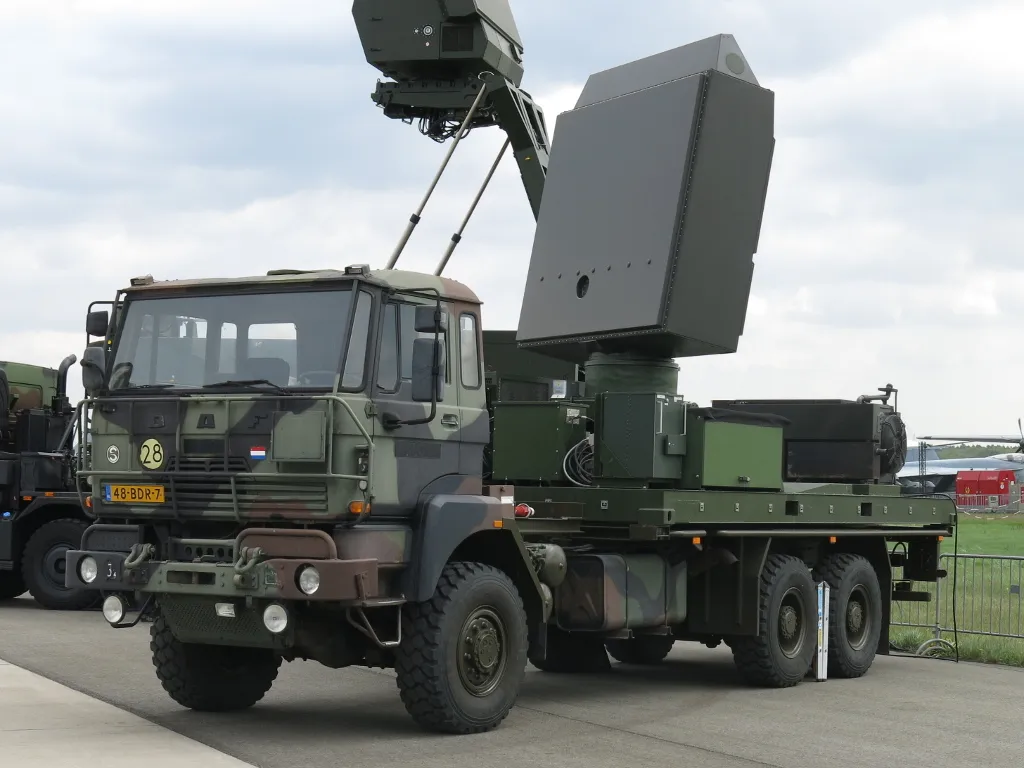

Ground Master 200, Mobile medium-range air-surveillance radar, Air Defense - view 1
Source: File:Thales GM200 MM-C at ILA-2018.jpg

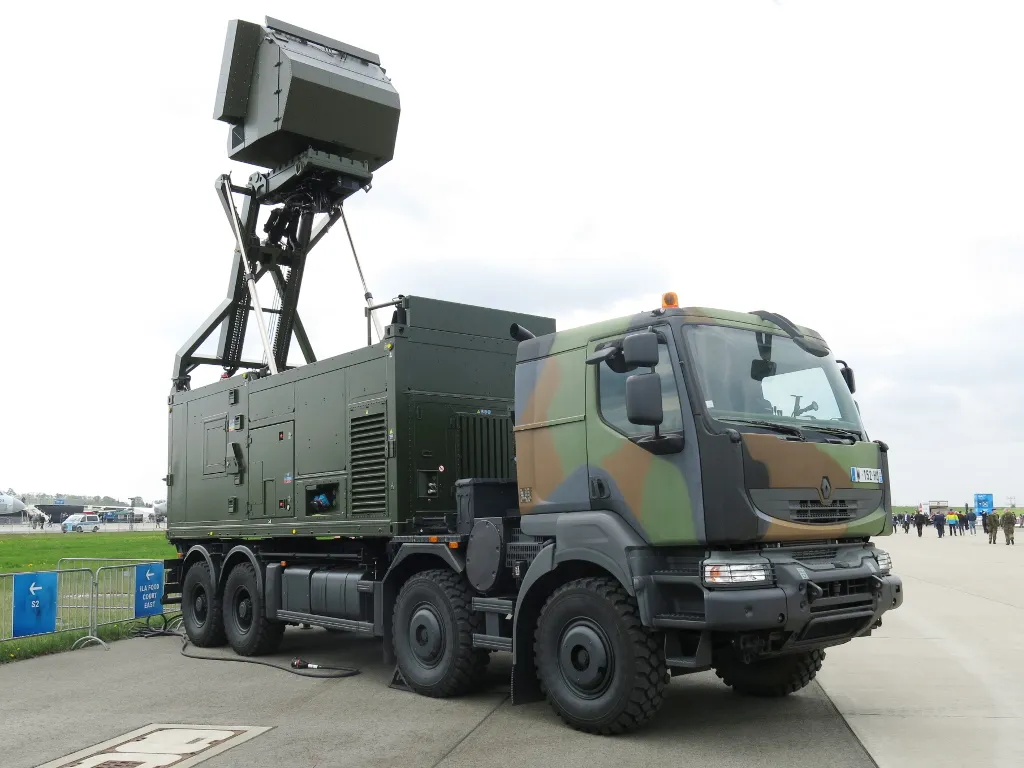

Ground Master 200, Mobile medium-range air-surveillance radar, Air Defense - view 2
Source: File:Ground Master 200 Multi Mission Compact Gyraphus 8x8 armoured.jpg

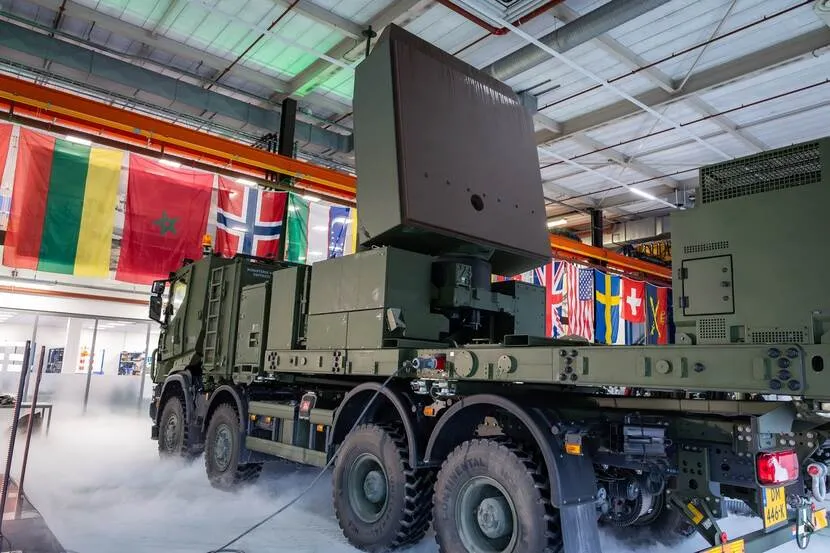

Ground Master 200, Mobile medium-range air-surveillance radar, Air Defense - view 3
Source: File:GM200 MMC Netherlands Army.jpg
