9M37 surface-to-air missile

Also known as
  • 9M37
  • 9M37 missile
  • 9M37 SAM
  • Strela-10 missile
  • SA-13 missile

The 9M37 is the original Soviet short-range surface-to-air missile for the 9K35 Strela-10 family, carried in launch containers on tracked Strela-10 combat vehicles for low-altitude air-defense work. It paired infrared and photocontrast homing with a solid-fuel motor, and later 9M37M/MD and 9M333 missiles extended the same launcher-missile family.

Profile / Specs

Profile

Origin
Soviet Union
Type
Short-range surface-to-air missile
Service note
Introduced in 1976
Designer
OKB-16 Moscow; chief designer O. Nudelman
Designed
Development began in 1969; Strela-10 entered service in 1976
Unit cost
Not publicly reported
Produced
From 1976; 9M37-series missile production associated with Kovrov Mechanical Plant
Number built
Not publicly reported

Specifications

Length
About 2.19 m
Diameter
About 0.12 m
Wingspan
About 0.36 to 0.40 m
Mass
About 40 kg for the missile; Czech MoD system data lists 55 kg for its missile entry
Warhead
About 3 kg in missile-specific technical tables; Czech MoD system data lists a 6 kg high-explosive fragmentation warhead
Guidance
9E47 optical/infrared seeker family with photocontrast and infrared channels
Fuze
Impact and proximity fuze family
Speed
About 517 m/s in technical tables; commonly described as about Mach 2
Engagement range
About 0.8 to 5 km target-destruction envelope
Engagement altitude
About 25 m to 3.5 km for 9M37/9M37M-class data
Compatible launcher
9K35 Strela-10 tracked launcher family
Ready rounds
Four missiles on the launcher, with reloads carried in the vehicle
Variants

The 9M37 designation covers the original Strela-10 missile line; public sources distinguish the improved 9M37M/MD rounds from the later 9M333 missile, which remains a related Strela-10 munition rather than the original model.

VariantConfigurationDesignation notes
9M37MImproved 9M37-series missile

Defense-reference sources describe the 9M37M as an improved 9M37 round with seeker and autopilot refinements while retaining the same basic Strela-10 launcher family.

Sources: Weaponsystems.net Strela-10, Missilery Strela-10M3

9M37MDHeavier-warhead 9M37M development

Weaponsystems.net describes the 9M37MD as a 9M37M missile fitted with a heavier and more capable warhead.

Sources: Weaponsystems.net Strela-10

9M333 guided anti-aircraft missile, Surface-to-air missile, Munitions9M333 guided anti-aircraft missileLater Strela-10 missile family member

Rostec identifies the 9M333 as a missile for 9A34M3 and 9A35M3 Strela-10M3 systems, with a three-mode seeker and improved low-altitude target set.

Sources: Rostec 9M333 State Defense Order

Launcher Compatibility

The 9M37 is a missile round for the 9K35 Strela-10 launcher family rather than a stand-alone weapon.

CarrierCarrier typeCarriage evidence

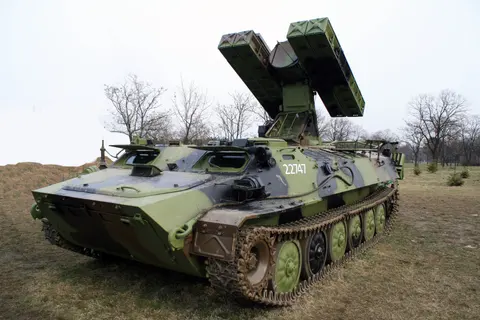

9K35 Strela-10, Tracked short-range surface-to-air missile system, Air Defense9K35 Strela-10Tracked short-range air-defense launcher

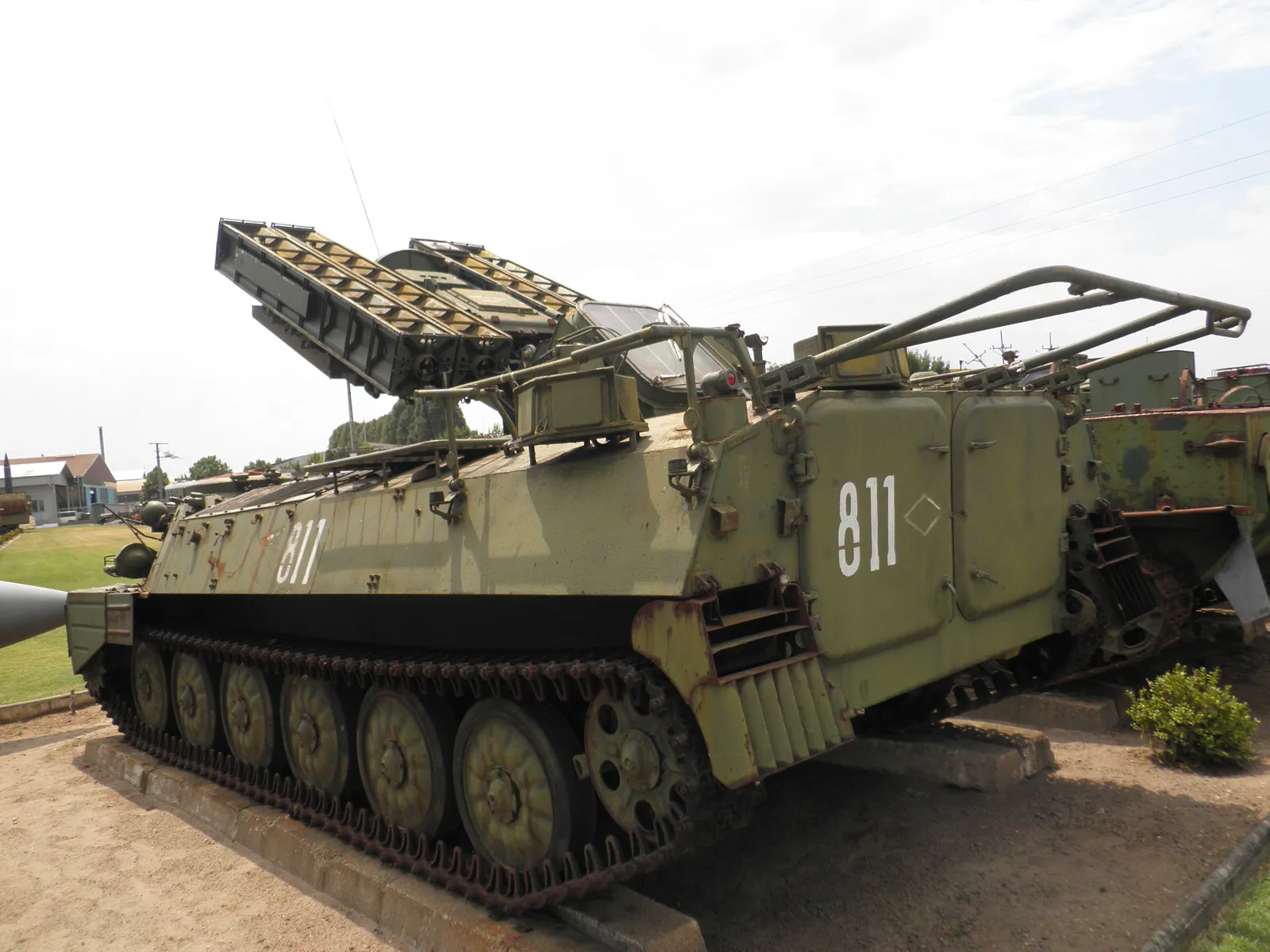

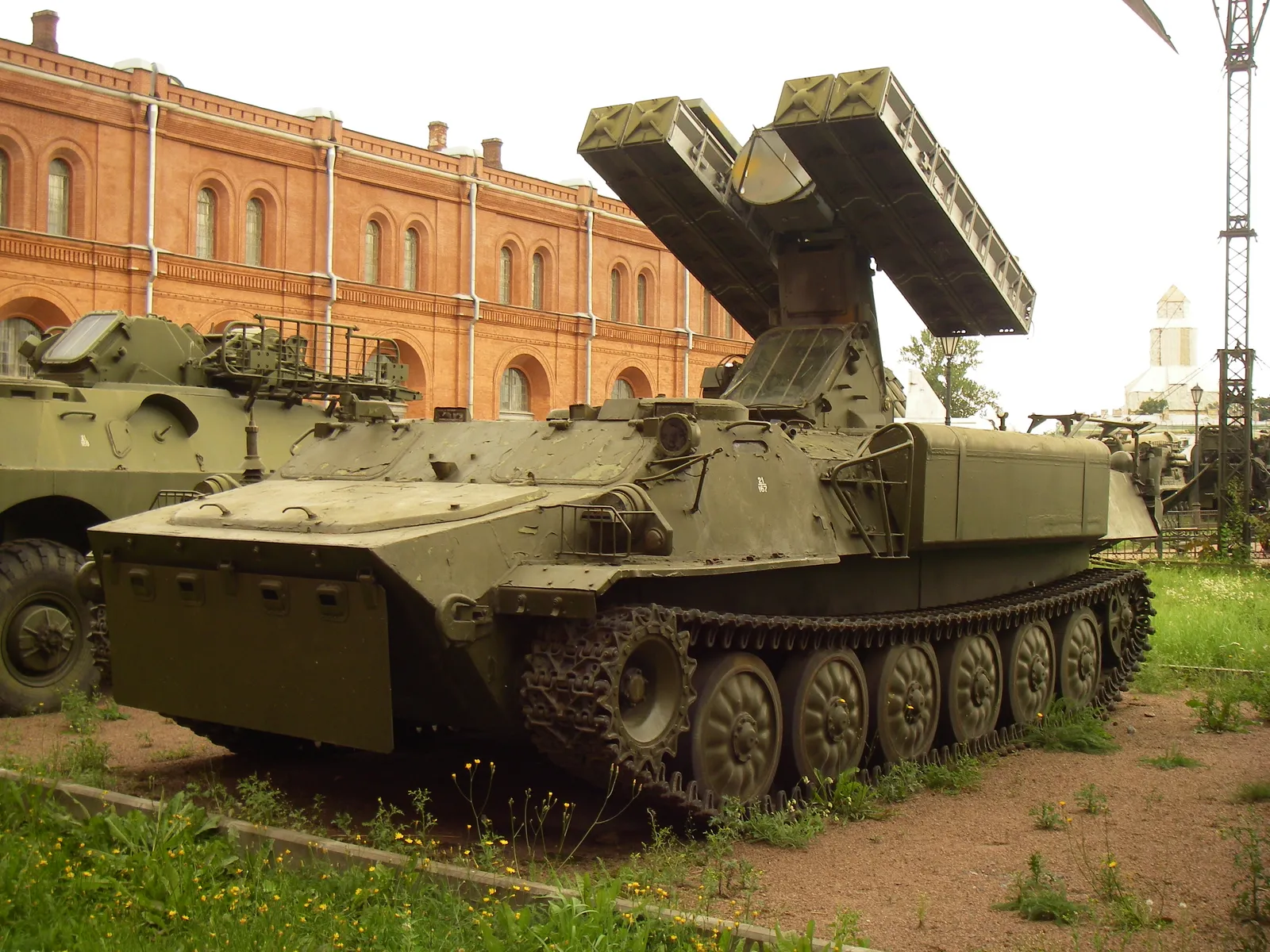

Czech Ministry of Defence and defense-reference sources identify Strela-10 combat vehicles as carrying 9M37 missiles, with four ready rounds on the launcher and additional reloads in the vehicle.

Sources: Czech MoD Strela-10M, Army Recognition SA-13 Gopher 9K35 Strela-10 SAM

Missile Family Notes

The 9M37 page is best read as the original missile component of the Strela-10 system. Public sources differ on some published weights because they mix bare missile, warhead, and containerized-round figures, but they consistently place the missile in the same short-range, low-altitude air-defense role.

Original round

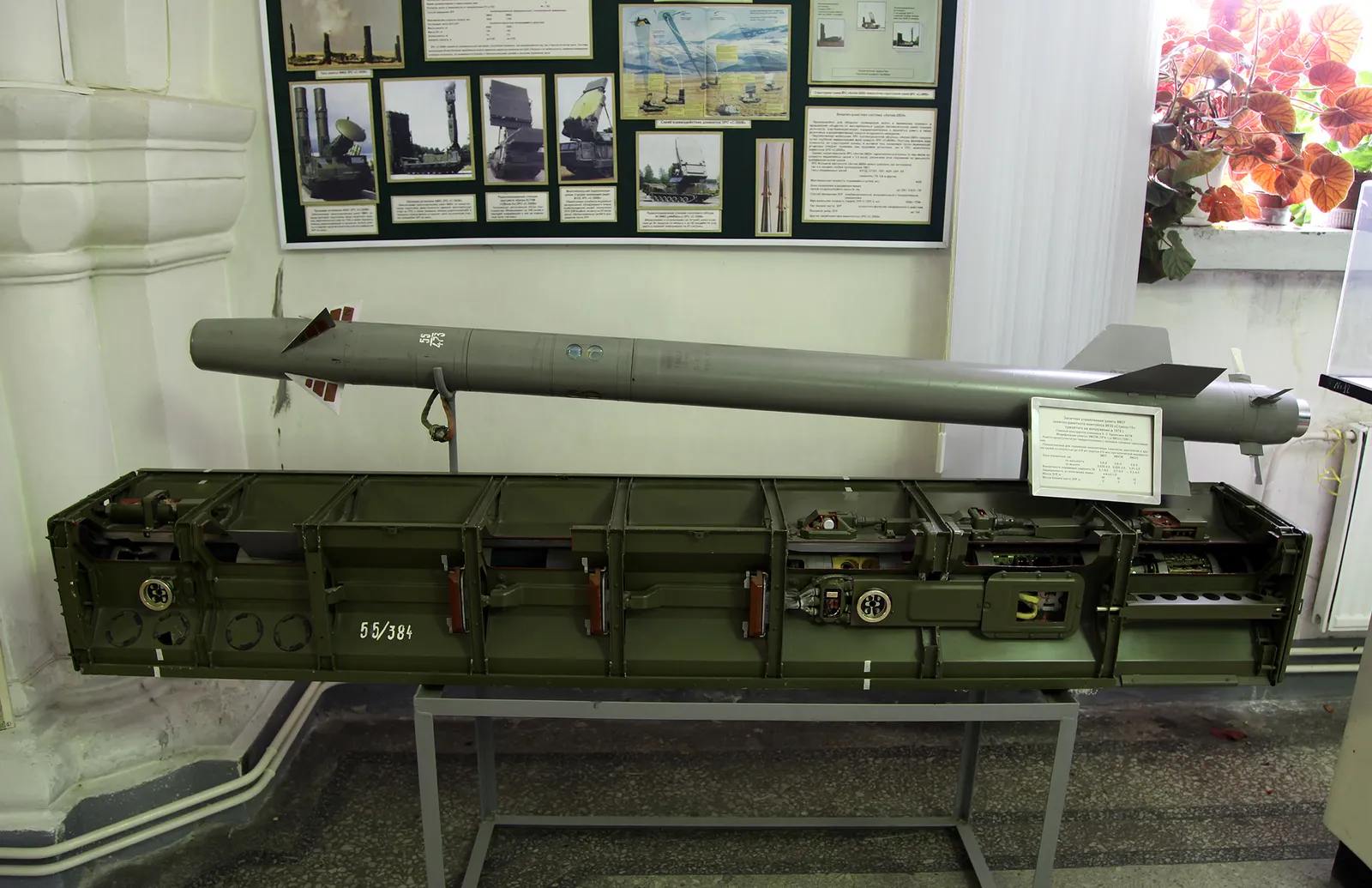

9M37 introduced the larger Strela-10 missile carried in launch containers on tracked 9K35 combat vehicles.

M-series update

9M37M/MD sources describe improved seeker/autopilot behavior and, for MD, a heavier warhead path.

Later family member

9M333 is a separate later missile for Strela-10M3-family combat vehicles.

Sources: Weaponsystems.net Strela-10; Missilery Strela-10M3; Rostec 9M333 State Defense Order.

Timeline

9M37 surface-to-air missile Key Events

  1. Strela-10 development begins

    Ukrainian military-education reference material traces Strela-10 development to 1969 under OKB-16/KB Tochmash design leadership.

    Sources: Strela-10

  2. 9M37 enters the Strela-10 family

    The Strela-10 family entered service in 1976 with the 9M37 missile as its original short-range surface-to-air missile round.

    Sources: Strela-10, Weaponsystems.net Strela-10

  3. 9M37M-series modernization

    Missilery.info lists the 9M37M-equipped Strela-10M2 generation as adopted in 1981 and describes improved target-designation and launch equipment in the M-series system.

    Sources: Missilery Strela-10M3, Air Power Australia Strela-10 Technical Report

  4. 9M333 delivery highlights later family path

    Rostec reported delivery of 9M333 missiles for Strela-10M3 combat vehicles, illustrating the later Russian branch of the Strela-10 missile family.

    Sources: Rostec 9M333 State Defense Order
