9M317 surface-to-air missile

Also known as
  • 9M317 SAM
  • 9M317M
  • 9M317ME

The 9M317 is a Russian medium-range surface-to-air missile family associated with Buk-M1-2, Buk-M2/Buk-M2E, and Shtil-1 derivatives. Public references describe it as a solid-fuel, radar-guided round of about 5.5 meters and 710-715 kilograms, with inertial/radio-corrected midcourse guidance, terminal semi-active radar homing, and an approximately 70-kilogram fragmentation warhead.

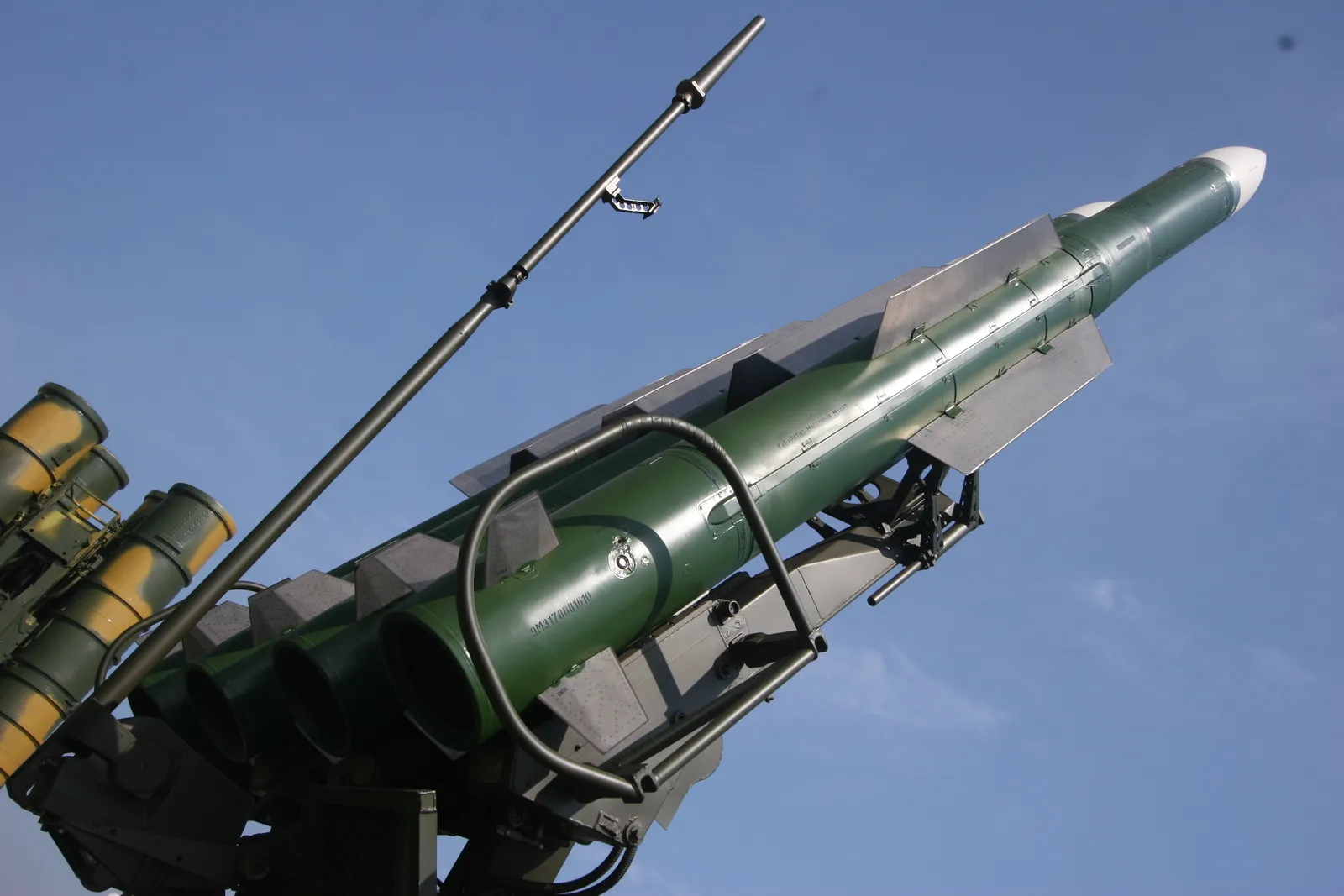

9M317 surface-to-air missile, Medium-range surface-to-air missile, Munitions
Image source: File:9M317 surface-to-air missile of Buk-M2E.jpg
Profile / Specs

Specifications

Length
5.5 m
Launch weight
710-715 kg in open Buk-M2E and 9M317 references
Wingspan
860 mm
Warhead
Up to 70 kg high-explosive or rod-fragmentation warhead with radar proximity and contact fuzing
Propulsion
Solid-fuel, two-mode rocket motor
Guidance
Inertial navigation with radio-correction and terminal semi-active radar homing
Range
3-45 km against aerodynamic targets in Buk-M2E published data; 9M317-family references also list up to 45-50 km
Altitude
0.015-25 km against aerodynamic targets in Buk-M2E published data
Maximum speed
Up to 1,230 m/s in open 9M317-family references
Service life
Missilery.info describes the complete round as requiring no checks or adjustment during a 10-year service life
Variants

9M317E is the export Buk-M2E missile designation, while 9M317M/9M317ME appears in open references as a later naval or vertical-launch branch of the same missile family.

VariantConfigurationDesignation notes
9M317E surface-to-air missile, Export medium-range surface-to-air missile, Munitions9M317E surface-to-air missileExport Buk-M2E missile designation

Army Recognition identifies Buk-M2E TELARs as carrying four ready-to-launch 9M317E missiles, while Army Technology and Missilery.info describe the broader Buk-M2/Buk-M2E family around 9M317 missiles.

Sources: Buk-M2E, Buk-M2E Air Defence Missile System - Army Technology, 9K317 Buk-M2 - Missilery.info

9M317M / 9M317MELater vertical-launch naval branch

Deagel groups 9M317M and 9M317ME under the 9M317 family and distinguishes the M variant as a vertical-launch missile with 50 km listed range.

Sources: 9M317 - Deagel

Launch Platforms

The 9M317 is launched by Buk-family medium-range air defense systems.

LauncherLauncher typeLaunch evidence
Buk-M2, Tracked medium-range surface-to-air missile system, Air DefenseBuk-M2Tracked medium-range surface-to-air missile system

Army Technology says the Buk-M2E system uses 9M317 anti-aircraft-guided missiles, and Missilery.info lists 9M317 missiles among the 9K317 Buk-M2 combat assets.

Sources: Buk-M2E Air Defence Missile System - Army Technology, 9K317 Buk-M2 - Missilery.info

Project 11356R / Admiral Grigorovich-class frigate, Guided-missile frigate, Naval SystemsProject 11356R / Admiral Grigorovich-class frigateShtil-1 vertical-launch naval platform

Deagel groups 9M317M/ME with the 9M317 family and shows Admiral Grigorovich firing 9M317M missiles, matching the class's Shtil-1 air-defense context.

Sources: 9M317 - Deagel

Launcher And Designation Notes

The 9M317 family is easiest to read by separating the missile designation from the launch systems that public sources usually describe.

Designation or contextDocumented connectionReader note
9M317Missilery.info lists 9M317 anti-aircraft guided missiles as part of the 9K317 Buk-M2 complex and describes their inertial/radio-corrected, semi-active-radar terminal guidance.Use 9M317 as the baseline land-system missile-family designation.
9M317EArmy Recognition identifies Buk-M2E TELARs as carrying four ready-to-launch 9M317E missiles.The E suffix marks the export Buk-M2E missile designation.
9M317M / 9M317MEDeagel groups the M and ME designations under the 9M317 family and describes the M branch as a vertical-launch missile.The M/ME branch is a later naval or vertical-launch reference, not the same designation as 9M317E.
Buk-M2 and Shtil-1 launch contextsArmy Technology, Missilery.info, and Deagel document the missile family through the land-based Buk-M2/Buk-M2E and naval Shtil-1 contexts.The linked platform pages carry their own service and conflict evidence; this missile page focuses on directly sourced missile relationships.

Sources: Buk-M2E Air Defence Missile System - Army Technology; Buk-M2E; 9K317 Buk-M2 - Missilery.info; 9M317 - Deagel.

Timeline

9M317 surface-to-air missile Key Events

  1. Buk-M2 design work completed

    Army Technology says the Buk-M2E system design process was completed in 1988 before later production and export activity.

    Sources: Buk-M2E Air Defence Missile System - Army Technology

  2. 9M317 family listed in service

    Deagel places 9M317 family introduction in 2003 and describes the family as solid-propellant, medium-range surface-to-air missiles.

    Sources: 9M317 - Deagel

  3. Buk-M2E export system shown

    Missilery.info describes the Buk-M2E export variant as first presented at MAKS-2007 and tied to the 9M317 missile family.

    Sources: 9K317 Buk-M2 - Missilery.info

  4. Buk-M2 production context

    Missilery.info says Ulyanovsk Mechanical Plant began serial production of the modern 9K317 Buk-M2 complex in 2008, while Army Technology identifies 2008 Russian Army service for Buk-M2.

    Sources: 9K317 Buk-M2 - Missilery.info, Buk-M2E Air Defence Missile System - Army Technology

  5. Naval 9M317M firing reference

    Deagel's 9M317 media references identify Admiral Grigorovich firing 9M317M surface-to-air missiles, illustrating the later naval branch of the family.

    Sources: 9M317 - Deagel

Media

9M317 surface-to-air missile Images

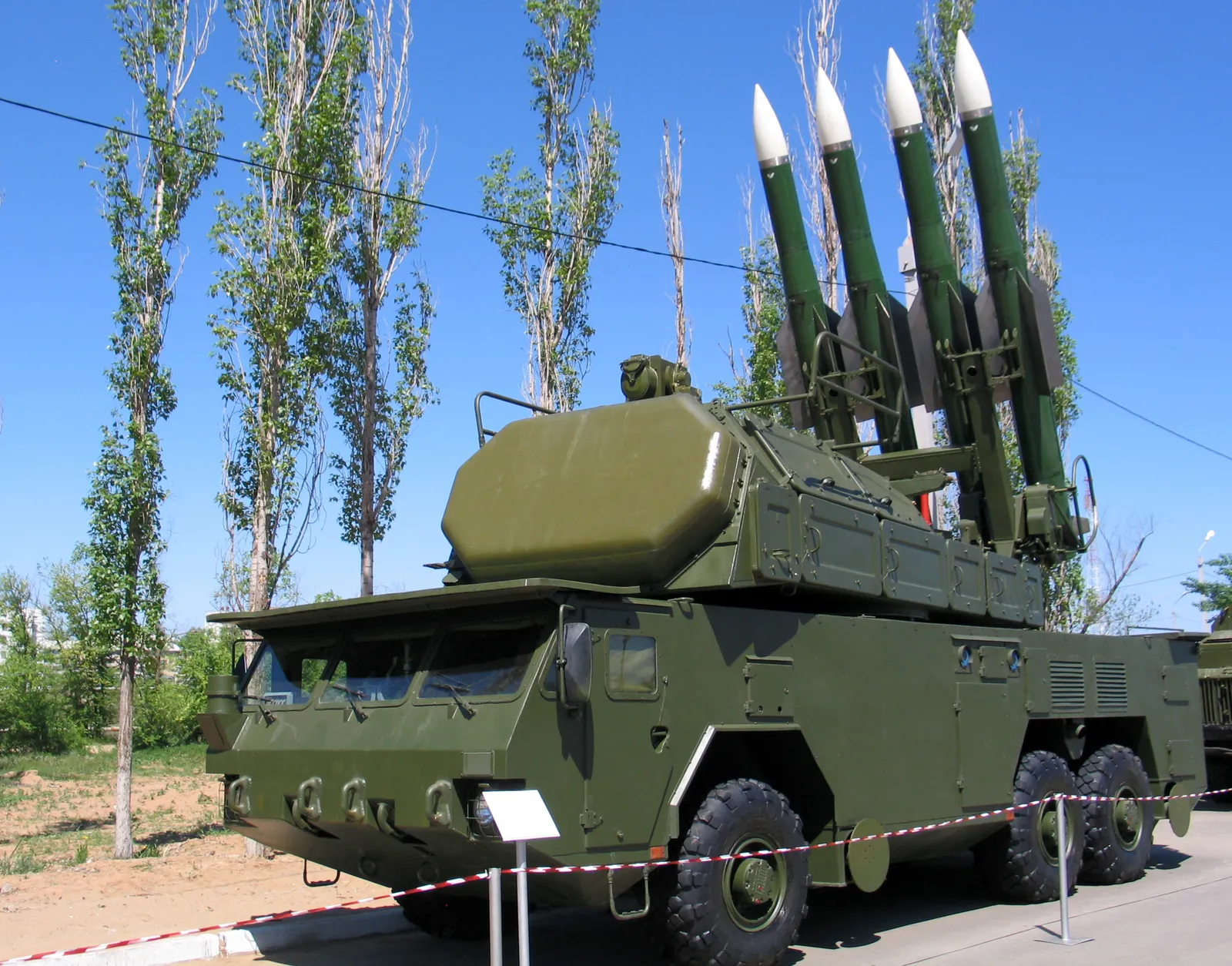

9M317 surface-to-air missile, Medium-range surface-to-air missile, Munitions - view 1
Source: File:Buk-m2 ky.jpg
