Infantry Weapons

20mm GIAT M621 autocannon

Also known as
  • M621
  • 20M621
  • 20 M621
  • GIAT M621
  • Nexter M621
  • KNDS 20M621
  • Canon 20mm M621

The GIAT M621, now marketed by KNDS France as the 20M621, is a compact French 20x102 mm autocannon used as the gun core for light vehicle, helicopter, aircraft-pod, and naval mounts. Official KNDS material describes it as a gas-operated cannon with electrical priming, 250 daN recoil, 49 kg weapon weight, and integration across SH20, NC621, THL20, Narwhal, P20, and ARX20 mount families.

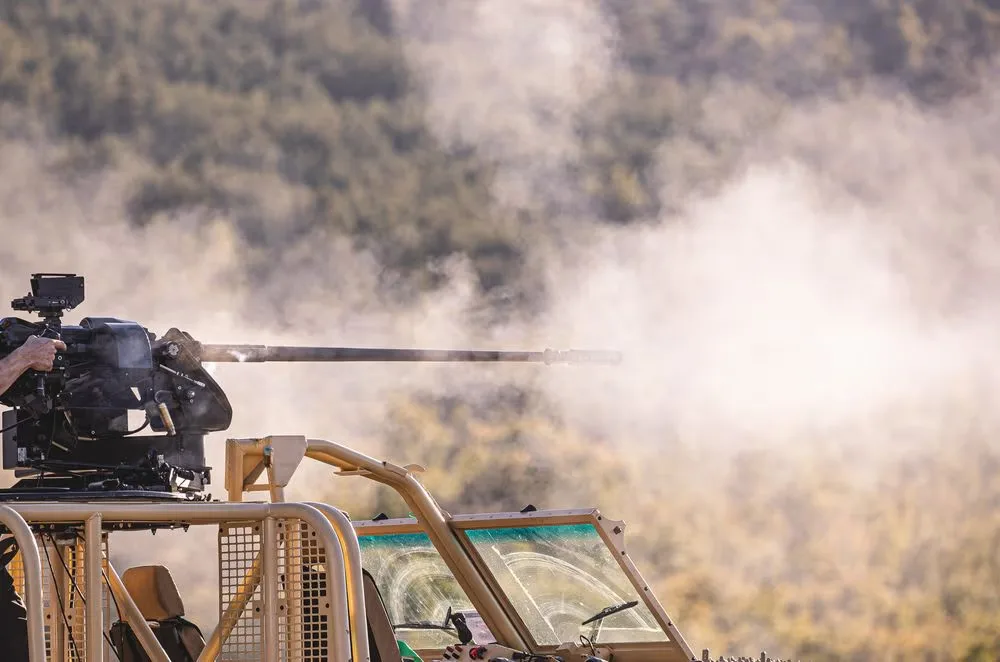

20mm GIAT M621 autocannon, French 20x102 mm gas-operated autocannon, Infantry Weapons
Image source: 20M621 | KNDS Group
Profile / Specs

Profile

Origin
France
Type
French 20x102 mm gas-operated autocannon
Service note
Modern
Designer
GIAT Industries / KNDS France
Produced
In production under KNDS France
Developed into
20mm GIAT M693 autocannon

Specifications

Caliber
20x102 mm NATO
Operation
Gas operated
Firing modes
Single round, limited burst, and unlimited burst
Priming
Electrical
Feed
Simple feed
Weapon weight
49 kg
Length
2.228 m
Rate of fire
Approximately 750 rounds per minute in KNDS mount literature
Average recoil force
250 daN
Recocking
Manual, with remote recocking optional
Effective range
Up to 2,000 m in KNDS 20M621 and mount literature
Ammunition family
HEI, armor-piercing, tracer, and training rounds are listed across KNDS 20M621 and 20x102 mm materials
Known KNDS mounts
SH20, NC621, THL20, Narwhal, P20, and ARX20
Variants

Public sources describe the M621/20M621 primarily by the mounts built around the gun rather than by separate gun variants.

VariantConfigurationDesignation notes
THL20Under-cabin helicopter turret

KNDS describes THL20 as a helicopter turret developed around the 20 M621 cannon and qualified or integrated on IAR 330, Indian ALH/LCH, and Black Hawk platforms.

Sources: THL20 | KNDS Group

20 mm gun pod, Aircraft gun pod, MunitionsNC621Aircraft gun pod

KNDS says the NC621 pod is developed around the 20M621 cannon, carries 180 rounds, and uses 20x102 mm NATO ammunition for helicopter and light-aircraft applications.

Sources: NC621 | KNDS Group

P20Manual vehicle pintle or ring mount

KNDS identifies P20 as a light-vehicle armament using the 20M621 gas-reloaded gun and 20x102 mm NATO ammunition.

Sources: P20 | KNDS Group

ARX20Land remote weapon station

KNDS lists ARX20 with an available 20M621 20x102 mm NATO configuration, 250 daN average recoil, and day/night stabilized remote operation.

Sources: ARX20 | KNDS Group

Narwhal 20 mm remote-controlled turret, 20 mm naval remote weapon station, Naval SystemsNarwhal 20ANaval remote weapon station configuration

KNDS 20x102 mm ammunition material says the family is qualified on 20M621 mounted on Narwhal, while MBDA describes Narwhal's 20M621 gun in the remote naval turret context.

Sources: 20x102MM | KNDS Group, Euronaval 2022 Narwhal Akeron MP | MBDA

20mm GIAT M693 autocannon, French 20 mm autocannon chambered for 20x139mm NATO rounds, Infantry WeaponsM693Larger 20x139 mm related gun family

Weaponsystems.net describes the M693 as based on the earlier M621 autocannon while changing to 20x139 mm NATO ammunition.

Sources: Weaponsystems.net 20mm Giat M693

Mounts And Related Systems

The M621 page is a component record for the gun. Existing catalog pages below cover sourced mounts or related cannon families rather than independent conflict use by the bare gun.

Compatible itemItem typeCompatibility evidence
20 mm gun pod, Aircraft gun pod, Munitions20 mm gun podAircraft gun pod

The NC621 pod is built around the 20M621 cannon, uses 20x102 mm NATO ammunition, and carries 180 rounds for helicopter, light-aircraft, and drone-compatible applications.

Sources: NC621 | KNDS Group

Narwhal 20 mm remote-controlled turret, 20 mm naval remote weapon station, Naval SystemsNarwhal 20 mm remote-controlled turretNaval remote weapon station

Narwhal's 20A ammunition standard uses the 20M621/20x102 mm combination, while the existing Narwhal catalog record covers the complete remotely operated naval turret family.

Sources: 20x102MM | KNDS Group, Euronaval 2022 Narwhal Akeron MP | MBDA

20mm GIAT M693 autocannon, French 20 mm autocannon chambered for 20x139mm NATO rounds, Infantry Weapons20mm GIAT M693 autocannonRelated 20 mm autocannon family

The M693 record covers the larger 20x139 mm family that specialist references trace back to the earlier M621 design.

Sources: Weaponsystems.net 20mm Giat M693

Why this is a component page

Official and specialist sources support the gun's specifications, mount families, and relationship to existing catalog entries, but this research pass did not find direct evidence for a named-conflict use row for the M621 gun itself.

Sources: 20M621 | KNDS Group, Rafale Mirage Tiger airborne medium-caliber release | KNDS Group

Mount Family Context

The 20M621 is best read as a gun core used across several KNDS France installations rather than as a standalone vehicle or turret. KNDS names six mount families built around it: SH20, NC621, THL20, Narwhal, P20, and ARX20.

Aircraft and helicopter use

KNDS ties the 20M621 to THL20 under-cabin turrets, NC621 pods, and SH20 door mounts, with public product pages giving 20x102 mm ammunition and low-recoil integration context.

Land and naval use

P20 and ARX20 adapt the gun to vehicle mounts, while Narwhal 20A adapts the 20M621/20x102 mm standard to a naval remote weapon station.

Catalog boundary

Named conflicts belong on the complete mount or platform only when direct sources support that exact weapon-conflict pair. This page therefore links mount families without copying Narwhal or aircraft-pod conflict context.

Sources: 20M621 | KNDS Group; THL20 | KNDS Group; NC621 | KNDS Group; P20 | KNDS Group; ARX20 | KNDS Group; 20x102MM | KNDS Group.

Timeline

20mm GIAT M621 autocannon Key Events

  1. ARX20 export-era promotion

    Contemporary specialist coverage described Nexter's ARX20 remote weapon station as a 20M621-armed system intended to bridge the capability gap between 12.7 mm remote stations and heavier 25-30 mm turrets.

    Sources: ARX20 Remotely Controlled Weapon Station | Defense Update

  2. Narwhal missile-kit configuration publicized

    MBDA and Nexter presented an Akeron MP missile kit for Narwhal and described the 20 mm remote turret as effective beyond 2,000 m thanks to its 20M621 gun.

    Sources: Euronaval 2022 Narwhal Akeron MP | MBDA

  3. KNDS highlights airborne 20M621 mount family

    KNDS France described 20M621-based airborne solutions including THL20, the pod-mounted 20M621/NC621 family, and SH20, with production increases for 20 mm mounts.

    Sources: Rafale Mirage Tiger airborne medium-caliber release | KNDS Group

Media

20mm GIAT M621 autocannon Images

20mm GIAT M621 autocannon, French 20x102 mm gas-operated autocannon, Infantry Weapons - view 1
Source: 20M621 | KNDS Group
