Naval Systems

Narwhal 20 mm remote-controlled turret

Also known as
  • NARWHAL
  • NARWHAL20
  • Narwhal 20
  • Narwhal 20A
  • Narwhal 20B
  • Narwhal 20B V1
  • Narwhal 20B V2
  • Narwhal RCWS
  • Narwhal RWS
  • 20 mm Narwhal remote-controlled turret
  • NAval Remote Weapon, Highly Accurate, Lightweight

Narwhal is KNDS France's remotely operated 20 mm naval turret family for close-in ship self-defense and maritime-security roles. Official KNDS and MBDA material describes it as a lightweight day/night system for platforms from small patrol boats to frigates, with 20A and 20B ammunition-standard configurations, more than 180 systems in service, demonstrated Akeron MP missile pods, and a future 30 mm growth direction.

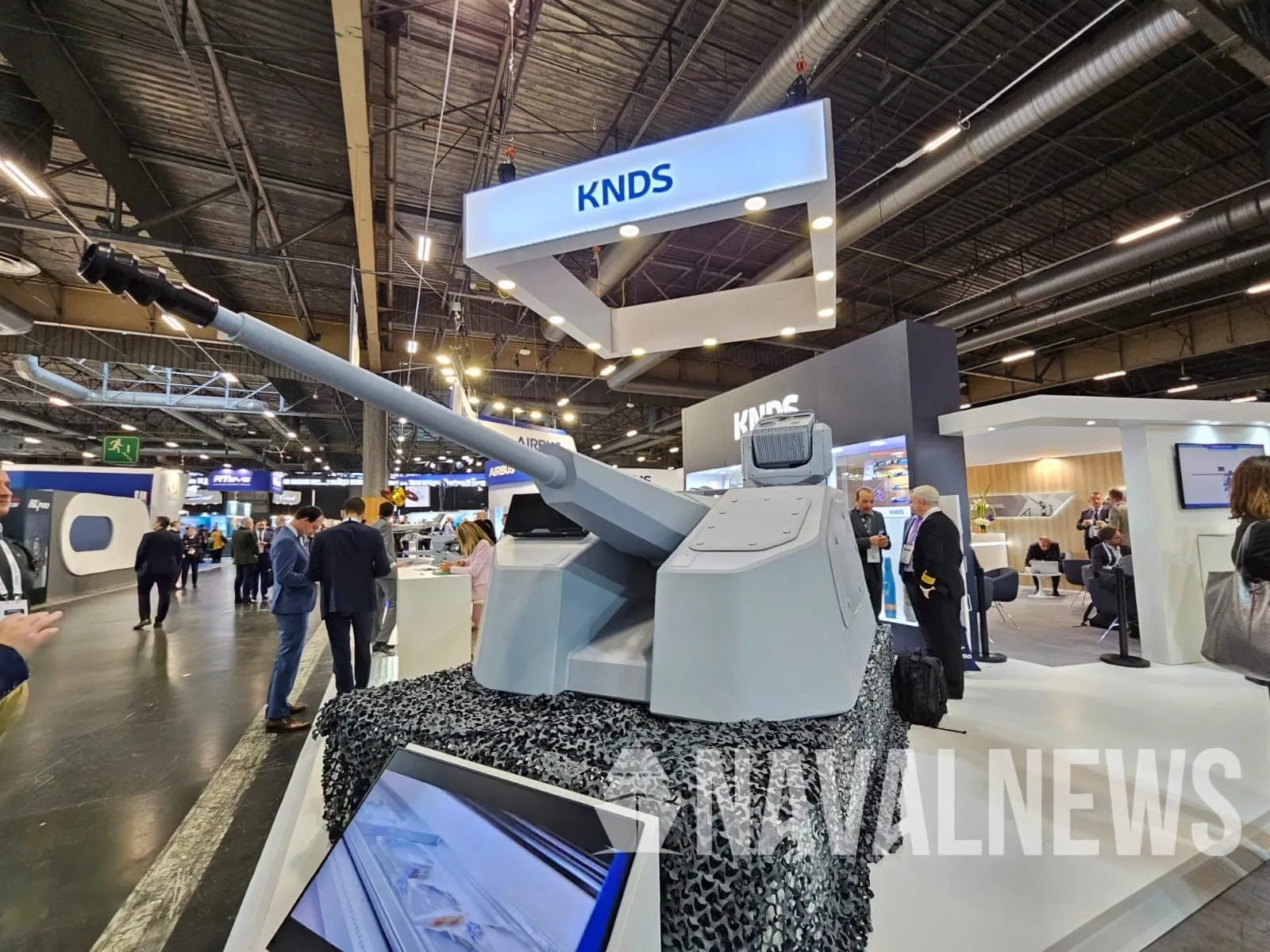

Narwhal 20 mm remote-controlled turret, 20 mm naval remote weapon station, Naval Systems
Image source: Narwhal RCWS Packs More Punch with New Missile Capability | Naval News

Role in Conflicts

Profile / Specs

Profile

Origin
France
Built by
KNDS France
Type
20 mm naval remote weapon station

Specifications

Caliber
20 mm
Mount type
Fully stabilized remotely controlled naval weapon station
Manufacturer
KNDS France, formerly Nexter
Integration class
Small patrol boats, light patrollers, frigates, and heavier frigate-class ships
Primary cannon family
20M621 for 20x102 mm Narwhal applications; 20M693 for 20x139 mm Narwhal applications
20A ammunition standard
20x102 mm NATO-standard ammunition with electric primer
20B ammunition standard
20x139 mm ammunition with mechanical primer
Sighting
Day/night sight with laser range finder; KNDS brochure also describes permanent day/night surveillance
20M621 rate of fire
Approximately 750 rounds per minute
20M621 weapon weight
49 kg cannon weight
20x102 mm ammunition performance
About 2,500 m maximum operational range and 1,005 m/s muzzle velocity for KNDS AP-T ammunition
20x139 mm ammunition performance
About 2,000 m maximum operational range and 1,050 m/s muzzle velocity for the KNDS 20x139 mm HEI family listing
Service base
More than 180 systems in service with several navies, according to KNDS France in 2024
Growth options
Akeron MP two-pod missile kit demonstrated in 2022; KNDS described a future 30 mm evolution in 2024
Design And Fire-Control Notes

KNDS and MBDA describe Narwhal as a protected remote weapon station rather than a manually served deck gun. The system combines a stabilized 20 mm gun installation with day/night optronics, laser ranging, and remote operation so a reduced crew can conduct surveillance and fire from under protection.

Heritage

KNDS traces Narwhal to experience with 15A/15B light naval mounts and THL helicopter gun turrets.

Ammunition standards

The 20A and 20B split follows 20x102 mm and 20x139 mm ammunition standards, with KNDS ammunition pages tying those families to 20M621 and 20M693 Narwhal applications.

Growth path

Publicly shown growth paths include the Akeron MP missile-pod kit and KNDS's later 30 mm evolution statement.

Sources: KNDS 2023 Corporate Brochure; 20M621 | KNDS Group; 20x102MM | KNDS Group; 20x139MM | KNDS Group; Euronaval 2022: Nexter and MBDA present the new NARWHAL turret equipped with the AKERON MP missile system | MBDA; KNDS France displays its innovative naval artillery systems | KNDS Group.

Variants

Open sources describe Narwhal primarily by ammunition-standard configurations and modernization path rather than separate platform-specific weapon records.

VariantConfigurationDesignation notes
Narwhal 20A20x102 mm configuration

Naval News describes 20A and 20B as end-user choices by ammunition standard; KNDS identifies 20x102 mm ammunition as qualified on the 20M621 mounted on Narwhal.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News, 20M621 | KNDS Group, 20x102MM | KNDS Group

Narwhal 20B20x139 mm configuration

Naval News describes 20B as the 20x139 mm ammunition-standard version and reports DGA modernization work for French Navy Narwhal 20B mounts; KNDS identifies 20x139 mm ammunition as qualified on the 20M693 mounted on Narwhal.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News, 20x139MM | KNDS Group

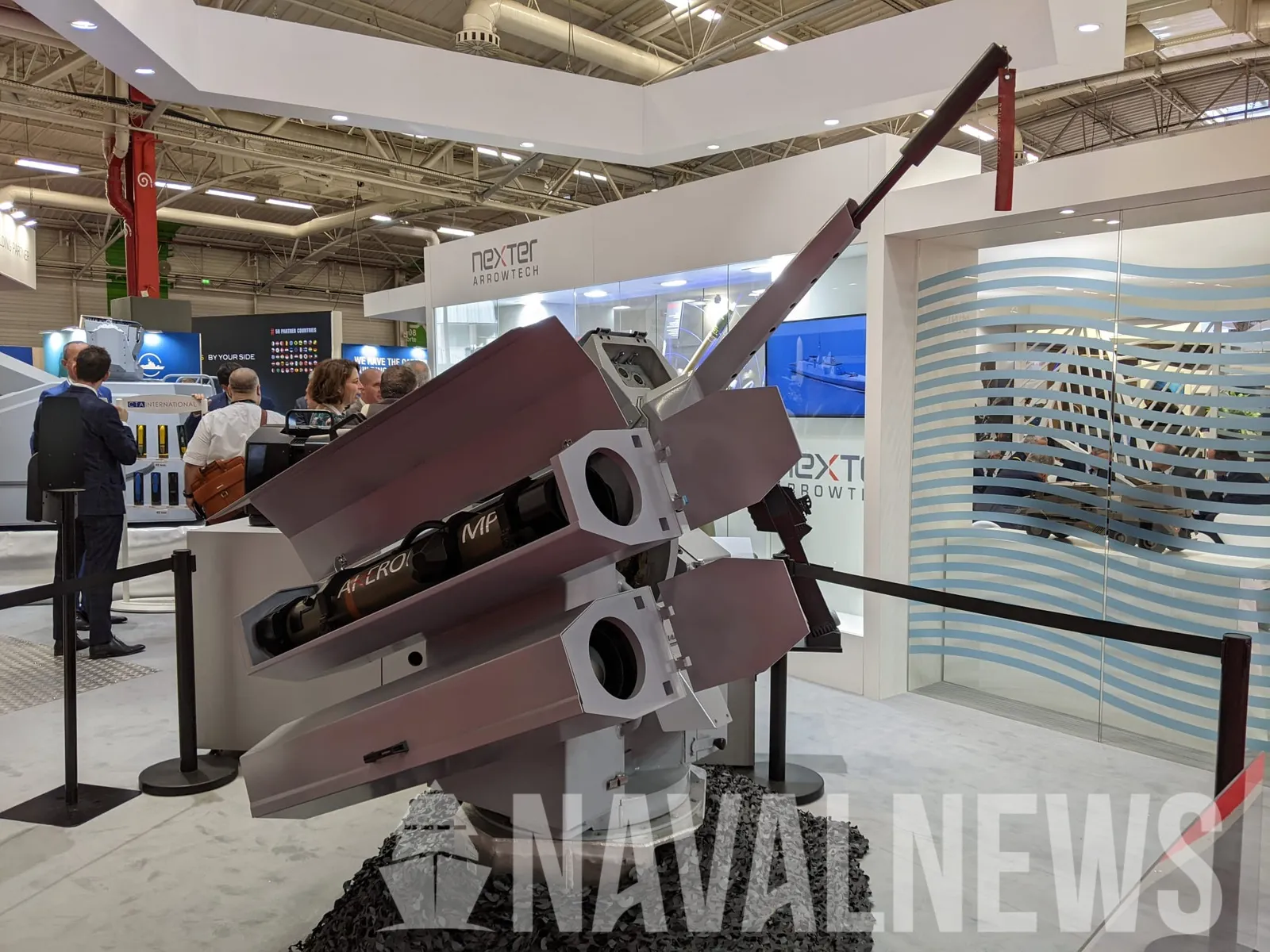

Narwhal with Akeron MP podsMissile-augmented demonstrator

MBDA and Nexter presented a kit with two Akeron MP missile pods, control electronics, and an operator terminal, described as installable on any Narwhal version including systems already in service.

Sources: Euronaval 2022: Nexter and MBDA present the new NARWHAL turret equipped with the AKERON MP missile system | MBDA

Narwhal 20B V1 / V2French Navy modernization path

Naval News reports a January 2020 DGA contract for V1 qualification and V2 certification and deployment work on French Navy Narwhal 20B systems.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

Carrier Platforms

Narwhal is documented across French Navy surface combatants, amphibious ships, aircraft-carrier self-defense fits, and overseas patrol vessels.

CarrierCarrier typeCarriage evidence
Aquitaine class, Multi-mission frigate class, Naval SystemsAquitaine classMulti-mission frigate

Naval News reported 16 Narwhal 20B systems across the Aquitaine-class FREMM frigates, including the Alsace and Lorraine air-defense FREMM variants.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

Mistral-class landing helicopter dock, Landing helicopter dock, Naval SystemsMistral-class landing helicopter dockLanding helicopter dock

Naval News listed six Narwhal 20B systems for the three French Navy Mistral-class landing helicopter docks.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

Horizon class / Forbin-class frigate, Air-defense frigate class, Naval SystemsHorizon class / Forbin-class frigateAir-defense frigate

Naval News listed six Narwhal 20B systems for the two French Navy Horizon-class air-defense destroyers.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

Charles de Gaulle, Nuclear-powered aircraft carrier, Naval SystemsCharles de GaulleAircraft carrier

Naval News listed three Narwhal 20B systems on the French aircraft carrier Charles de Gaulle.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

Confiance-class patrol vessel, Offshore patrol vessel class, Naval SystemsConfiance-class patrol vesselPatrol vessel

Naval News reported modernization studies for Narwhal 20B systems fitted aboard the three La Confiance-class PAG patrol vessels.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

Amiral Ronarc'h-class frigate, Multi-role frigate class, Naval SystemsAmiral Ronarc'h-class frigateMulti-role frigate

Naval News reported that Naval Group and Nexter signed to equip the French Navy FDI frigates directly with Narwhal 20B V1 mounts.

Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

Félix Éboué class patrol vessel, Offshore patrol vessel, Naval SystemsFélix Éboué class patrol vesselOffshore patrol vessel

Naval News names the POM class armament as a 20 mm remote-controlled turret, Narwhal by Nexter.

Sources: Video: French Navy's New POM OPV for the Indo-Pacific | Naval News

Timeline

Narwhal 20 mm remote-controlled turret Key Events

  1. French Navy selection reported

    Naval News, citing Nexter context, reports that Narwhal 20 was selected by the French Navy in late 2011 for close-in self-defense on FREMM frigates.

    Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

  2. DGA modernization contract for Narwhal 20B

    The French DGA awarded Nexter and Naval Group a contract to modernize Narwhal 20B systems fitted aboard French Navy surface vessels, including V1 qualification and V2 follow-on work.

    Sources: Nexter & Naval Group to Upgrade Narwhal RWS on all French Navy Vessels | Naval News

  3. Akeron MP missile-kit configuration presented

    Nexter and MBDA presented a Narwhal configuration with two Akeron MP missile pods, associated control electronics, and an operator terminal at Euronaval 2022.

    Sources: Euronaval 2022: Nexter and MBDA present the new NARWHAL turret equipped with the AKERON MP missile system | MBDA

  4. KNDS describes in-service base and 30 mm evolution

    KNDS France stated that more than 180 Narwhal systems were in service in several navies and described a development direction toward a 30 mm cannon version for anti-drone warfare.

    Sources: KNDS France displays its innovative naval artillery systems | KNDS Group
