Air Defense

VAMPIRE

Also known as
  • Vehicle-Agnostic Modular Palletized ISR Rocket Equipment
  • Vehicle Agnostic Modular Palletized ISR Rocket Equipment

VAMPIRE, short for Vehicle-Agnostic Modular Palletized ISR Rocket Equipment, is L3Harris's self-contained counter-UAS weapons kit. The system is vehicle and platform agnostic, combines a WESCAM MX-10D RSTA sensor with APKWS or other laser-guided munitions, and has been used in Ukraine to defend against hostile unmanned systems and selected ground threats. L3Harris later expanded VAMPIRE into land, maritime, airborne, base-defense, and electronic-warfare variants, with U.S. Army orders adding a proximity-fuze APKWS configuration.

VAMPIRE, Modular counter-UAS rocket system, Air Defense
Image source: VAMPIRE

Role in Conflicts

Family Variants

L3Harris describes VAMPIRE as a baseline palletized system that has grown into a broader family for land vehicles, vessels, aircraft, remote sites, fixed-base defense, and electronic warfare.

VariantRoleSource-backed note
Baseline VAMPIREPalletized vehicle kitFour-shot launcher with WESCAM MX-10D RSTA sensor and APKWS-class laser-guided rockets.
Stalker XRLand vehicle systemUses a larger weapons cache and extended-range munitions.
Black WakeMaritime systemCan be used aboard crewed or uncrewed vessels against drones or fast attack watercraft.
Dead WingAirborne systemDeploys from aircraft while in flight.
CASKETContainerized rapid-deploy systemSelf-contained VAMPIRE-in-a-box configuration for remote locations.
BATBase-defense turretProtects military bases and critical infrastructure with automatic weapons and non-kinetic effects.
KillcodeElectronic-warfare variantUses jammers to disrupt or disable threats instead of precision-guided munitions.
Profile / Specs

Profile

Origin
United States
Type
Modular counter-UAS rocket system
Service note
Selected for Ukraine security assistance in 2022; fielded in combat from 2023, with a broader family refresh in 2025 and expanded U.S. Army orders in 2026
Designer
L3Harris Technologies
Designed
Field testing began in 2021; selected for Ukraine security assistance in 2022
Unit cost
About $2.9 million per system, derived from a $40 million contract for 14 systems
Produced
2023-present
Number built
At least 14 systems contracted for Ukraine, with additional U.S. Army systems ordered in 2026

Specifications

Launcher
Four-shot launcher on a palletized vehicle kit
Primary munition
70 mm APKWS laser-guided rockets
Sensor
WESCAM MX-10D RSTA EO/IR stabilized targeting sensor
Mission software
Widow mission-management software, with FAADC2 interoperability identified in the 2026 U.S. Army order
Platform
Vehicle- and platform-agnostic; mounts on cargo-bed vehicles or vessels
Fuze option
L3Harris proximity fuze for APKWS rockets in the U.S. Army configuration
Role
Counter-UAS, ISR, and precision effects against selected ground and maritime threats
Reload
Rapid installation and reloadable within minutes
Production approach
Modular kit built in high-volume counter-UAS production at L3Harris's Huntsville, Alabama site
Variants

L3Harris uses VAMPIRE for a modular family rather than a single fixed vehicle installation; the named variants split the same counter-UAS and precision-effects concept across land, maritime, airborne, base-defense, containerized, and electronic-warfare roles.

VariantConfigurationDesignation notes
Baseline VAMPIRE truck-mounted systemPalletized land vehicle kit

The original configuration uses a four-shot launcher and WESCAM MX-10D RSTA sensor on a vehicle-agnostic palletized installation.

Sources: VAMPIRE, L3Harris Receives VAMPIRE Contract for Ukrainian Security Defense Efforts

VAMPIRE Stalker XRLand vehicle system

L3Harris describes Stalker XR as a land variant with a larger weapons cache and extended-range munitions.

Sources: VAMPIRE

VAMPIRE Black WakeMaritime system

The maritime Black Wake variant is described for crewed or uncrewed vessels against drones and fast attack craft.

Sources: VAMPIRE, L3Harris Announces New Variants for its VAMPIRE System

VAMPIRE Dead WingAirborne system

Dead Wing is the airborne member of the family and is described as a VAMPIRE variant that deploys from aircraft in flight.

Sources: VAMPIRE, L3Harris Announces New Variants for its VAMPIRE System

VAMPIRE CASKETContainerized rapid-deploy system

CASKET packages VAMPIRE into a self-contained containerized system for remote or rapidly established sites.

Sources: VAMPIRE, L3Harris Announces New Variants for its VAMPIRE System

VAMPIRE BATBase-defense turret

BAT is the fixed-site base-defense member of the family, combining kinetic and non-kinetic effects for base and infrastructure protection.

Sources: VAMPIRE, L3Harris Announces New Variants for its VAMPIRE System

VAMPIRE KillcodeElectronic-warfare variant

Killcode is the non-kinetic electronic-warfare variant, using jamming effects rather than guided rockets.

Sources: VAMPIRE, L3Harris Announces New Variants for its VAMPIRE System

Launched Munitions

L3Harris says VAMPIRE can be equipped with APKWS or other laser-guided munitions.

Launched itemItem typeLaunch evidence
APKWS / WGU-59 guided rockets, Guided rocket munition family, MunitionsAPKWS / WGU-59 guided rocketsLaser-guided 2.75-inch rocket family

The capability page says VAMPIRE can be equipped with APKWS or other laser-guided munitions, and the Ukraine contract release says APKWS was selected specifically for the DoD order.

Sources: VAMPIRE, L3Harris Receives VAMPIRE Contract for Ukrainian Security Defense Efforts

Timeline

VAMPIRE Key Events

  1. Field testing begins

    L3Harris says VAMPIRE field testing began in 2021 before the Ukraine security-assistance contract was awarded.

    Sources: L3Harris Receives VAMPIRE Contract for Ukrainian Security Defense Efforts

  2. Selected for Ukraine assistance

    The company says VAMPIRE was selected in August as part of DoD's $3 billion Ukraine Security Assistance Initiative package.

    Sources: L3Harris Receives VAMPIRE Contract for Ukrainian Security Defense Efforts, Nearly $3 Billion in Additional Security Assistance for Ukraine

  3. DoD contract announced

    L3Harris announced a $40 million DoD contract to deliver 14 VAMPIRE systems for Ukrainian security defense efforts.

    Sources: L3Harris Receives VAMPIRE Contract for Ukrainian Security Defense Efforts

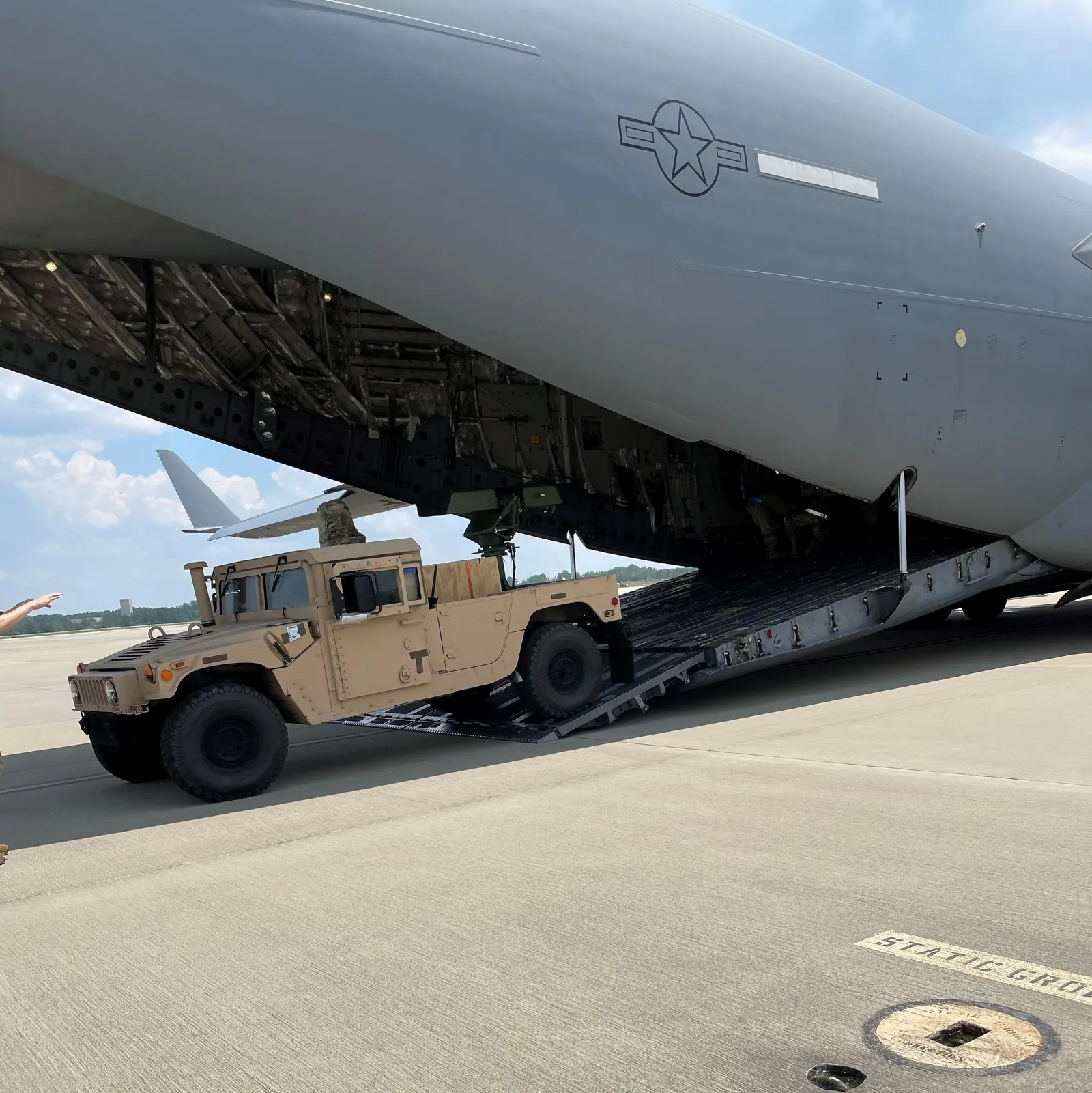

  4. Rapid delivery completed

    NAVAIR reported that rapid delivery of the new counter-UAS system to Ukraine was being completed for Ukrainian ground forces.

    Sources: Navy to complete rapid delivery of new counter-UAS system to Ukraine

  5. Family expands

    L3Harris' capability page says VAMPIRE has been in combat operations since 2023 and now includes land, maritime, airborne, base-defense, and electronic-warfare variants.

    Sources: VAMPIRE

  6. Six new variants announced

    L3Harris announced six additional VAMPIRE variants spanning land, sea, air, base-defense, containerized, and electronic-warfare roles.

    Sources: L3Harris Announces New Variants for its VAMPIRE System

  7. High-volume production ramp

    L3Harris said it was increasing production of VAMPIRE at its Huntsville facility after additional customer orders.

    Sources: L3Harris Ramps Up Production of Counter-Unmanned Systems

  8. U.S. Army order adds proximity-fuze configuration

    L3Harris announced a U.S. Army order for VAMPIRE systems equipped with APKWS rockets, its proximity fuze, the WESCAM MX-10D sensor, and Widow mission software.

    Sources: L3Harris Delivering Counter-Drone Systems to U.S. Army

Media

VAMPIRE Images

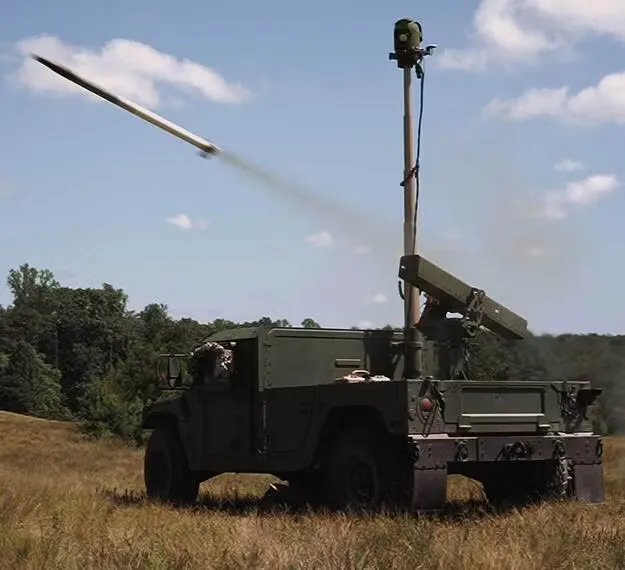

VAMPIRE, Modular counter-UAS rocket system, Air Defense - view 1
Source: VAMPIRE

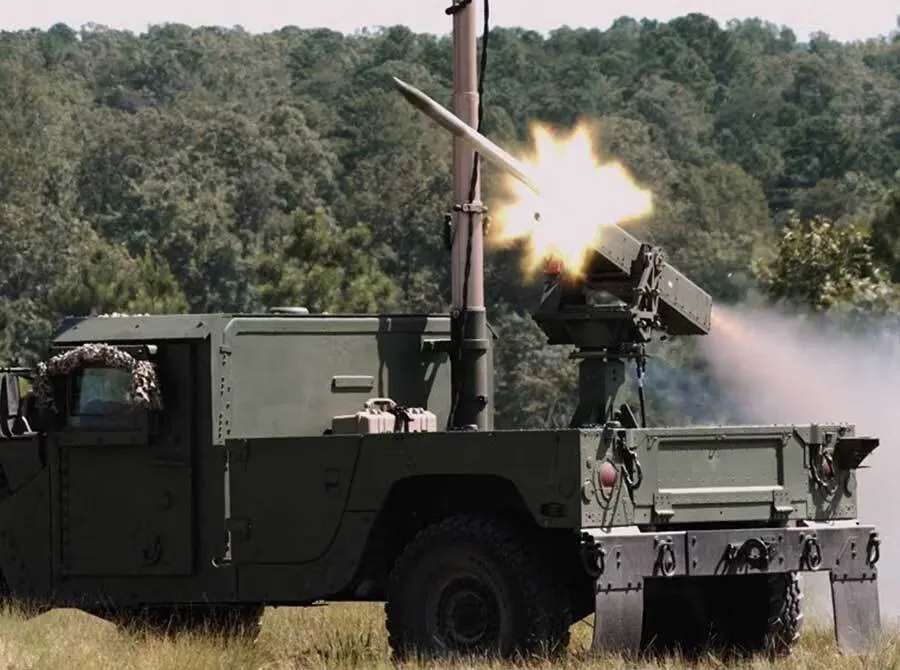

VAMPIRE, Modular counter-UAS rocket system, Air Defense - view 2
Source: VAMPIRE
