Naval Systems

Alpinist class (Project 503R) intelligence ship

Also known as
  • Project 503R
  • Alpinist class
  • Alpinist-class medium intelligence ship
  • Project 503R intelligence ship
  • Zhigulevsk
  • GS-19 Zhigulevsk
  • Syzran
  • GS-39 Syzran
  • GS-7
  • GS-8

The Alpinist class (Project 503R) is a Soviet medium intelligence ship class converted from Project 503 refrigerator trawlers for naval intelligence work. RussianShips.info lists four Project 503R hulls built at Volgograd Shipyard and notes intelligence fit items including MRP-25 surface-search radar, MR-212/201 Vaygach-U navigation radar, MG-31 sonar, and special-purpose equipment.

Alpinist class (Project 503R) intelligence ship, Medium intelligence ship, Naval Systems

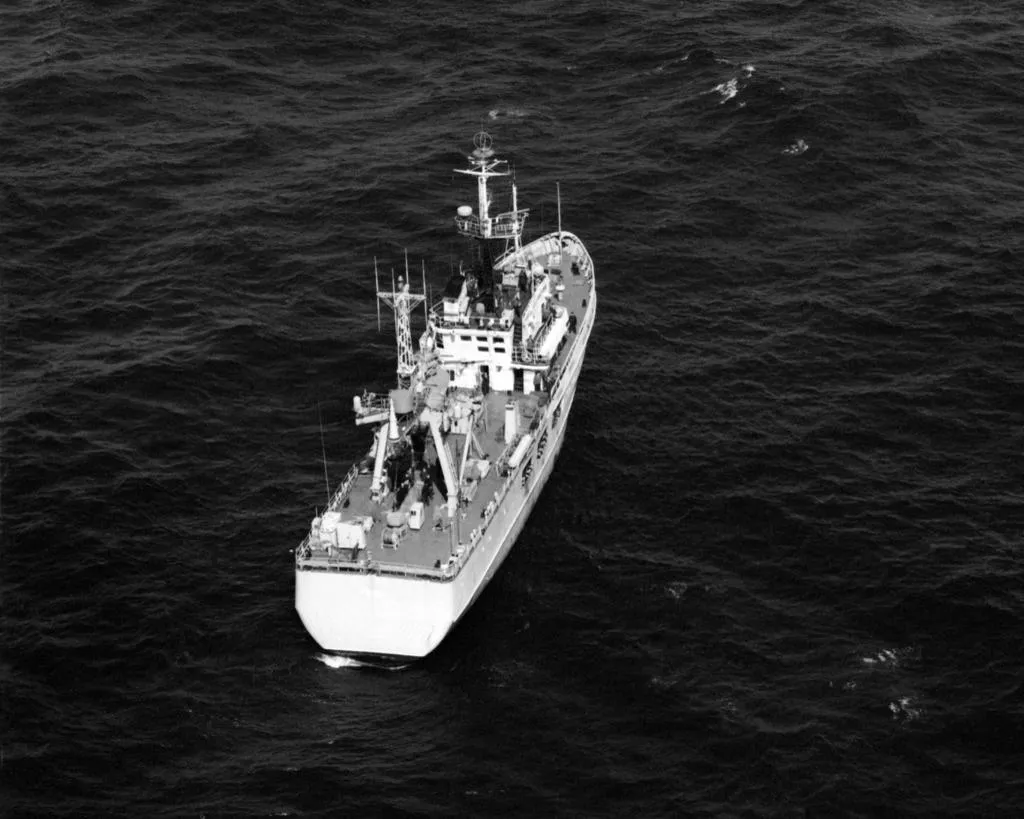

Image source: PICRYL / NARA: Soviet Alpinist class intelligence collector GS 7 underway

Role in Conflicts

2015 Various Conflicts
Reconnaissance & SurveillanceElectronic Warfare

In February 2026, Swedish Armed Forces and AP reporting identified Zhigulevsk as the Russian signals-intelligence vessel from which a drone was observed near the French aircraft carrier Charles de Gaulle at Malmo; Defense Express identifies Zhigulevsk as a Project 503R ship. The available sources support modern Baltic intelligence activity, not a named shooting-war assignment.

Profile / Specs

Profile

Origin
Soviet Union
Type
Medium intelligence ship
Service note
Cold War and post-Soviet service
Produced
1980-1983
Number built
4 Project 503R hulls

Specifications

Displacement
1,238 t full load
Length
53.7 m
Beam
10.71 m
Draft
4.25 m
Speed
12.6 knots
Range
7,000 nmi at 12.6 knots
Autonomy
25 days
Crew
24 for the intelligence-ship configuration
Propulsion
1 x 1,320 hp 8NVD48A-2U diesel, controllable-pitch propeller in nozzle, bow thruster, and diesel generators
Electronics
MRP-25 surface-search radar, MR-212/201 Vaygach-U navigation radar, MG-31 sonar, MG-35 Shtil-2 underwater communication station, Vakhta-M special equipment, and Vizir special equipment
Armament
1 x 9K32M Strela-2M launcher
Project 503R Hulls And Operating Context

Project 503R is a small four-ship intelligence conversion of the wider Project 503 trawler family. The available public record is strongest for hull identity, sensor fit, Baltic and Pacific Fleet assignment, and selected shadowing or surveillance incidents rather than combat employment.

AreaSourced detailCatalog significance
Class hullsRussianShips.info lists GS-39, GS-7, GS-8, and GS-19 as the four Project 503R units built at Volgograd Shipyard, with GS-39 later named Syzran and GS-19 later named Zhigulevsk.The record is a class page, not only a Zhigulevsk page.
Intelligence fitThe same source lists Project 503R equipment including MRP-25 surface-search radar, MR-212/201 Vaygach-U navigation radar, MG-31 sonar, MG-35 Shtil-2 underwater communications, and Vakhta-M/Vizir special equipment.The class is best understood as a compact signals and surveillance platform with only light point-defense armament.
Historical shadowingU.S. Navy/NARA captions identify GS-7 shadowing ships during KAL-007 salvage operations in 1983.The images document the kind of close observation task associated with the class during late Cold War maritime incidents.
Modern Baltic activityLatvian Public Media reported GS-19 Zhigulevsk monitored near Latvia's EEZ in 2014, while Swedish and AP reporting identified Zhigulevsk in the 2026 Oresund drone incident near Charles de Gaulle.The strongest modern open-source evidence places Zhigulevsk in Baltic surveillance and drone-related activity, not in a named naval battle.

Sources: RussianShips.info, PICRYL/NARA, LSM, Swedish Armed Forces, AP, and Defense Express source records on this page.

Timeline

Alpinist class (Project 503R) intelligence ship Key Events

  1. First Project 503R hull commissioned

    RussianShips.info lists GS-39 as commissioned on 3 February 1981, with Volgograd Shipyard named in the note for the hull later renamed Syzran.

    Sources: RussianShips.info: Project 503 / 503R class page

  2. Two more Project 503R ships enter service

    RussianShips.info lists GS-7 and GS-8 as commissioned on 26 December 1981 at Volgograd Shipyard.

    Sources: RussianShips.info: Project 503 / 503R class page

  3. GS-19 commissioned

    RussianShips.info lists GS-19 as commissioned on 8 January 1983 and notes that it was renamed Zhigulevsk in 2004.

    Sources: RussianShips.info: Project 503 / 503R class page

  4. GS-7 shadows KAL-007 salvage work

    A public-domain U.S. Navy/NARA image caption identifies GS-7 as shadowing ships during salvage operations for downed Korean Air Lines Flight 007 in the Sea of Japan.

    Sources: PICRYL / NARA: Alpinist class GS-7 shadowing KAL-007 salvage operations

  5. Zhigulevsk monitored near Latvia

    Latvian Public Media reported that Latvia's National Armed Forces identified and monitored the GS-19 trawler Zhigulevsk near Latvia's EEZ.

    Sources: LSM: Russian intelligence ship trawls near Latvian waters

  6. Sweden reports Zhigulevsk drone incident

    The Swedish Armed Forces said a drone was observed lifting from the Russian signals-intelligence ship Zhigulevsk in Oresund during the Charles de Gaulle port visit, and AP reported HMS Rapp disrupted the flight.

    Sources: Swedish Armed Forces: Russian drone observation near Charles de Gaulle, AP: Sweden intercepts Russian drone during Charles de Gaulle visit

Media

Alpinist class (Project 503R) intelligence ship Images

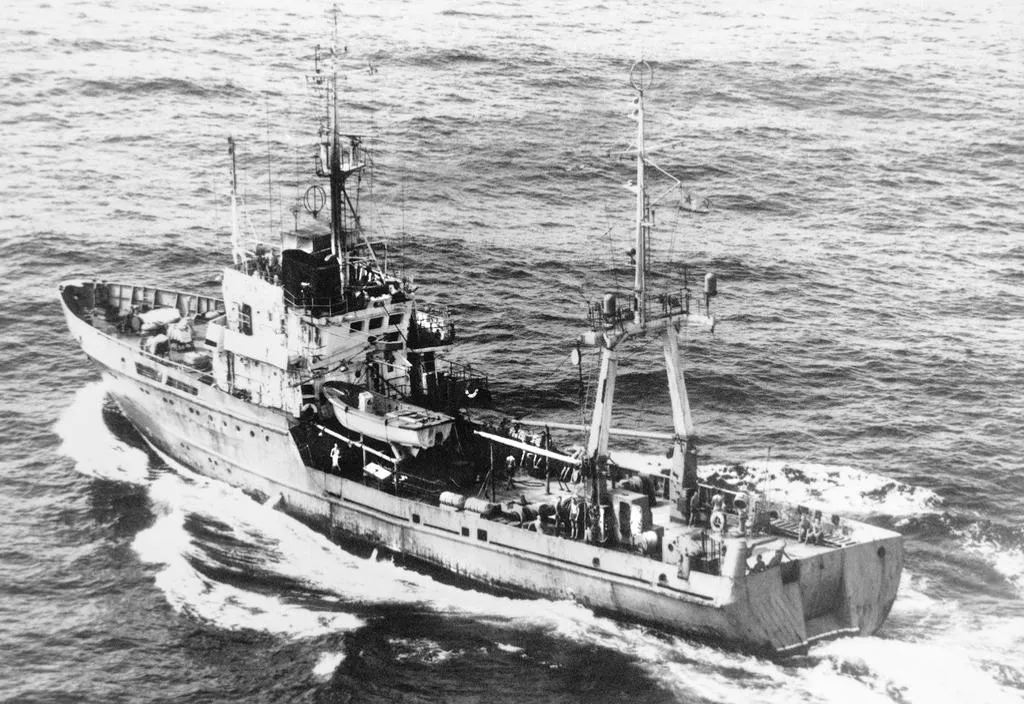

Alpinist class (Project 503R) intelligence ship, Medium intelligence ship, Naval Systems - view 1
Source: PICRYL / NARA: Soviet Alpinist class intelligence collector GS 7 underway

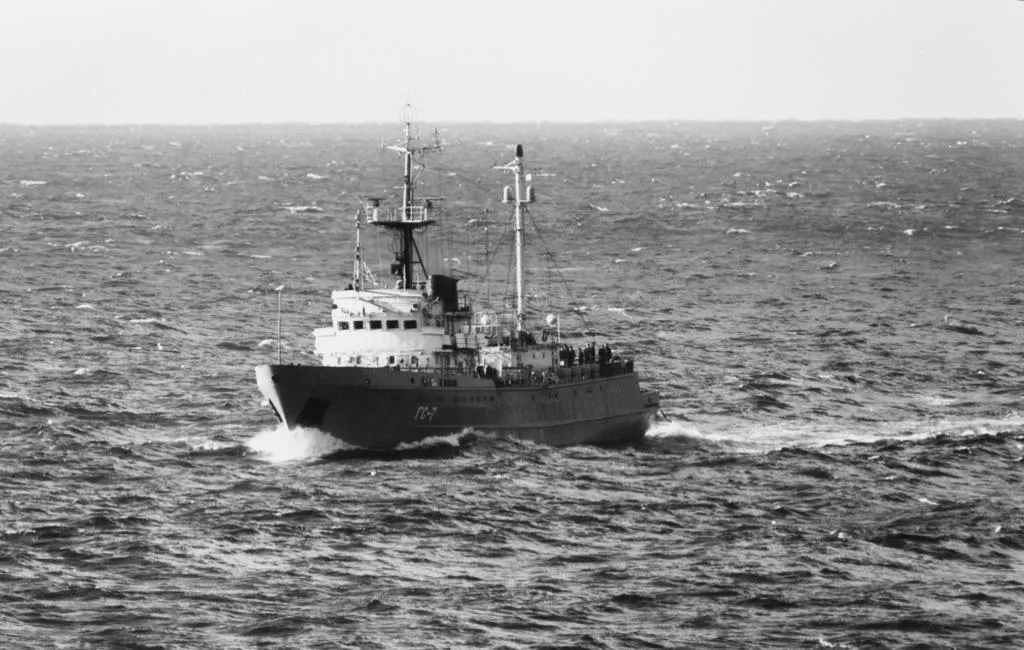

Alpinist class (Project 503R) intelligence ship, Medium intelligence ship, Naval Systems - view 2
Source: PICRYL / NARA: Soviet Alpinist class intelligence collector GS 7 underway

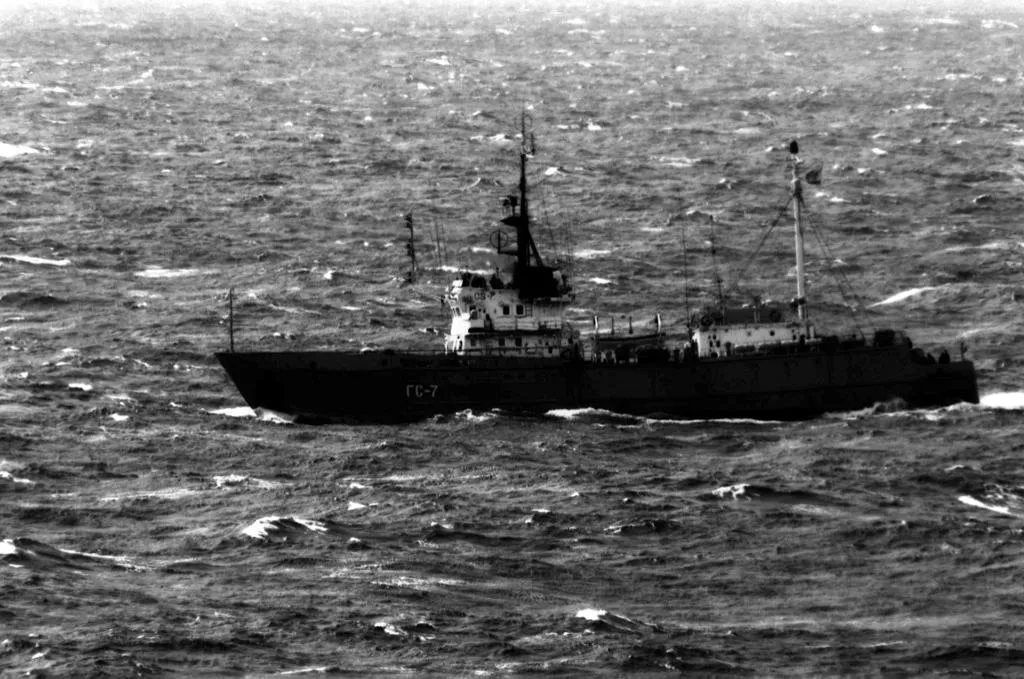

Alpinist class (Project 503R) intelligence ship, Medium intelligence ship, Naval Systems - view 3
Source: PICRYL / NARA: Soviet Alpinist class intelligence collector GS 7 underway
