M824 60 mm illumination mortar projectile

Also known as
  • M824 60 mm illumination mortar ammunition
  • M824 60 mm illuminating mortar ammunition
  • M824 illumination round
  • M824 illumination (extended range)
  • IMI M824

The M824 is a 60 mm illumination mortar projectile in the Israeli mortar-ammunition lineage now carried in Elbit Systems Land's portfolio. Elbit says the round carries a parachute-retarded flare, burns for 35 seconds, reaches 2,200 m, uses a time fuze, and fires from smoothbore 60 mm mortar barrels. A 2010 Forecast International report listed IMI's M824 as an extended-range illumination round, and OSMP documented a tentative M824 in Gaza in July 2024 as a delivered and functioned munition.

M824 60 mm illumination mortar projectile, 60 mm illumination mortar projectile, Artillery
Image source: Flickr - The U.S. Army - Illumination round.jpg

Role in Conflicts

Profile / Specs

Specifications

Caliber
60 mm
Range
2,200 m
Illumination duration
35 seconds
Payload
Parachute-retarded illuminating flare
Fuze
Time fuze
Propulsion
Ignition cartridge plus one charge increment
Compatibility
Any smoothbore barrel 60 mm mortar
Firing Weapons

Elbit says the M824 is fully compatible with smoothbore 60 mm mortar barrels, making the projectile a 60 mm mortar-family illumination round rather than a launcher-specific cartridge.

Firing weaponWeapon typeFiring evidence
60 mm mortar, Light infantry mortar, Artillery60 mm mortar60 mm mortar family

The M824's stated smoothbore-barrel compatibility links it to the wider 60 mm mortar class represented in the catalog.

Sources: Elbit Systems Land Mortar Ammunition Portfolio

M224, 60 mm lightweight company mortar, ArtilleryM22460 mm mortar

Marine Corps mortars training material describes the M224 as a smooth-bore, muzzle-loaded 60 mm mortar, which matches Elbit's compatibility statement for the M824.

Sources: Elbit Systems Land Mortar Ammunition Portfolio, FM 23-90 Mortars

Compatibility and Field Record

The sourced record combines a current Elbit mortar-ammunition table, older IMI-era documentation, and one Gaza field record.

ContextWhat it addsSource
60 mm mortar familyElbit lists the M824 as a 60 mm illuminating round compatible with smoothbore mortar barrels, with a 2,200 m range, 35-second effect, and time fuze.Elbit Systems Land Mortar Ammunition Portfolio
Legacy manufacturer lineForecast International's November 2010 report lists IMI's 60 mm M824 as an extended-range illumination round.Mortar Ammunition (International)
Gaza field recordOSMP documented a tentative M824 in Gaza on 19 July 2024 as a delivered and functioned illumination munition.OSMP 627
Timeline

M824 60 mm illumination mortar projectile Key Events

  1. Forecast International lists an extended-range M824

    Forecast International's November 2010 mortar-ammunition report lists IMI's 60 mm M824 as an extended-range illumination round.

    Sources: Mortar Ammunition (International)

  2. OSMP records an M824 in Gaza

    OSMP documented a tentative M824 in Gaza as a delivered and functioned illumination munition during the 2023 Israel-Hamas War.

    Sources: OSMP 627

Media

M824 60 mm illumination mortar projectile Images

M824 60 mm illumination mortar projectile, 60 mm illumination mortar projectile, Artillery - view 1
Source: US Navy 040520-N-3750S-010 Illumination rounds silhouette ...
Related Weapon Systems
M150 155 mm hexachloroethane smoke projectile, 155 mm HC smoke projectile, ArtilleryArtilleryM150 155 mm hexachloroethane smoke projectile155 mm HC smoke projectileThe M150 is an Israeli 155 mm hexachloroethane smoke projectile from Elbit Systems, built for screening, obscuration, and spotting without white phosphorus. Elbit's product sheet lists five HC smoke canisters, about three minutes of effect, and a NATO NSN, while ARES traces the design to the M483A1 carrier projectile and compares it with M825-series white-phosphorus smoke rounds. Open-source investigations identify M150 rounds in Gaza during the May 2021 escalation and the 2023 Israel-Hamas War.

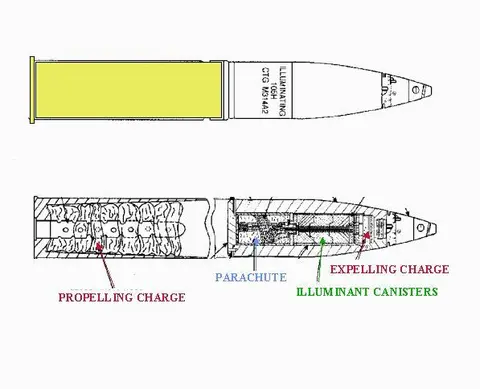

Cartridge, 105 mm, Illuminating, M314, 105 mm howitzer-fired illuminating cartridge with parachute-retarded canister, MunitionsMunitionsCartridge, 105 mm, Illuminating, M314105 mm howitzer-fired illuminating cartridge with parachute-retarded canisterThe M314 is a U.S. 105 mm howitzer illumination cartridge family that ejects a flare canister under parachute for battlefield lighting. Army ammunition manuals list earlier M314-series rounds for M101/M102-era howitzers, while Army portfolio material identifies the M314A3 visible-light round as a 105 mm M119-series illumination cartridge with a semi-fixed case, time fuze, expelling charge, illuminant canister, and parachute assembly.
