Armored Vehicles

KTO Rosomak

Also known as
  • Rosomak
  • Rosomak APC
  • Rosomak IFV
  • KTO Rosomak 8x8

The KTO Rosomak is Poland's licensed Patria AMV-based 8x8 armored vehicle family, built by Rosomak S.A. in Siemianowice Slaskie for infantry transport, fire support, medical evacuation, command, and specialist support roles. Patria traces the program to a 2003 technology-transfer start, Polish combat use in Afghanistan, and a fleet that grew toward 900 vehicles; Ukraine's Ministry of Defence later described Rosomak APCs, Hitfist-30P combat variants, and Rak mortar carriers in Ukrainian service.

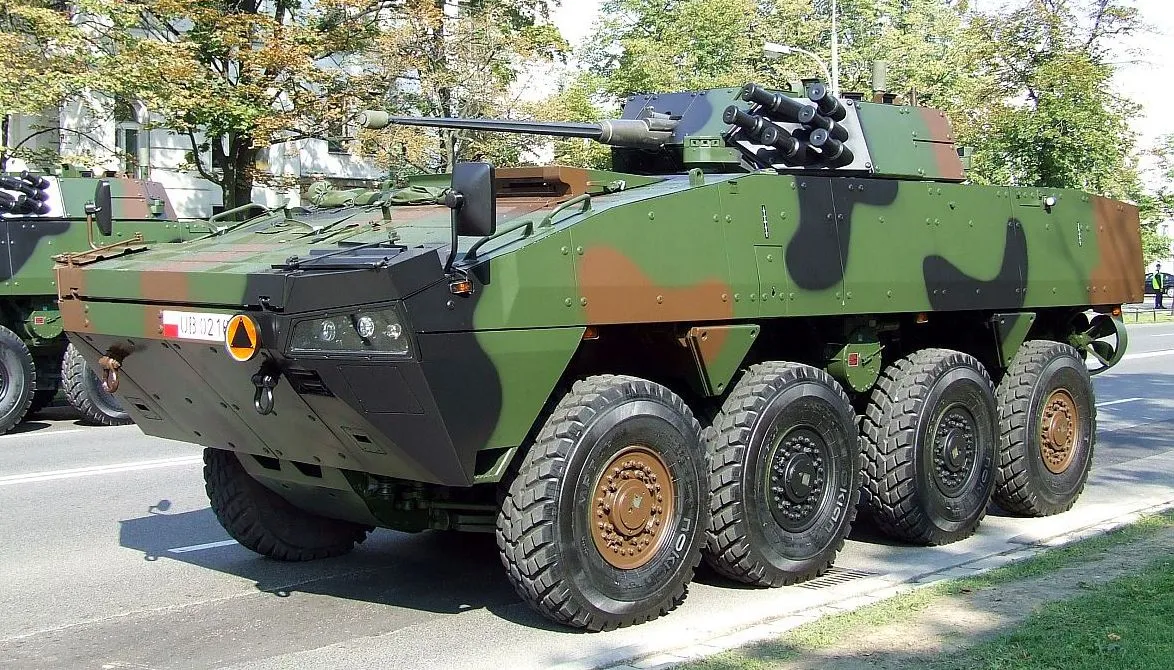

KTO Rosomak, 8x8 wheeled armored personnel carrier / infantry fighting vehicle family, Armored Vehicles
Image source: File:POL KTO Rosomak.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
Finland / Poland
Built by
Rosomak S.A.
Built in
Poland
Type
8x8 wheeled armored personnel carrier / infantry fighting vehicle family
Service note
2000s-present
Designer
Patria
Designed
Late 1990s-early 2000s
Produced
2004-present
Number built
Patria reported Poland would have up to 900 Rosomak vehicles in several versions by 2023.

Specifications

Crew and passengers
IFV variant: 3 crew plus 8 soldiers; APC variant: 2 crew plus up to 10 soldiers
Armament
IFV variant commonly fitted with a 30 mm ATK Mk44 Bushmaster automatic cannon, 7.62 mm coaxial machine gun, and anti-tank missile launchers depending on turret fit
Weight
Approximately 16,000 to 26,000 kg depending on variant
Dimensions
About 7.7 m long, 2.8 m wide, and 2.3 m high
Mobility
8x8 wheeled chassis, about 100 km/h road speed, about 800 km range, and amphibious variants capable of about 10 km/h in water
Protection
All-welded steel hull with small-arms and shell-splinter protection; passive armor kits can increase protection on selected variants
Ukraine MoD service figures
Ukraine's Ministry of Defence describes a 22-26 t weight range, 480-490 hp diesel engine, up to 100 km/h road speed, up to 700 km range, and 10 km/h water speed.
Variants

Rosomak is a Polish Patria AMV-derived family rather than one fixed configuration; public sources describe troop-carrier, combat-turret, mortar, medical-evacuation, command, and newer ZSSW-30 fits on the same 8x8 base.

VariantConfigurationDesignation notes
Rosomak IFV with Hitfist-30P turretTwo-person 30 mm combat turret variant

Ukraine's Ministry of Defence identifies the widely used combat variant with the Hitfist-30P turret, 30 mm Mk 44 Bushmaster II cannon, coaxial 7.62 mm UKM-2000C machine gun, and digital fire-control system.

Sources: Ukraine MOD Rosomak APC overview

Rosomak with ZSSW-30Remote-turret IFV modernization

A 2024 Polish government release says 58 KTO Rosomaks integrated with the ZSSW-30 remote turret system were contracted for delivery in 2026-2027.

Sources: KTO Rosomak ZSSW-30 contract signed

Rosomak-WEMMedical evacuation vehicle

Poland's Ministry of National Defence described the WEM on a KTO Rosomak chassis as intended to pick up wounded personnel directly from the battlefield and transport them to medical aid points.

Sources: Medical Rosomaks and command vehicles contract

Rosomak command vehicleCommand post vehicle

The 2026 Polish contract covers Rosomak-chassis command vehicles for K2 tank battalions, with communications equipment for secure information exchange and command-process support.

Sources: Medical Rosomaks and command vehicles contract

M120K Rak mortar carrier120 mm self-propelled mortar carrier

Ukraine's Ministry of Defence says the Defence Forces of Ukraine operate the Rak self-propelled mortar system alongside Hitfist-30P Rosomak combat variants.

Sources: Ukraine MOD Rosomak APC overview

Ammunition Fired

The combat Rosomak family centers on 30 mm Bushmaster-family cannon fits, with ammunition choice depending on the turret and gun configuration.

AmmunitionAmmunition typeFiring evidence
30 x 173mm suite of ammunition, 30 mm ammunition family, Munitions30 x 173mm suite of ammunition30 mm autocannon ammunition family

Ukraine's Ministry of Defence identifies the Hitfist-30P combat variant with the 30 mm ATK Mk 44 Bushmaster II cannon, which matches the 30x173 mm Bushmaster ammunition family cataloged separately.

Sources: Ukraine MOD Rosomak APC overview, Rosomak 8x8 IFV APC

Missile Armament

The newer ZSSW-30 fit connects the Rosomak chassis to Polish remote-turret and anti-tank missile integration.

AmmunitionAmmunition typeFiring evidence
SPIKE anti-tank guided-missile family, Anti-tank guided missile family, Infantry WeaponsSPIKE anti-tank guided-missile familyAnti-tank guided missile family

The ZSSW-30 Rosomak contract covers vehicles integrated with the remote turret system; the public HSW ZSSW-30 firing videos and the cataloged SPIKE family support the turret's Spike LR missile context, while this entry uses the official contract source for the Rosomak-to-ZSSW-30 fit.

Sources: KTO Rosomak ZSSW-30 contract signed, HSW ZSSW-30 Spike LR firing video

Timeline

KTO Rosomak Key Events

  1. Technology transfer starts

    Patria says the Rosomak program's technology transfer with Poland launched in 2003, setting up local production at Rosomak S.A.

    Sources: Case: KTO Rosomak, Poland

  2. First serial vehicles arrive in Poland

    Patria says the first serial Rosomaks arrived in Gdynia on 31 May 2004.

    Sources: Case: KTO Rosomak, Poland

  3. First Polish-made Rosomak delivered

    Patria says the first Polish-made Rosomak was handed over in June 2005, marking the technology-transfer milestone.

    Sources: Case: KTO Rosomak, Poland

  4. Ukraine sale announced

    Poland announced a sale of 100 Rosomaks to Ukraine as part of its wartime support package.

    Sources: Poland with state-of-the-art military technology. We will sell 100 Rosomaks to Ukraine

  5. First Ukrainian units receive Rosomaks

    Reporting later identified the first Polish Rosomak APCs with Ukraine's 21st Mechanized Brigade.

    Sources: Ukrainian army has now received first Polish Rosomak APCs to fight Russian troops

  6. ZSSW-30 Rosomak contract signed

    Poland signed for 58 KTO Rosomaks integrated with ZSSW-30 remote turret systems, scheduled for 2026-2027 delivery.

    Sources: KTO Rosomak ZSSW-30 contract signed

  7. Ukraine publishes Rosomak service overview

    Ukraine's Ministry of Defence described Rosomak APCs in Ukrainian service and identified both Hitfist-30P combat variants and Rak self-propelled mortar systems.

    Sources: Ukraine MOD Rosomak APC overview

  8. Medical and command Rosomaks contracted

    Poland signed contracts for 30 Rosomak medical-evacuation vehicles and Rosomak-chassis command vehicles for K2 tank battalions.

    Sources: Medical Rosomaks and command vehicles contract

Documented Service And Variant Context

Public sources show Rosomak moving from Polish expeditionary use to Ukrainian wartime service and continued Polish modernization.

ContextDocumented use or configurationSources
2001 War in AfghanistanPatria says the first Rosomaks reached Ghazni with the Polish ISAF contingent and that more than 130 vehicles supported the mission.Case: KTO Rosomak, Poland
2014 Russia-Ukraine WarPoland announced a 100-vehicle sale to Ukraine; Ukraine's Ministry of Defence later described Rosomak APCs in service and named Hitfist-30P combat variants and Rak mortar carriers.Poland with state-of-the-art military technology. We will sell 100 Rosomaks to Ukraine; Ukraine MOD Rosomak APC overview
Polish modernizationPolish government releases document ZSSW-30 Rosomak deliveries planned for 2026-2027 and separate 2026 contracts for WEM medical vehicles and command vehicles.KTO Rosomak ZSSW-30 contract signed; Medical Rosomaks and command vehicles contract
Media

KTO Rosomak Images

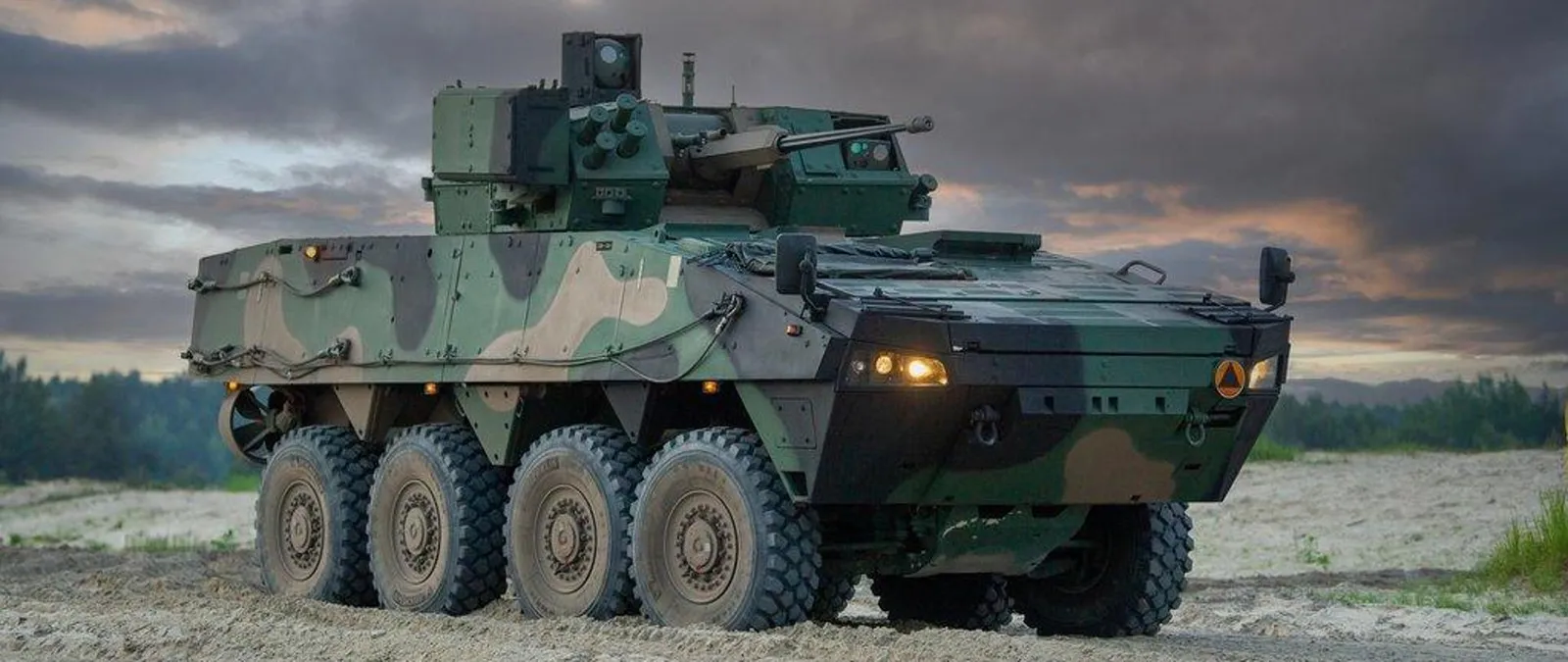

KTO Rosomak, 8x8 wheeled armored personnel carrier / infantry fighting vehicle family, Armored Vehicles - view 1
Source: File:KTO Rosomak IFV with ZSSW-30 RCWS.jpg
Related Weapon Systems
Patria AMV, 8x8 modular wheeled armored personnel carrier / infantry fighting vehicle family, Armored VehiclesArmored VehiclesPatria AMV8x8 modular wheeled armored personnel carrier / infantry fighting vehicle familyPatria AMV is Finland's modular 8x8 armored wheeled vehicle family, developed by Patria for troop transport, infantry fighting, command, ambulance, reconnaissance, fire-support, anti-tank, repair, and mortar-carrier roles. The family includes the current AMV XP branch, AMOS mortar-carrier integration, licensed derivatives such as Poland's KTO Rosomak supplied to Ukraine, and UAE variants documented in Yemen with remote weapon stations and BMP-3-derived turret fits.
Patria 6x6, 6x6 wheeled armored personnel carrier and combat-support vehicle, Armored VehiclesArmored VehiclesPatria 6x66x6 wheeled armored personnel carrier and combat-support vehiclePatria 6x6 is a Finnish six-wheel armored personnel carrier and combat-support platform selected for the multinational Common Armoured Vehicle System programme. The vehicle combines protected troop transport, modular mission kits, optional amphibious capability, and configurations for command, medical evacuation, heavy APC, remote-weapon-station, and 120 mm NEMO mortar roles. By 2026 CAVS had seven NATO participants and nearly 2,000 ordered vehicles including options, while Latvia-produced Patria 6x6 APCs had been transferred to Ukrainian service during the full-scale phase of the 2014 Russia-Ukraine War.
KLTV infantry mobility vehicle, 4x4 light tactical / infantry mobility vehicle, Armored VehiclesArmored VehiclesKLTV infantry mobility vehicle4x4 light tactical / infantry mobility vehicleThe Kia KLTV is a South Korean 4x4 light tactical vehicle family built around a modular chassis for protected mobility, command, reconnaissance, cargo, ambulance, and weapon-carrier roles. Nigeria received KLTV/K152 armored personnel carrier variants during its post-2015 re-equipment drive, with direct reporting placing a KLTV-181 in the 2009 Boko Haram Insurgency after an ISWAP ambush in northeast Nigeria.
Stryker, 8x8 armored fighting vehicle family, Armored VehiclesArmored VehiclesStryker8x8 armored fighting vehicle familyThe Stryker is a U.S.-designed eight-wheeled armored fighting vehicle family built around a common chassis, modular mission kits, and rapid road movement. Army reporting says the first production vehicle rolled off the line in April 2002, and the family later logged combat rotations in Iraq and Afghanistan before Double-V Hull upgrades improved blast protection. Modern branches include 30 mm Dragoon infantry carriers, SGT STOUT air-defense vehicles, and U.S.-supplied APCs for Ukraine.
Dozor-B, 4x4 light armored personnel carrier, Armored VehiclesArmored VehiclesDozor-B4x4 light armored personnel carrierThe Dozor-B is a Ukrainian 4x4 light armored personnel carrier developed by Kharkiv Morozov Machine Building Design Bureau for protected patrol, reconnaissance, command, medical, and troop-transport roles. Its public record now divides between a small Ukrainian Dozor-B run and the Polish-built Oncilla derivative family, including Ukrainian wartime Oncilla deliveries, battlefield use, specialist Oncilla variants, and the Oncilla-Shturm configuration approved by Ukraine's Ministry of Defence in 2024.
