GE Aerospace F110

Also known as
  • General Electric F110

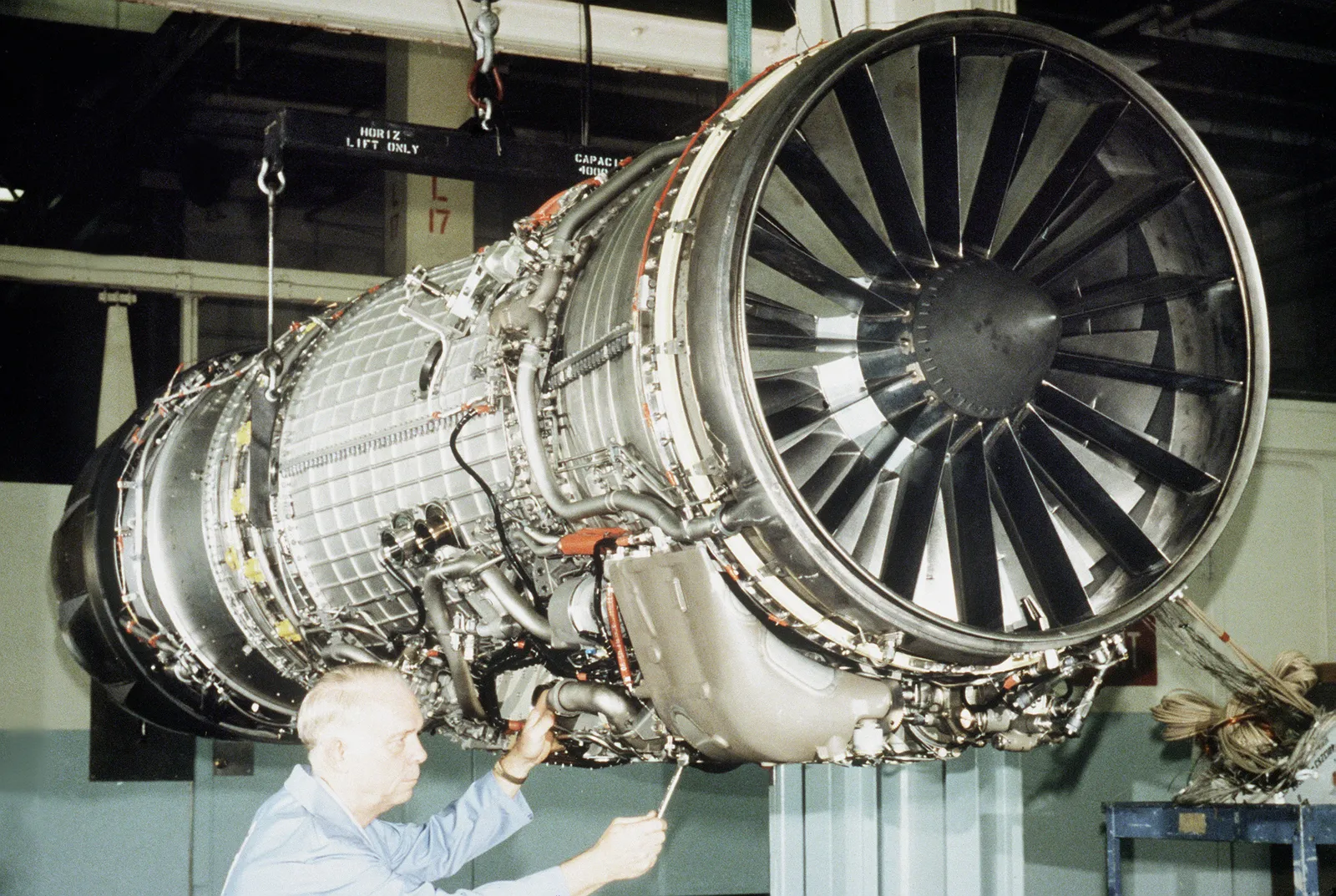

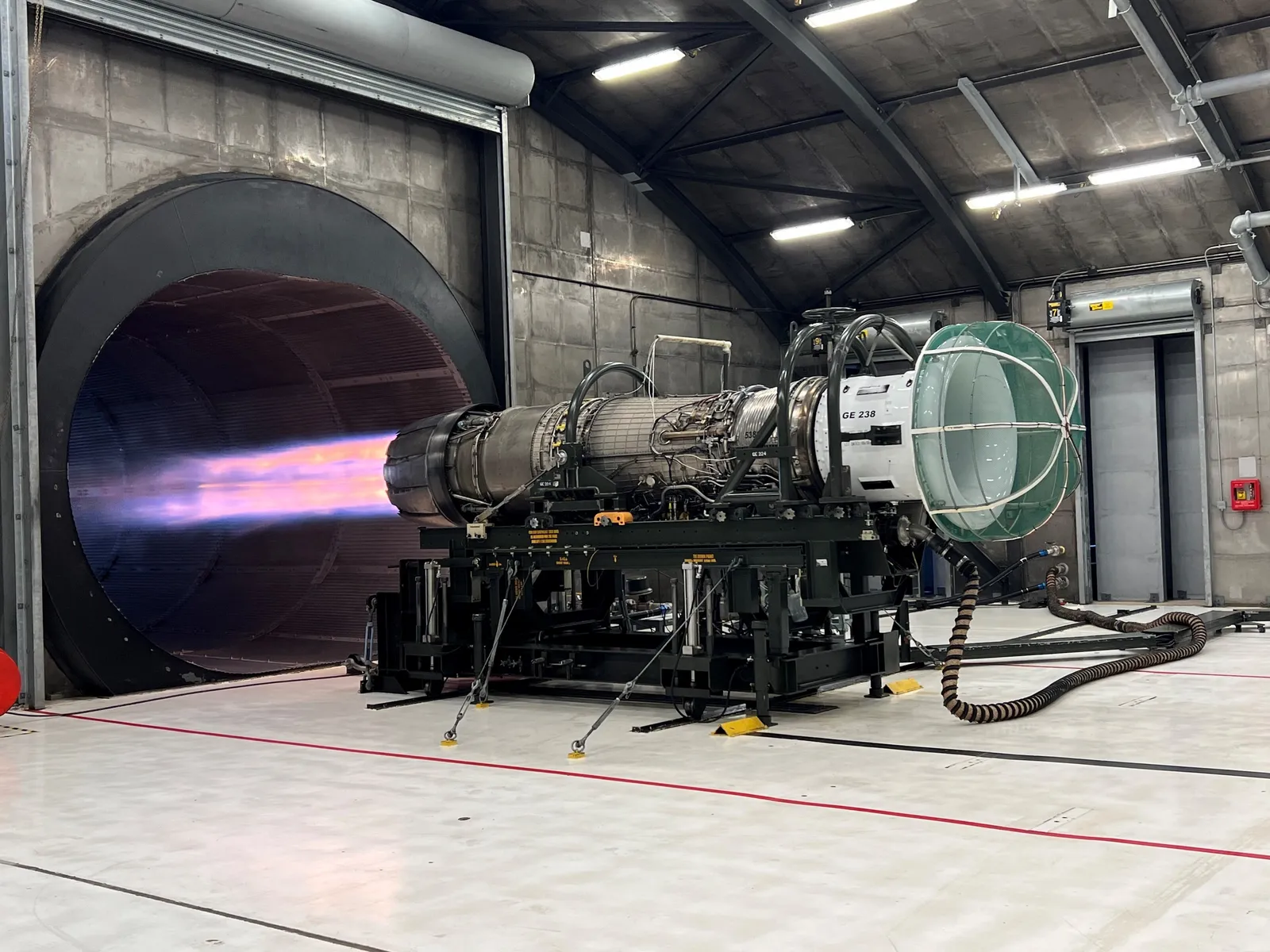

The GE Aerospace F110 is a U.S. afterburning turbofan fighter-engine family that entered operational service in 1985 with the F110-GE-100 and grew into the F110-GE-129 and higher-thrust F110-GE-132 lines. GE sources place the family across F-16, advanced F-15, and Japan F-2 applications, with more than 3,400 engines delivered by 2021 and more than 11 million flight hours reported by 2025.

Profile / Specs

Profile

Origin
United States
Built by
GE Aerospace
Type
Afterburning turbofan fighter engine
Service note
1980s-present
Produced
Operational service from 1985; continuous production and improvement for 40 years by 2025
Developed from
General Electric F101 derivative fighter-engine work

Specifications

Engine type
Afterburning turbofan fighter engine
F110-GE-100 thrust
28,000 lb thrust rating reported by GE for the original F-16C/D service variant
F110-GE-129 thrust
29,000 lb (129 kN) thrust class
F110-GE-132 thrust
32,500 lb (142 kN) thrust class
Length
181.9-182.3 in (about 4.6 m), depending on variant and source
Maximum diameter
46.5 in (about 1.2 m)
F110-GE-129 airflow
270 lb/sec (122.4 kg/sec)
F110-GE-132 airflow
275 lb/sec (124.7 kg/sec)
F110-GE-129 bypass ratio
0.76
F110-GE-132 bypass ratio
0.68:1
Applications
F-15, F-16, and Japan F-2 aircraft in GE-published F110-GE-129 data; F-16E/F for F110-GE-132
Production/service scale
More than 3,400 F110 engines delivered worldwide and more than 10.5 million engine flight hours by October 2021; more than 11 million flight hours reported by GE in March 2025
Variants

The F110 family progressed from the original 28,000-pound-class F110-GE-100 for F-16C/D aircraft, through the 29,000-pound-class F110-GE-129 used on F-16, F-15, and Japan F-2 applications, to the higher-thrust F110-GE-132 qualified for the F-16E/F.

VariantConfigurationDesignation notes
F110-GE-100Original F-16C/D production variant

GE described the F110-GE-100 as a 28,000-pound-thrust engine that entered operational service in 1985 and powered F-16s operated by the U.S. Air Force and several export users.

Sources: GE Wins $85 Million Fighter Engine Order

F110-GE-12929,000-pound-class improved-performance variant

GE's datasheet lists the F110-GE-129 at 29,000 lb thrust with F-15, F-16, and Japan F-2 applications; GE also says F110/F-15 power was first selected by South Korea in 2002.

Sources: F110-GE-129 turbofan engines

F110-GE-129CSLEP-hardware F-15S re-engining configuration

GE said Saudi F-15S re-engining orders used F110-GE-129C engines incorporating Service Life Extension Program hardware.

Sources: Royal Saudi Air Force Orders Additional GE F110 Engines for F-15S Aircraft

F110-GE-132Higher-thrust Block 60 F-16E/F variant

GE says the F110-GE-132 was launched in 2000 for the United Arab Emirates' 80 Block 60 F-16E/F aircraft, completed qualification in 2003, and is listed at 32,500 lb thrust.

Sources: F110-GE-132 qualification testing, F110-GE-132 turbofan engines

Powered Aircraft

GE sources identify the F110 as a powerplant for F-16 and advanced F-15 aircraft, making this page a propulsion reference for those cataloged fighters.

Compatible itemItem typeCompatibility evidence
F-16 Fighting Falcon, Multirole fighter aircraft, Aircraft & UAVsF-16 Fighting FalconSingle-engine multirole fighter

GE's F110-GE-129 datasheet lists the Lockheed Martin F-16 as an application and says the engine powers much of the USAF F-16C/D fleet.

Sources: F110-GE-129 turbofan engines

F-15EX Eagle II, Multirole fighter aircraft, Aircraft & UAVsF-15EX Eagle IITwin-engine multirole fighter

GE says the F110 is delivered for the U.S. Air Force F-15EX and describes the engine as the certified, in-production option powering advanced F-15 aircraft.

Sources: F110 Engine, F110 FMS contract

F-2 Support Fighter, Close support fighter jet, Aircraft & UAVsF-2 Support FighterSingle-engine support fighter

GE's F110-GE-129 datasheet lists Japan F-2 as an application for the engine.

Sources: F110-GE-129 turbofan engines

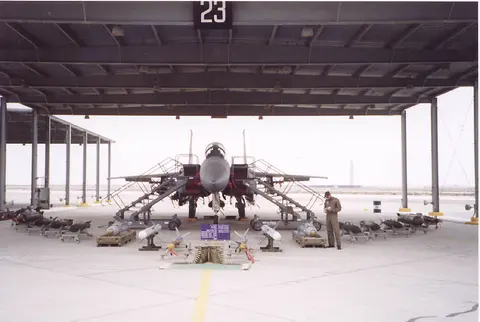

F-15S strike aircraft, Two-seat multirole strike aircraft, Aircraft & UAVsF-15S strike aircraftTwin-engine strike aircraft

GE says the Royal Saudi Air Force ordered F110-GE-129C engines to re-engine twin-engine Boeing F-15S aircraft.

Sources: Royal Saudi Air Force Orders Additional GE F110 Engines for F-15S Aircraft

Timeline

GE Aerospace F110 Key Events

  1. USAF selection starts F110 production lineage

    GE says more than 3,000 F110 engines had been ordered worldwide by 2005 since the engine was first selected by the U.S. Air Force in 1984.

    Sources: GE F110/F404/F414 global presence

  2. F110-GE-100 enters operational service

    GE described the F110-GE-100 as a 28,000-pound-thrust engine that entered operational service in 1985 and accumulated more than one million F-16 flight hours by the late 1990s.

    Sources: GE Wins $85 Million Fighter Engine Order

  3. F110-GE-129 selected for F-15K

    GE's F110-GE-129 datasheet says Republic of Korea F-15 power was first selected in 2002, followed by Singapore and Saudi selections for F-15 fleets.

    Sources: F110-GE-129 turbofan engines

  4. F110-GE-132 qualification complete

    GE announced that the F110-GE-132 had completed qualification testing for the Block 60 F-16E/F after its 2000 UAE selection for 80 aircraft.

    Sources: F110-GE-132 qualification testing

  5. F110-GE-132 reaches UAE F-16E/F fleet

    GE reported that the F110-GE-132 had been delivered to the United Arab Emirates in 2003 and that the first aircraft arrived in country in May 2005.

    Sources: GE F110/F404/F414 global presence

  6. Saudi F-15S re-engining order expands F110/F-15 use

    GE said the Royal Saudi Air Force ordered additional F110-GE-129C engines for F-15S re-engining, following an earlier 2007 Saudi F110 selection.

    Sources: Royal Saudi Air Force Orders Additional GE F110 Engines for F-15S Aircraft

  7. F110 selected for full U.S. F-15EX fleet

    GE announced a $1.58 billion U.S. Air Force contract to supply F110 engines for the Boeing F-15EX fleet and reported more than 3,400 F110 deliveries worldwide.

    Sources: GE awarded F-15EX fleet contract

  8. Foreign Military Sales contract follows 40-year production milestone

    GE announced an F110-GE-129 Foreign Military Sales contract valued up to $5 billion and said the F110 family had more than 11 million flight hours and 40 years of continuous production and improvement.

    Sources: F110 FMS contract

Media
Related Weapon Systems

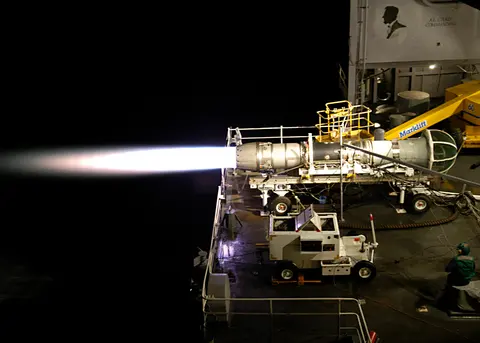

GE Aerospace F404, Afterburning turbofan fighter and trainer aircraft engine, Support EquipmentSupport EquipmentGE Aerospace F404Afterburning turbofan fighter and trainer aircraft engineThe GE Aerospace F404 is a U.S. afterburning turbofan family for fighter and advanced trainer aircraft, with GE-documented applications across the F/A-18C/D Hornet, HAL Tejas, Boeing T-7A Red Hawk, Saab Gripen, KAI/LMTAS T-50, and HÜRJET programs. GE reports more than 4,000 F404 engines delivered, more than 13 million fleet flight hours, and dedicated single-engine derivatives such as the F404-GE-102, F404-GE-103, F404-GE-IN20, and Volvo/GKN RM12.
