Support Equipment

Coast Guard-specific multi-mode radar

Also known as
  • AN/APY-11
  • AN/APY-11 multimode radar
  • APY-11 radar
  • AN/APY-11 multi-mode radar
  • APY-11 Surveillance AESA Radar

The Coast Guard-specific multi-mode radar is L3Harris's AN/APY-11 multisensor radar installed on HC-130J long-range surveillance aircraft during Minotaur missionization. Coast Guard and L3Harris sources describe it as a 360-degree belly- and nose-mounted radar for maritime surveillance, interdiction, search and rescue, ice and oil-spill mapping, and tracking ships, aircraft, vehicles, and rescue transponders.

Coast Guard-specific multi-mode radar, Multi-mode surveillance radar, Support Equipment

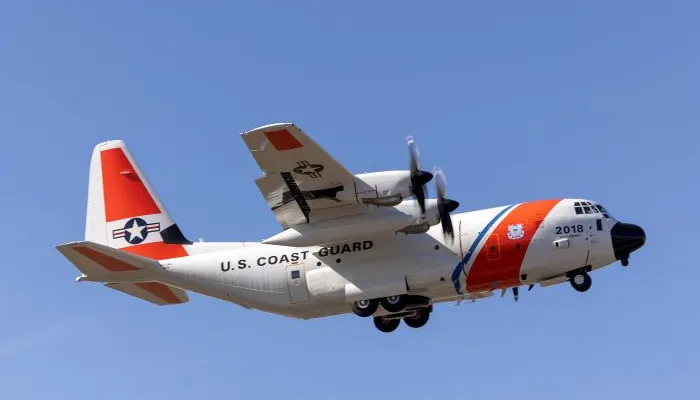

Image source: Coast Guard takes delivery of 18th mission-ready HC-130J surveillance aircraft photo
Profile / Specs

Profile

Origin
United States
Type
Multi-mode surveillance radar
Service note
2022-present
Unit cost
No public per-unit price identified; Coast Guard reported a Sept. 18, 2025 option exercise for three additional AN/APY-11 multi-mode radar systems with a combined value of US$13.9 million.
Produced
2022-present

Specifications

Designation
AN/APY-11
Radar type
APY-11 ES sell sheet describes an airborne multi-mode X-band AESA radar configuration
Coverage
360-degree belly and nose installation on HC-130J aircraft
Mission role
Maritime surveillance, interdiction, search and rescue, ice tracking, oil-spill mapping, and tracking of ships, aircraft, ground moving vehicles, and rescue transponders
Sensor modes
High-resolution SAR/ISAR imaging of ships, terrain, and coastal features
APY-11 ES track capacity
More than 2,000 simultaneous surface targets and 256 air targets
APY-11 ES detection range
Small-target detection to 80 nautical miles; medium-to-large target detection up to 200 nautical miles
APY-11 ES weight
209.4 lb / 95 kg
APY-11 ES power consumption
3.2 kW
APY-11 ES mean time between failure
More than 3,000 hours
Platform fit
Installed as part of Coast Guard HC-130J Minotaur missionization
Mission Fit

The AN/APY-11 is a sensor in the Coast Guard fixed-wing mission package rather than a standalone weapon. L3Harris describes the radar as a Coast Guard HC-130J system for maritime search, interdiction support, oil-spill mapping, ice tracking, and high-resolution radar imaging.

Aircraft installation

Belly and nose installation for 360-degree radar coverage on the missionized aircraft.

Mission system

Coast Guard contract releases tie the radar to future HC-130J aircraft during Minotaur missionization.

Track set

Ships, aircraft, ground moving vehicles, and search-and-rescue transponders are all named in the manufacturer description.

Sources: AN/APY-11 Multimode Radar; Coast Guard awards contract for radar systems for new C-130Js; Coast Guard prepares for aircraft fleet expansions with awards for engines, radar.

Carrier Aircraft

The Coast Guard installs this radar on HC-130J aircraft as part of the Minotaur missionization path.

CarrierCarrier typeCarriage evidence
HC-130J Coast Guard, Long-range surveillance, search and rescue, and maritime patrol aircraft, Aircraft & UAVsHC-130J Coast GuardLong-range surveillance aircraft

The Coast Guard says HC-130J missionization integrates this radar into the Minotaur mission system suite.

Sources: HC-130J Long Range Surveillance Aircraft, Coast Guard awards contract for radar systems for new C-130Js

Mission-System Integration

The Coast Guard procures the AN/APY-11 as part of the sensor set installed on HC-130J aircraft during Minotaur missionization.

Compatible itemItem typeCompatibility evidence
Minotaur Mission System Suite, Mission management and sensor-fusion suite, Support EquipmentMinotaur Mission System SuiteMission management and sensor-fusion suite

Coast Guard acquisition releases say the AN/APY-11 radars are installed on future HC-130J aircraft during the Minotaur missionization process, and the 2025 release describes the radar as enhancing the Minotaur Mission System Suite.

Sources: Coast Guard awards contract for radar systems for new C-130Js, Coast Guard prepares for aircraft fleet expansions with awards for engines, radar

Timeline

Coast Guard-specific multi-mode radar Key Events

  1. Initial radar contract awarded

    The Coast Guard awarded L3Harris a contract for up to five AN/APY-11 multimode radars for new C-130J long-range surveillance aircraft during Minotaur missionization.

    Sources: Coast Guard awards contract for radar systems for new C-130Js

  2. Three additional radar options exercised

    The Coast Guard exercised L3Harris contract options for three additional AN/APY-11 multi-mode radars, valued together at US$13.9 million, for future HC-130Js.

    Sources: Coast Guard prepares for aircraft fleet expansions with awards for engines, radar

  3. Eighteenth missionized HC-130J delivered

    The Coast Guard said L3Harris missionization of aircraft CGNR 2018 integrated the Minotaur Mission System Suite, Coast Guard-specific multi-mode radar, sensors, and communications systems.

    Sources: Coast Guard takes delivery of 18th mission-ready HC-130J surveillance aircraft

Media

Coast Guard-specific multi-mode radar Images

Coast Guard-specific multi-mode radar, Multi-mode surveillance radar, Support Equipment - view 1

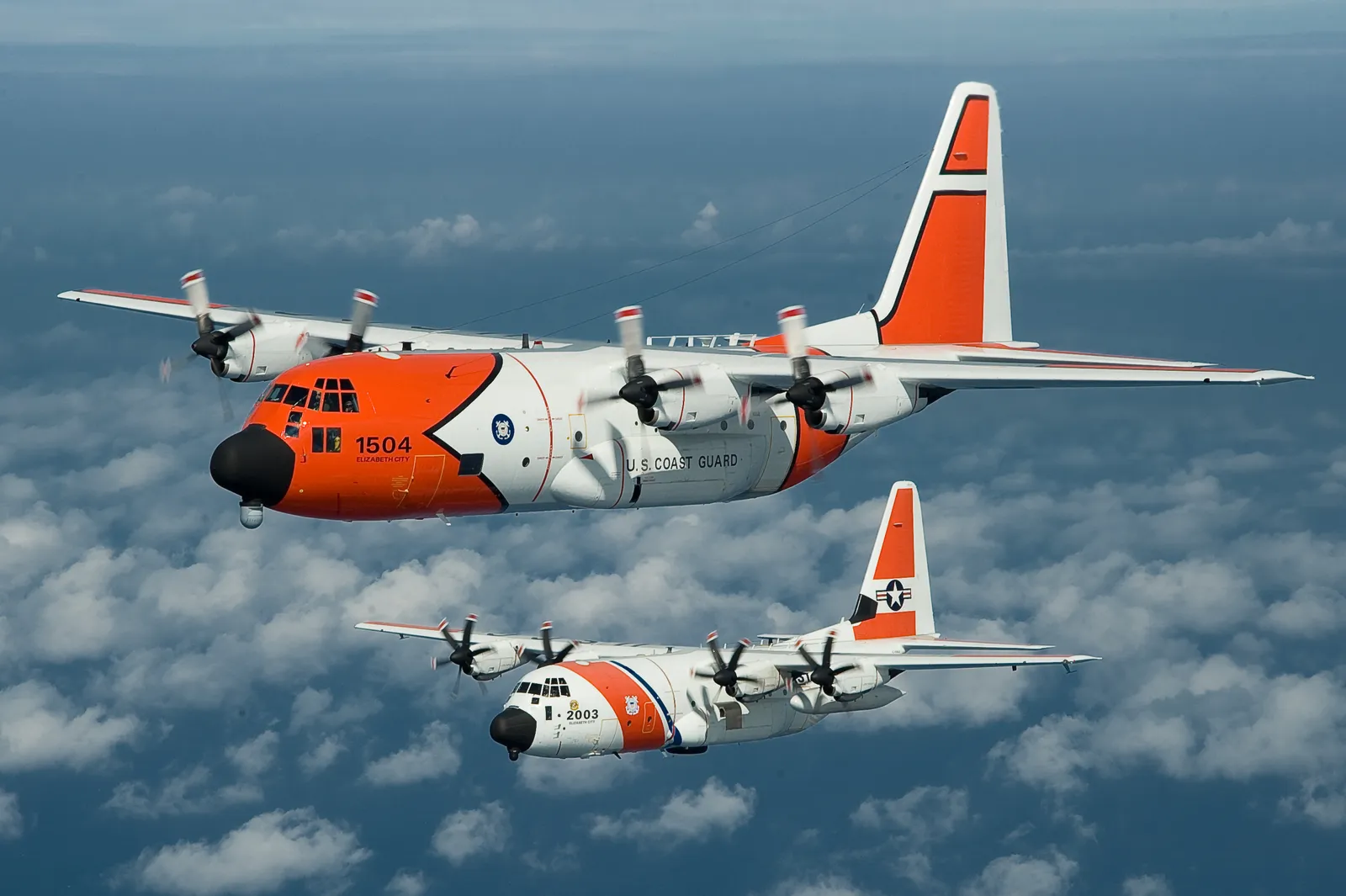

Source: Wikimedia Commons USCG C-130H and HC-130J inflight.jpg
Coast Guard-specific multi-mode radar, Multi-mode surveillance radar, Support Equipment - view 2

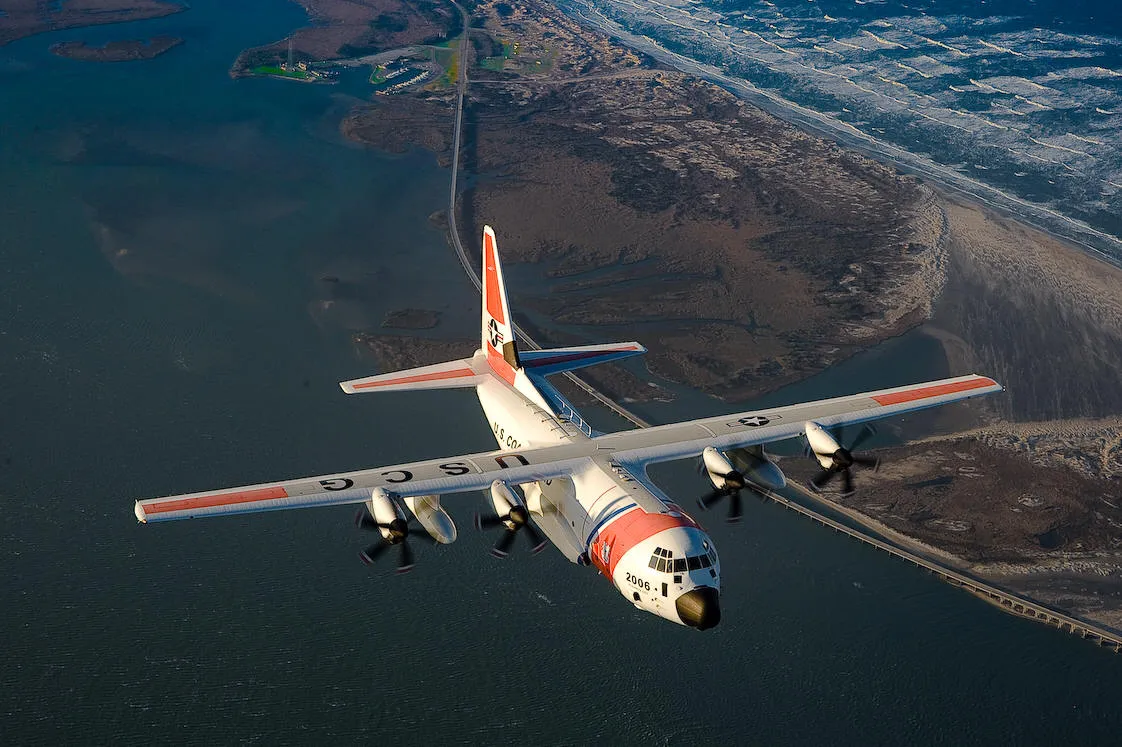

Source: Wikimedia Commons USCG C-130J.jpg
Related Weapon Systems
Long Range Advanced Scout Surveillance System, Long-range electro-optical scout surveillance and target-location system, Support EquipmentSupport EquipmentLong Range Advanced Scout Surveillance SystemLong-range electro-optical scout surveillance and target-location systemThe Long Range Advanced Scout Surveillance System, commonly LRAS3, is a U.S. Army scout and observer sensor suite for long-range reconnaissance, surveillance, target detection, identification, geolocation, and target handoff. Army and Raytheon sources describe FLIR, day-camera, GPS, laser-rangefinder, tripod, vehicle, mast, tower, remote-operation, and networked sensor-to-shooter roles, with direct public records for LRAS3 use in Iraq and Afghanistan.
EO/IR Pod, Electro-optical/infrared airborne sensor pod, Support EquipmentSupport EquipmentEO/IR PodElectro-optical/infrared airborne sensor podEO/IR Pod is a support-equipment entry for airborne electro-optical and infrared sensor pods used to find, track, and designate targets from aircraft and UAVs. The page centers on source-backed examples: Canadian WESCAM sensors assessed on Turkish UAVs in Nagorno-Karabakh, Libya, and Syria; Aero's L-39 Skyfox mission fit showing an EO/IR pod; and the U.S. Coast Guard HC-130J's nose-mounted EO/IR pod. Because carrier publications often name the function rather than a specific model, the relationship notes separate identified WESCAM MX-series evidence from generic EO/IR-pod references.
Iranian coastal surveillance radar sites, HF over-the-horizon 3D phased-array early-warning and coastal surveillance radar, Air DefenseAir DefenseIranian coastal surveillance radar sitesHF over-the-horizon 3D phased-array early-warning and coastal surveillance radarIranian coastal surveillance radar sites cover fixed early-warning and maritime-monitoring radars used around the Persian Gulf, Strait of Hormuz, and wider Iranian air-defense network. Public sources identify Ghadir/Qadir as a reported HF over-the-horizon 3D phased-array radar family, while CENTCOM's 2026 strike releases identify coastal radar sites at Goruk, Qeshm Island, and later Iranian coastal locations without publicly naming every radar model.
HC-130J Combat King II, Fixed-wing personnel recovery and helicopter air-to-air refueling aircraft, Aircraft & UAVsAircraft & UAVsHC-130J Combat King IIFixed-wing personnel recovery and helicopter air-to-air refueling aircraftThe HC-130J Combat King II is Lockheed Martin's C-130J-derived U.S. Air Force rescue and helicopter-refueling aircraft. Developed under the HC/MC-130 recapitalization program, it replaced the HC-130P/N King as the service's only dedicated fixed-wing personnel recovery platform, with night-vision-compatible systems, defensive aids, forward-looking infrared, radar and missile-warning receivers, UARRSI aerial-refueling reception, and mission communications for combat search-and-rescue, disaster response, emergency aeromedical evacuation, airdrop, airland, and forward-area refueling work.
