Instalaza C-90 / C90-CR

Also known as
  • C-90
  • C90
  • C90-CR
  • C90-CR (M3.5)
  • C90-CR M3.5
  • C90 CR M3.5
  • C90-CR weapon system
  • Instalaza C90
  • Instalaza C90-CR
  • Spanish C90 grenade launcher

The Instalaza C-90 / C90-CR is a Spanish disposable 90 mm shoulder-fired rocket launcher family built around single-use tubes, integrated 2x optics, and mission-specific anti-tank, dual-purpose, smoke, and anti-bunker munitions. Open-source conflict records tie the system to captured C-90 series launchers in Yemen and to Spain's 2022 military aid for Ukraine, where C90 launchers were documented in Ukrainian hands.

Instalaza C-90 / C90-CR, Disposable 90 mm shoulder-fired rocket launcher, Infantry Weapons

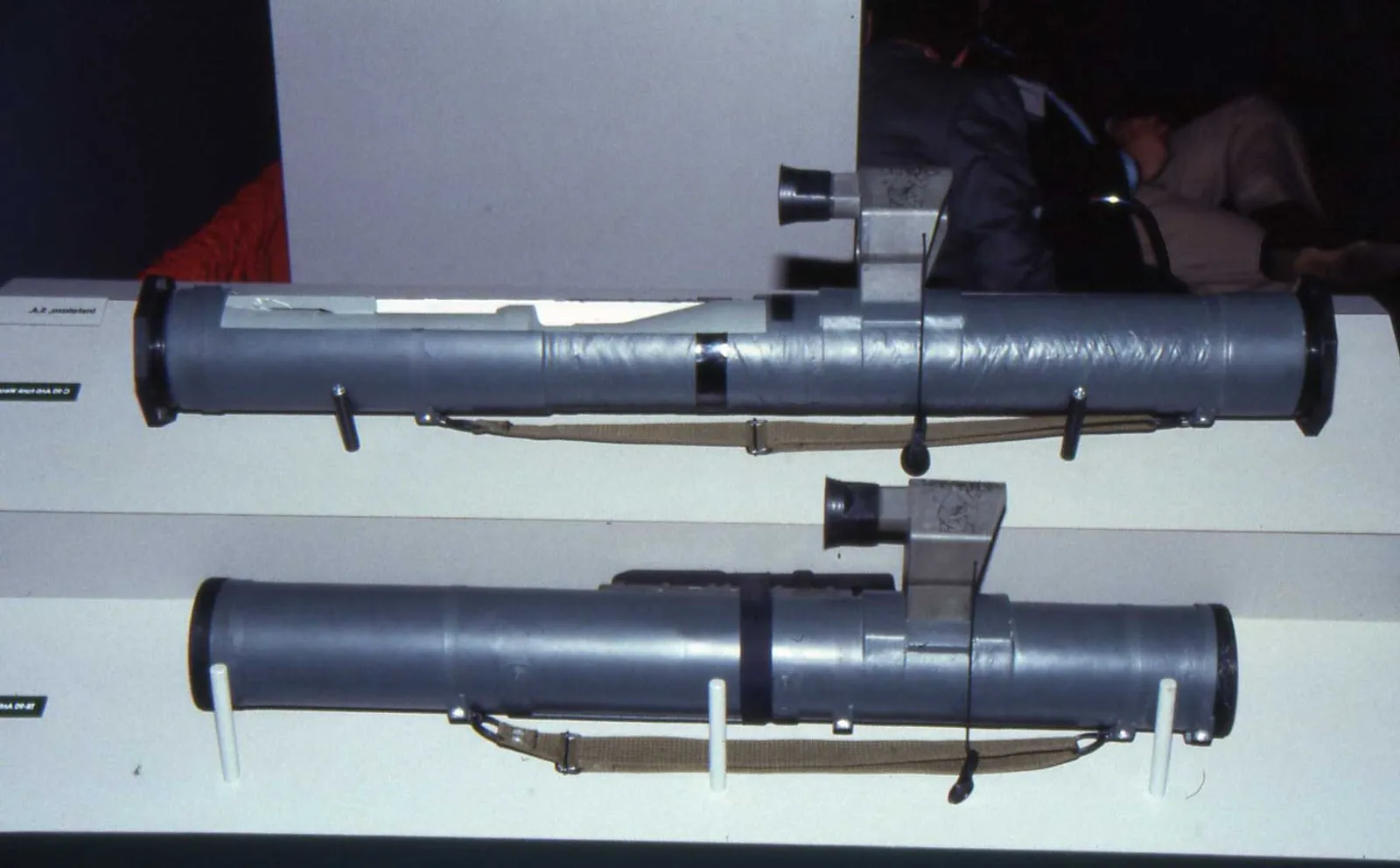

Image source: Commons C-90 Cutaway Image

Role in Conflicts

Profile / Specs

Profile

Origin
Spain
Type
Disposable 90 mm shoulder-fired rocket launcher
Service note
1990s-present
Designer
Instalaza S.A.
Designed
First C90 generation entered service in 1983; later C90 generations followed
Unit cost
Not consistently published
Produced
1990s-present
Number built
Not publicly confirmed

Specifications

Caliber
90 mm
Crew
Single operator
Length
About 940-983 mm depending on source and configuration
Launcher type
Disposable shoulder-launched recoilless rocket system with integrated optical sight
Weight
About 5.2-5.6 kg depending on munition variant
Effective range
350 m against point targets; up to 700 m against area targets for selected variants
Warhead options
Anti-tank, dual-purpose anti-armor/fragmentation, smoke, and anti-bunker variants
Sights
Integrated foldable 2x optical sight; compatible with Instalaza night and thermal vision devices
Variants

Instalaza's current C90-CR (M3.5) line identifies variants by the munition integrated into the disposable 90 mm launch tube.

VariantConfigurationDesignation notes
C90-CR-RB (M3.5), Anti-tank 90 mm munition, MunitionsC90-CR-RB (M3.5)Anti-tank munition

Manufacturer data lists the RB model as the anti-tank C90-CR (M3.5) munition.

Sources: C90-CR (M3.5) Weapon System

C90-CR-AM (M3.5) dual-purpose munition, Dual-purpose anti-armour and fragmentation 90 mm munition, MunitionsC90-CR-AM (M3.5) dual-purpose munitionDual-purpose anti-armour and fragmentation munition

Manufacturer data lists the AM model as the dual-purpose C90-CR (M3.5) munition.

Sources: C90-CR (M3.5) Weapon System

C90-CR-FIM (M3.5) smoke munition, Smoke 90 mm munition, MunitionsC90-CR-FIM (M3.5) smoke munitionSmoke munition

Manufacturer data lists the FIM model as the smoke C90-CR (M3.5) munition.

Sources: C90-CR (M3.5) Weapon System

C90-CR-BK (M3.5), 90 mm anti-bunker munition, MunitionsC90-CR-BK (M3.5)Anti-bunker munition

Manufacturer data lists the BK model as the anti-bunker C90-CR (M3.5) munition.

Sources: C90-CR (M3.5) Weapon System

Supported Munitions

Instalaza lists anti-tank, dual-purpose, smoke, and anti-bunker munitions as the C90-CR (M3.5) family options.

Compatible itemItem typeCompatibility evidence
C90-CR-AM (M3.5) dual-purpose munition, Dual-purpose anti-armour and fragmentation 90 mm munition, MunitionsC90-CR-AM (M3.5) dual-purpose munitionDual-purpose munition

Instalaza lists C90-CR-AM (M3.5) as the dual-purpose munition for the C90-CR weapon system.

Sources: C90-CR (M3.5) Weapon System

C90-CR-BK (M3.5), 90 mm anti-bunker munition, MunitionsC90-CR-BK (M3.5)Anti-bunker munition

Instalaza lists C90-CR-BK (M3.5) as the anti-bunker munition for the C90-CR weapon system.

Sources: C90-CR (M3.5) Weapon System

C90-CR-FIM (M3.5) smoke munition, Smoke 90 mm munition, MunitionsC90-CR-FIM (M3.5) smoke munitionSmoke munition

Instalaza lists C90-CR-FIM (M3.5) as the smoke munition for the C90-CR weapon system.

Sources: C90-CR (M3.5) Weapon System

C90-CR-RB (M3.5), Anti-tank 90 mm munition, MunitionsC90-CR-RB (M3.5)Anti-tank munition

Instalaza lists C90-CR-RB (M3.5) as the anti-tank munition for the C90-CR weapon system.

Sources: C90-CR (M3.5) Weapon System

Family Features

Instalaza presents the C90-CR (M3.5) as a disposable shoulder-launched family rather than a reloadable launcher: each weapon leaves the factory with its munition, sight, and firing mechanism integrated into the tube.

Single-use launcher

The launch tube, projectile, 2x foldable optical sight, and firing mechanism are issued as one ready-to-fire weapon.

Night and thermal interfaces

Instalaza lists compatibility with VN-IIT image-intensifier and VN-IR thermal devices mounted through the sight interface.

Training path

The manufacturer describes TR90-BT subcalibre training and SAARA (M2) simulator options for the C90 family.

Timeline

Instalaza C-90 / C90-CR Key Events

  1. First C90 generation enters service

    Instalaza's history page identifies 1983 as the operational evaluation and entry into service of the first generation of C90 systems.

    Sources: Instalaza Company History

  2. ARES documents C-90 series weapons in Yemen

    Armament Research Services reported C-90 series launchers in Houthi possession and assessed battlefield capture from Saudi or pro-Hadi stocks as the likely acquisition route.

    Sources: Spanish C90-CR Rocket Launchers and Alhambra Hand Grenades in Yemen

  3. C90 launchers documented in Ukrainian hands

    Spanish defense reporting said C90 launchers from Spain's first 2022 arms shipment had reached Ukrainian forces after delivery through Poland.

    Sources: Infodefensa C90 in Ukraine

Media

Instalaza C-90 / C90-CR Videos

Instalaza C-90 / C90-CR Images

Instalaza C-90 / C90-CR, Disposable 90 mm shoulder-fired rocket launcher, Infantry Weapons - view 1
Source: Commons Spanish Marines C-90 Image

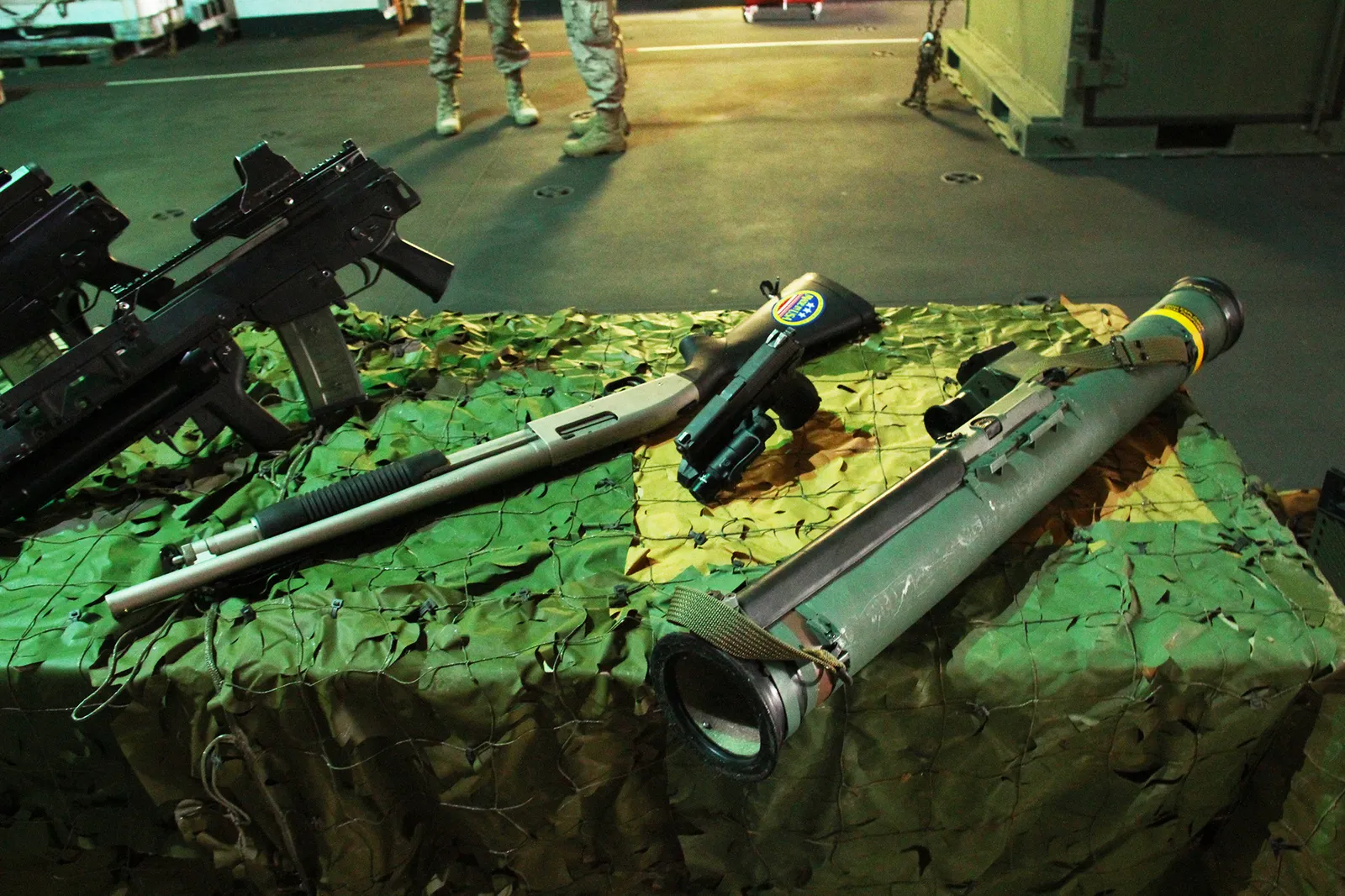

Instalaza C-90 / C90-CR, Disposable 90 mm shoulder-fired rocket launcher, Infantry Weapons - view 2
Source: Commons Spanish Navy Display C-90 Image

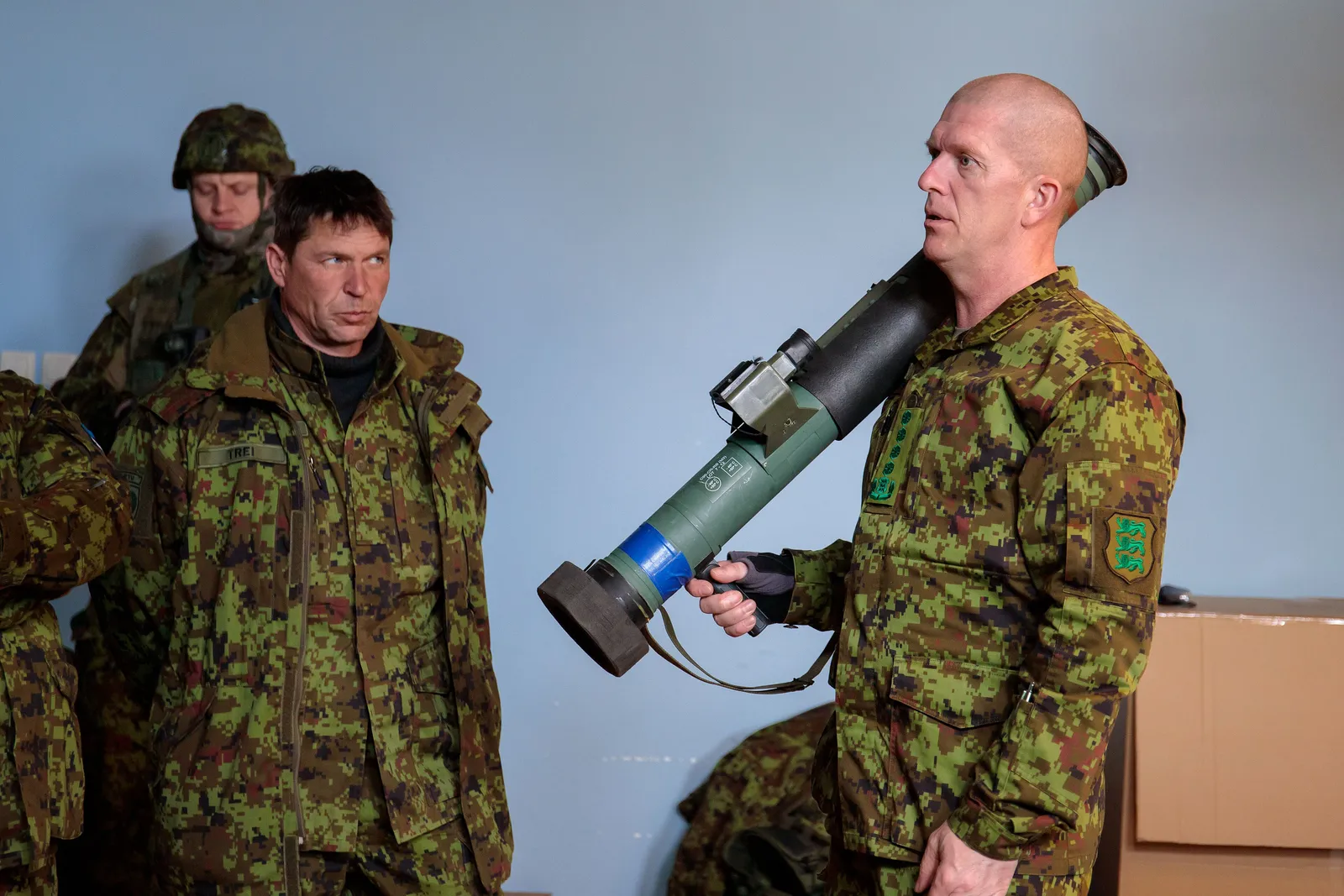

Instalaza C-90 / C90-CR, Disposable 90 mm shoulder-fired rocket launcher, Infantry Weapons - view 3
Source: Commons Estonian Kaitseliit C-90 Image
