C90-CR-AM (M3.5) dual-purpose munition

Also known as

C90-CR-AM
C90-CR AM
C90-CR-AM M3.5

The C90-CR-AM (M3.5) is Instalaza's Spanish dual-purpose 90 mm munition for the C90-CR launcher family. Instalaza groups it with the C90-CR (M3.5) system's supported rounds and describes it as an anti-armour plus fragmentation load with a 5.2 kg transport weight, 350 m point-target range, and 700 m area-target range.

C90-CR-AM (M3.5) dual-purpose munition, Dual-purpose anti-armour and fragmentation 90 mm munition, Munitions

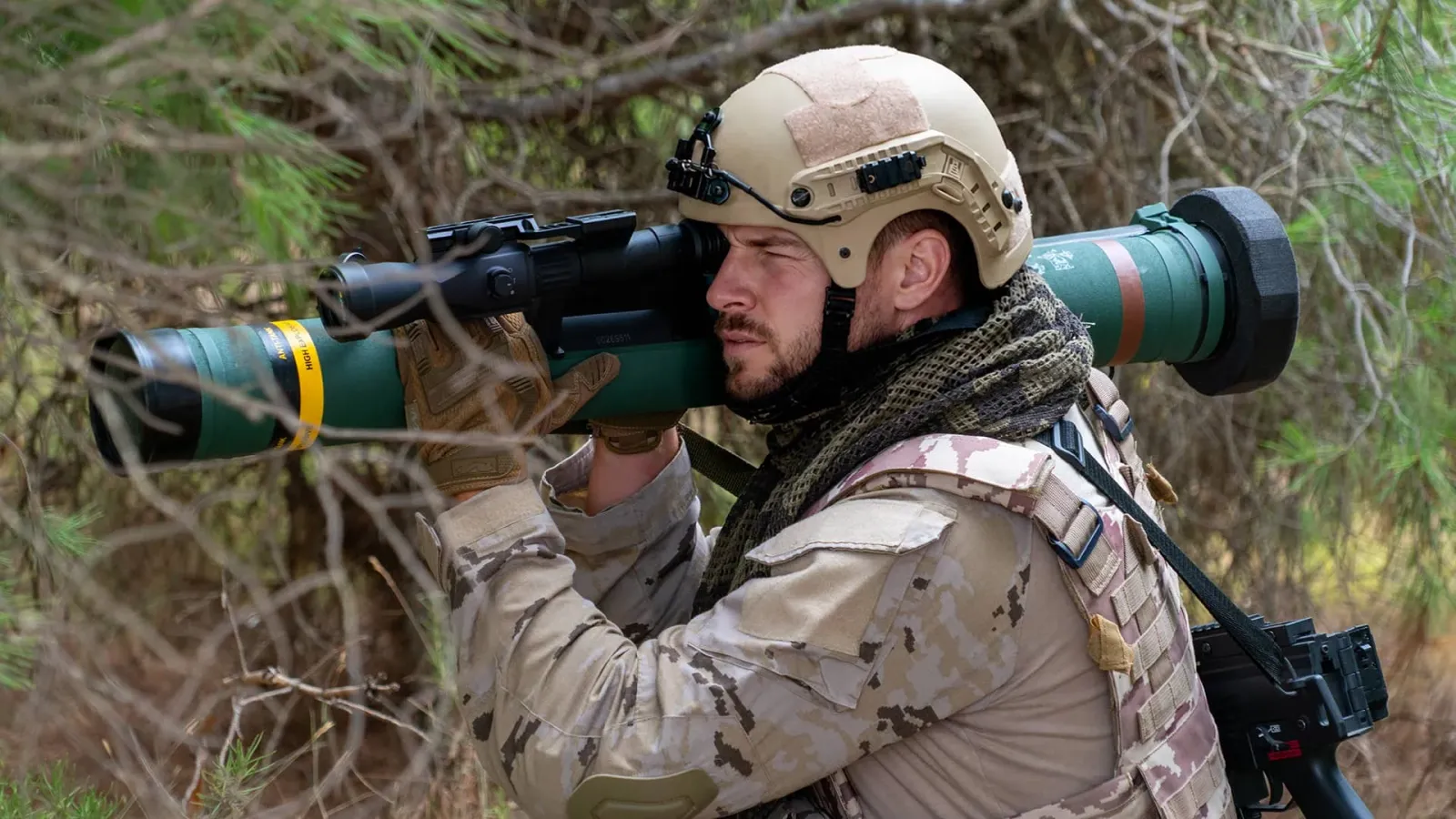

Image source: C90-CR (M3.5) product image

Profile / Specs

Profile

Origin: Spain
Built by: Instalaza S.A.
Type: Dual-purpose anti-armour and fragmentation 90 mm munition
Service note: Modern C90-family ammunition

munition anti-tank fragmentation rocket

Specifications

Caliber: 90 mm
Weight: 5.2 kg (transport configuration)
Effective range: 350 m (point target); 700 m (area target)
Penetration: 220 mm armour steel; 500 mm concrete follow-through
Fragments: > 1,000
Function: Dual-purpose anti-armour and fragmentation
Launcher fit: C90-CR (M3.5)

Compatible Launcher

Instalaza lists the C90-CR-AM (M3.5) as a dual-purpose munition for the C90-CR (M3.5) launcher family.

Compatible item

Item type

Compatibility evidence

Instalaza C-90 / C90-CR, Disposable 90 mm shoulder-fired rocket launcher, Infantry Weapons

Instalaza C-90 / C90-CR

Disposable 90 mm launcher

Instalaza's C90-CR (M3.5) product page lists C90-CR-AM (M3.5) as the dual-purpose munition in the launcher family's supported rounds.

Sources: C90-CR (M3.5) Weapon System

Service And Conflict Use

Service History

In service: Listed by Instalaza as a dual-purpose munition in the C90-CR (M3.5) family.

Media

C90-CR-AM (M3.5) dual-purpose munition Images

C90-CR-AM (M3.5) dual-purpose munition, Dual-purpose anti-armour and fragmentation 90 mm munition, Munitions - view 1 — Source: C90-CR (M3.5) description image 1

C90-CR-AM (M3.5) dual-purpose munition, Dual-purpose anti-armour and fragmentation 90 mm munition, Munitions - view 2 — Source: C90-CR (M3.5) description image 2

C90-CR-AM (M3.5) dual-purpose munition, Dual-purpose anti-armour and fragmentation 90 mm munition, Munitions - view 3 — Source: C90-CR (M3.5) description image 5
