AMCP Module

Also known as

Automated Mobile Command Post MODULE
AMCP "MODULE"
AMCP MODULE

AMCP Module is an Altimus-Tech automated mobile command post for air-defense and air-force C4I networks, configurable as a control and reporting post or centre and linked to radar sensors, height finders, IFF, communications, and air-defense missile units.

AMCP Module, Automated mobile air-defense command post, Air Defense

Image source: Altimus-Tech AMCP Module Product Page

Profile / Specs

Profile

Origin: Poland / Lithuania
Built by: Altimus-Tech
Type: Automated mobile air-defense command post
Service note: Modern Altimus-Tech command-and-control system for air-defense and air-force C4I networks
Designer: Altimus-Tech

Specifications

Primary role: Automated mobile command post for air-defense and air-force C4I networks
Configurations: Configurable as a Control and Reporting Post or Control and Reporting Centre; Joint Operations Centre reconfiguration is also described
Shelter: Equipment housed in a shelter on a truck chassis or trailer, with stationary design optional
Workstations: Basic configuration includes four typical operator workstations with role assignment and reconfiguration
Data systems: Two redundant servers for data distribution and processing, plus a recording-system server
Sensor inputs: Interfaced surveillance sensors up to 16; functions include data from surveillance sensors, height-finding radars, IFF, and optional ADS-B receiver
Message protocols: ASTERIX, LINK 1, LINK 776, and others
Interfaces: HDLC, LAN, fiber optic, VHF/UHF, and satellite
Display coverage: Not less than 800 km range, altitude up to 60 km, and speed up to 3,600 km/h
Power: 380 V +/- 10 percent AC at 50 +/- 1 Hz; power consumption less than 6 kVA
Reliability: 30 minute MTTR and 5,000 hour MTBF

Radar And Height-Finder Interfaces

Altimus-Tech presents AMCP Module as a command-and-control node for air-defense sensors and separately identifies it as an interface partner for PRV-16ML.

Compatible item

Item type

Compatibility evidence

PRV-16ML, Modernized mobile height-finder radar, Air Defense

Mobile height-finder radar

The AMCP Module product page lists acquisition and processing of analogue and digital height-finder radar data among its functions, and the PRV-16ML product page names AMCP Module as a command-and-control centre that PRV-16ML can interface with.

Sources: Altimus-Tech AMCP Module Product Page, Altimus-Tech PRV-16ML Product Page

Media

AMCP Module Images

AMCP Module, Automated mobile air-defense command post, Air Defense - view 1 — Source: Altimus-Tech AMCP Module Product Page

AMCP Module, Automated mobile air-defense command post, Air Defense - view 2 — Source: Altimus-Tech AMCP Module Product Page

Related Weapon Systems

PRV-16ML, Modernized mobile height-finder radar, Air Defense

Air DefensePRV-16MLModernized mobile height-finder radarPRV-16ML is Altimus-Tech's modernized mobile height-finder radar for measuring aircraft altitude from target designations supplied by interfaced surveillance radars or automated control systems.

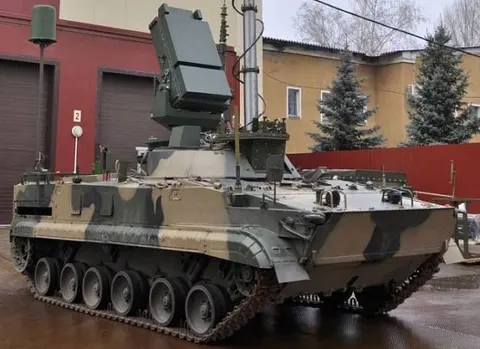

Magistr-SV, Automated air-defense fire-control and reconnaissance system, Air Defense

Air DefenseMagistr-SVAutomated air-defense fire-control and reconnaissance systemMagistr-SV is a Russian automated fire-control and airspace-reconnaissance module for military air-defense units. Built by NPP Rubin within the Ruselectronics/Rostec structure, it combines optoelectronic, compact radar, remote observation, and electronic-intelligence inputs to coordinate air-defense engagements and connect current or prospective short-range air-defense weapons.

P-18ML, Modernized long-range VHF surveillance radar, Air Defense

Air DefenseP-18MLModernized long-range VHF surveillance radarP-18ML is Altimus-Tech's modernized VHF surveillance radar derived from the P-18 / 1RL131 Terek family. The upgrade keeps the system in the long-range two-dimensional surveillance role while adding solid-state processing, electronic frequency agility, automatic tracking, height-finder integration, and documented Ukrainian wartime service.

MARS-L, Mobile combined PSR/SSR L-band air-surveillance radar, Air Defense

Air DefenseMARS-LMobile combined PSR/SSR L-band air-surveillance radarMARS-L is Altimus-Tech's mobile L-band radar that combines primary-surveillance and secondary-surveillance channels on a one-vehicle system. The manufacturer markets it for aircraft detection, interrogation, track generation, radar-data distribution, and air-defense support, including use as a low-altitude surveillance radar, radar-field gap filler, and target-acquisition sensor for upgraded Soviet-legacy surface-to-air missile packages.

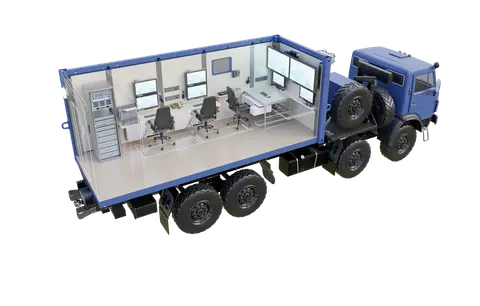

APE-5 command post, Mobile automated command-post module, Support Equipment

Support EquipmentAPE-5 command postMobile automated command-post moduleThe APE-5 is a Russian automated mobile command-post module built by RusBITech for field work and rest by a 9-11-person planning group. Open Russian references describe the system on a KamAZ-63501 chassis with an expandable KK6.3.32 container body, networked workstations, GLONASS navigation, protected videoconferencing, life-support equipment, and a 600 km road range. During the 2014 Russia-Ukraine War, open-source loss trackers have identified Russian APE-5 command posts destroyed in Ukraine, making the system a documented command-and-communications target rather than only a peacetime staff vehicle.

Advanced Self Protection Jammer, Electronic warfare jammer, Electronic Warfare

Electronic WarfareAdvanced Self Protection JammerElectronic warfare jammerThe Advanced Self Protection Jammer is an Indian DRDO airborne electronic-warfare pod associated with the HAL Tejas self-protection fit. Official Indian releases describe it as protecting the aircraft against acquisition radars, fire-control radars, anti-aircraft artillery, and airborne multirole radars, while later procurement approvals extended related external self-protection jammer pods into Su-30MKI electronic-warfare planning.

AMBER-1800, Mobile VHF-band air surveillance radar, Air Defense

Air DefenseAMBER-1800Mobile VHF-band air surveillance radarAMBER-1800 is a mobile VHF-band air surveillance radar associated with the LiTak-Tak and Altimus-Tech industrial lineage. The two-vehicle system uses a deployable antenna and solid-state transmitter/receiver equipment to detect and track air targets, then distribute radar data to air-defense users. RUSI identifies Ukraine's related Burshtyn-1800 radar in service during the 2022 full-scale phase, while Lithuania committed funding for six AMBER-1800-family mobile air-surveillance radars for Ukraine under Germany's Immediate Action on Air Defence initiative in 2024.

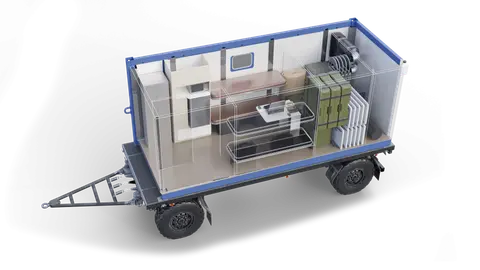

APE-3 automated mobile unit, Mobile automated command-post support module, Support Equipment
