Aircraft & UAVs

Air Tractor AT-802

Also known as
  • AT-802A
  • AT-802F
  • AT-802F Fire Boss
  • Fire Boss
  • AT-802U
  • AT-802L Longsword

The Air Tractor AT-802 is a high-capacity American single-engine turboprop family spanning agricultural, firefighting, and armed derivatives. Its AT-802U and Longsword branches adapted the rugged crop-duster airframe for ISR, light strike, and austere-field operations, including documented use in Yemen, Libya, and Egypt's Sinai campaign.

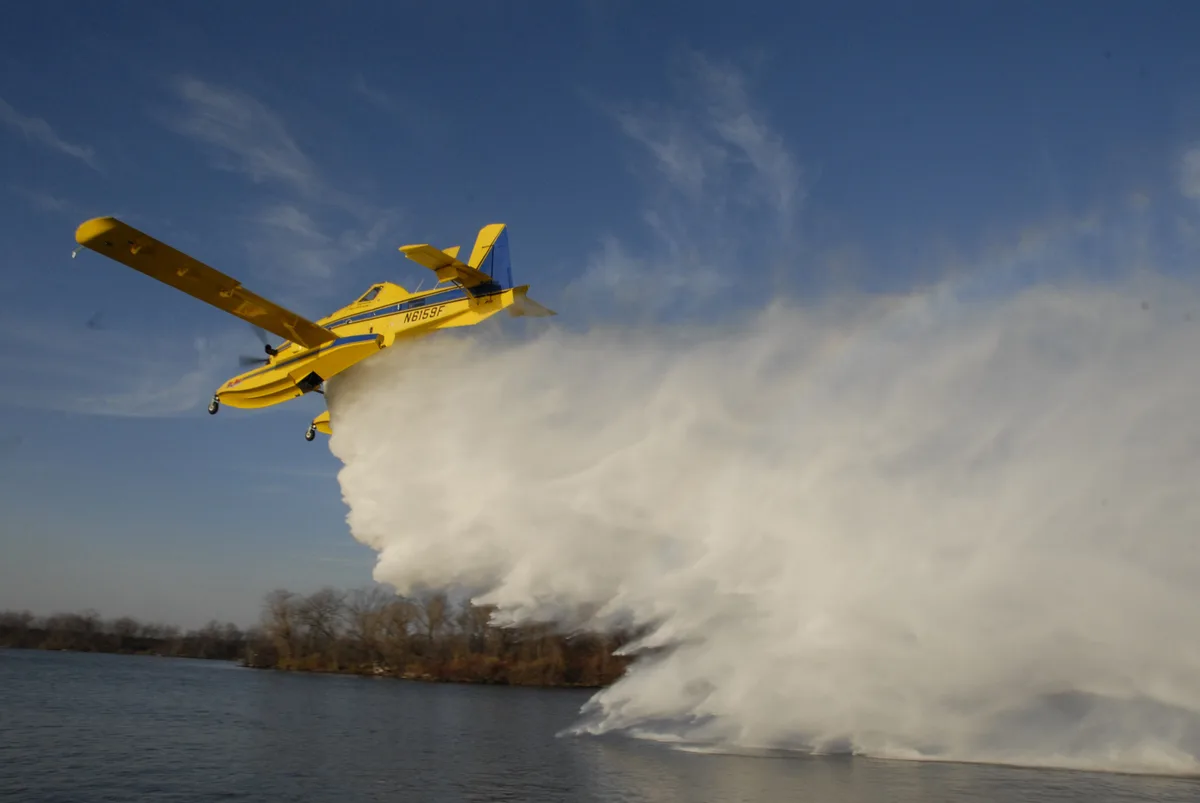

Air Tractor AT-802, Agricultural and armed multi-mission turboprop aircraft, Aircraft & UAVs

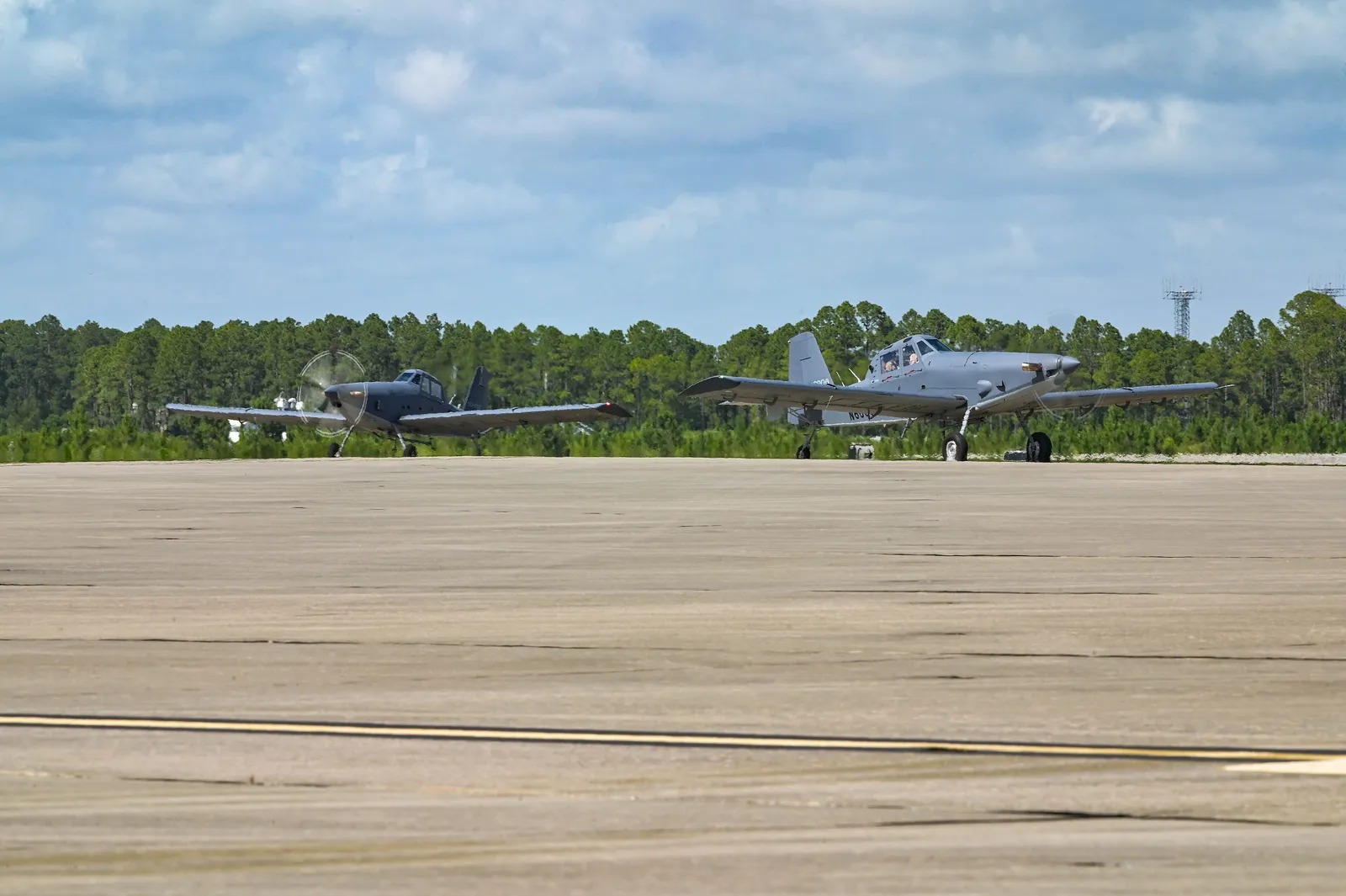

Image source: Air tractor AT-802U arrive to Hurlburt Field 01.jpg - Wikimedia Commons

Role in Conflicts

Profile / Specs

Profile

Origin
United States
Built by
Air Tractor
Type
Agricultural and armed multi-mission turboprop aircraft
Service note
1990-present
Designed
1989-1992
Produced
1993-present
Number built
At least 1,000 AT-802-series aircraft by January 2023
Developed into
AT-802U; AT-802L Longsword; OA-1K Skyraider II

Specifications

AT-802A engine
Pratt & Whitney PT6A-65AG turboprop, 1,295 shp
AT-802A hopper capacity
800 US gal (3,028 L)
AT-802A useful load
9,249 lb (4,195 kg)
AT-802A takeoff weight
16,000 lb (7,257 kg)
AT-802F hopper capacity
820 US gal (3,104 L)
AT-802U engine
Pratt & Whitney PT6A-67F turboprop, 1,600 shp
AT-802U gross weight
16,000 lb (7,257 kg)
AT-802U useful load with ballistic armor
8,164 lb (4,000 kg)
AT-802U range with auxiliary fuselage fuel
1,303 nm (2,414 km)
AT-802U hardpoints
8 wing hardpoints for 500 lb-class weapons and 2 centerline hardpoints for 1,000 lb-class weapons
AT-802 Family Variants

Air Tractor's public material frames the AT-802 as a large single-engine aircraft family that moved from agricultural and firefighting work into armed ISR and strike derivatives.

Agricultural baseline

The AT-802A combines an 800 US gal hopper with a 16,000 lb takeoff weight for high-capacity aerial application work.

Firefighting branch

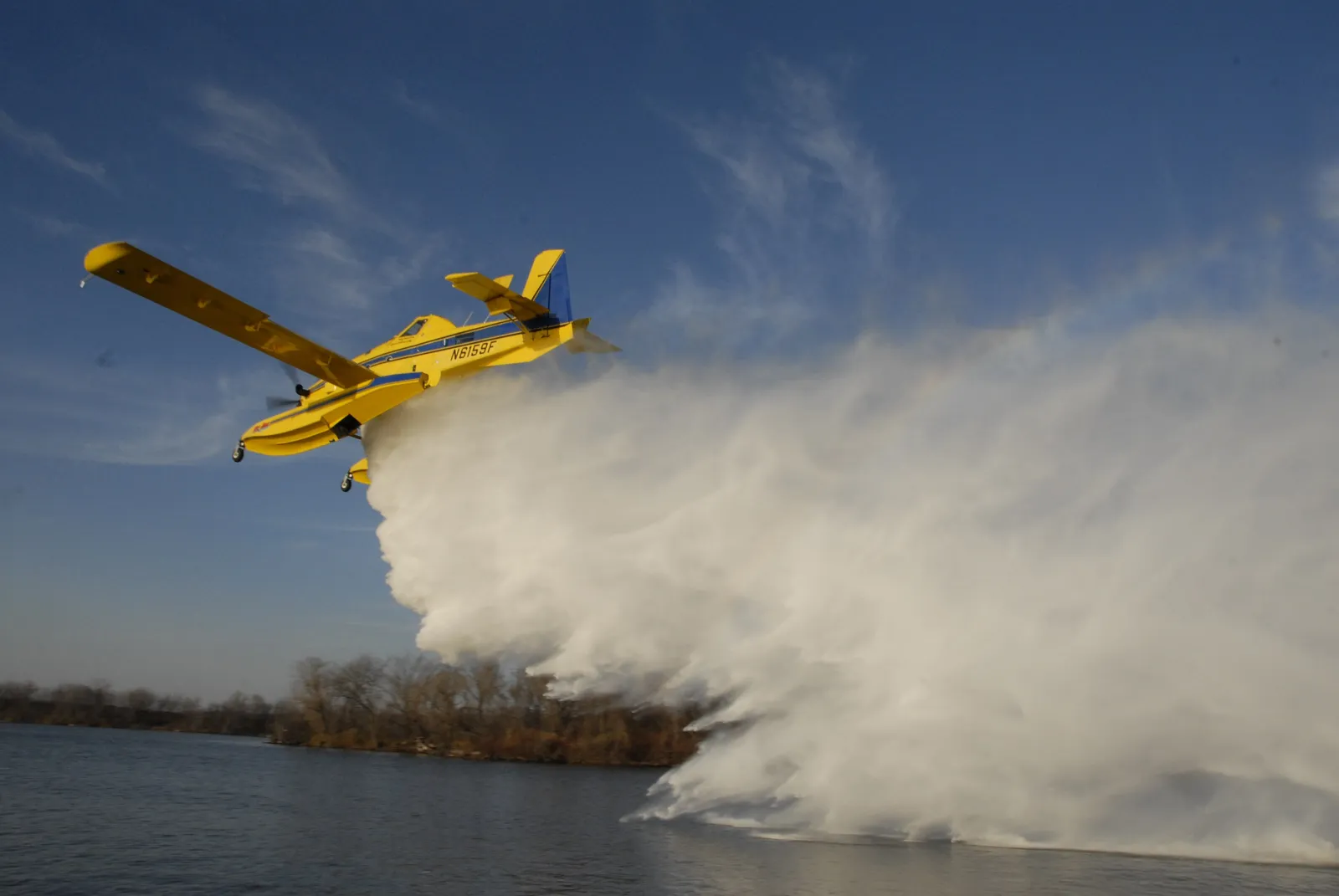

The AT-802F and Fire Boss versions use the same high-capacity airframe for land-based airtanker and amphibious scooping missions.

Armed branch

The AT-802U and Longsword derivatives add armor, surveillance systems, weapons hardpoints, and austere-field utility for light attack and ISR roles.

Variants

The AT-802 family began as large-capacity agricultural and firefighting aircraft and later produced armed ISR and strike derivatives, including the AT-802U, L3 AT-802L Longsword, and the L3Harris/Air Tractor Sky Warden configuration designated OA-1K Skyraider II in U.S. Air Force service.

VariantConfigurationDesignation notes
AT-802ASingle-seat agricultural aircraft

Air Tractor lists the AT-802A with an 800 US gal hopper, 9,249 lb useful load, and 16,000 lb takeoff weight.

Sources: AT-802A - Air Tractor

AT-802FSingle-engine airtanker

The firefighting model uses the AT-802 airframe for retardant work and is listed with a 16,000 lb land takeoff weight and an 820 US gal hopper capacity.

Sources: Specifications & Performance - Air Tractor AT-802F

AT-802F Fire BossAmphibious firefighting scooper

Float-equipped Fire Boss aircraft are the amphibious firefighting branch of the AT-802F family, able to scoop water from lakes, rivers, and reservoirs.

Sources: Amphibious or Land-Based Air Tankers

AT-802UArmed multi-mission aircraft

Air Tractor lists the AT-802U with a PT6A-67F engine, armor, self-sealing fuel system, eight wing hardpoints, and two centerline hardpoints.

Sources: Aircraft Specifications - Air Tractor AT-802U

AT-802L LongswordL3-integrated ISR and light-strike configuration

Air Tractor and L3 announced the AT-802L Longsword for the OA-X assessment, with L3 integration of a glass cockpit, Wescam MX-15 EO/IR sensor, ForceX mission system, and weapons carriage.

Sources: Air Tractor AT-802-L Longsword Enters OA-X Capability Assessment

OA-1K Skyraider II, Crewed light attack and armed overwatch aircraft, Aircraft & UAVsOA-1K Skyraider IIU.S. Sky Warden armed-overwatch configuration

L3Harris describes Sky Raider II International as built on the AT-802U platform, while Air Tractor says USSOCOM selected the L3Harris/Air Tractor AT-802U Sky Warden system for Armed Overwatch.

Sources: SKY RAIDER II INTERNATIONAL, Sky Warden Team Selected for USSOCOM Armed Overwatch Contract

Carried Munitions

Air Tractor and L3Harris describe the AT-802U as a hardpoint-equipped strike aircraft that can carry missiles, rockets, and guided bombs.

Carried itemItem typeCarriage evidence
AGM-114 Hellfire missile family, Air-to-surface missile family, MunitionsAGM-114 Hellfire missile familyAir-to-ground missile

Air Tractor says the AT-802U can be fitted with AGM-114 Hellfire missiles, and Air & Space Forces says Sky Warden can launch them from its hardpoints.

Sources: AT-802U at SOFIC 2019 Goes Beyond "Light Attack", Armed and Dangerous

Hydra-70 rocket system, 2.75-inch air-launched rocket family, MunitionsHydra-70 rocket systemUnguided 70mm rocket

Air & Space Forces says Sky Warden can launch 70 mm rockets such as the Hydra 70, and L3Harris lists Hydra 70 among the aircraft's weapon systems.

Sources: Armed and Dangerous, SKY WARDEN

APKWS / WGU-59 guided rockets, Guided rocket munition family, MunitionsAPKWS / WGU-59 guided rocketsLaser-guided 70mm rocket

Air Tractor says the AT-802U can be mounted with precision-guided 2.75-inch rockets, and L3Harris lists 70mm rockets including APKWS on Sky Warden.

Sources: AT-802U at SOFIC 2019 Goes Beyond "Light Attack", SKY WARDEN

Mk 82 fitted with a Paveway- or Lizard-series guidance kit, 500-pound guided-bomb configuration, MunitionsMk 82 fitted with a Paveway- or Lizard-series guidance kit500-pound laser-guided bomb

Air Tractor says the AT-802U can be fitted with a GBU-12, and Air & Space Forces says Sky Warden can launch GBU-12 500-pound bombs.

Sources: AT-802U at SOFIC 2019 Goes Beyond "Light Attack", Armed and Dangerous

Timeline

Air Tractor AT-802 Key Events

  1. Large AT-802 design begins

    Air Tractor says Leland Snow began designing a large-capacity single-engine aircraft for aerial firefighting in 1989.

    Sources: Air Tractor Celebrates Serial No.1,000 AT-802

  2. AT-802A type certificate

    Air Tractor says the AT-802A became the first model in the series to receive its FAA type certificate in December 1992.

    Sources: Air Tractor Releases 800th Aircraft in AT-802 Series

  3. AT-802 production starts

    Air Tractor says AT-802 series production began in 1993 with the two-seat AT-802 airtanker and single-seat AT-802A agricultural model.

    Sources: Air Tractor Releases 800th Aircraft in AT-802 Series

  4. AT-802L Longsword enters OA-X

    Air Tractor and L3 announced the AT-802L Longsword for the U.S. Air Force OA-X capability assessment.

    Sources: Air Tractor AT-802-L Longsword Enters OA-X Capability Assessment

  5. Sky Warden selected for Armed Overwatch

    Air Tractor said USSOCOM selected the L3Harris/Air Tractor AT-802U Sky Warden system for Armed Overwatch, with up to 75 aircraft under the program.

    Sources: Sky Warden Team Selected for USSOCOM Armed Overwatch Contract

  6. 1,000th AT-802 marked

    Air Tractor announced serial number 802A-1000, marking at least 1,000 AT-802-series aircraft.

    Sources: Air Tractor Celebrates Serial No.1,000 AT-802

Media

Air Tractor AT-802 Videos

Air Tractor AT-802 Images

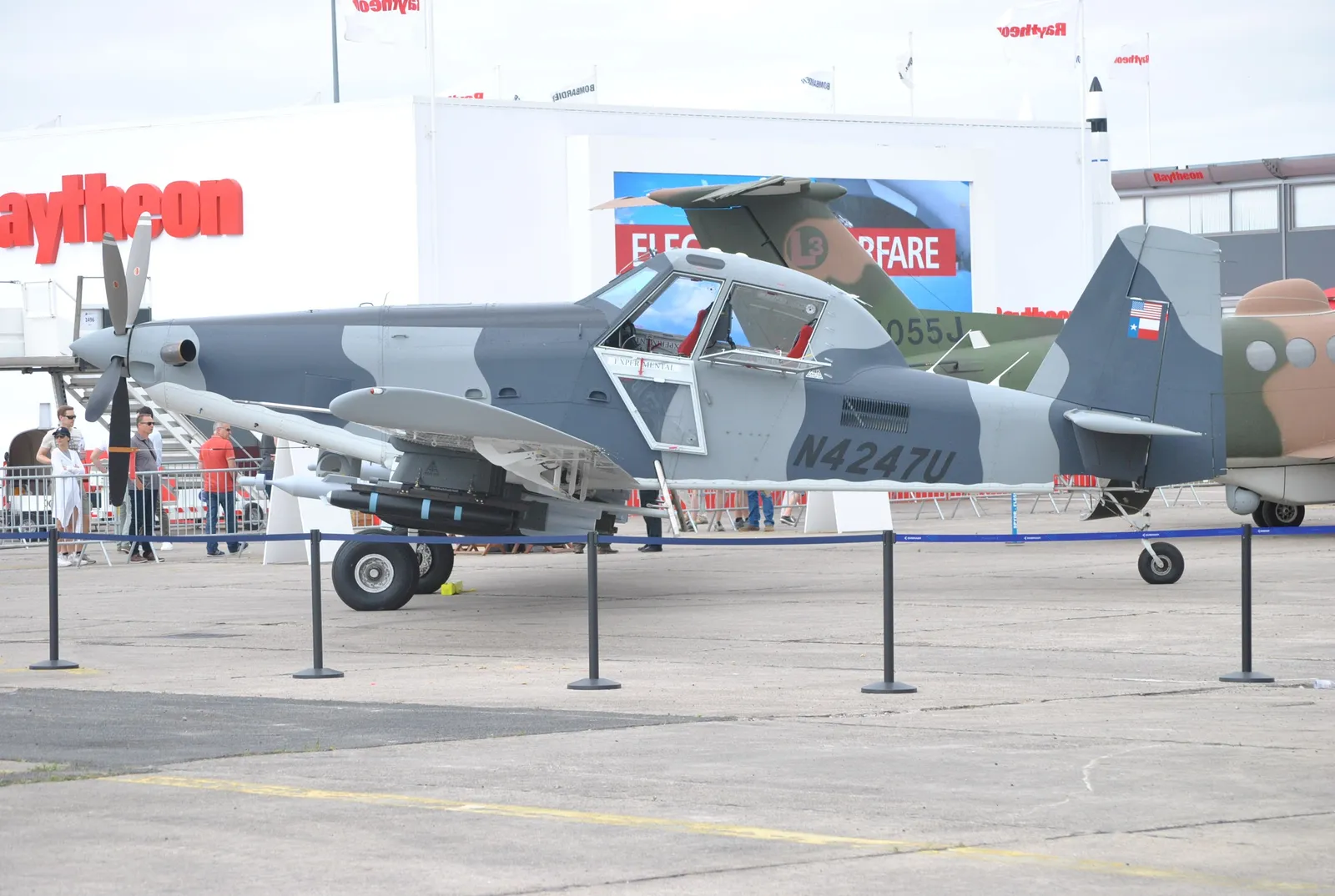

Air Tractor AT-802, Agricultural and armed multi-mission turboprop aircraft, Aircraft & UAVs - view 1
Source: 11-5-6W169.jpg - Wikimedia Commons

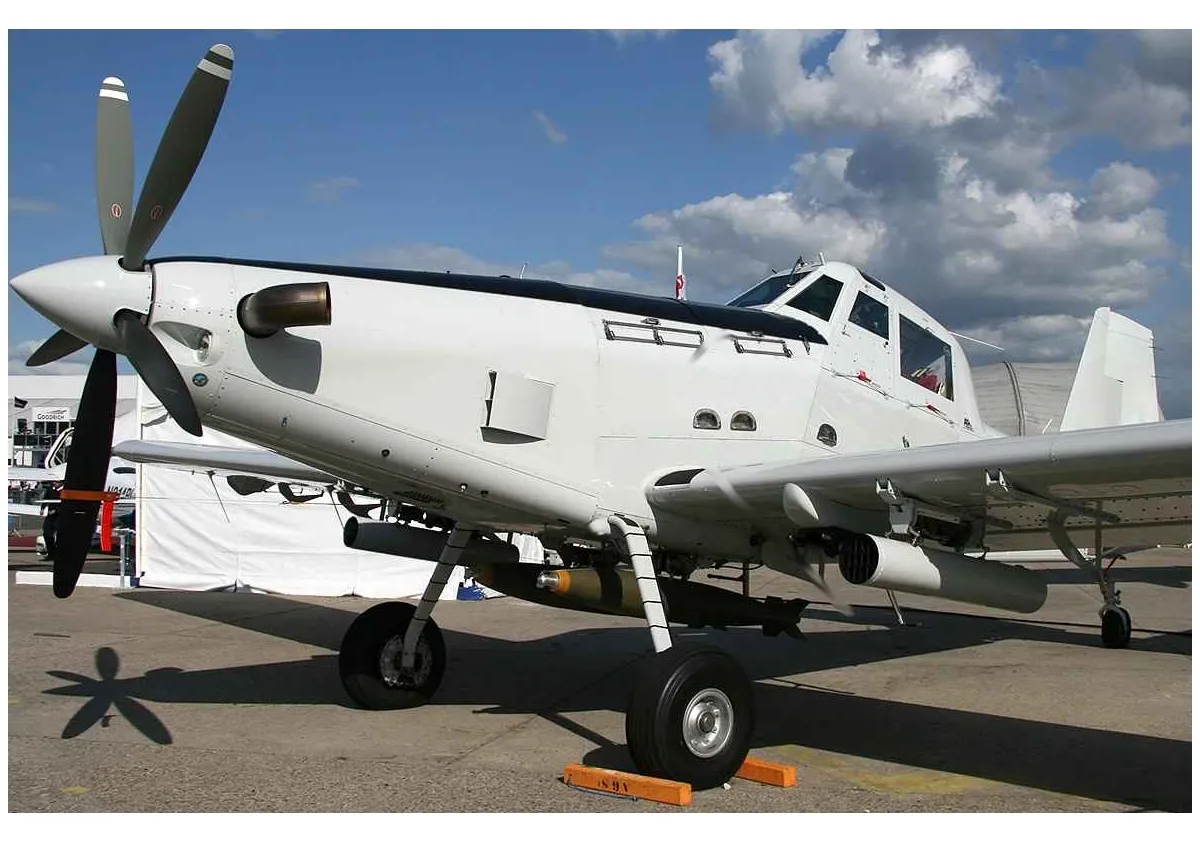

Air Tractor AT-802, Agricultural and armed multi-mission turboprop aircraft, Aircraft & UAVs - view 2
Source: AirTractor Paris I.jpg - Wikimedia Commons
Air Tractor AT-802, Agricultural and armed multi-mission turboprop aircraft, Aircraft & UAVs - view 3
Source: Paris Air Show 2017 Air Tractor Longsword left.jpg - Wikimedia Commons
