3UBK10M-3 / 9M117M laser-guided anti-tank round

Also known as
  • 3UBK10M3
  • 3UBK10M-3
  • 9M117M
  • 9M117M Kan
  • Kan
  • AT-10B Stabber
  • Basnya
  • 9K116-3 Basnya

The 3UBK10M-3 is the BMP-3-specific 100 mm round for the 9M117M Kan laser beam-riding anti-tank missile, fired through the 2A70 gun-launcher in the Basnya weapon system. Rosoboronexport and Army Guide describe a 22.9 kg round with a tandem shaped-charge warhead, 100-4,000 m range, 600 mm armor penetration, and manual guided-round loading on the BMP-3.

3UBK10M-3 / 9M117M laser-guided anti-tank round, 100 mm laser-guided anti-tank round, Munitions

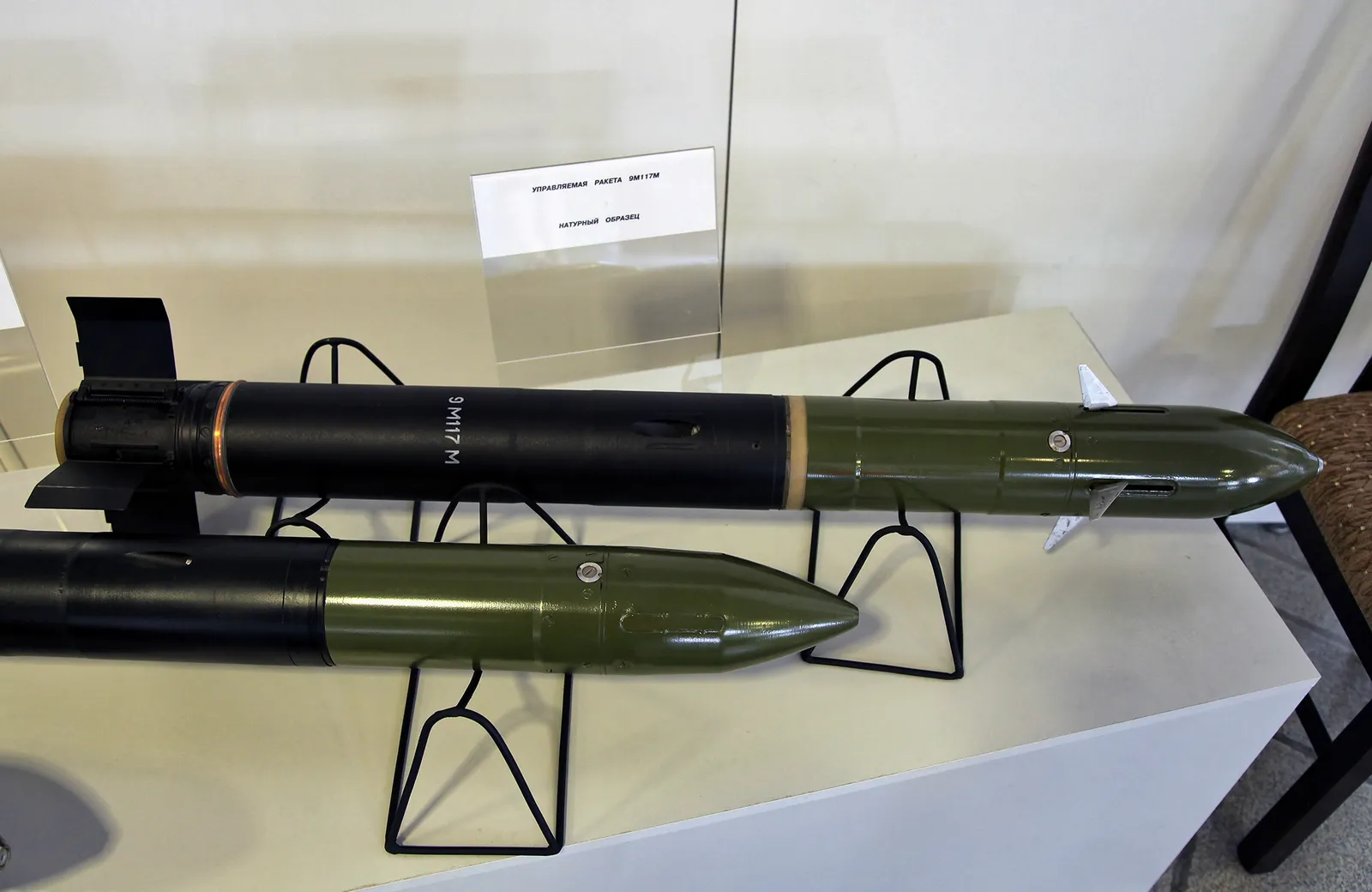

Image source: TulaStateArmsMuseum2013-26.jpg
Profile / Specs

Specifications

Caliber
100 mm
Round weight
22.9 kg
Missile weight
19.4 kg
Round length
1,239 mm
Range
100-4,000 m
Flight time to maximum range
13.7 s
Average missile velocity
300 m/s
Guidance
Jam-proof semi-automatic modulated laser beam-riding guidance
Warhead
Tandem shaped-charge HEAT
Armor penetration
600 mm
Operating temperature
-40 to +50 C
Variants

The 3UBK10M family uses the 9M117M missile with cartridge or round suffixes that identify the launch gun and platform. The -3 suffix is the BMP-3 100 mm 2A70 gun-launcher member, while the later 3UBK23-3 Arkan page covers the extended-range BMP-3-family round with the 9M117M1-3 missile.

VariantConfigurationDesignation notes
3UBK10M100 mm smoothbore anti-tank gun round

Army Recognition identifies 3UBK10M as the 100 mm MT-12/T-12 anti-tank-gun member of the 9M117M family.

Sources: Analysis Russian anti-tank guided missiles & ammunition able to destroy modern armored vehicles

3UBK10M-1100 mm T-55M/T-55AM tank round

Army Recognition identifies 3UBK10M-1 as the 100 mm rifled-gun member intended for T-55M and T-55AM tanks.

Sources: Analysis Russian anti-tank guided missiles & ammunition able to destroy modern armored vehicles

3UBK10M-2115 mm family member

Army Recognition lists 3UBK10M-2 as one of the 3UBK10M rounds equipped with the 9M117M missile.

Sources: Analysis Russian anti-tank guided missiles & ammunition able to destroy modern armored vehicles

3UBK23-3 / 9M117M1-3 Arkan guided round, 100 mm laser-guided anti-tank missile, Munitions3UBK23-3 / 9M117M1-3 Arkan guided roundExtended-range BMP-3-family round

Army Recognition describes 3UBK23-3 Arkan as a BMP-3 gun-launcher round with the 9M117M1-3 missile and a longer 5,500 m firing range.

Sources: Analysis Russian anti-tank guided missiles & ammunition able to destroy modern armored vehicles

Firing Weapons

The 3UBK10M-3 round with the 9M117M guided missile is tied to the BMP-3's 100 mm 2A70 gun-launcher rather than to a stand-alone missile launcher.

Firing weaponWeapon typeFiring evidence
BMP-3, Tracked amphibious infantry fighting vehicle, Armored VehiclesBMP-3Tracked amphibious infantry fighting vehicle

Rosoboronexport lists the 3UBK10M-3 round with the 9M117M guided missile as ammunition for the BMP-3's 2A70 gun-launcher, and Army Guide describes the complete Basnya weapon system around the 2A70, 3UBK10M-3 round, and 9M117M missile.

Sources: Rosoboronexport Land Forces Weapons Catalogue, 2A70 (Gun) - Army Guide

Loading context

Army Guide states that 100 mm high-explosive rounds are autoloaded in the BMP-3, while the laser-guided projectiles are manually loaded and eight guided projectiles are carried.

Sources: 2A70 (Gun) - Army Guide

Round Family And Launcher Context

The 3UBK10M-3 entry is best read as a BMP-3 ammunition component inside the wider 9M117M Kan family. The same missile family appears in cartridges for other 100 mm and 115 mm launch guns, but the -3 round is the BMP-3/2A70 configuration documented for this page.

RoundLaunch contextDocumented distinction
3UBK10M-3BMP-3 100 mm 2A70 gun-launcher22.9 kg round with 9M117M missile, tandem HEAT warhead, 100-4,000 m range, and 1,239 mm round length.
3UBK10M / 3UBK10M-1MT-12/T-12 anti-tank guns and T-55M/T-55AM tanksSame 9M117M missile family adapted to different 100 mm launch weapons and heavier 27.5 kg round configurations.
3UBK23-3 / 9M117M1-3 Arkan guided round, 100 mm laser-guided anti-tank missile, Munitions3UBK23-3 ArkanBMP-3-family 100 mm gun-launcherLater 9M117M1-3 round with 5,500 m range and a linked catalog page for the extended-range Arkan configuration.

Sources: Rosoboronexport Land Forces Weapons Catalogue; 2A70 (Gun) - Army Guide; Analysis Russian anti-tank guided missiles & ammunition able to destroy modern armored vehicles.

Media

3UBK10M-3 / 9M117M laser-guided anti-tank round Images

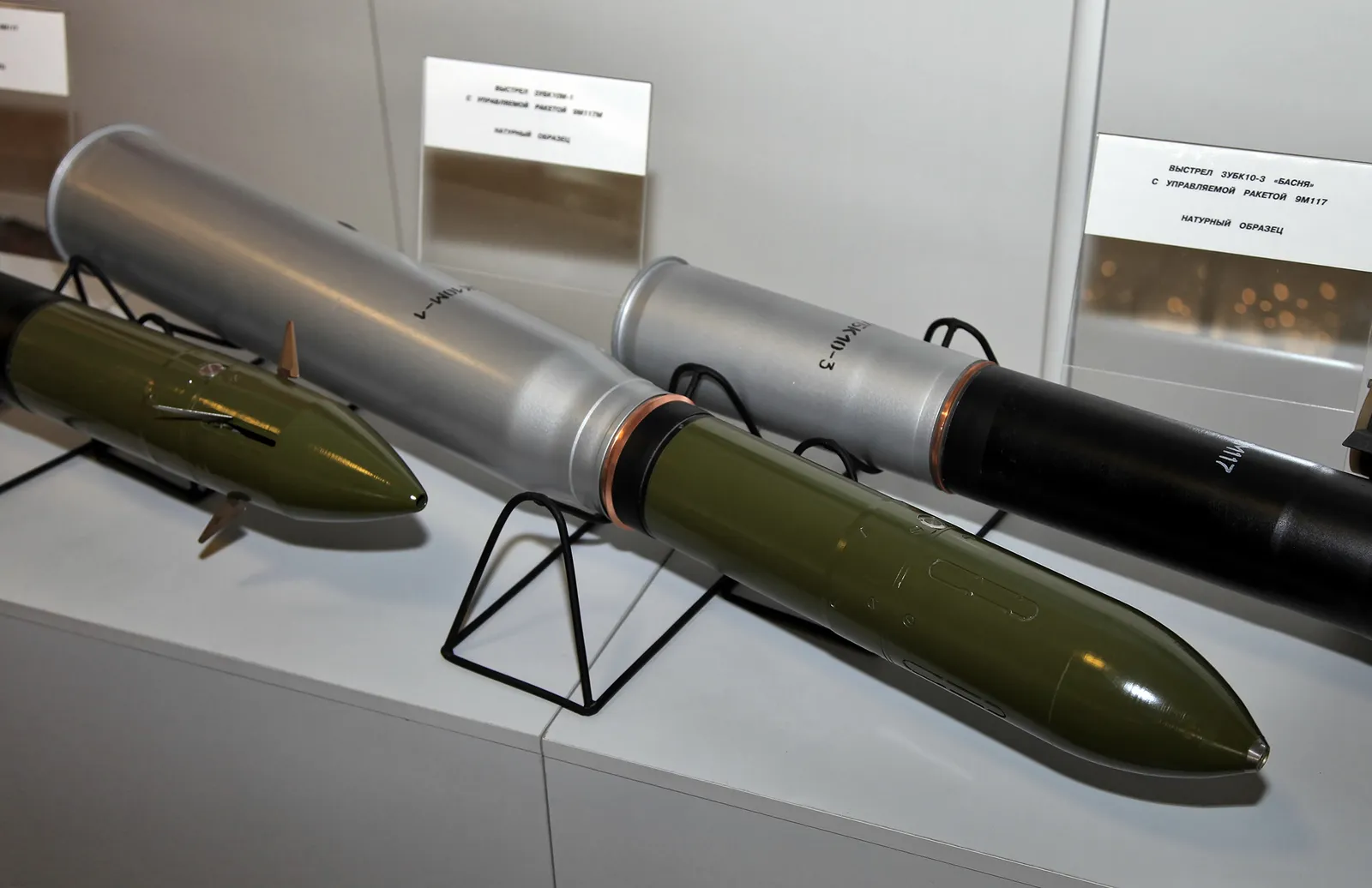

3UBK10M-3 / 9M117M laser-guided anti-tank round, 100 mm laser-guided anti-tank round, Munitions - view 1
