MT-12 100 mm ammunition suite

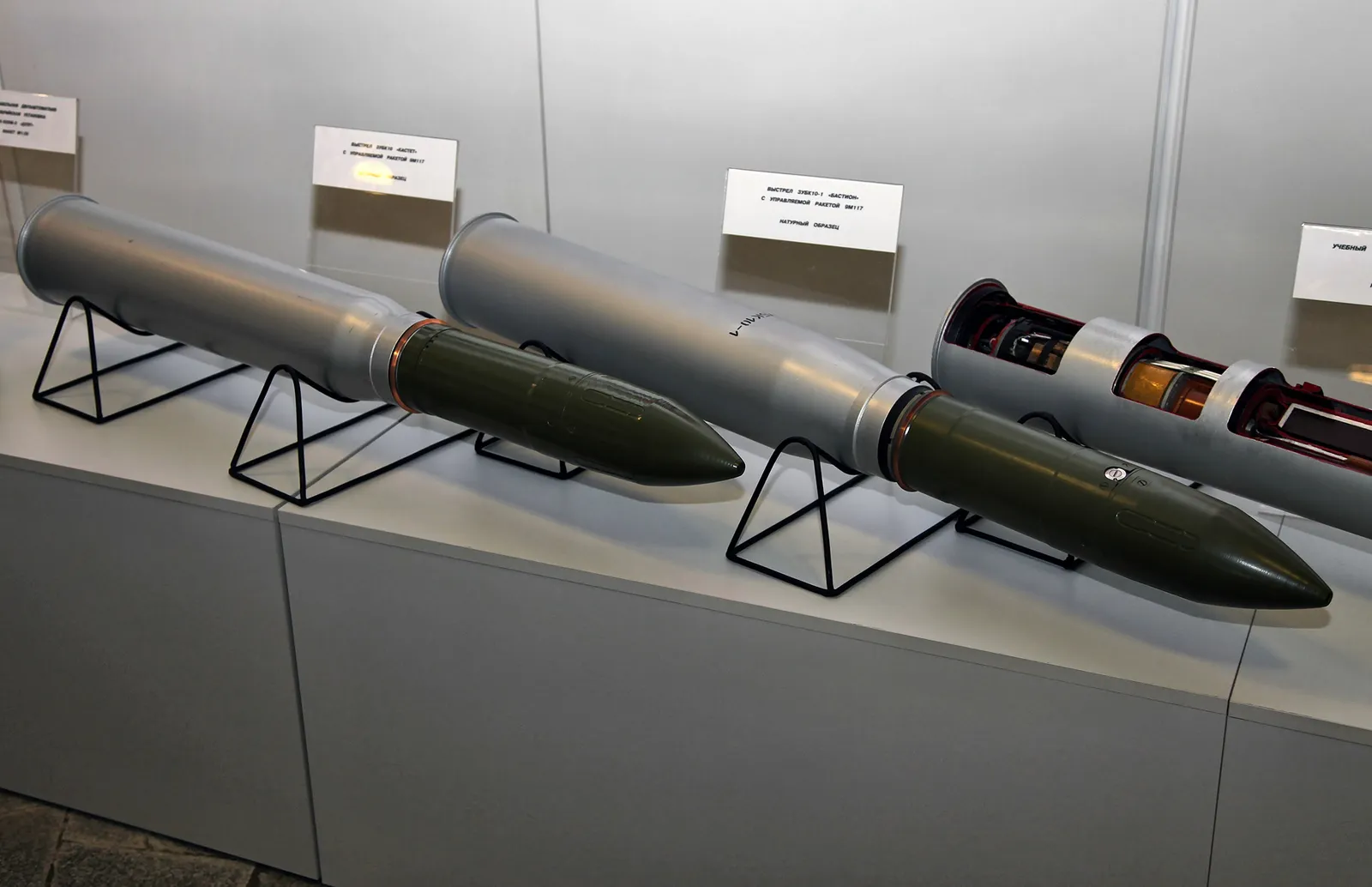

The MT-12 100 mm ammunition suite groups the source-listed rounds for the T-12 and MT-12 smoothbore anti-tank guns, including guided 3UBK-10 / 9M117 rounds, UBM1 and UBM2 armor-piercing sub-caliber rounds, UBK2 and UBK2M hollow-charge rounds, and UOF3 high-explosive fragmentation ammunition.

MT-12 100 mm ammunition suite, 100 mm fixed ammunition family for T-12 and MT-12 anti-tank guns, Munitions

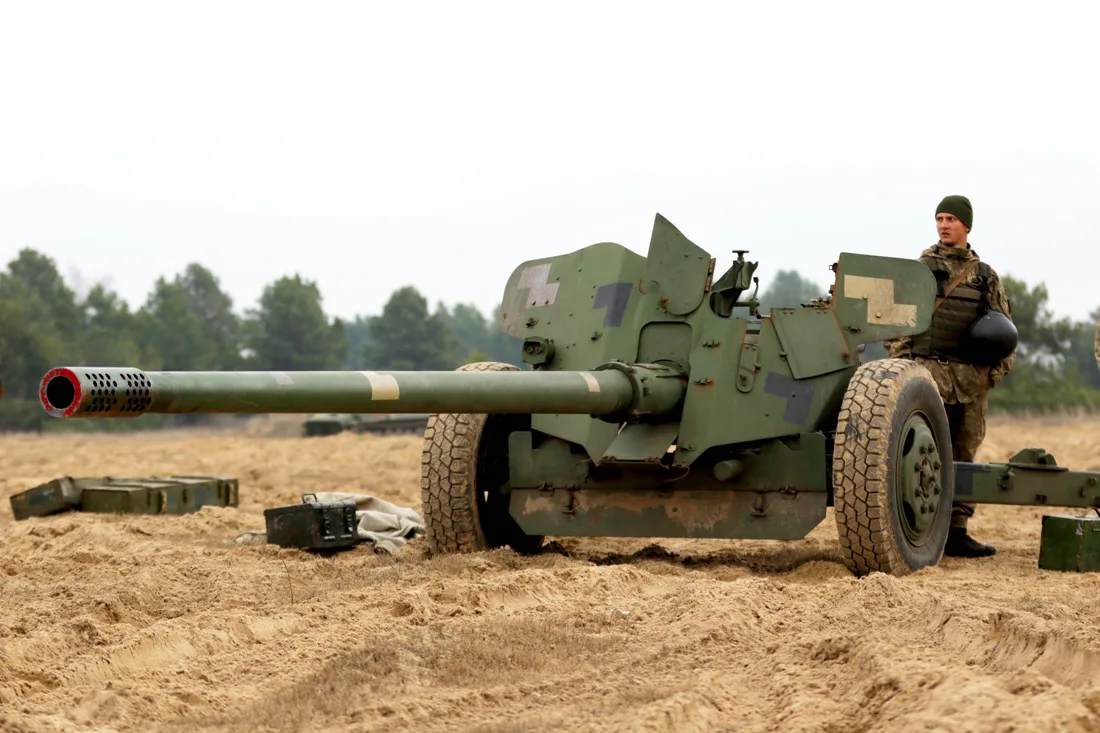

Image source: MT-12 Ukrainian service image

Firing Weapons

Belspetsvneshtechnika lists this 100 mm ammunition family for the MT-12 and T-12 anti-tank guns.

Firing weapon

Weapon type

Firing evidence

MT-12 Rapira, Towed 100 mm smoothbore anti-tank gun, Artillery

100 mm smoothbore anti-tank gun

The MT-12 entry from Belspetsvneshtechnika lists 3UBK-10 guided rounds, UBM1/UBM2 sub-caliber rounds, UBK2/UBK2M hollow-charge rounds, and UOF3 HE-fragmentation rounds for the 100 mm MT-12/T-12 gun family.

Sources: 100 mm anti-tank gun MT-12 Rapira

Profile

Origin: Soviet Union / Belarus-listed legacy stocks
Built by: Sovietpost-Soviet ordnance industry
Built in: Soviet Unionpost-Soviet states
Type: 100 mm fixed ammunition family for T-12 and MT-12 anti-tank guns
Service note: Cold War 100 mm smoothbore ammunition family still listed for MT-12 service

100 mmammunition anti-tankapfsdsheat he-frag

Specifications

Caliber: 100 mm
Compatible guns: MT-12 (2A29) and T-12 (2A19)
Guided round: 3UBK-10 with 9M117 anti-tank guided missile
APFSDS rounds: UBM1 and UBM2 with ZBM1 and ZBM2 projectiles
HEAT rounds: UBK2 and UBK2M with 3BK3 and 3BK3M projectiles
HE-FRAG round: UOF3 with 3OF15 projectile
Listed ammunition load: 20 rounds: 10 AP sub-caliber, 6 hollow charge, and 4 HE-fragmentation

Service And Conflict Use

Service History

In service: Listed by Belspetsvneshtechnika for 100 mm MT-12 and T-12 guns.

Related Weapon Systems

3BK19 high-explosive anti-tank round, 120 mm HEAT-FS-T projectile, Munitions

Munitions3BK19 high-explosive anti-tank round120 mm HEAT-FS-T projectileThe 3BK19 is a Soviet-developed 120 mm HEAT-FS-T projectile used in the 3VBK14 semi-fixed round for direct-fire anti-armor engagements. Fenix identifies it as a steel-bodied, fin-stabilised tracer projectile, while VPK and Tank Encyclopedia connect it to the 2S9 and 2S23 Nona families.

BEKM-82 cumulative mine, 82 mm HEAT mortar projectile, Munitions

MunitionsBEKM-82 cumulative mine82 mm HEAT mortar projectileThe BEKM-82 is a Hungarian 82 mm HEAT mortar projectile, described by the HM Haditechnikai Intézet as a repesz-kumulatív aknagránát developed for both automatic and conventional mortars. HTI says the round weighs 3.1 kg, can penetrate 100 mm of armor, and its BEKM designation comes from the surnames of the four developers.

Mk 118 Rockeye submunition, HEAT cluster submunition, Munitions

MunitionsMk 118 Rockeye submunitionHEAT cluster submunitionThe Mk 118 Rockeye is a US high-explosive anti-tank submunition carried inside Mk 20, CBU-99, and CBU-100 Rockeye cluster bombs. Each Rockeye dispenser scatters hundreds of fin-stabilized bomblets over an area target, leaving unexploded ordnance risks when submunitions fail to function. In the Sinai Insurgency, Amnesty International identified an unexploded Mk 118 in Egyptian military footage from North Sinai and assessed it as evidence of Egyptian Air Force cluster-munition use during Operation Sinai 2018.

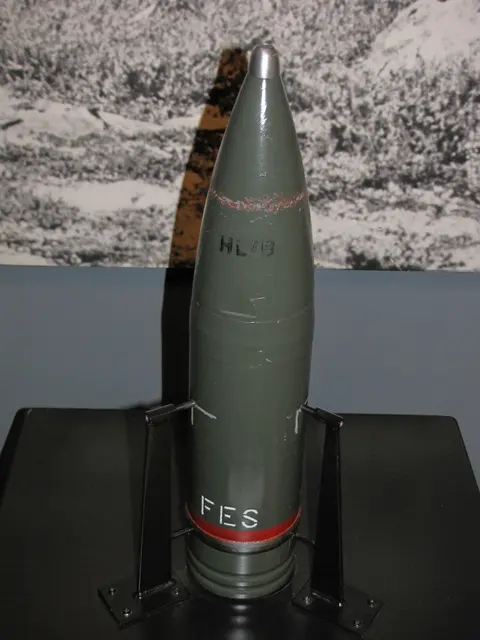

OCC 105 F3 HEAT-FS, 105×527R HEAT-FS round, Munitions

MunitionsOCC 105 F3 HEAT-FS105×527R HEAT-FS roundOCC 105 F3 is a French 105×527R HEAT-FS round documented as ammunition for the AMX-10RC's GIAT 105 mm F2 gun. Reference tables list it with a 13.85 kg cartridge weight, 5.7 kg projectile weight, and 1,120 m/s muzzle velocity, with quoted penetration above 350 mm at 0 degrees.

OFL 105 F3 APFSDS, 105×527R APFSDS round, Munitions

MunitionsOFL 105 F3 APFSDS105×527R APFSDS roundOFL 105 F3 is a French 105×527R APFSDS round associated with GIAT Industries / Nexter Munitions and the AMX-10RC's 105 mm F2 gun. French reference material describes it as entering service in 1987 with a monobloc tungsten-alloy penetrator, about 12.8 kg complete mass, 3.8 kg projectile mass without sabot, and 1,400 m/s muzzle velocity.

M79 Osa, Reusable 90 mm anti-tank rocket launcher, Infantry Weapons

Infantry WeaponsM79 OsaReusable 90 mm anti-tank rocket launcherThe M79 Osa is a Yugoslav-designed, reusable 90 mm shoulder-fired anti-tank rocket launcher built around unguided HEAT rockets, a detachable rocket container, and optical sighting. In Islamic State inventories it provided a portable direct-fire anti-armor and fortification weapon, with documented M79 rockets captured from IS forces in Syria and reporting that M79 launchers reached Iraq during the 2013-2017 war.

Sources

100 mm anti-tank gun MT-12 RapiraPublisher: Belspetsvneshtechnika | Note: Supports the MT-12/T-12 ammunition family: 3UBK-10 / 9M117 guided rounds, UBM1 and UBM2 AP sub-caliber rounds, UBK2 and UBK2M hollow-charge rounds, UOF3 HE-fragmentation rounds, and the listed 20-round ammunition set. | Accessed: 2026-06-24 MT-12 optics and ammunition overviewPublisher: Wikipedia | Note: Supports the general MT-12 100 x 910 mmR ammunition context and confirms APFSDS, HEAT, HE, and gun-launched anti-tank missile ammunition categories. | Accessed: 2026-06-24 MT-12 Ukrainian service imagePublisher: Wikimedia Commons | Note: Image provenance and licensing page for the MT-12 photograph used to represent the ammunition's firing weapon. | Accessed: 2026-06-24
