120 mm round with thermobaric bomb

Also known as
  • 120 mm TB mortar bomb

The 120 mm round with thermobaric bomb is a Bulgarian VMZ Sopot thermobaric mortar round for 120 mm mortar tubes, documented through manufacturer and distributor product sources rather than direct conflict-use reporting. VMZ lists a V-RM fuze, PTBS thermobaric filling, 1.85 kg explosive charge, 5,840 m maximum range, and compatibility with PM-38, PM-43, M-120, and 2B11 mortars.

120 mm round with thermobaric bomb, 120 mm thermobaric mortar round, Munitions

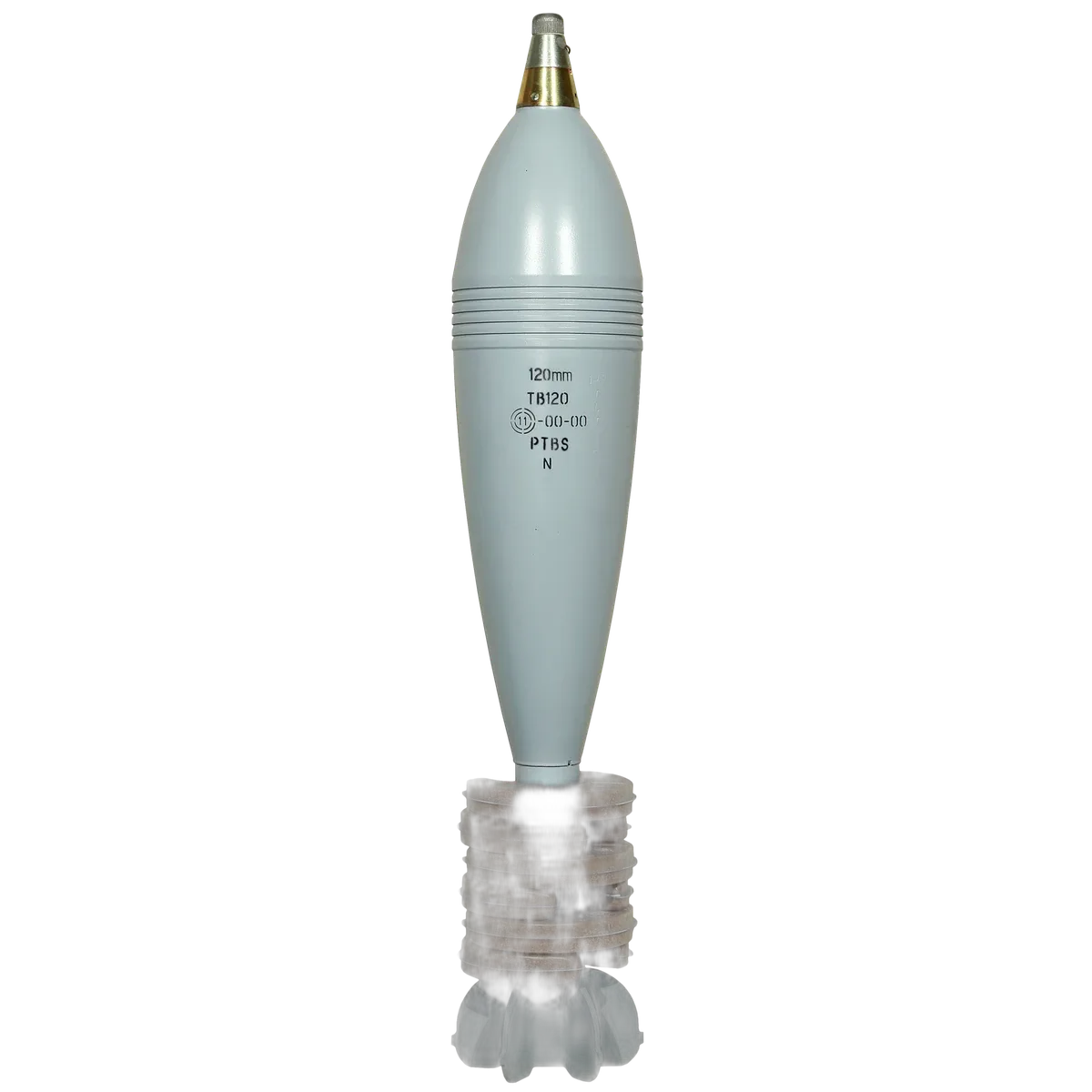

Image source: Armoteh 120 mm Round With Thermobaric Bomb
Profile / Specs

Profile

Origin
Bulgaria
Built by
VMZ Sopot
Type
120 mm thermobaric mortar round
Service note
Modern export mortar ammunition
Unit cost
Not publicly listed
Produced
Current export catalog listing

Specifications

Caliber
120 mm
Length of fuzed round
661 mm
Weight of round
16 kg
Weight of explosive charge
1.85 kg
NSN
1315-50-001-5858
Muzzle velocity
274 +/- 3 m/s
Maximum range
5,840 m
Fuze
V-RM
Compatible mortars
PM-38, PM-43, M-120, and 2B11 mortars
Packout
3 rounds per wooden case
Variants
  • 120 mm thermobaric mortar bomb
  • 120 mm thermobaric mortar round
Firing Weapons

VMZ's product sheet says this round is for all types of 120 mm mortars and specifically lists PM-38, PM-43, M-120, and 2B11 mortars among compatible firing weapons.

Firing weaponWeapon typeFiring evidence
120-PM-38, 120 mm towed heavy mortar, Artillery120-PM-38120 mm towed heavy mortar

VMZ lists PM-38 as one of the compatible mortars for this 120 mm thermobaric round.

Sources: VMZ 120 mm Thermobaric Mortar Round

PM-43, 120 mm towed heavy mortar, ArtilleryPM-43120 mm mortar

VMZ lists PM-43 as one of the compatible mortars for this 120 mm thermobaric round.

Sources: VMZ 120 mm Thermobaric Mortar Round

2S12 Sani, 120 mm heavy mortar system, Artillery2S12 Sani2B11 120 mm mortar component

VMZ lists 2B11 among the compatible mortars; the linked 2S12 Sani record covers the 2B11 mortar component and its Sani system context.

Sources: VMZ 120 mm Thermobaric Mortar Round

Compatibility And Round Profile

VMZ presents the item as a 120 mm thermobaric mortar round for compatible Soviet-pattern mortar tubes. Available product sources support the round profile and launcher list, while conflict-specific public evidence for this exact round remains unavailable.

Thermobaric role

VMZ describes the round as intended for personnel in open areas, urban shelters, fortifications, difficult terrain, and vehicles, using a polymeric thermobaric mixture to generate blast overpressure.

Listed launchers

The VMZ sheet names PM-38, PM-43, M-120, and 2B11 mortars. Existing catalog links cover PM-38, PM-43, and the 2B11 component through the 2S12 Sani record.

Round and packout

The fuzed round is listed at 661 mm and 16 kg, with 1.85 kg of explosive charge, a V-RM fuze, NSN 1315-50-001-5858, and three rounds per wooden case.

Related Weapon Systems
Mortar bombs, 120mm, Heavy mortar ammunition, MunitionsMunitionsMortar bombs, 120mmHeavy mortar ammunition120 mm mortar bombs are fin-stabilized heavy mortar projectiles for compatible 120 mm mortar launchers, covering high-explosive, smoke, illumination, training, extended-range, and guided families. Published examples vary sharply by manufacturer and launcher qualification: conventional HE rounds commonly list 13-16 kg class masses, product-specific explosive fillings, point-detonating or proximity fuzes, and range limits tied to barrel length, pressure limits, smoothbore qualification, or turreted-system requirements. In the Boko Haram insurgency, Nigerian Army reporting documented recovered 120 mm mortar bombs as insurgent materiel rather than confirmed firing use.
RTB-7MA RPG round, 40 mm thermobaric RPG round for RPG-7-family launchers, MunitionsMunitionsRTB-7MA RPG round40 mm thermobaric RPG round for RPG-7-family launchersThe RTB-7MA is a Bulgarian 40/106 mm thermobaric round for RPG-7-family launchers, built around a GTB-7MA warhead, CP-73 booster, SM-71 sustainer motor, and AF-76 point-detonating fuze. Product data frames it as an anti-personnel and anti-materiel round for shelters, fortifications, buildings, light armored vehicles, and automobiles, while open-source reporting places it with Boko Haram- and ISWAP-linked materiel in Nigeria and Ukrainian forces around Bakhmut.
