X-15 drum magazine

Also known as
  • X-15 High Capacity Magazine
  • X-15 50-round AR-15 drum magazine
  • X15 drum magazine
  • X15-M
  • X-15 AR15 + M16 drum magazine
  • X-15 10/50 California compliant drum magazine
  • X-15 Skeletonized

The X-15 is an X Products aluminum drum magazine for AR-15 and M16-pattern 5.56x45 mm / .223 Remington firearms. Available sourcing centers on its 50-round X-Series design, firearm compatibility, loading method, and patented feed-mechanism context rather than independently documented battlefield employment.

X-15 drum magazine, 50-round AR-15 / M16 drum magazine, Support Equipment
Image source: X-15 High Capacity Magazine for the AR15 + M16
Profile / Specs

Profile

Origin
United States
Built by
X Products
Type
50-round AR-15 / M16 drum magazine
Service note
Commercial X-Series drum magazine family developed in 2005, produced from 2009, paused after Washington's 2022 large-capacity-magazine restrictions, and announced for limited 2026 production runs
Designer
X Products
Designed
2005 X-Series development claim; patented feed-mechanism priority date 2010-11-04
Unit cost
$229.00 on the X Products solid X-15 listing, accessed 2026-07-13
Produced
2009-2022; limited-batch return announced for 2026

Specifications

Capacity
50 rounds
Cartridge
5.56x45 mm / .223 Remington; X Products' drum manual also lists 300 AAC Blackout for X15 and X15 Skeletonized magazines
Compatibility
Most M16 / AR-15 rifles; X Products' current product page also lists ACR, SCAR 16, Bren 805, and Tavor X95 compatibility
Construction
High-strength aluminum housing with Cerakote finish, anodized aluminum internal parts, and oxide-coated steel components
Feed Design
Ultra-compact single-stack coil drum with patented tension-relief mechanism using a ramp and spring-biased paddle near the feed throat
Operation
Operating wheel compresses a custom clock spring during loading; designed for dry operation under normal use, with manual caveats for break-in or extended use
Manufacturer SKU
X15-M
Variants

X Products uses the X-15 designation for AR-15/M16-compatible 5.56 mm X-Series drum magazines, with solid, skeletonized, and reduced-capacity retail listings.

VariantConfigurationDesignation notes
X-15Solid 50-round AR-15 / M16 drum

The solid X-15 listing is SKU X15-M and is described as a 50-round 5.56x45 mm / .223 Remington drum magazine.

Sources: X-15 High Capacity Magazine for the AR15 + M16

X-15 SkeletonizedSkeletonized X-Series AR-15 drum

X Products' 2026 X-Series return announcement names X-15 Skeletonized among the limited-run family members, and the product category lists a skeletonized AR15 high-capacity magazine.

Sources: X-Series Drum Magazine Return, X Products High Capacity Drum Magazines

X-15 AR15 + M16 10 Round Capacity California Compliant Drum Magazine10-round restricted-capacity configuration

The X Products high-capacity magazine category lists a California-compliant X-15 AR15 + M16 10-round drum alongside the 50-round X-15 listing.

Sources: X Products High Capacity Drum Magazines

Compatible Firearms

X Products describes the X-15 as a 50-round 5.56x45 mm / .223 Remington drum magazine for AR-15/M16-compatible weapons. Only exact public catalog records are linked here.

Compatible itemItem typeCompatibility evidence
AR-15-pattern rifle, 5.56 mm self-loading rifle platform, Infantry WeaponsAR-15-pattern rifle5.56 mm rifle platform

X Products markets the X-15 for AR-15-compatible weapons and says it fits most AR-15 rifles.

Sources: X-15 High Capacity Magazine for the AR15 + M16

M16 rifle, Assault rifle, Infantry WeaponsM16 rifle5.56 mm assault rifle

X Products markets the X-15 for M16-compatible weapons and says it fits most M16 rifles.

Sources: X-15 High Capacity Magazine for the AR15 + M16

IWI Tavor/X95 rifle family, Bullpup assault rifle family, Infantry WeaponsIWI Tavor/X95 rifle familyBullpup assault-rifle family

X Products specifically names the Tavor X95 among firearms compatible with the X-15 on its current product page.

Sources: X-15 High Capacity Magazine for the AR15 + M16

Timeline

X-15 drum magazine Key Events

  1. X-Series development claim

    X Products states that its X-Series magazines were developed in 2005 before entering production later in the decade.

  2. Commercial production begins

    X Products describes 2009 as the production start for the X-Series and says the family introduced an all-aluminum compact high-capacity drum architecture.

  3. Feed-mechanism patent priority date

    The Google Patents record for US8919022B2 lists a 2010-11-04 priority date for the high-capacity firearm magazine feed mechanism later assigned to X Products LLC.

  4. US8919022B2 granted

    The patent record lists the feed-mechanism patent's grant and publication date as 2014-12-30.

  5. Washington restrictions drive production pause context

    X Products links its X-Series pause to Washington's 2022 large-capacity-magazine restrictions; Washington's attorney general described SB 5078 as barring sale, attempted sale, manufacture, and distribution of high-capacity magazines.

  6. Limited X-Series return announced

    X Products announced limited 2026 production runs for X-Series drums, naming both X-15 and X-15 Skeletonized among the listed family members.

Media

X-15 drum magazine Videos

X-15 drum magazine Images

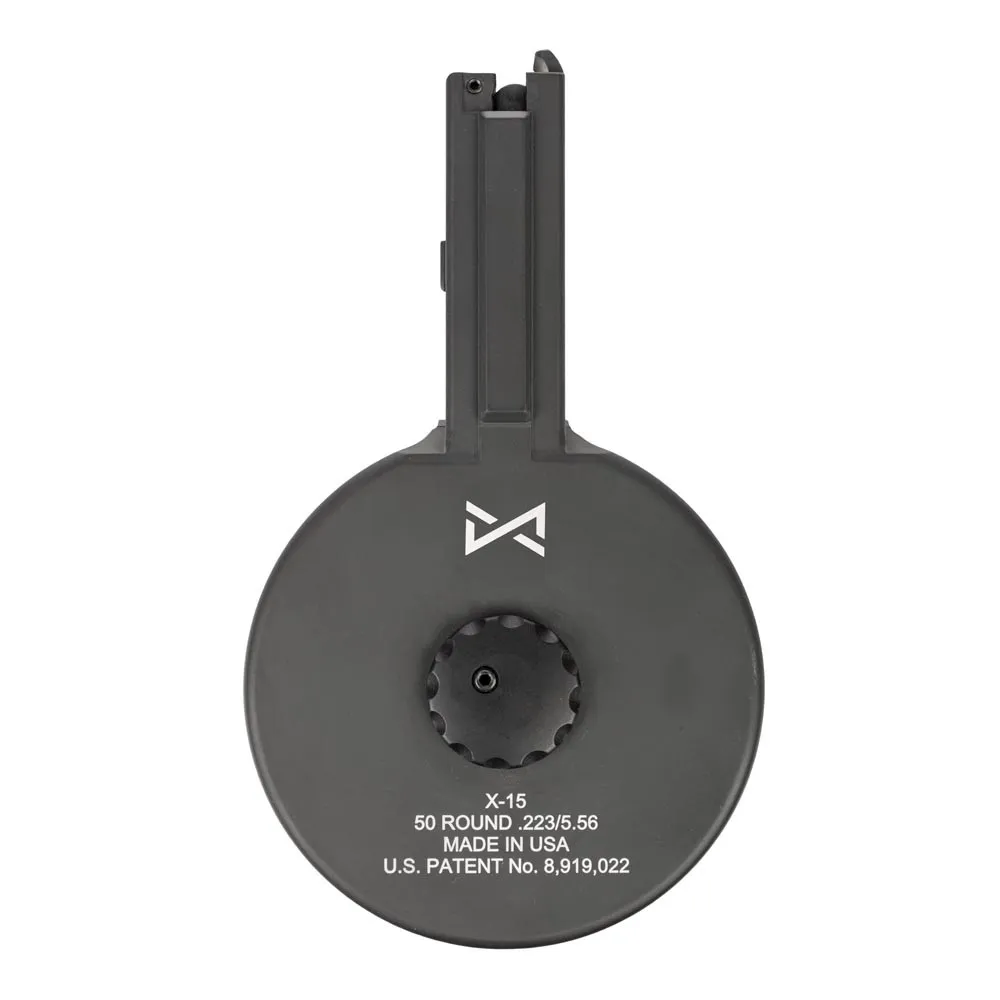

X-15 drum magazine, 50-round AR-15 / M16 drum magazine, Support Equipment - view 1
Source: X-15 High Capacity Magazine for the AR15 + M16

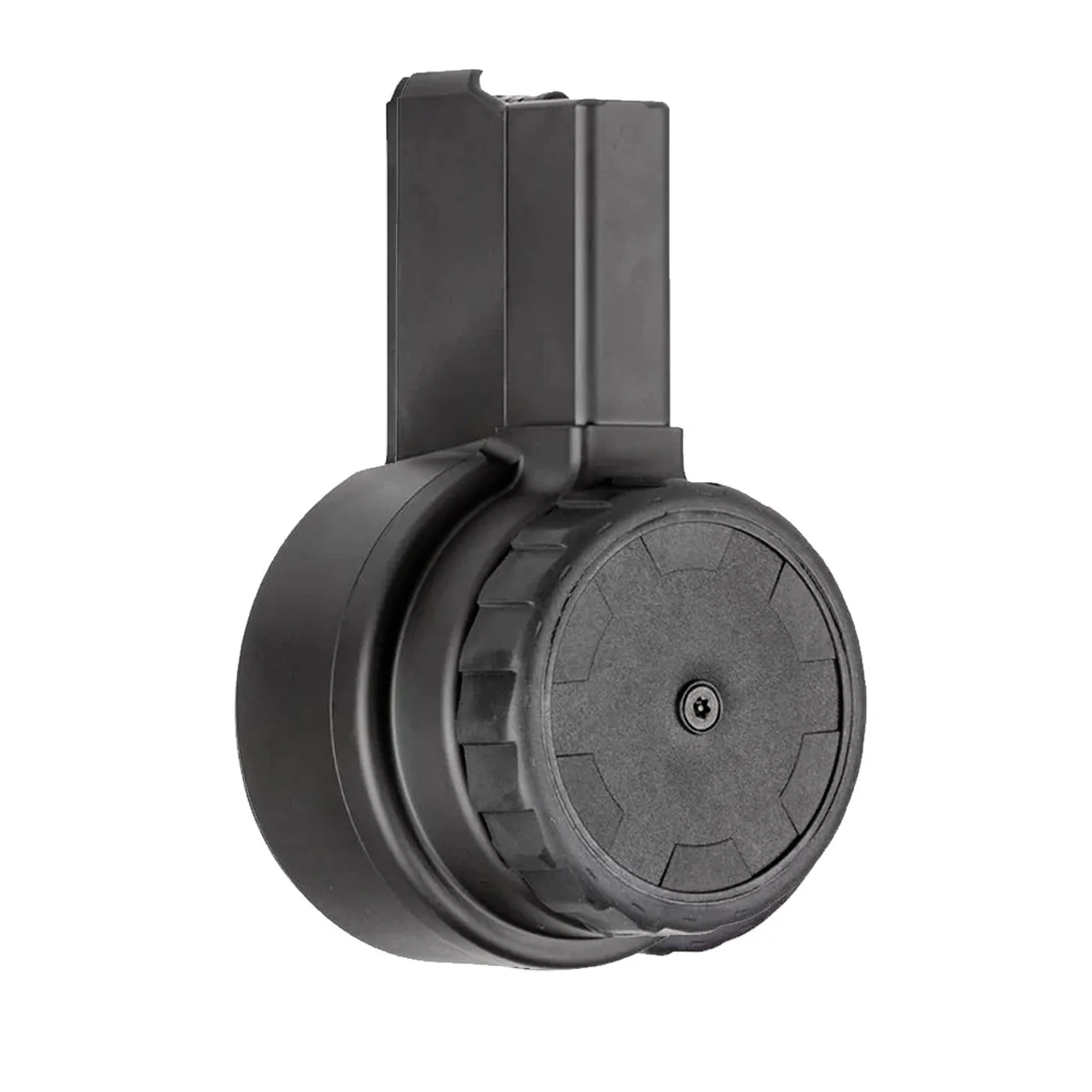

X-15 drum magazine, 50-round AR-15 / M16 drum magazine, Support Equipment - view 2
Source: X-15 High Capacity Magazine for the AR15 + M16

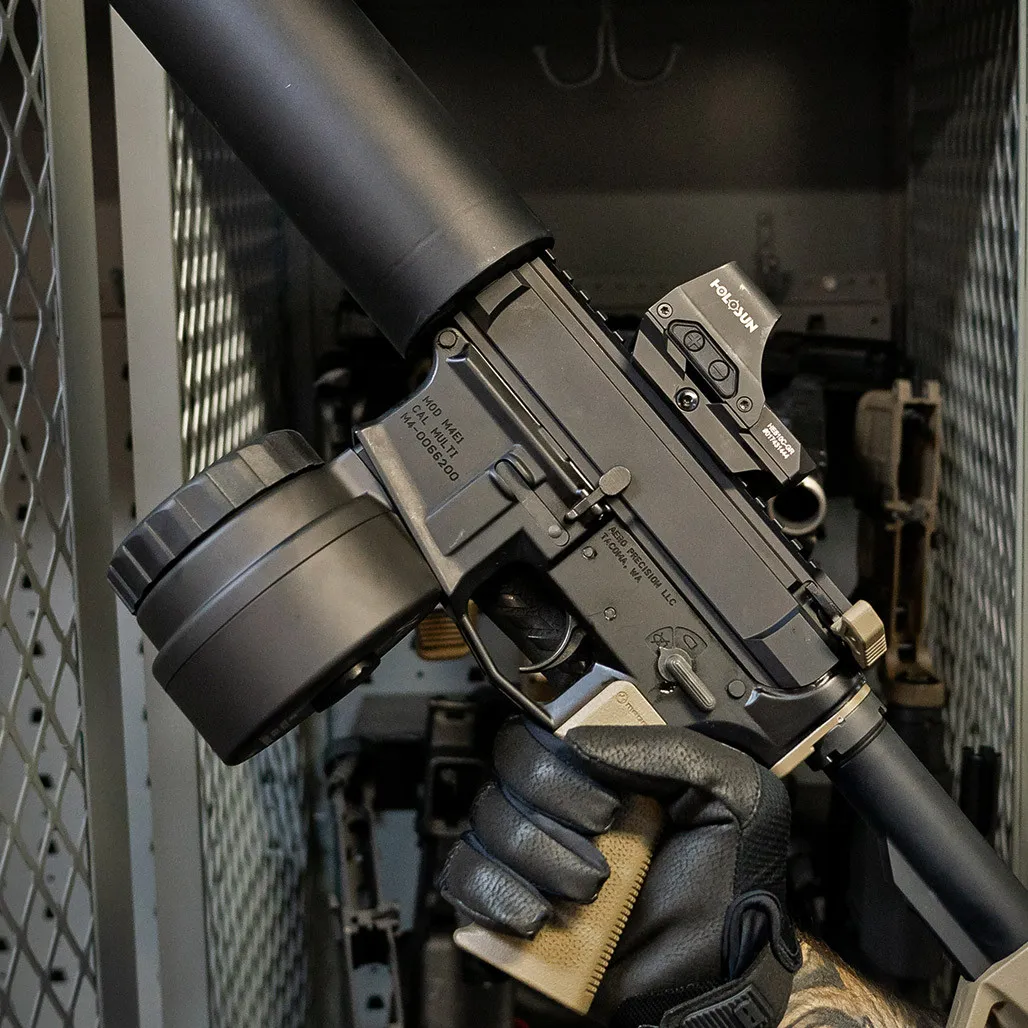

X-15 drum magazine, 50-round AR-15 / M16 drum magazine, Support Equipment - view 3
Source: X-15 High Capacity Magazine for the AR15 + M16
