Munitions

Vympel R-73 short-range air-to-air missile

Also known as
  • AA-11 Archer
  • Archer

The Vympel R-73, known to NATO as the AA-11 Archer, is a Soviet-designed short-range infrared air-to-air missile built for close-in dogfights. It entered service in 1984 and became notable for helmet-mounted-sight cueing, high off-boresight shots, and later R-74-family upgrades.

Vympel R-73 short-range air-to-air missile, Short-range infrared-guided air-to-air missile, Munitions

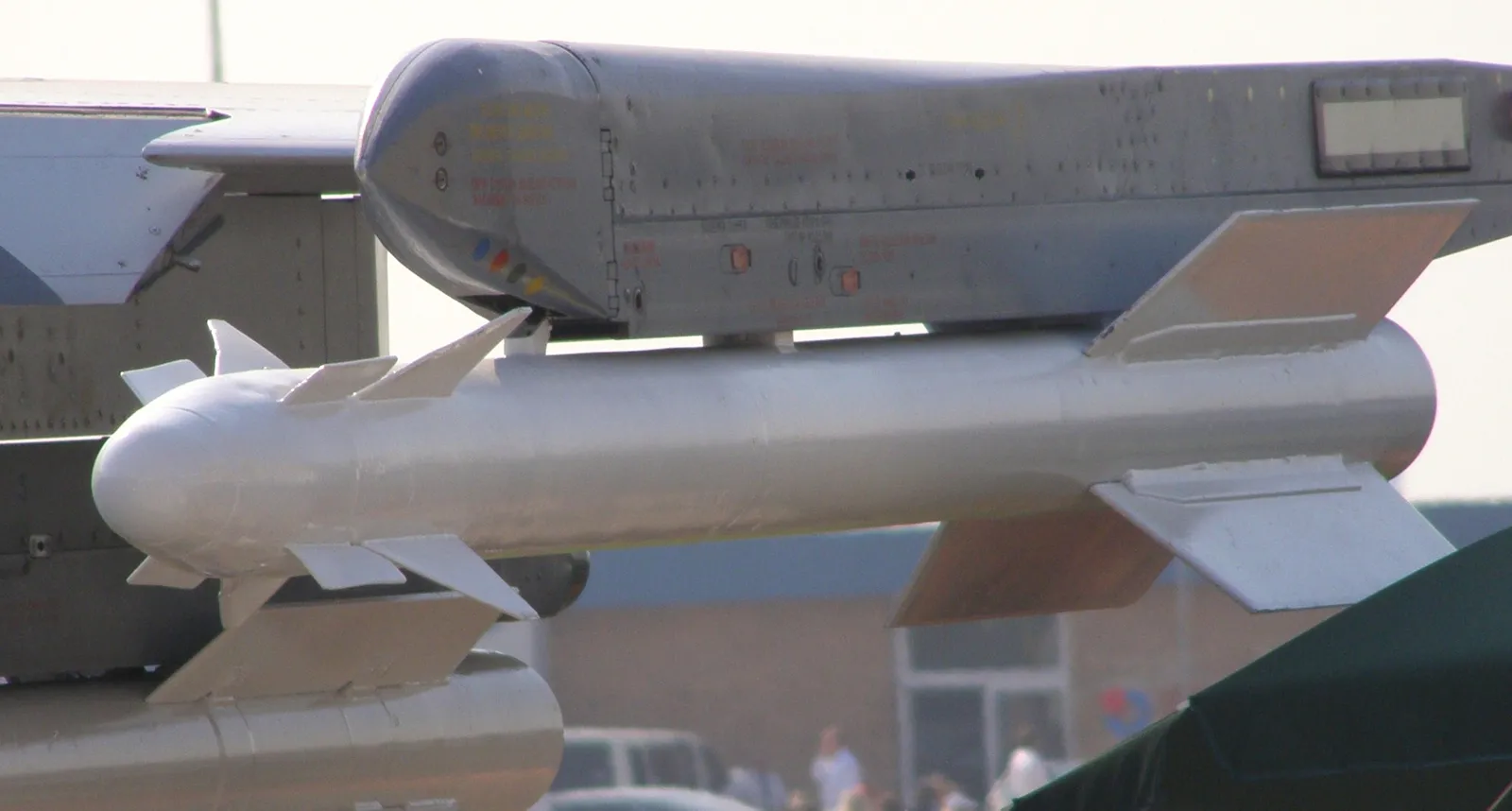

Image source: Wikimedia Commons R-73.jpg

Role in Conflicts

2019 India-Pakistan Border Skirmishes
Side
India
Role in conflict
Close-range air-to-air intercept

Indian reporting says Wing Commander Abhinandan Varthaman fired an R-73 from a MiG-21 Bison during the 27 February 2019 air engagement.

Profile / Specs

Profile

Origin
Soviet Union
Built by
Vympel
Type
Short-range infrared-guided air-to-air missile
Service note
Cold War design still in modern fighter service
Designer
Vympel Design Bureau
Designed
1970s-1984
Developed into
R-74M / R-74M2 / RVV-MD2

Specifications

Length
2.9 m
Diameter
170 mm
Wingspan
510 mm
Launch weight
105 kg
Warhead
8 kg rod warhead
Guidance
All-aspect passive infrared homing
Control
Thrust-vectoring control
Range
Up to 30 km
Speed
Mach 2.5
What Made The R-73 Distinct

The R-73 was built for close-in fighter combat rather than long-range interception.

FeatureSource-backed significance
Helmet-mounted-sight cueingDefense Advancement says the missile could be cued with the pilot's line of sight, widening the engagement envelope.
High off-boresight targetingThe same source says the missile could engage targets at extreme angles outside the aircraft's forward arc.
Thrust-vectoring controlDefense Advancement describes a thrust-vectoring control system that improved sharp-turn performance in dogfights.
All-aspect infrared seekerRosoboronexport describes the export R-73E as an all-aspect passive infrared homing missile.
Variants
  • R-73E
  • R-73M
  • RVV-MD
  • R-74M
  • R-74M2
  • RVV-MD2
Launch Platforms

The R-73 was built for close-range fighter combat and is documented on Indian aircraft that used the missile in training and combat contexts.

LauncherLauncher typeLaunch evidence

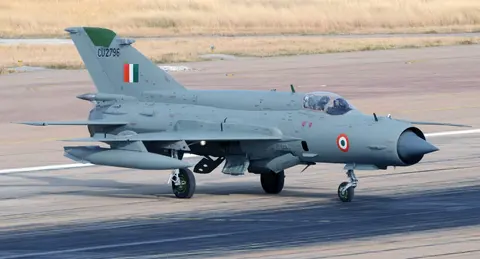

MiG-21 Bison, Upgraded supersonic fighter-interceptor, Aircraft & UAVsMiG-21 BisonFighter-interceptor

ThePrint reported that Abhinandan Varthaman was flying a MiG-21 Bison when he locked on to an F-16 and fired his R-73 on 27 February 2019.

Sources: IAF officer told Wg Cdr Abhinandan to turn back, but he couldn't hear her

HAL Tejas, Single-engine multirole light combat aircraft family, Aircraft & UAVsHAL TejasLight combat aircraft

PIB said Tejas had fully integrated HMDS and successfully demonstrated R73E missile firing in December 2013.

Sources: LCA Tejas Gets Initial Operational Clearance for Induction into IAF

Timeline

Vympel R-73 short-range air-to-air missile Key Events

  1. Entered service

    Defense Advancement says the R-73 entered service in 1984 and became a standard weapon on Soviet-era and modern Russian fighters.

    Sources: R-73 Missile | Vympel R-73 / AA-11 Archer Missile

  2. Tejas demonstrates R73E firing

    PIB reported that Tejas had fully integrated an HMDS and successfully demonstrated R73E missile firing using it.

    Sources: LCA Tejas Gets Initial Operational Clearance for Induction into IAF

  3. Reported combat firing over Kashmir

    ThePrint reported that Abhinandan Varthaman fired an R-73 from a MiG-21 Bison during the 27 February dogfight.

    Sources: IAF officer told Wg Cdr Abhinandan to turn back, but he couldn't hear her

Media

Vympel R-73 short-range air-to-air missile Images

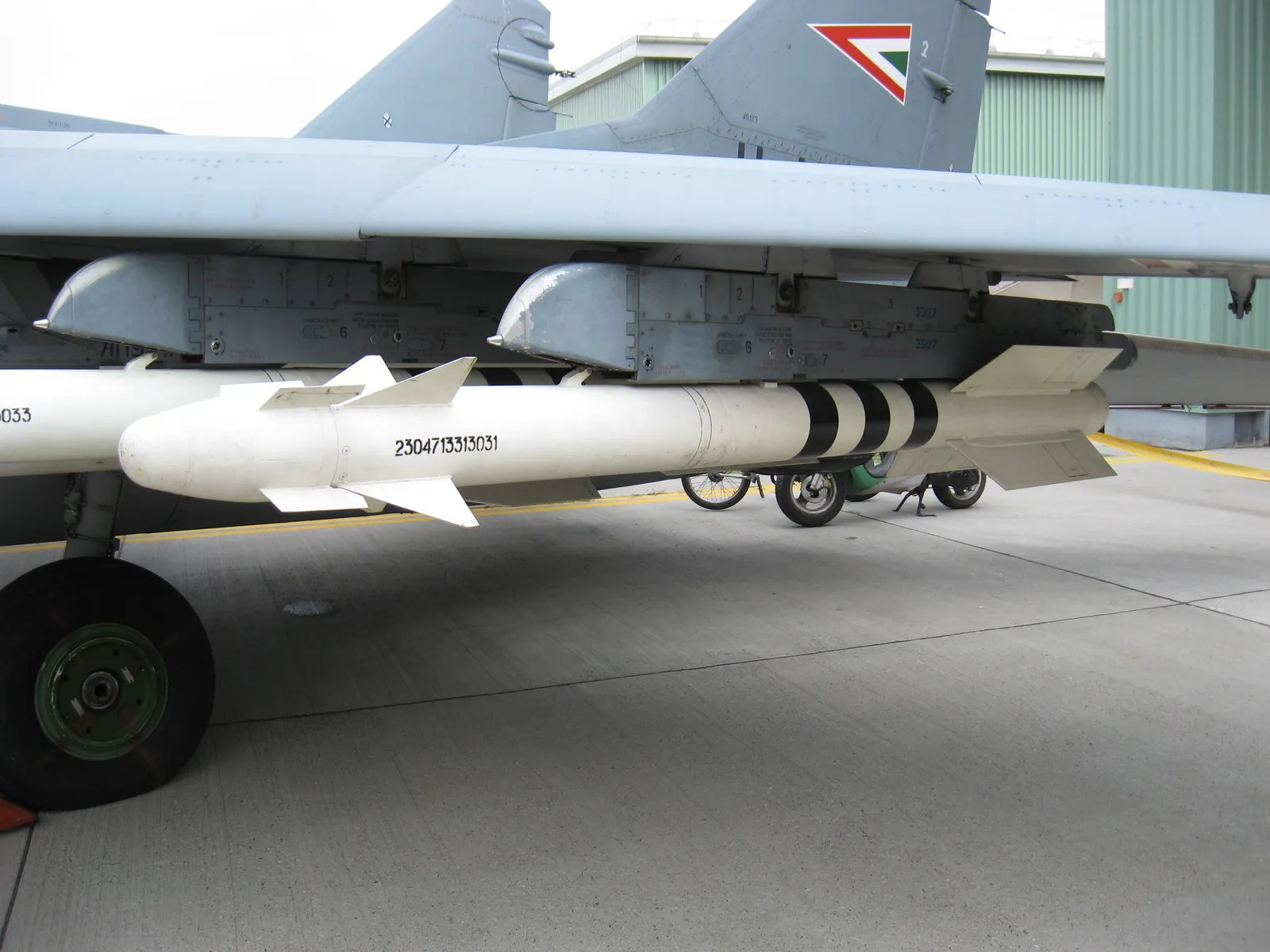

Vympel R-73 short-range air-to-air missile, Short-range infrared-guided air-to-air missile, Munitions - view 1
Source: Wikimedia Commons R-73 HuAF.jpg

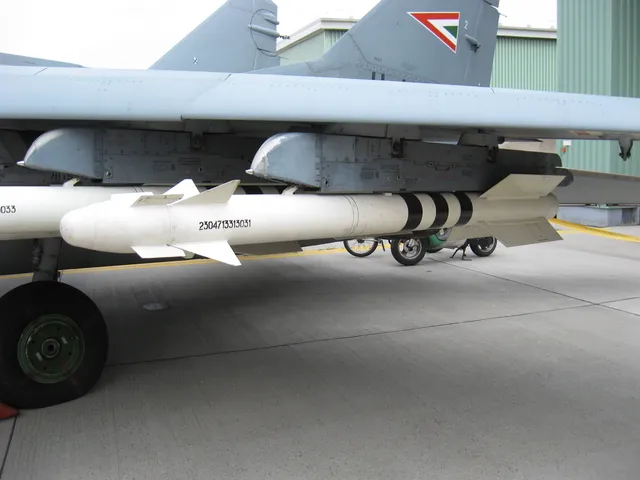

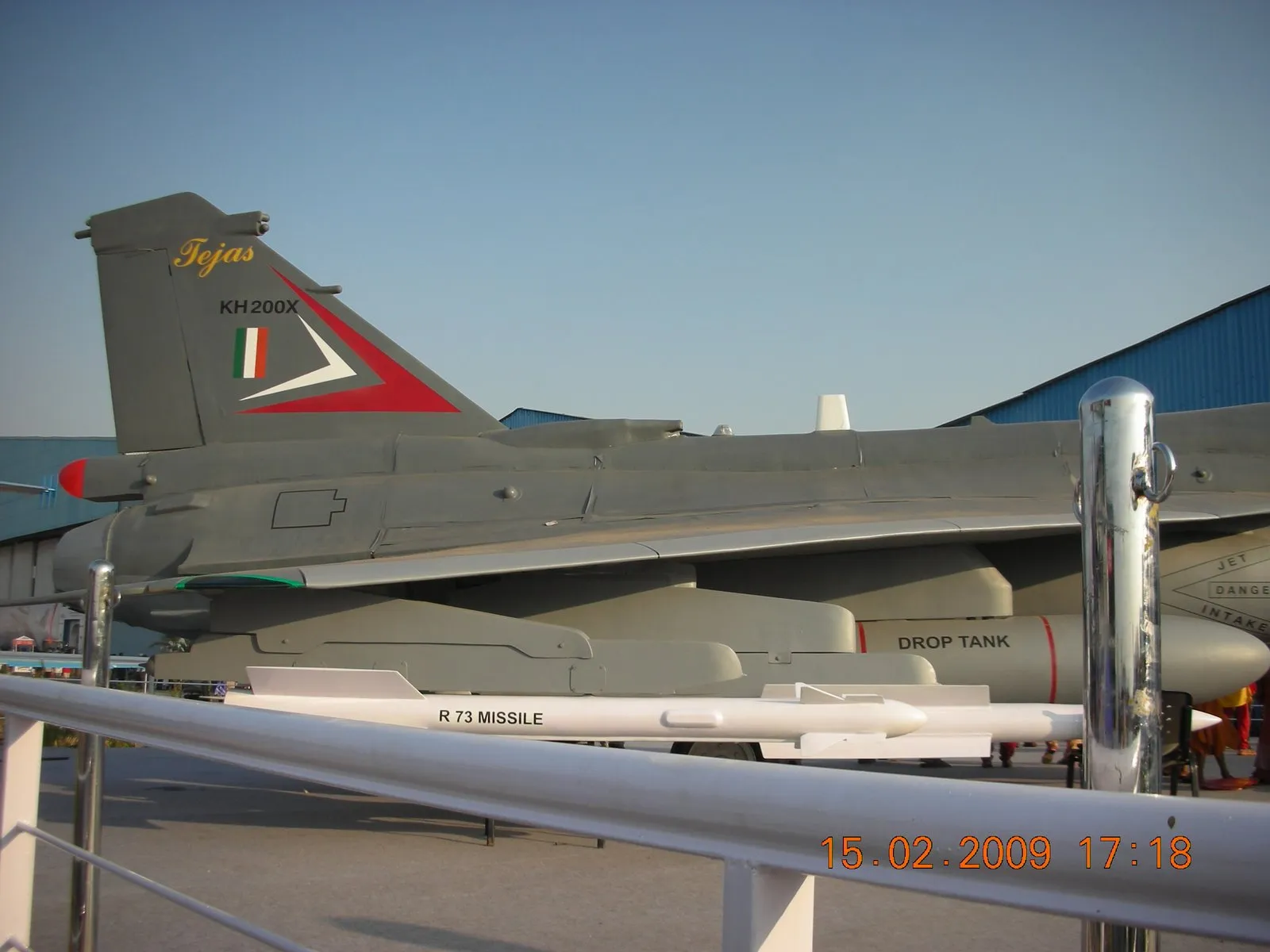

Vympel R-73 short-range air-to-air missile, Short-range infrared-guided air-to-air missile, Munitions - view 2
Source: Wikimedia Commons HAL Tejas carrying R-73 missile and Drop Tank.jpg
