Armored Vehicles

BMC Vuran

Also known as
  • Vuran 4x4
  • BMC Vuran 4x4
  • Vuran MPAV
  • Vuran TTZA
  • BMC Vuran TTZA
  • Vuran MRAP
  • Vuran 4x4 MRAP
  • Vuran CNRA
  • Vuran ÇNRA
  • Vuran Mortar
  • Vuran ALKAR

The BMC Vuran is a Turkish 4x4 protected vehicle family built by BMC for troop transport, patrol, convoy security, and modular weapon-carrier roles. Official BMC data describes Vuran variants with a V-shaped monocoque hull, mine and ballistic protection, remote-weapon-station integration, 120 mm mortar and 107 mm multiple-rocket-launcher configurations, and modern Turkish service with export deliveries to Kosovo and Georgia. Conflict reporting documents Turkish-supplied Vuran vehicles with Government of National Accord forces in Libya and Turkish Vuran fielding in Syrian Civil War operations.

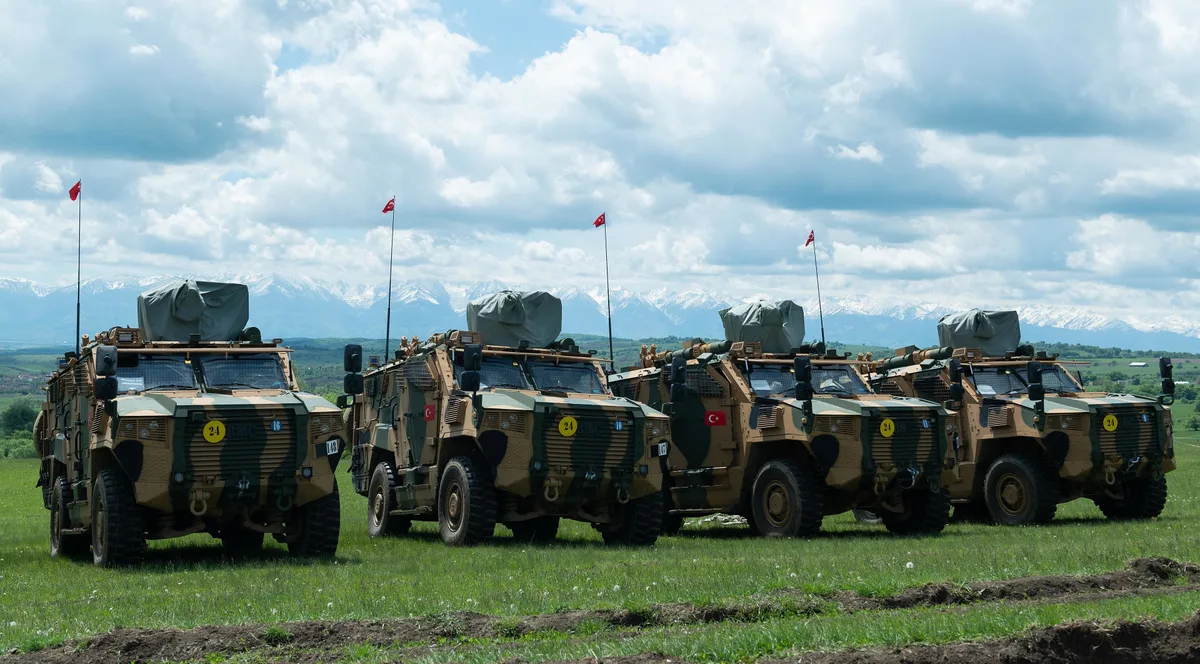

BMC Vuran, 4x4 multi-purpose armored vehicle, Armored Vehicles

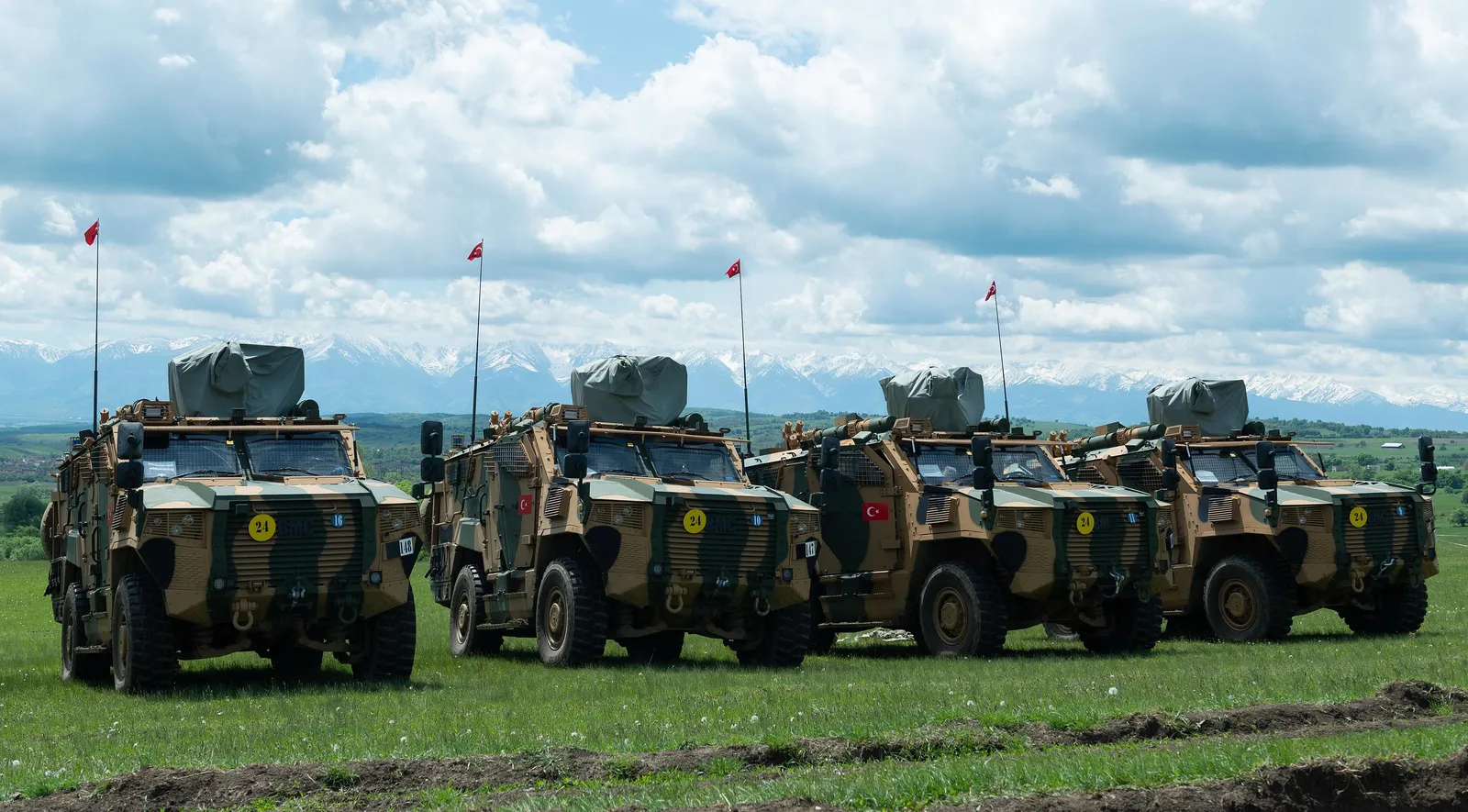

Image source: Commons Vuran Steadfast Defender Image

Role in Conflicts

2011 Syrian Civil War
Mobility & LogisticsForce Protection
Side
Turkey

Turkish reporting says Vuran TTZA vehicles were actively used by Turkish security units in Operation Peace Spring and Operation Spring Shield, and separately reported a Turkish Armed Forces Idlib convoy in July 2020 that included BMC Vuran vehicles.

Profile / Specs

Profile

Origin
Turkey
Built by
BMC
Type
4x4 multi-purpose armored vehicle
Service note
Modern Turkish protected-mobility and fire-support vehicle family
Designer
BMC
Produced
First Turkish Land Forces deliveries began in 2019; production and delivery batches continued through later Turkish and export orders.

Specifications

Crew and passengers
BMC lists 9 personnel for the Vuran 4x4 MPAV.
Engine
BMC lists Cummins ISL 9E3 375 PS data for the Vuran 4x4 MPAV and a BMC Power I4 TUNA configuration rated at 380 PS.
Protection
V-shaped monocoque hull with STANAG 4569 / DIN EN 1522 / 1063 ballistic, mine, and IED protection listed by BMC.
Mobility
Up to 110 km/h, 600 km range, 60 percent gradeability, 30 percent side slope, and 800 mm fording depth on BMC's Vuran 4x4 MPAV data.
Dimensions
BMC lists the Vuran 4x4 MPAV at 6,810 mm long with spare tire, 2,620 mm wide, and 2,660 mm high.
Gross vehicle weight
21,000 kg on BMC's Vuran 4x4 MPAV data.
Integrated armament options
BMC lists a 120 mm mortar variant and a 107 mm multiple-rocket-launcher variant in the Vuran technical data.
Transmission
Allison 3000-series automatic transmission with torque converter, six forward gears, and one reverse gear in BMC's Vuran 4x4 MPAV data.
Variants

BMC presents Vuran as a 4x4 protected vehicle family with baseline multi-purpose armored vehicle, mortar-carrier, and multiple-rocket-launcher configurations; Turkish reporting also documents domestic-engine deliveries and ALKAR mortar integration.

VariantConfigurationDesignation notes
Vuran 4x4 MPAVMulti-purpose armored vehicle

Baseline Vuran 4x4 configuration with protected personnel transport features and weapon-system integration options.

Sources: Vuran

Vuran 4x4 mortarMortar carrier

BMC lists a Vuran mortar configuration with a 120 mm mortar system, and TurDef reports ALKAR-equipped Vuran vehicles entering Turkish Gendarmerie inventory.

Sources: Vuran, TurDef Gendarmerie Mortar Vuran

Vuran 4x4 CNRAArmored multiple rocket launcher vehicle

BMC lists a Vuran CNRA configuration with a 107 mm multiple rocket launcher; TurDef describes the BMC Vuran MRAP conversion carrying a 12-tube 107 mm launcher.

Sources: Vuran, TurDef Vuran 107 mm MBRL

Vuran 4x4 MPAV with TUNA engineDomestic-engine production configuration

BMC's technical page lists a Vuran 4x4 MPAV configuration with the BMC Power I4 TUNA engine, while TurDef reported 2025 deliveries of TUNA-powered Vuran vehicles to Turkish Land Forces and Gendarmerie units.

Sources: Vuran Technical Specifications, TurDef TUNA Engine Deliveries

Mounted Mortar Configuration

The Vuran family includes a mortar-carrier branch rather than only protected personnel-transport versions.

Carried itemItem typeCarriage evidence
120 mm mortar, Heavy mortar, Artillery120 mm mortarVehicle-mounted heavy mortar

BMC lists a Vuran 4x4 mortar configuration with a 120 mm mortar, and TurDef reports Vuran vehicles integrated with ASELSAN's ALKAR 120 mm Automatic Mortar Weapon System entering Turkish Gendarmerie inventory.

Sources: Vuran Technical Specifications, TurDef Gendarmerie Mortar Vuran

Timeline

BMC Vuran Key Events

  1. Turkish service deliveries documented

    TurDef reported SSB-announced Vuran deliveries to Turkish security forces for anti-terrorism, border patrol, facility protection, and convoy protection missions.

    Sources: TurDef Armed Forces Delivery

  2. Vuran appears in Libya conflict reporting

    Oryx listed BMC Vuran MRAPs among Turkish-supplied equipment for Libya in 2019, while Citizen Evidence Lab and DefenceTurk placed Vuran APCs with GNA forces in the Tripoli-area fighting.

    Sources: Oryx Turkish Donations, Citizen Evidence Libya Embargo, DefenceTurk Libya Vuran

  3. Vuran reported in Turkish Idlib convoy

    DefenceTurk reported that a Turkish Armed Forces convoy sent to the Al-Mastumah base area south of Idlib included BMC Kirpi and BMC Vuran vehicles.

    Sources: DefenceTurk TAF Idlib Convoy

  4. Kosovo export announced

    Anadolu Agency reported Kosovo as the first overseas Vuran user, with an initial two vehicles to be produced and delivered.

    Sources: Anadolu Kosovo Export

  5. Georgia receives Vuran vehicles

    TurDef reported ASFAT's export of 46 BMC Vuran 4x4 vehicles to Georgia's Ministry of Defence.

    Sources: TurDef Georgia Export

  6. TUNA-powered deliveries reported

    TurDef reported a batch handover that included 50 TUNA-powered Vuran vehicles for the Turkish Land Forces and 40 for the Gendarmerie General Command.

    Sources: TurDef TUNA Engine Deliveries

Related Weapon Systems
REVA armored vehicle, Mine-resistant ambush-protected armored personnel carrier, Armored VehiclesArmored VehiclesREVA armored vehicleMine-resistant ambush-protected armored personnel carrierThe REVA is a South African mine-resistant armored vehicle family from Integrated Convoy Protection, built around a V-shaped armored hull for troop transport, protected mobility, and utility roles. The family spans the earlier REVA III 4x4 APC, newer REVA V and VI designs, and the UAE-linked Kasser II derivative, while conflict reporting documents REVA vehicles in Iraq, Nigerian counter-insurgency operations, and UAE-backed local-force operations in Yemen.
Cougar 4x4 MRAP, 4x4 mine-resistant ambush-protected vehicle, Armored VehiclesArmored VehiclesCougar 4x4 MRAP4x4 mine-resistant ambush-protected vehicleThe Cougar 4x4 MRAP is a U.S.-built protected mobility vehicle developed by Force Protection for patrol, convoy, command, route-security, and troop-transport missions against mine and improvised-explosive-device threats. The record distinguishes direct U.S. use in Iraq and Afghanistan from later transfer or inventory evidence in Yemen and Ukraine, where public sources support presence or supply more clearly than detailed tactical employment.
VAB, 4x4 wheeled armored personnel carrier, Armored VehiclesArmored VehiclesVAB4x4 wheeled armored personnel carrierThe VAB is a French armored personnel carrier family selected in the 1970s for protected troop movement, with the VAB-VTT/Véhicule Transport de Troupe as the baseline infantry transport configuration. Thousands were produced across command, ambulance, mortar, anti-tank, and remote-weapon variants; Arquus also markets VAB MK3 as a newer 6x6 medium armored-vehicle branch, while Ukraine-conflict sourcing for this record documents transferred legacy VAB armored personnel carriers and separate Mk3 delivery/testing evidence.
