Project 21900M icebreaker

Also known as
  • Project 21900M
  • Project 21900
  • Project 21900M2
  • 21900M icebreaker
  • Vladivostok icebreaker
  • Murmansk icebreaker
  • Novorossiysk icebreaker
  • Vyborg icebreaker
  • LK-16 icebreaker

Project 21900M is a Russian 18 MW diesel-electric icebreaker family built for Rosmorport after the earlier Project 21900 ships. Vyborg Shipyard built Vladivostok and Novorossiysk, the Murmansk hull was completed through Arctech Helsinki Shipyard, and the later Project 21900M2 program returned to Vyborg with a higher Icebreaker7 classification. This relationship-only entry documents the civil icebreaker production base that sits beside Vyborg's later Project 23550 patrol-icebreaker work.

Profile / Specs

Profile

Origin
Russia
Type
Diesel-electric icebreaker family
Service note
2012-present
Designer
CDB Baltsudoproekt for Project 21900M; Vympel Design Bureau preliminary design reported for Project 21900M2
Designed
2010s
Produced
2012-present
Number built
Three Project 21900M ships were delivered in 2015-2016; one Project 21900M2 follow-on hull was laid at Vyborg Shipyard in 2022.

Specifications

Project 21900M displacement
About 14,300 tonnes reported by Rosmorport for the 21900M design
Project 21900M length
119.4 m in Rosmorport completed-project vessel records; 119.8 m in Rosmorport hull-float-out specifications
Beam
27.5 m reported for Project 21900M by Rosmorport and Ship Technology and for Project 21900M2 by VPK.name
Draft
8.5 m reported for Project 21900M by Rosmorport and for Project 21900M2 by VPK.name
Propulsion power
17.4 MW delivered power in Rosmorport completed-project records; 18 MW class/program power in Rosmorport and VPK.name summaries
Speed
17 knots reported for Project 21900M and Project 21900M2
Icebreaking
Project 21900M sources report operation in ice up to about 1.5 m; Project 21900M2 is reported as Icebreaker7 class
Crew and additional personnel
Project 21900M reported with 36 crew and 22 special personnel; Project 21900M2 reported with up to 35 crew plus up to 22 special personnel
Mission fit
Independent ice escort, towing, firefighting, distress assistance, cargo transport, and helicopter-deck support
Role And Capacity Notes

Project 21900M sources describe a multi-role icebreaker rather than a combatant. The ships combine ice escort and towing with firefighting, assistance to distressed vessels, container-capable deck cargo, and helicopter support.

Ice escort

Rosmorport describes the design as able to move steadily through ice up to 1.5 m thick.

Deck cargo

Rosmorport and Ship Technology describe container carriage on the open upper or aft cargo deck, including refrigerated containers with power supply.

Aviation support

The 21900M design carries a HELIDECK class notation, while the M2 follow-on is also reported with a helipad.

Primary support: Rosmorport: Project 21900M hull float out; Rosmorport: Fleet completed projects; Ship Technology: Project 21900M Icebreakers; VPK.name: Project 21900M2 laid in Vyborg.

Variants

Open sources treat Project 21900M as an improved 18 MW development of the earlier Project 21900 icebreaker, with Project 21900M2 as a later revised follow-on for Rosmorport.

VariantConfigurationDesignation notes
Project 21900Baseline Rosmorport diesel-electric icebreaker

Rosmorport lists Moskva and Sankt-Peterburg as 16.5 MW Project 21900 icebreakers built in 2005-2009 before the three 18 MW Project 21900M ships.

Sources: Rosmorport: Icebreaking services

Project 21900M2Revised Icebreaker7 follow-on

VPK.name reports that Project 21900M2 was developed from Project 21900M, with Icebreaker7 classification, 18 MW power, and a 2022 keel-laying at Vyborg Shipyard.

Sources: VPK.name: Project 21900M2 laid in Vyborg

Civil Icebreaker Lineage And Patrol-Ship Context

Project 21900M is retained as relationship-only context because the available sources document civil Rosmorport icebreaking service rather than direct conflict use. Its catalog relevance is industrial: Vyborg Shipyard built Project 21900M icebreakers before later Project 23550 patrol-icebreaker work for Russia's FSB Border Service.

Civil operator

Rosmorport lists three 18 MW Project 21900M icebreakers built in 2012-2016 and used to reinforce icebreaking capacity in the eastern Gulf of Finland.

Follow-on build

VPK.name reports a Project 21900M2 Icebreaker7 follow-on laid at Vyborg Shipyard on 16 November 2022.

Catalog link

Project 23550 patrol icebreaker is the related Vyborg-built ice-class security-service program with separate conflict-use sourcing.

Primary support: Rosmorport: Icebreaking services; VPK.name: Project 21900M2 laid in Vyborg; Naval News: Russia launches Project 23550 patrol ship Purga.

Timeline

Project 21900M icebreaker Key Events

  1. Two-ship Project 21900M contract reported

    Offshore Energy reported that Vyborg Shipyard and United Shipbuilding Corporation signed a contract for two Project 21900M diesel-powered icebreakers.

    Sources: Offshore Energy: Vyborg Shipyard inks icebreaker contract

  2. Vladivostok enters service

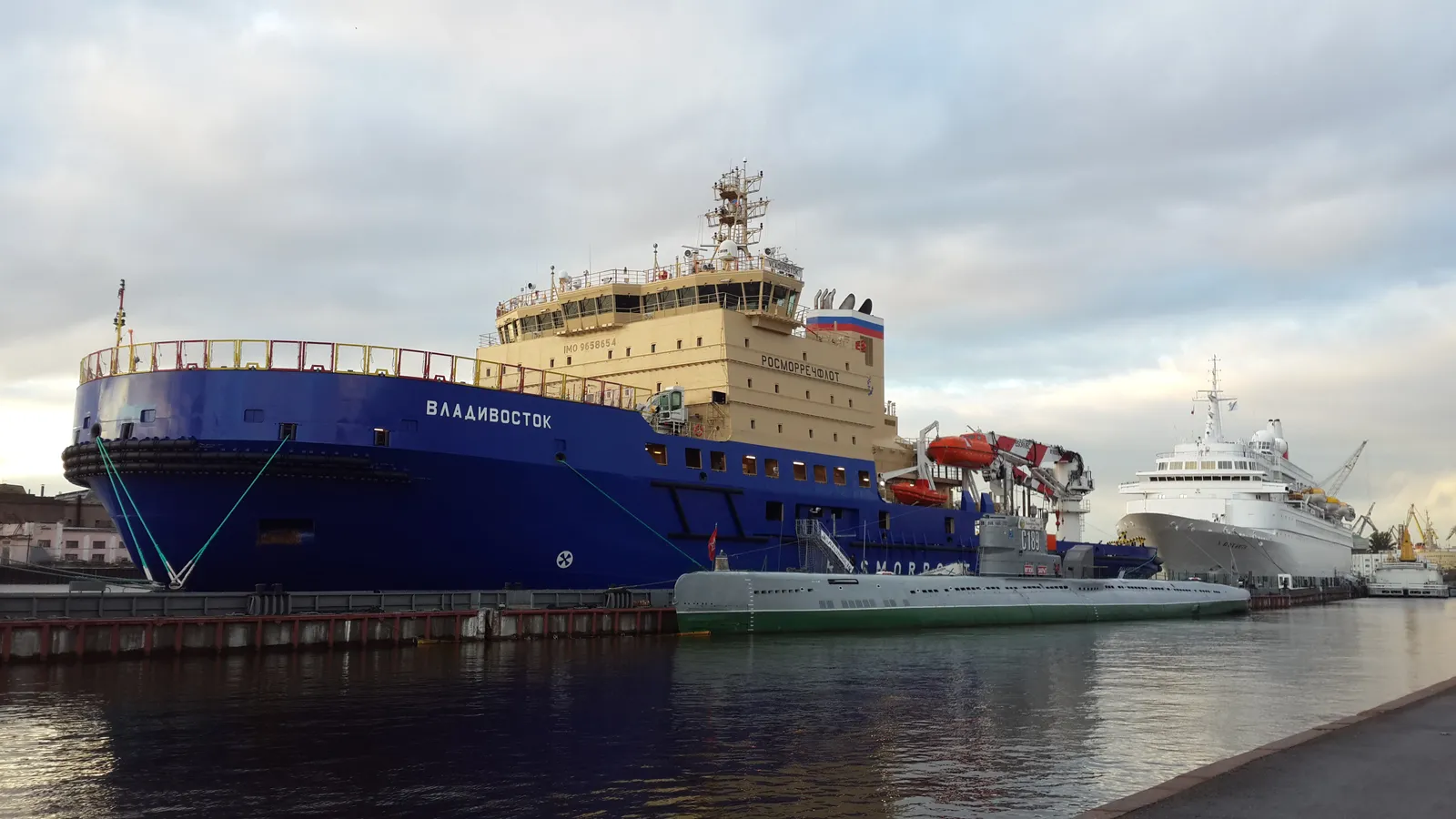

    Ship Technology identifies Vladivostok as the first Project 21900M ship, launched in April 2014 and commissioned in the fourth quarter of 2015.

    Sources: Ship Technology: Project 21900M Icebreakers

  3. Project 21900M delivery set completed

    Ship Technology reports Murmansk delivered in December 2015 and Novorossiysk delivered in December 2016, completing the three-ship Project 21900M series by the end of 2016.

    Sources: Ship Technology: Project 21900M Icebreakers

  4. Project 21900M2 laid at Vyborg

    VPK.name reported the laying of a follow-on Project 21900M2 diesel-electric icebreaker at Vyborg Shipyard.

    Sources: VPK.name: Project 21900M2 laid in Vyborg
