Munitions

OFd MKM-DV

Also known as
  • 155 mm HE ER-BB (OFd MKM-DV) modernized
  • 155 mm HE ER-BB
  • OFd MKM DV
  • EOFd MKM DV
  • 155 mm base-bleed projectile

The OFd MKM-DV is a Slovak 155 mm high-explosive extended-range artillery projectile with a base-bleed gas generator. MSM Group lists the modernized round with a 43.55 kg fuzed projectile mass, a 10 kg explosive filling, and 40 km class range from a 52-caliber gun. Public sources support this page as a relationship-only ammunition record through product data, transfer records, and howitzer compatibility context, not through direct conflict-use evidence for the exact projectile.

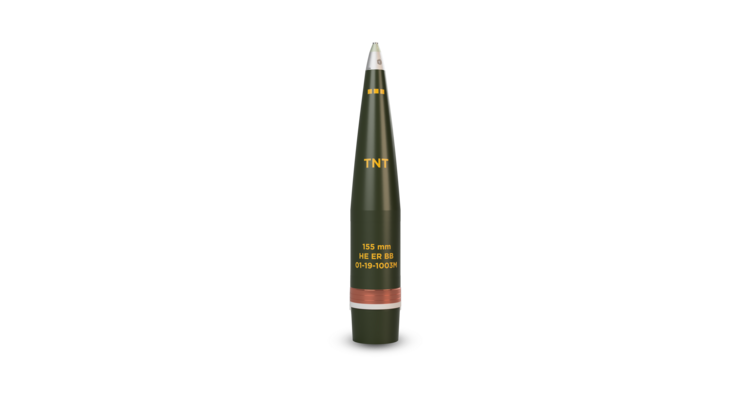

OFd MKM-DV, 155 mm high-explosive extended-range artillery projectile with base bleed, Munitions
Image source: 155 mm HE ER-BB (OFd MKM-DV) modernized
Profile / Specs

Profile

Origin
Slovakia
Built by
MSM Group
Type
155 mm high-explosive extended-range artillery projectile with base bleed
Service note
Modern NATO-standard artillery ammunition
Produced
Modernized current production

Specifications

Caliber
155 mm
Projectile class
High-explosive extended-range projectile with base bleed
Projectile mass
43.55 kg with fuze
Explosive filling
10 kg of TNT or TNT/RDX (Composition B) in roughly a 50/50 ratio
Length
825.5-828.7 mm without fuze; up to 914 mm with fuze
Range
Up to 37,000 m from a 45-caliber gun; up to 40,000 m from a 52-caliber gun
Maximum service pressure
395 MPa
Fuze thread
2 in-12UNS-1A
Temperature limits
-50 C to +50 C use; -54 C to +62 C storage/transport
Packing
8 projectiles per wooden pallet; pallet weight listed as 363 kg
Design And Range Context

The OFd MKM-DV belongs to MSM Group's modernized 155 mm high-explosive extended-range line. The base-bleed unit reduces base drag compared with a boat-tail-only shell, while the projectile still depends on a suitable fuze, charge system, and certified 155 mm gun for safe employment.

Base configuration

DV is the base-bleed member of the modernized OFd MKM branch, separated from the OFd MKM boat-tail row and from the OFd M3 full-bore branch in MSM sources.

Sources: 155 mm HE ER-BB (OFd MKM-DV) modernized; 155 mm HE ER-BT (OFd MKM) modernized; 155 mm HE ER FB-BB (OFd M3-DV).

Range class

MSM lists up to 37 km from a 45-caliber gun and up to 40 km from a 52-caliber gun; Defence24 separately describes more than 40 km in Krab certification context.

Sources: 155 mm HE ER-BB (OFd MKM-DV) modernized; Czechoslovak Group: "Współpraca z Polską może być szersza".

Evidence limit

The record remains relationship-only because available sources document product identity, exports, and compatibility, but not direct conflict use of this exact projectile.

Sources: UNROCA Slovakia 2018; Artillery Ammunition.

Variants

MSM and CSG present OFd MKM-DV as the base-bleed member of the modernized OFd MKM 155 mm high-explosive extended-range pair. The wider MSM 155 mm portfolio separates boat-tail, base-bleed, and full-bore projectile bodies, while Polish sources also use OFd MKM DV or EOFd MKM DV for the base-bleed Krab-certified round.

VariantConfigurationDesignation notes
OFd MKMModernized HE ER boat-tail projectile

MSM describes the OFd MKM as the modernized boat-tail counterpart to OFd MKM-DV, with the same 155 mm caliber and a 10 kg high-explosive filling but a shorter listed range than the base-bleed DV round.

Sources: 155 mm HE ER-BT (OFd MKM) modernized, 155 mm HE ER-BB (OFd MKM-DV) modernized

OFd M3HE ER full-bore boat-tail projectile

MSM identifies OFd M3 as a full-bore extended-range boat-tail projectile whose bourrelet is replaced by four nubs, distinguishing it from the modernized OFd MKM body.

Sources: 155 mm HE ER FB-BT (OFd M3)

OFd M3-DVHE ER full-bore base-bleed projectile

MSM lists OFd M3-DV as the full-bore base-bleed variant, with a longer stated maximum range than OFd MKM-DV when fired from a 52-caliber gun.

Sources: 155 mm HE ER FB-BB (OFd M3-DV)

OFd MK-DVEarlier HE ER base-bleed designation in the ZVS/MSM family

ZBiAM groups OFd MK-DV with OFd MKM-DV and OFd M3-DV among ZVS Holding's extended-range base-bleed 155 mm high-explosive projectiles.

Sources: Słowacja kupuje amunicję artyleryjską 155 mm

Firing Weapons

MSM Group and Defence24 describe the OFd MKM-DV as a 155 mm base-bleed round for 155 mm howitzers, including the Polish Krab.

Firing weaponWeapon typeFiring evidence
AHS Krab, 155 mm tracked self-propelled howitzer, ArtilleryAHS Krab155 mm tracked self-propelled howitzer

Defence24 says the OFd MKM-DV variant was adapted and certified for the Polish Krab, and MSM Group says the round uses a base-bleed unit for extended range up to 40,000 meters from a 52-caliber gun.

Sources: Artillery Ammunition, Czechoslovak Group: "Współpraca z Polską może być szersza"

FH70 155 mm howitzer, 155 mm towed howitzer, ArtilleryFH70 155 mm howitzer155 mm towed howitzer

Royal Armouries notes that FH-70 can also fire extended-range projectiles such as those offering base bleed, which covers base-bleed ammunition like OFd MKM-DV.

Sources: Royal Armouries FH70 object 85309

Timeline

OFd MKM-DV Key Events

  1. Slovakia reports OFd MKM-DV export to Poland

    Slovakia's 2018 UNROCA report lists 6,042 units of 155 mm OFd MKM-DV without fuzes exported to Poland, supporting Polish transfer context without proving battlefield use.

  2. MSM markets the modernized base-bleed projectile

    MSM Group's current product page describes the OFd MKM-DV modernized projectile as a 155 mm HE extended-range base-bleed round with up to 40 km range from a 52-caliber gun.

Media

OFd MKM-DV Images

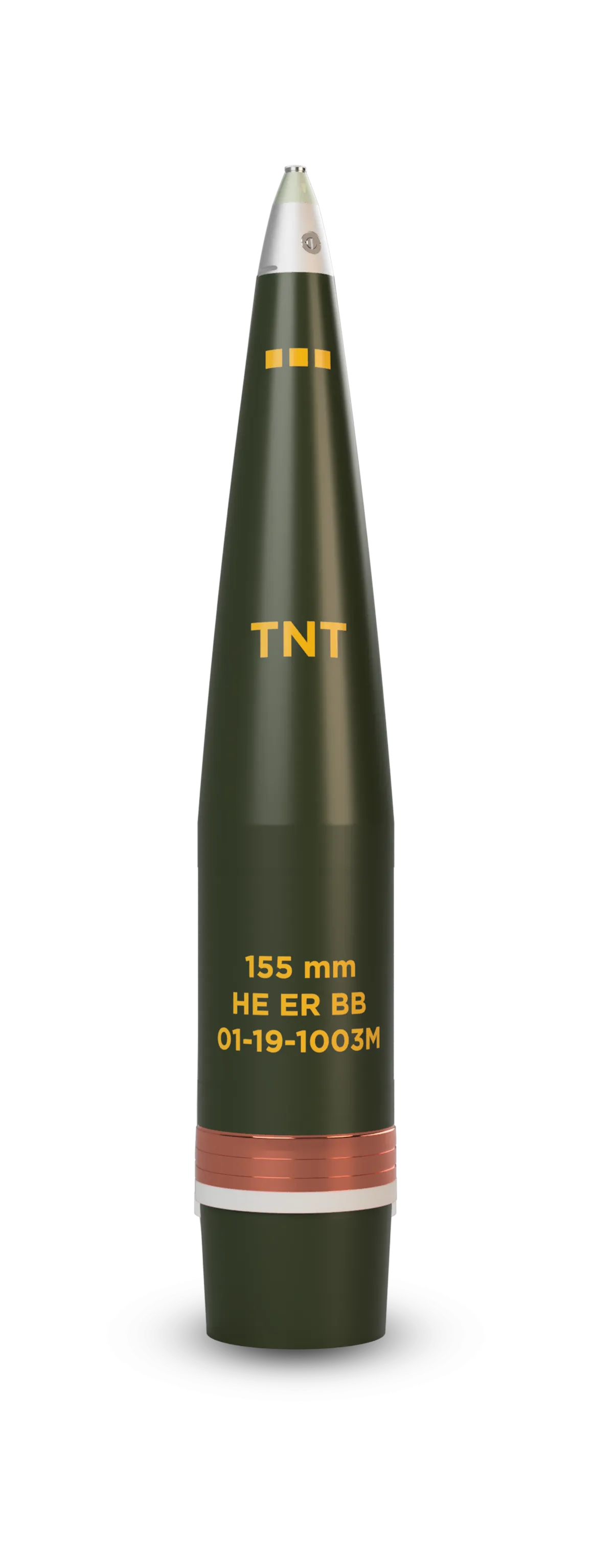

OFd MKM-DV, 155 mm high-explosive extended-range artillery projectile with base bleed, Munitions - view 1
Source: 155 mm HE ER-BB (OFd MKM-DV) modernized
