OF23 cargo projectile

Also known as
  • 3-O-23
  • 3O23
  • O23
  • O-23
  • 3VO28
  • 3VO29
  • 3VO30
  • 3-O-23 cargo projectile

The OF23, also cataloged as 3-O-23 or O23, is a Soviet/Russian 152 mm cargo artillery projectile for Msta-family artillery ammunition. Open references describe the projectile as a base-eject submunition carrier loaded with HEAT or dual-purpose bomblets and assembled into 3VO28, 3VO29, and 3VO30 rounds for different propelling-charge configurations.

OF23 cargo projectile, 152 mm cargo cluster artillery projectile, Munitions

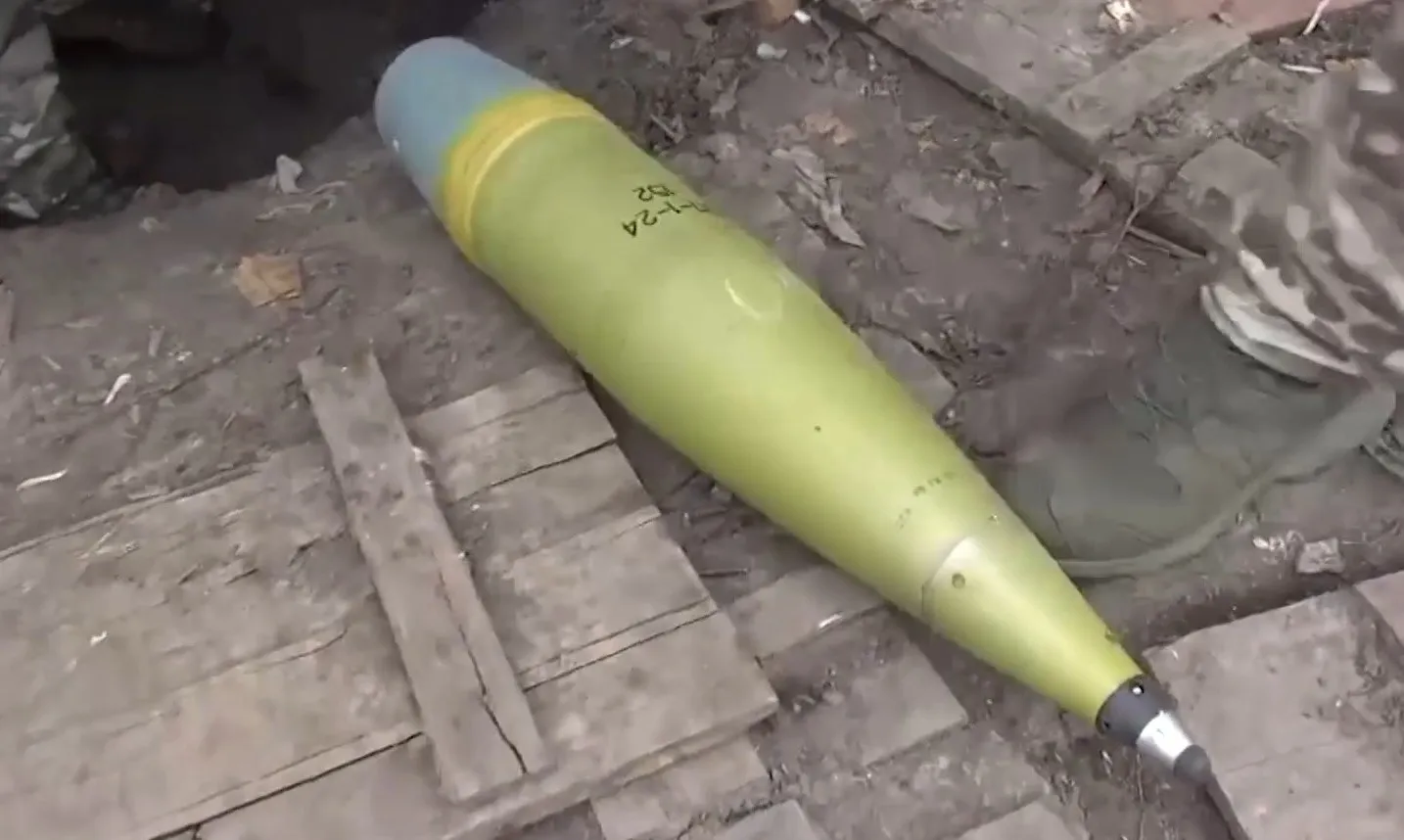

Image source: 152mm lime-colored projectile
Profile / Specs

Profile

Origin
Soviet Union / Russia
Built by
SovietRussia
Type
152 mm cargo cluster artillery projectile
Service note
Cold War-present

Specifications

Caliber
152 mm
Projectile mass
42.8 kg
Projectile length
820 mm with fuze; 718 mm without fuze in the ARDEC/Picatinny ammunition handbook
Round assemblies
3VO28 with long-range charge; 3VO29 with full variable charge; 3VO30 with reduced variable charge
Compatible artillery
Russian catalogue material lists the rounds for 2A65 and 2S19 artillery systems
Maximum range
About 21 km in the Russian catalogue for 2A65/2S19; other open 2A65 tables list about 26 km
Payload
Published references list 40 to 42 HEAT or dual-purpose submunitions
Submunition mass
0.36 kg bomblet mass with 0.042 kg explosive content in Russian catalogue data
Fuze
Mechanical time fuze; DTM-75 listed in the ARDEC/Picatinny ammunition handbook
Projectile type
Spin-stabilized, base-eject submunition carrier projectile
Firing Weapons

The best open compatibility sources tie the 3-O-23 round family to Msta-family 152 mm artillery rather than to a standalone launcher.

Firing weaponWeapon typeFiring evidence
2A65 Msta-B, 152 mm towed howitzer, Artillery2A65 Msta-B152 mm towed howitzer

Russian catalogue material says rounds with the 3-O-23 cargo projectile are intended for firing from the 2A65 artillery system, while Weaponsystems.net lists the OF23 cargo projectile in the 2A65 ammunition table.

Sources: Weapons of Russia 2000 152 mm 3-O-23 rounds, 152mm 2A65 Msta-B

2S19 Msta-S, 152 mm tracked self-propelled howitzer, Artillery2S19 Msta-S152 mm self-propelled howitzer

The same Russian catalogue entry lists 2S19 alongside 2A65 as a firing system for the 3VO28, 3VO29, and 3VO30 rounds with the 3-O-23 cargo projectile.

Sources: Weapons of Russia 2000 152 mm 3-O-23 rounds

Designation And Source Limits

The public source set is strongest on identification, round assemblies, and Msta-family compatibility. It does not provide enough open detail to attach this exact projectile to a named conflict-use row.

ScopeSource-backed detailCatalog treatment
Projectile bodyMETIS identifies 3-O-23 as a Russian 152 mm cargo or cluster projectile with a fuze adapter, main body, base unit, expulsion charge, and dual-purpose submunitions.The page treats OF23, O23, and 3-O-23 as aliases for the projectile body.
Complete roundsRussian catalogue material and METIS separate the 3VO28, 3VO29, and 3VO30 round assemblies by propelling-charge configuration.The designation table keeps those round names on this page without creating separate weapon records.
Payload and rangeOpen tables vary between 40 and 42 bomblets, and the maximum range is source-dependent.Specifications keep the range and submunition count as published-reference ranges instead of forcing a single figure.
Conflict-use evidenceSome references classify the munition family as a cluster munition or list closed conflict metadata, but the public text does not name a conflict with direct use of this exact projectile.The record remains relationship-only until a source directly identifies OF23, 3-O-23, or a 3VO28/29/30 round in a named conflict.

Sources: METIS 3-O-23 projectile; METIS 3VO28 152 mm round; METIS 3VO29 152 mm round; METIS 3VO30 152 mm round; Weapons of Russia 2000 152 mm 3-O-23 rounds; Handbook of Ammunition Used in Iraq O23.

Media

OF23 cargo projectile Images

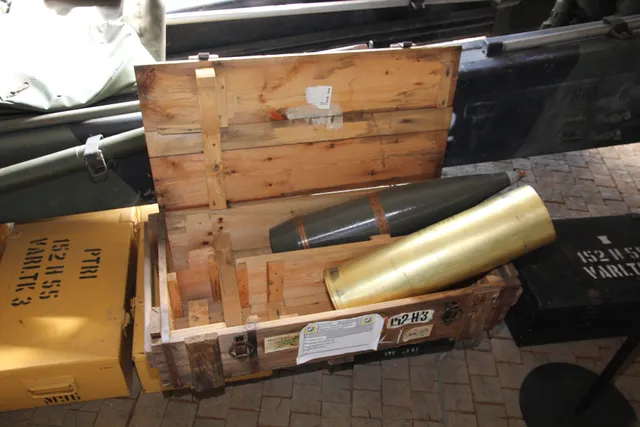

OF23 cargo projectile, 152 mm cargo cluster artillery projectile, Munitions - view 1
