Munitions

Mikholit glide bomb

Also known as
  • Makholit
  • Mikcholit

The Mikholit glide bomb is a small Israeli guided air-to-surface munition attributed to Israel Aerospace Industries and carried by Hermes-family UAVs. OSMP documents it in Gaza, Lebanon, the June 2025 Israel-Iran conflict, and the 2026 Iran War, with image evidence tying the bomb to Hermes 450 and Hermes 900 carriage.

Mikholit glide bomb, Small guided glide bomb, Munitions

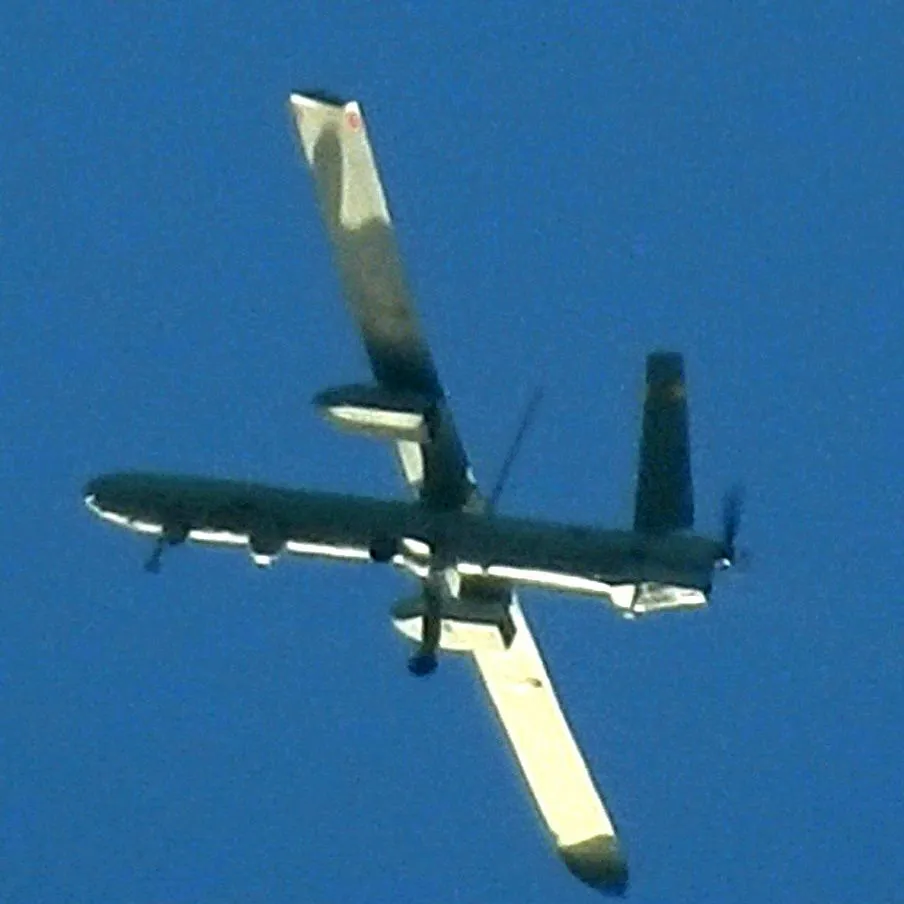

Image source: Wikimedia Commons Hermes 450 with Mikholit bomb pods

Role in Conflicts

Profile / Specs

Profile

Origin
Israel
Type
Small guided glide bomb
Service note
2020s
Designer
Israel Aerospace Industries
Unit cost
Not publicly documented

Specifications

Guidance
Guided air-to-surface glide bomb
Warhead
Blast or shaped-charge fragmentation options
Explosive fill
Less than 2 kg of HV-10 explosive composition, varying by type
Launch platforms
Hermes 450 and Hermes 900 UAVs
Hermes 900 pod load
Two observed pods, each with space for four Mikholit bombs
Manufacturer marking
OSMP image documentation identifies IAI CAGE code 0S9G9 on a Mikholit body
Variants

OSMP describes Mikholit as a small UAV-delivered glide bomb with different warhead configurations rather than a broad public family of separately named variants.

VariantConfigurationDesignation notes
Blast warheadHigh-explosive blast configuration

OSMP lists a blast-warhead Mikholit and notes a sub-2 kg HV-10 explosive fill that varies by type.

Sources: OSMP Mikholit model page

Shaped-charge fragmentation warheadAnti-materiel fragmentation configuration

OSMP lists a shaped-charge fragmentation option and describes preformed tungsten-cube fragmentation around the warhead.

Sources: OSMP Mikholit model page

Carrier UAVs

Open-source image documentation ties Mikholit to Hermes-family UAV carriage.

CarrierCarrier typeCarriage evidence
Hermes 450 armed unmanned aircraft, Multi-role tactical UAS, Aircraft & UAVsHermes 450 armed unmanned aircraftArmed UAV

A CC0 Commons photo shows a Hermes 450 carrying Mikholit bomb pods, and OSMP lists the Hermes 450 as a UAV deployment platform for the bomb.

Sources: Wikimedia Commons Hermes 450 with Mikholit bomb pods, OSMP Mikholit model page

Hermes 900 unmanned aircraft, Medium-altitude long-endurance UAV, Aircraft & UAVsHermes 900 unmanned aircraftArmed UAV

OSMP documented a Mikholit ejected from a downed Hermes 900 in Iran; the drone carried two weapons pods, each with space for four bombs.

Sources: OSMP1428 Iran Hermes 900 recovery

Loadout And Warhead Details

The public evidence is strongest at the munition and loadout level: OSMP documents warhead configurations and recovered bombs, while Commons and OSMP tie the bomb to Hermes-family UAV carriage.

ItemDocumented detailEvidence
Hermes 450 armed unmanned aircraft, Multi-role tactical UAS, Aircraft & UAVsHermes 450 armed unmanned aircraftMikholit bomb pods carried under the wingsCommons CC0 photo and OSMP model notes
Hermes 900 unmanned aircraft, Medium-altitude long-endurance UAV, Aircraft & UAVsHermes 900 unmanned aircraftTwo pods, four bombs per pod, with a Mikholit ejected after a June 2025 shootdown in IranOSMP1428 image documentation
Blast warheadSub-2 kg HV-10 explosive fill, with exact fill varying by typeOSMP model notes
Shaped-charge fragmentation warheadPreformed tungsten-cube fragmentation around the warheadOSMP model notes
Timeline

Mikholit glide bomb Key Events

  1. IAI marking documented

    OSMP image documentation identified an IAI CAGE-code marking on a Mikholit body, tying the munition to Israel Aerospace Industries.

    Sources: OSMP1289 Mikholit IAI CAGE marking

  2. Gaza City image set

    OSMP documented a Gaza City image set showing two Mikholit bombs and four warheads during the 2023 Israel-Hamas War.

    Sources: OSMP1296 Gaza City Mikholit image set

  3. Recovered in Gaza

    OSMP documented a Mikholit glide bomb in Gaza that the IDF reportedly recovered from Hamas after the weapon had been deployed by the IDF.

    Sources: OSMP1292 Gaza recovery image

  4. Reported use against Hezbollah

    OSMP's Mikholit model page says the bomb saw use against Hezbollah in Lebanon in 2024.

    Sources: OSMP Mikholit model page

  5. Recovered from a downed Hermes 900 in Iran

    OSMP documented a Mikholit ejected from the weapons pod of an Israeli Hermes 900 downed in Iran; the drone carried two pods, each able to hold four bombs.

    Sources: OSMP1428 Iran Hermes 900 recovery

  6. Khan Younis unexploded bomb image

    OSMP documented an undelivered or unfunctioned Mikholit air-delivered bomb in Khan Younis during the 2023 Israel-Hamas War.

    Sources: OSMP1467 Khan Younis Mikholit image

  7. Iran War examples documented

    OSMP documented multiple Mikholit air-delivered bombs in Iran during the 2026 Iran War.

    Sources: OSMP2055 Iran War Mikholit image, OSMP2056 Iran War Mikholit image, OSMP2057 Iran War Mikholit image

Media

Mikholit glide bomb Images

Mikholit glide bomb, Small guided glide bomb, Munitions - view 1

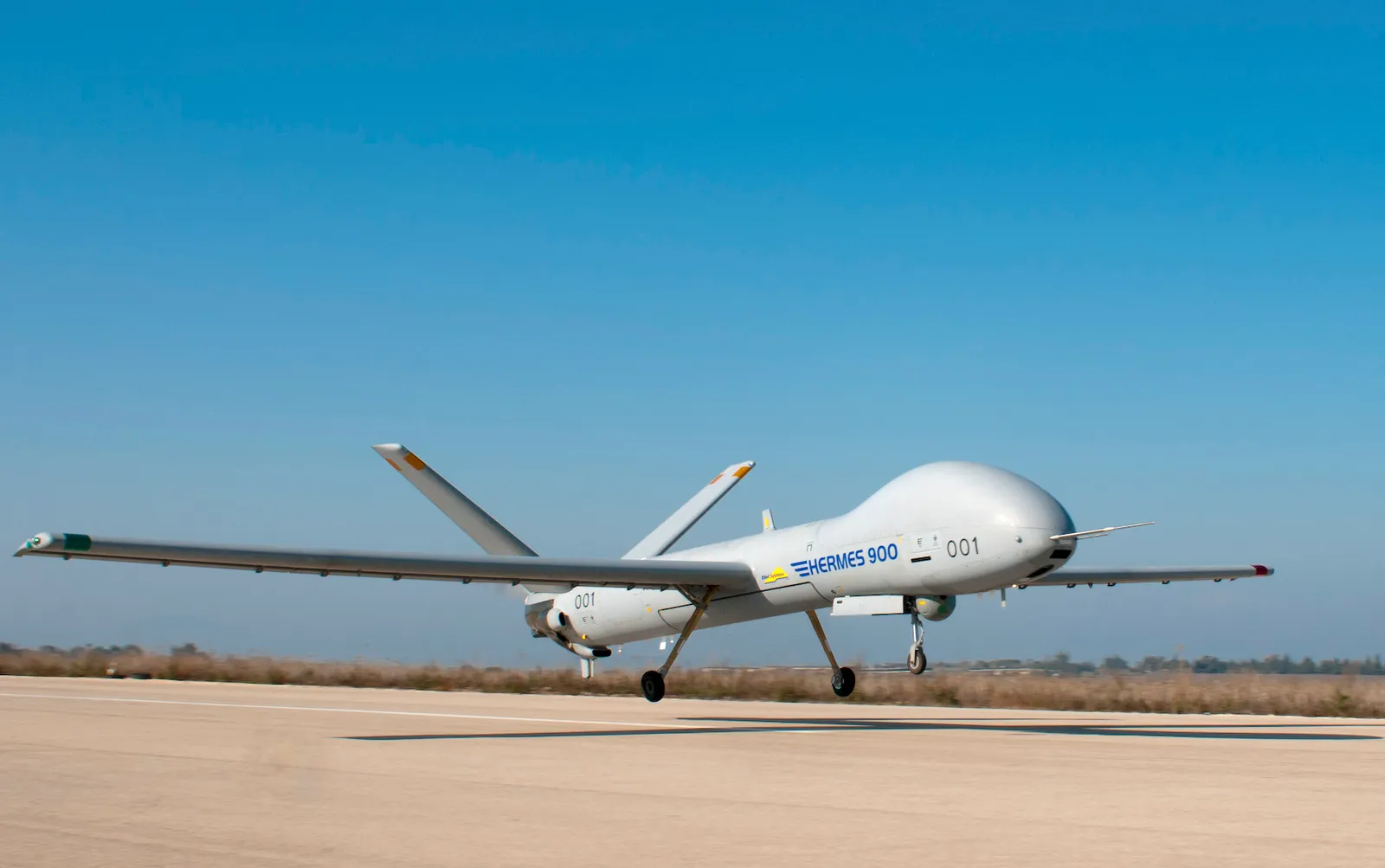

Source: Wikimedia Commons Hermes 900 takeoff
Related Weapon Systems
Unidentified Israeli turbojet-powered one-way-attack munition, One-way-attack munition, MunitionsMunitionsUnidentified Israeli turbojet-powered one-way-attack munitionOne-way-attack munitionARES tracks this provisional Israeli-origin munition as TMID-0011: a turbojet-powered one-way-attack weapon assessed as a guided UAV or loitering-munition missile. ARES says no publicly acknowledged Israeli munition closely fits the remnants, with the closest public analogue probably being the U.S. AGM-190 Black Arrow. Open-source reporting places it in Gaza during the 2023 Israel-Hamas War, in Lebanon during the 2023 Israel-Hezbollah Conflict, and in Iran during renewed Israel-Iran fighting, while the launch platform remains unidentified.
Hermes 900 unmanned aircraft, Medium-altitude long-endurance UAV, Aircraft & UAVsAircraft & UAVsHermes 900 unmanned aircraftMedium-altitude long-endurance UAVElbit's Hermes 900 Kochav is an Israeli medium-altitude long-endurance UAV family with 36-hour endurance, a 350 kg baseline payload, and modular ISR, electronic-intelligence, communications-relay, maritime-patrol, and wide-area surveillance payload options. First flown in 2009, it entered Israeli combat use during the 2014 Gaza War and has since appeared in Azerbaijani and Israeli conflict documentation, while the StarLiner branch adds civil-airspace certification and heavier payload capacity for non-segregated airspace missions.
Iron Dome air-defense system, Mobile short-range air-defense system, Air DefenseAir DefenseIron Dome air-defense systemMobile short-range air-defense systemIron Dome is an Israeli mobile short-range air-defense system built by Rafael and Israel Aerospace Industries to detect, track, and intercept rockets, artillery threats, and some UAVs before they hit populated areas. Known in Hebrew as Kippat Barzel, it became operational in 2011 and has documented combat use from the 2012 Gaza-Israel Conflict through later Gaza, Lebanon, and Iran-related fighting, including the April 2024 Iran-Israel exchange.
Python-5 air-to-air missile, Fifth-generation dual-use air-to-air and air-defense missile, MunitionsMunitionsPython-5 air-to-air missileFifth-generation dual-use air-to-air and air-defense missilePython-5 is Rafael's fifth-generation dual-use air-to-air and air-defense missile, built around a dual-waveband imaging infrared seeker, lock-on-before-launch and lock-on-after-launch modes, and a full-sphere launch envelope. Public sources document Israeli F-16 use against Hezbollah UAVs in 2006 and Gaza-launched drones in 2021, while SPYDER batteries use Python-5 as the infrared-imaging interceptor alongside Derby-family radar-guided missiles.
