M60A3 tank

The M60A3 is the final major U.S. production upgrade of the M60 main battle tank family, adding improved fire-control electronics, laser rangefinding, and later thermal sighting to the 105 mm-gunned Patton lineage. In the Sinai Insurgency record it appears as an Egyptian government armored asset moved for border security and counterinsurgency support during Comprehensive Operation Sinai 2018.

Sinai InsurgencyEgyptian government

Conflict side: Egyptian government
Built by: Chrysler Defense; General Dynamics Land Systems
Built in: United States

M60A3 tank, Main battle tank, Tanks

Image source: Left Side View of M60A3 Tank during Reforger 82

Profile

Type: Main battle tank
Conflict side: Egyptian government
Origin: United States
Service note: Late Cold War main battle tank still operated by foreign users during post-2011 conflicts

NATO tracked anti-tank protected mobility

Service History

In service: Entered U.S. Army service in the late 1970s; exported and retained by several foreign operators
Used by: Egyptian Army, United States Army, Foreign military sales operators
Wars: Sinai Insurgency

Production History

Designer: U.S. Army Ordnance and Chrysler Defense
Designed: 1970s M60A1 upgrade program
Built by: Chrysler Defense; General Dynamics Land Systems
Built in: United States
Unit cost: Varied by production, conversion, and foreign military sales package
Produced: M60A3 production and conversions from the late 1970s through 1990
Number built: Part of the wider M60 family, with thousands of M60A3 new-build and conversion vehicles
Variants: M60A3, M60A3 TTS
Developed from: M60A1

Specifications

Crew: 4
Main armament: 105 mm M68E1 rifled gun
Secondary armament: 7.62 mm coaxial machine gun and .50 caliber commander's machine gun
Combat weight: About 57.3 tons
Engine: Continental AVDS-1790-series 750 hp diesel
Maximum road speed: About 30 mph
Range: About 280-312 miles depending on source and configuration
Fire control: Laser rangefinder, solid-state ballistic computer, and M60A3 TTS thermal sight on TTS vehicles

Conflict Usage

Sinai Insurgency: Side: Egyptian governmentRole: Armored border security and counterinsurgency supportprotected mobility strike
Egyptian M60A3 tanks were reported among armored vehicles positioned near the Gaza border for the expanded Comprehensive Operation Sinai 2018 campaign; public reporting supports deployment and security use, not a detailed engagement history for the variant.

M60A3 tank Images

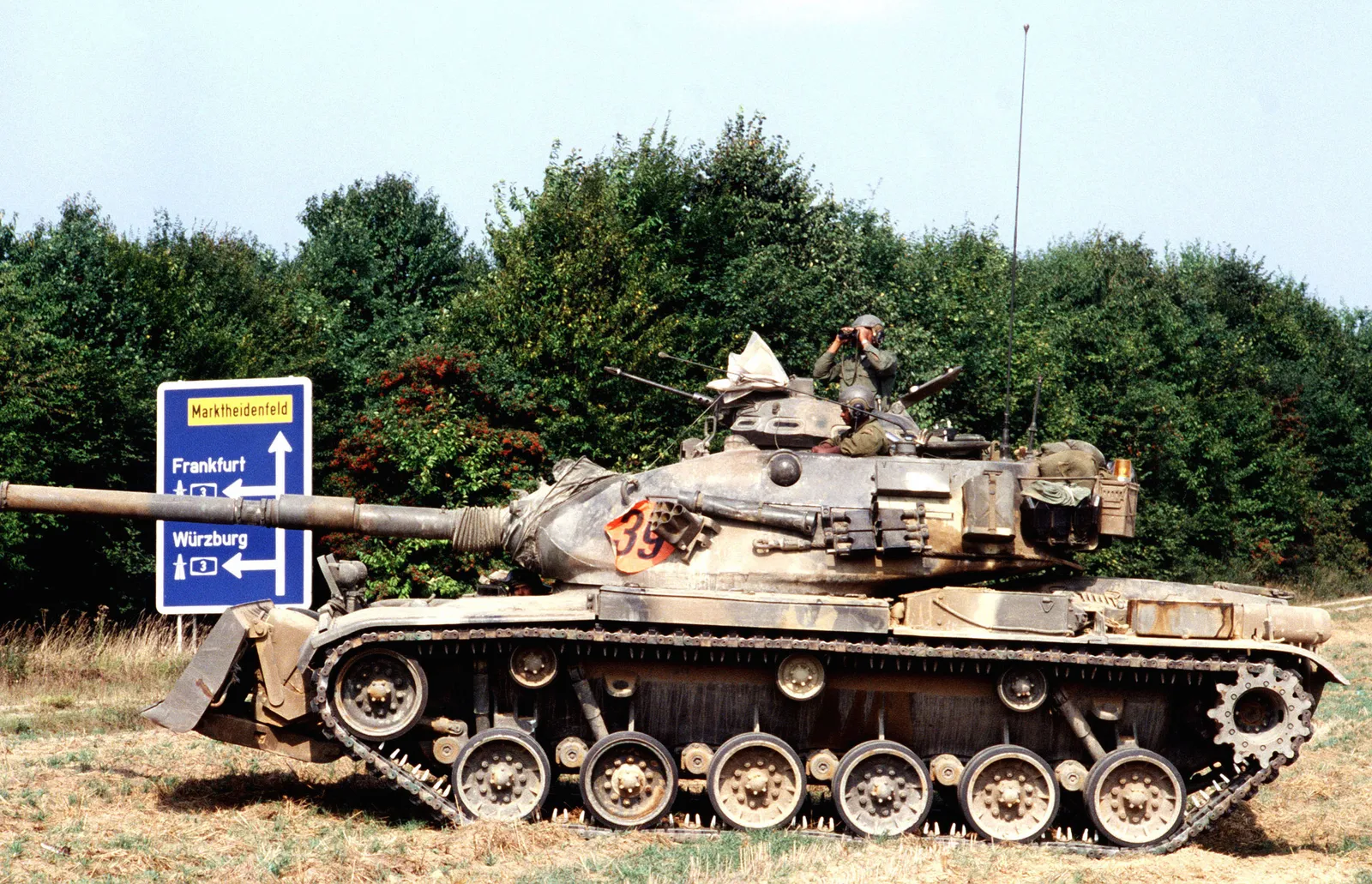

M60A3 tank, Main battle tank, Tanks - view 1 — Source: Left Side View of M60A3 Tank during Reforger 82

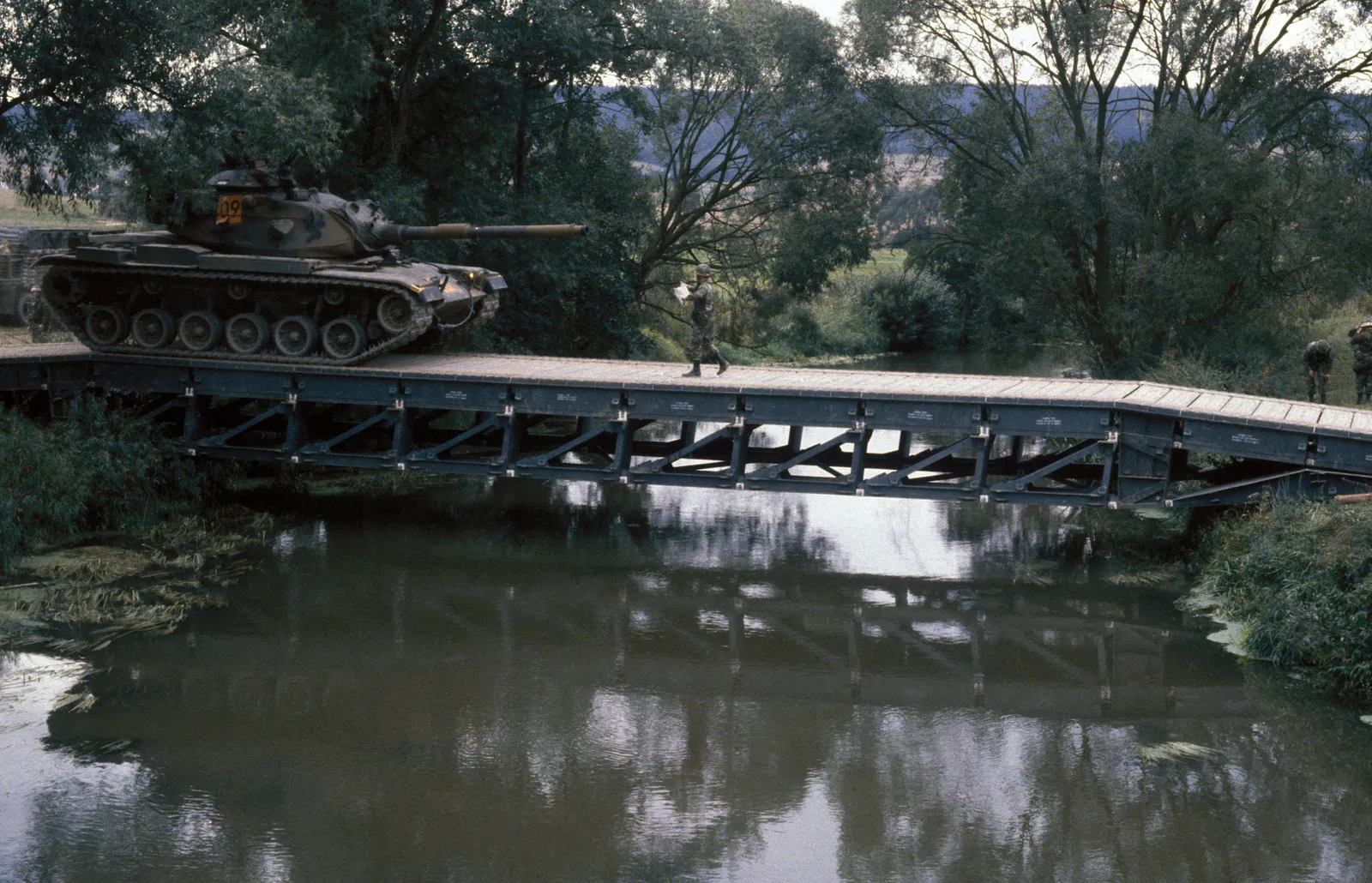

M60A3 tank, Main battle tank, Tanks - view 2 — Source: M60A3 Crossing Medium Girder Bridge during REFORGER 83

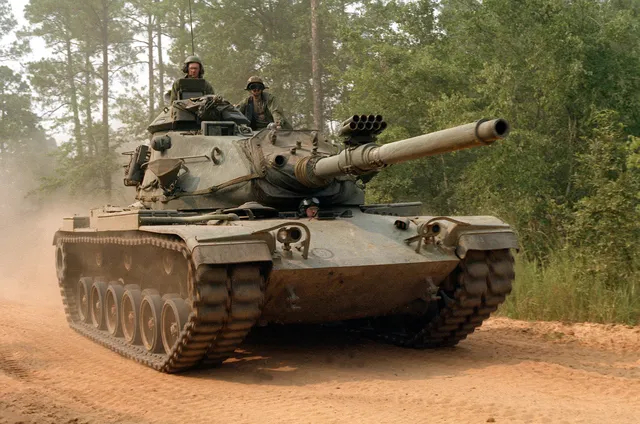

M60A3 tank, Main battle tank, Tanks - view 3 — Source: Georgia National Guard M60A3 Roadblock Training

M60A3 tank, Main battle tank, Tanks - view 4 — Source: M60A3 Main Battle Tank at Hohenfels

Related Weapon Systems

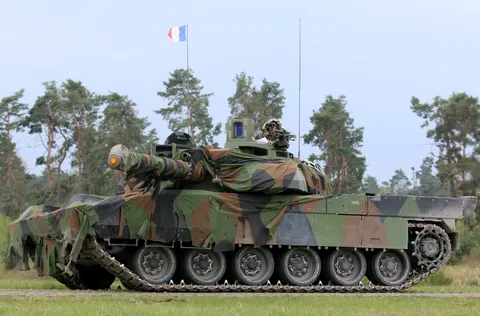

Leclerc tank, Third-generation main battle tank, Tanks

TanksLeclerc tankThird-generation main battle tankThe Leclerc is a French third-generation main battle tank built around a 120 mm smoothbore gun, autoloader, three-person crew, and high power-to-weight mobility. In the Yemeni Civil War, UAE-operated Leclercs gave coalition forces heavy protected direct fire during armored pushes around Aden, Al Anad, and later western-coast operations.

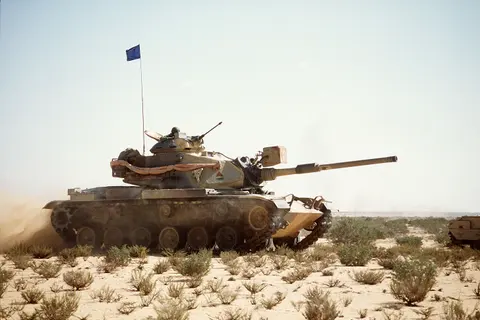

M60A1 Patton, Second-generation main battle tank, Tanks

TanksM60A1 PattonSecond-generation main battle tankThe M60A1 Patton is a U.S.-origin main battle tank with a 105 mm gun, four-person crew, and improved turret protection over the original M60. Yemen's pre-war army inventory included M60A1s, so surviving vehicles formed part of the legacy armored force available as the Yemen Civil War split state units and front lines.

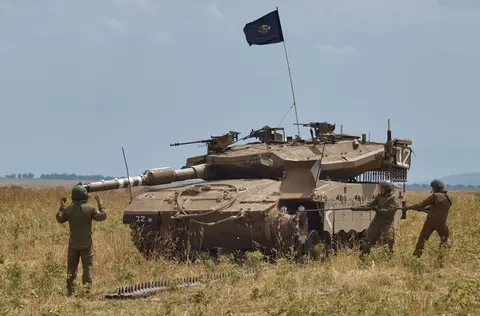

Merkava Mk 3 main battle tank, Main battle tank, Tanks

TanksMerkava Mk 3 main battle tankMain battle tankThe Merkava Mk 3 is Israel's late-Cold War main battle tank, built around a 120 mm smoothbore gun, modular protection, and a front-engine layout. In the Israel-Hamas War, the IDF linked the Mk 3-equipped 188th Brigade to Gaza operations, keeping the older Merkava variant in active conflict use.

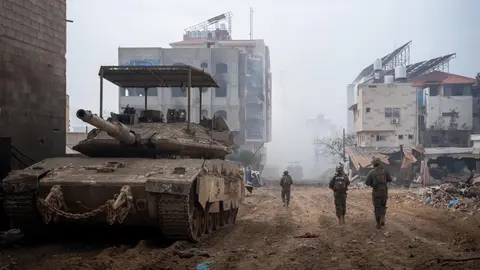

Merkava Mk 4 main battle tank, Main battle tank, Tanks

TanksMerkava Mk 4 main battle tankMain battle tankThe Merkava Mk 4 Barak is Israel's latest digital upgrade to the front-engine Merkava Mk 4 main battle tank, adding a smart mission computer, updated sensors, and VR-based crew training for the IDF's armored corps. In the Israel-Hamas War, IDF-released Barak imagery from Gaza documents the variant's wartime use and the program's later production expansion.

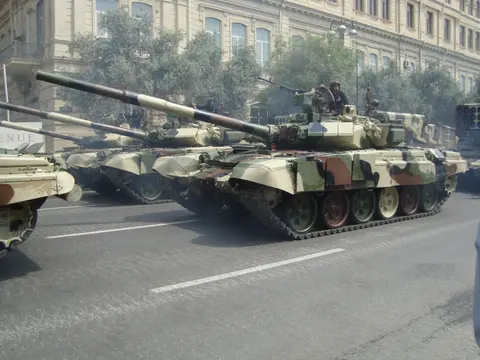

T-90SA tank, Export main battle tank, Tanks

TanksT-90SA tankExport main battle tankThe T-90SA tank entry covers the export T-90S family as fielded by Azerbaijan in the 2020 Nagorno-Karabakh Conflict. Conflict-loss documentation identifies Azerbaijani T-90S tanks rather than proving a unique subvariant label, so this record uses T-90SA conservatively as the requested export-family designation while grounding the conflict claim in T-90S evidence.

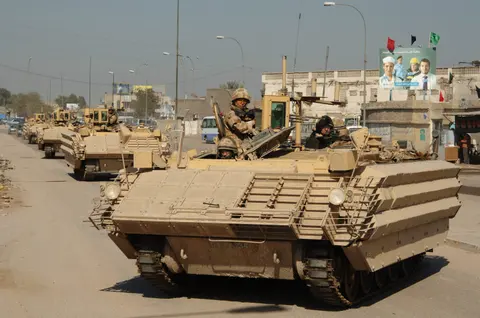

FV430 Bulldog, Tracked armored personnel carrier, Armored Vehicles
