M329 APAM 120 mm tank projectile

Also known as
  • APAM
  • APAM-MP-T
  • Calanit
  • Kalanit
  • XM329

The M329 APAM, also reported as Hatzav and known as Calanit/Kalanit, is an Israeli 120 mm multipurpose tank projectile for NATO-standard smoothbore guns. Built around programmable airburst and multi-purpose effects for urban direct fire, it appeared in IDF service before Operation Protective Edge and later Gaza investigations tied M329 evidence to the 2023 Israel-Hamas War.

M329 APAM 120 mm tank projectile, 120 mm multipurpose tank projectile, Munitions

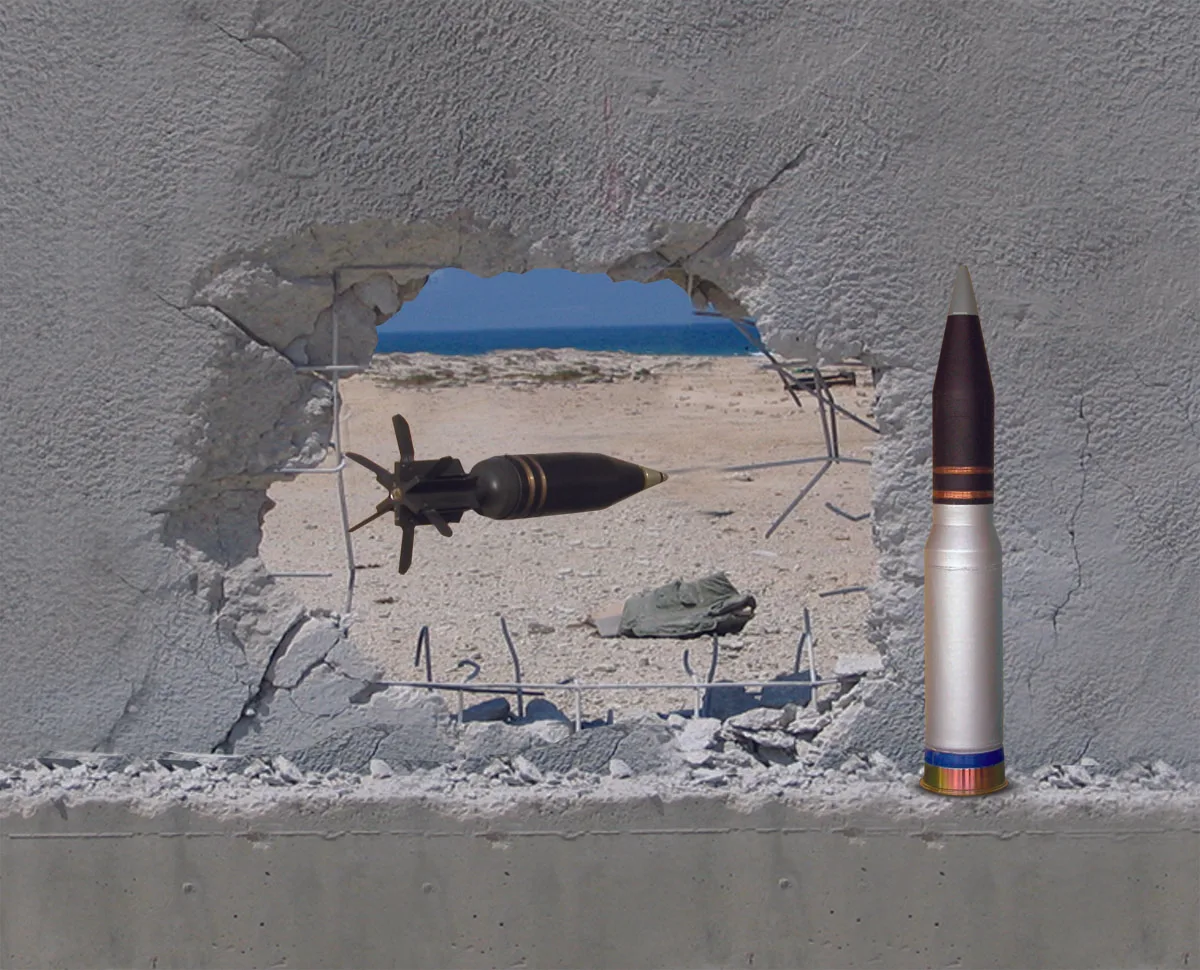

Image source: M329 Calanit shell photo

Role in Conflicts

2014 Gaza War
Fire Support
Side
Israel

Used by Israel during the 2014 Gaza War; contemporary reporting said the IDF Armored Corps began using the Hatzav M329 APAM-MP-T operationally during Operation Protective Edge in Gaza.

2023 Israel-Hamas War
Fire Support
Side
Israel

Used by Israeli tank crews in the 2023 Israel-Hamas War; the Washington Post assessed that the first projectile in the Aug. 25, 2025 Nasser Hospital strike was probably an M329, and OSMP separately catalogued M329 APAM evidence in its Israel and Gaza collection.

Role details
Profile / Specs

Profile

Origin
Israel
Type
120 mm multipurpose tank projectile
Service note
2000s-present
Designer
IMI Systems
Designed
2000s
Produced
2000s-present
Number built
Not publicly stated

Specifications

Caliber
120 mm
Type
APAM-MP-T multi-purpose tank round
Compatibility
NATO 120 mm smoothbore guns; reported for Merkava Mk 3 and Mk 4 service
Fuze
Programmable electronic fuze with airburst mode
Submunitions
Six explosive submunitions
Reported range
Up to 5 km in Hatzav reporting
Variants
  • XM329 (development designation)
  • Calanit / Kalanit
  • Hatzav
Tank Platforms

Source coverage places the M329/Hatzav in IDF 120 mm smoothbore service and describes Merkava Mk 3 and Merkava Mk 4 integration, while the NDIA presentation frames XM329 as a NATO 120 mm smoothbore projectile.

Firing weaponWeapon typeFiring evidence
Merkava Mk 3 main battle tank, Main battle tank, TanksMerkava Mk 3 main battle tankMerkava 3 tank platform

The Hatzav service report says the shell was installed in all tanks in use in Israeli combat units, including Merkava Mark 3 tanks.

Sources: Hatzav tank shell enters Gaza service - Israel National News

Merkava Mk 4 main battle tank, Main battle tank, TanksMerkava Mk 4 main battle tankMerkava 4 tank platform

The Hatzav service report says the shell was installed in all tanks in use in Israeli combat units, including Merkava Mark 4 tanks.

Sources: Hatzav tank shell enters Gaza service - Israel National News

Broader compatibility

The NATO 120 mm smoothbore language is a gun-class compatibility statement; conflict-use rows remain limited to sources that directly identify M329 or Hatzav use.

Sources: APAM 120 XM329 Presentation

Design Notes

The 2007 NDIA presentation frames XM329 as a multi-purpose tank round for urban combat, with a programmable electronic fuze and a six-submunition payload. Later Hatzav reporting emphasized delayed-action effects for enemy personnel in buildings and field fortifications.

FeatureDocumented detail
RoleAPAM-MP-T multi-purpose tank round.
FuzingProgrammable electronic fuze with airburst mode.
PayloadSix explosive submunitions.
CompatibilityNATO 120 mm smoothbore guns, with Israeli reporting naming Merkava Mk 3 and Mk 4 service.
Effect focusUrban direct fire against personnel in structures, trenches, and open terrain.

The compatibility line is class-level context from the presentation and Israeli reporting, not a model-by-model firing log.

Timeline

M329 APAM 120 mm tank projectile Key Events

  1. NDIA presentation introduces XM329

    The NDIA presentation described APAM 120 XM329 as a multi-purpose tank round for military operations in urban terrain and said it was used with NATO 120 mm smoothbore guns.

    Sources: APAM 120 XM329 Presentation

  2. Calanit wins the Israel Defense Prize

    Reuters reporting on the prize said the Armored Corps had been using the Calanit shell for about two months, making the round a public IDF subject well before the current Gaza war.

    Sources: IDF tank shell wins Israel Defense Prize - Ynet News

  3. Hatzav enters operational Gaza service

    Israel Defense reported that the IDF Armored Corps began using the IMI Hatzav shell (M329 APAM-MP-T) operationally during Operation Protective Edge in the Gaza Strip.

    Sources: New Weapon Systems made their Debut Appearance - Israel Defense, Hatzav tank shell enters Gaza service - Israel National News

  4. Nasser Hospital strike investigation

    The Washington Post's investigation into the Nasser Hospital strike in Gaza said the first projectile was probably an M329, while OSMP separately maintained M329 APAM entries in its Israel and Gaza collection.

    Sources: Nasser Hospital strike investigation, OSMP M329 APAM model

Media

M329 APAM 120 mm tank projectile Images

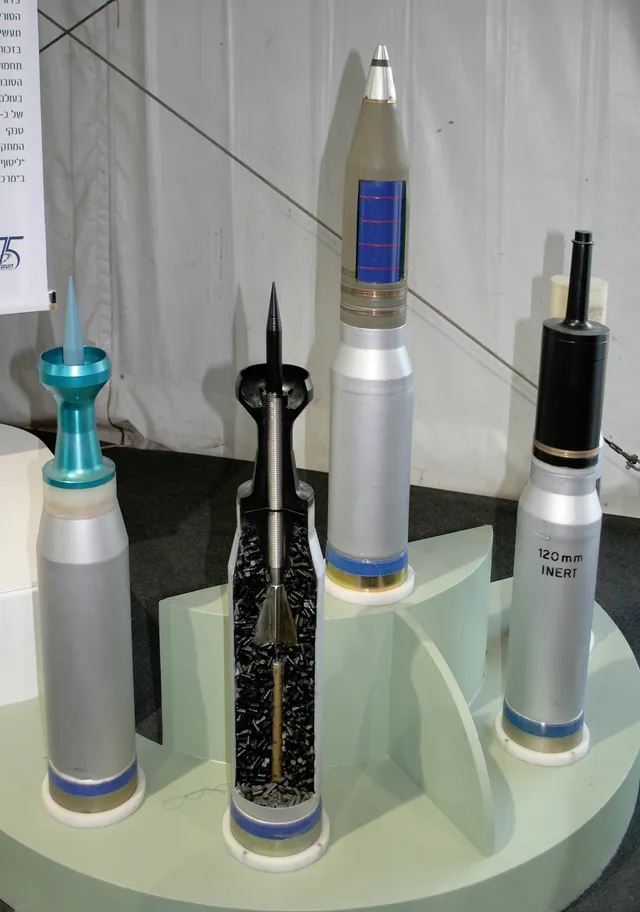

M329 APAM 120 mm tank projectile, 120 mm multipurpose tank projectile, Munitions - view 1
Source: IMI 120 mm shells photo
