Land Rover Defender

Also known as
  • Defender 90
  • Defender 110
  • Defender 130
  • Land Rover 90
  • Land Rover 110
  • Land Rover Wolf
  • Defender XD

The Land Rover Defender is the British 4x4 utility-vehicle family that grew out of the Series Land Rover line and supplied military, police, expedition, ambulance, communications, and specialist-conversion chassis for decades. The base Defender family is treated as support equipment here; armored and weapon-mounted derivatives such as Snatch/CAV-100 and RWMIK belong in separate records when direct operational evidence supports them.

Land Rover Defender, 4x4 military utility vehicle and protected-vehicle chassis family, Support Equipment

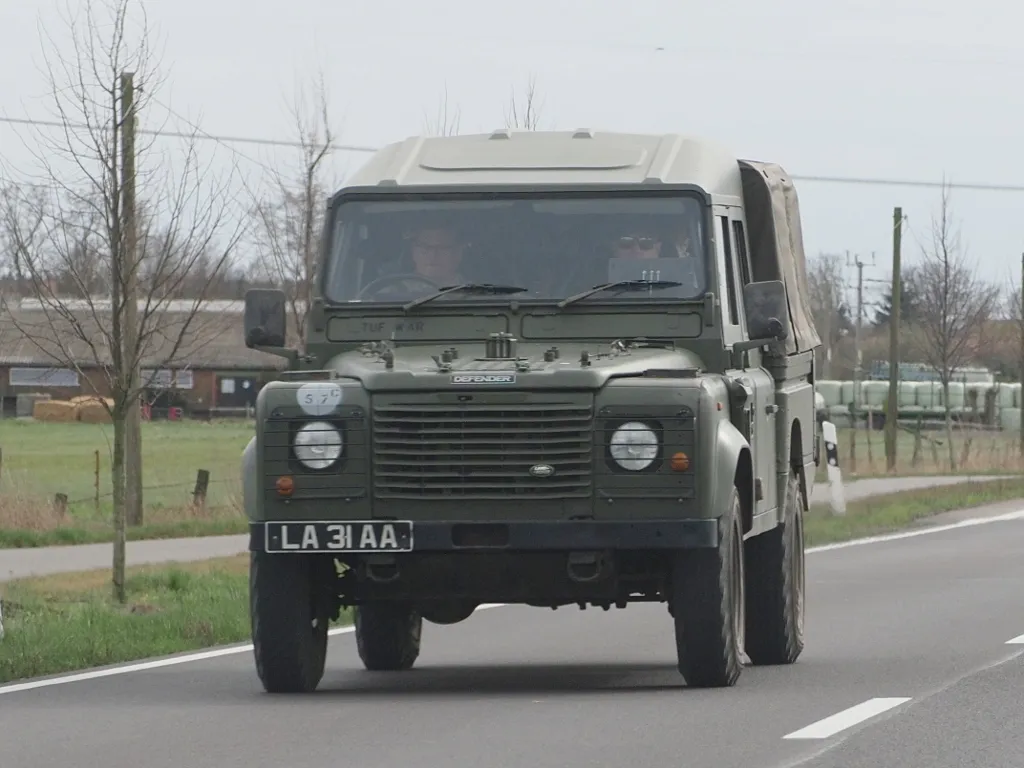

Image source: Wikimedia Commons British Army Defender 110 Image
Profile / Specs

Profile

Origin
United Kingdom
Built by
Land Rover
Type
4x4 military utility vehicle and protected-vehicle chassis family
Service note
Series Land Rover lineage from 1948; Defender nameplate production at Solihull ended in January 2016, with a new Defender generation introduced from 2019
Designer
Land Rover
Designed
Series Land Rover lineage began in 1948; the Defender name followed the earlier Ninety/One Ten family
Produced
1948-2016 for Series Land Rover and classic Defender production at Solihull; new Defender generation introduced from 2019
Developed from
Land Rover Series vehicles and the coil-sprung Ninety/One Ten family

Specifications

Configuration
Four-wheel-drive utility vehicle family with 90, 110, and 130 body-style naming used across Defender generations
Military role
Military light-utility, communications, patrol, and specialist-conversion chassis depending on variant and integrator
Wolf TUM utility roles
The UK MOD described Wolf Truck Utility Medium vehicles as supporting troop and supply movement and command duties before WMIK weapon-platform conversion
RWMIK configuration
British Army RWMIK data lists a three-person crew, GPMG/HMG/GMG weapon options, 4.55 m length, 1.79 m width, 2.4 m height including weapons mount, 80 kph maximum speed, and more than 800 km self-supporting range
Battlefield ambulance chassis
The British Army states the Land Rover battlefield ambulance is based on the TUM chassis and can carry up to four stretcher casualties or six seated casualties
Protected-vehicle relationship
The Land Rover Snatch/CAV-100 used the Defender 110 chassis with composite armor and mission fittings from NP Aerospace
Production lineage
Land Rover media describes 68 years of Series Land Rover and Defender production at Solihull before the final classic Defender was built in January 2016
Record boundary
Unmodified Defender utility vehicles are treated here as support equipment; armored or weapon-mounted derivatives should have their own records when directly sourced
Variants

Defender naming mixes civilian wheelbase labels, military utility designations, and mission-specific conversions. This page keeps the base utility family separate from protected or weapon-mounted derivatives with their own battlefield records.

VariantConfigurationDesignation notes
Defender 90Short-wheelbase utility variant

The Land Rover media archive lists Defender 90 among the current Defender body-style family and records the older Defender (1990-2016) as a past model line.

Sources: Land Rover Media Defender Archive

Defender 110Long-wheelbase utility and chassis variant

The Defender 110 body style supplied the chassis basis for the Snatch/CAV-100 protected patrol vehicle family.

Sources: Army Guide CAV-100, Land Rover Media Defender Archive

Defender 130Extended-wheelbase utility and conversion variant

Land Rover's own Defender history describes the 1990 renaming of the Ninety and One-Ten range as Defender 90, 110, and 130.

Sources: Land Rover UK Defender History

Land Rover Wolf / Defender XDMilitary high-specification utility variant

Joint-Forces describes the Wolf as the British military high-specification Land Rover Defender program, with the production contract announced by the UK Ministry of Defence in January 1996; the UK MOD later described Wolf TUM as a utility, troop-movement, supply, and command-vehicle base.

Sources: Joint-Forces Military Land Rover Wolf, MOD Annual Report 2008-09

Land Rover Battlefield AmbulanceTUM-chassis medical support variant

The British Army identifies the Land Rover battlefield ambulance as TUM-chassis based, air portable, amphibious-capable, and configured for seated or stretcher casualties.

Sources: British Army Land Rover Battlefield Ambulance

RWMIK Land RoverWeapon-mounted fire-support derivative

The British Army describes RWMIK as a lightly armored Land Rover configured for fire support, force protection, reconnaissance, convoy escort, and crew-served weapons; it is derivative context rather than proof of plain Defender conflict use.

Sources: British Army RWMIK Land Rover

Defender-Based Protected Vehicles

Several protected or weapon-mounted Land Rover derivatives start from Defender-family chassis but need separate conflict-use treatment when their armor, weapons, or mission equipment changes the battlefield role.

Compatible itemItem typeCompatibility evidence
Land Rover Snatch, Light protected patrol vehicle, Armored VehiclesLand Rover SnatchDefender 110-based protected patrol vehicle

Army Guide describes the CAV-100/Snatch light armored vehicle as based on the Land Rover Defender 110 4x4 chassis, with NP Aerospace fitting the ballistic protection package.

Sources: Army Guide CAV-100

Military Derivative Boundary

Defender-family service records often mix base utility vehicles with protected and weapon-mounted conversions. The source-backed boundary here is functional: plain Defender and Wolf utility variants support transport, command, communications, ambulance, and specialist chassis roles, while Snatch/CAV-100 and RWMIK add armor or mounted weapons that materially change the vehicle's battlefield role.

Utility base

Wolf TUM vehicles are described by the UK MOD as troop, supply, and command utility vehicles before WMIK weapon-platform conversions.

Protected derivative

Snatch/CAV-100 uses the Defender 110 chassis with an NP Aerospace ballistic protection package and has its own conflict-use record.

Weapon-mounted derivative

RWMIK is a Land Rover fire-support and force-protection vehicle with crew-served weapon options, so direct RWMIK combat use should not be collapsed into the base Defender page.

Timeline

Land Rover Defender Key Events

  1. Series Land Rover lineage begins

    Land Rover's official media archive says Land Rover has manufactured 4x4 vehicles since 1948 and ties the original Series vehicles to the later Defender line.

    Sources: Land Rover 70th Anniversary

  2. Wolf production contract announced

    Joint-Forces reports that the UK Ministry of Defence announced the Land Rover Wolf production contract in January 1996 after the upgraded military vehicles passed trials.

    Sources: Joint-Forces Military Land Rover Wolf

  3. WMIK evolution documented in Afghanistan requirements

    The UK Ministry of Defence described how Land Rover Wolf TUM utility vehicles became WMIK firing platforms, with further protection and mobility changes driven by Iraq and Afghanistan operational requirements.

    Sources: MOD Annual Report 2008-09

  4. Classic Defender production ends at Solihull

    Land Rover announced that the last of the then-current Defenders had been produced at Solihull after 68 years of Series Land Rover and Defender production.

    Sources: Last Defender Built in Solihull

  5. British Army phase-out enters public competition stage

    Forces News reported that the British Army had begun phasing out its Land Rover fleet after more than 70 years of service, with replacement selection tied to the Light Mobility Vehicle programme.

    Sources: Forces News Land Rover Phase-Out

Media

Land Rover Defender Videos

Land Rover Defender Images

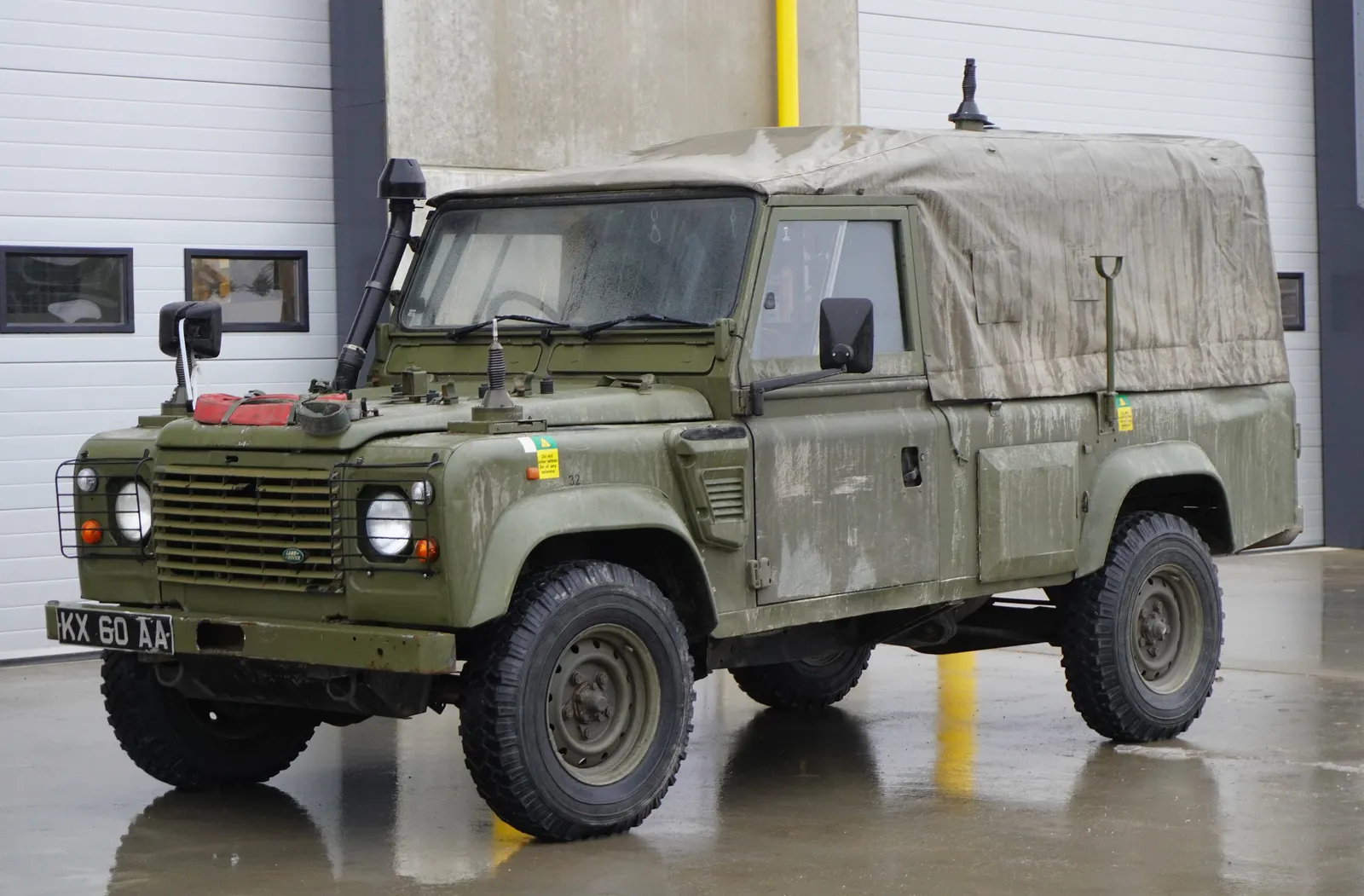

Land Rover Defender, 4x4 military utility vehicle and protected-vehicle chassis family, Support Equipment - view 1
Source: Wikimedia Commons Land Rover 110 XD Wolf Image

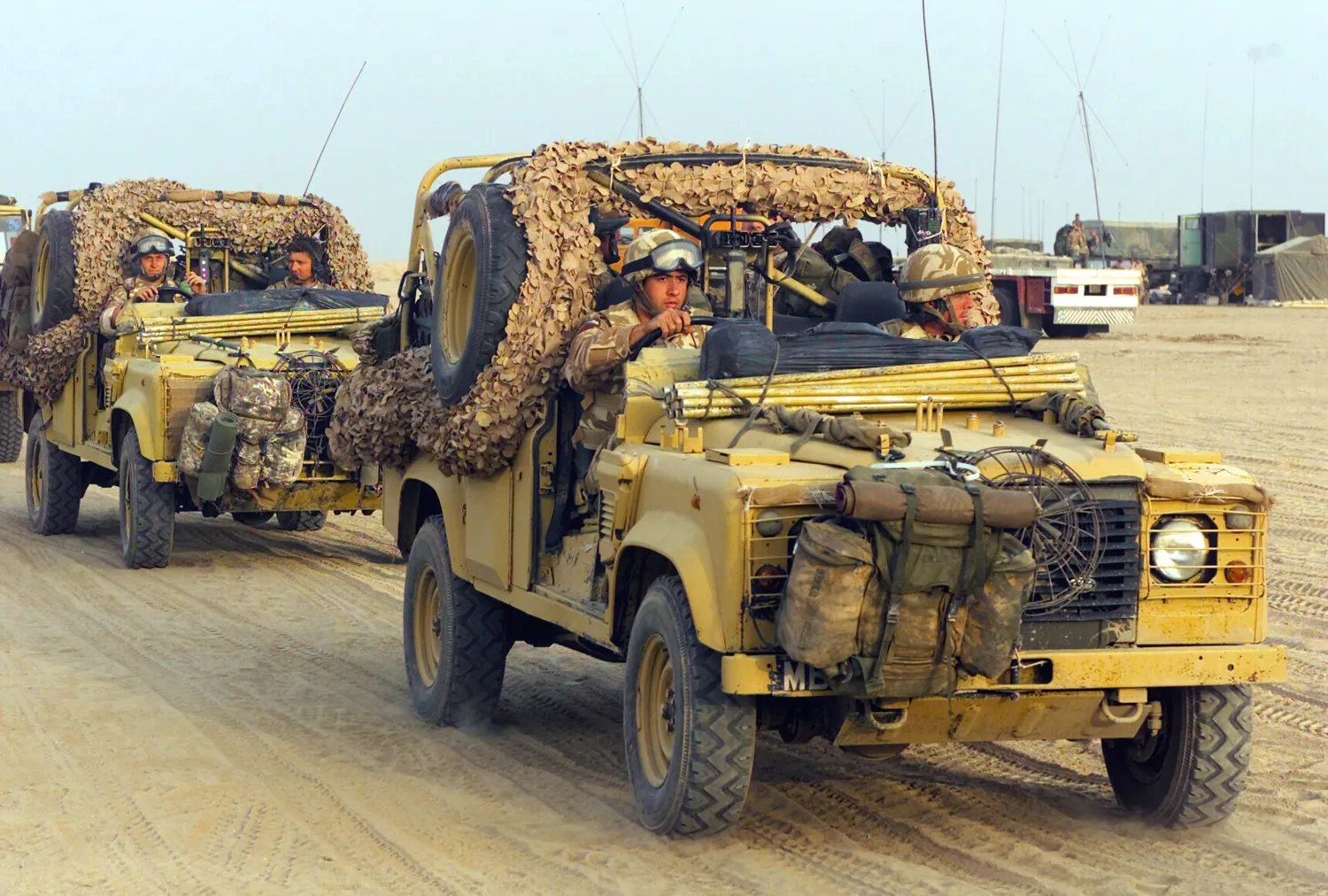

Land Rover Defender, 4x4 military utility vehicle and protected-vehicle chassis family, Support Equipment - view 2
Source: Wikimedia Commons Defender 110 Patrol Vehicles Image

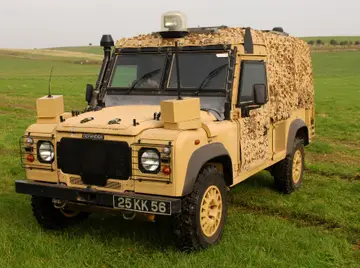

Land Rover Defender, 4x4 military utility vehicle and protected-vehicle chassis family, Support Equipment - view 3
Source: Wikimedia Commons Snatch-Vixen Image
Related Weapon Systems
Land Rover Snatch, Light protected patrol vehicle, Armored VehiclesArmored VehiclesLand Rover SnatchLight protected patrol vehicleThe Land Rover Snatch is a British light protected patrol vehicle based on the Defender 110 chassis and fitted with composite armor for low-profile internal-security, patrol, escort, communications, and protected-mobility work. It entered British Army service as the CAV-100/Snatch family after a 1991 Ministry of Defence contract, later drew heavy scrutiny in Iraq and Afghanistan because roadside bombs and rocket-propelled grenades outgrew its protection level, and was progressively supplemented or replaced by heavier protected patrol vehicles and the Foxhound.
Toyota Land Cruiser 79 (LC79), 4x4 light utility pickup and armored-conversion chassis, Support EquipmentSupport EquipmentToyota Land Cruiser 79 (LC79)4x4 light utility pickup and armored-conversion chassisThe Toyota Land Cruiser 79, commonly shortened to LC79, is the pickup branch of Toyota's heavy-duty Land Cruiser 70 family. In conflict records it is best treated as a rugged 4x4 chassis and light utility vehicle: Ukrainian sources document LC79-based armored vehicles, Land Cruiser 70-based Dzhura vehicles, and UAT-TISA pickups serving mobility, reconnaissance, logistics, evacuation, and force-protection roles during the full-scale phase of the Russia-Ukraine War.
International MXT-MV, 4x4 infantry mobility and protected support vehicle family, Armored VehiclesArmored VehiclesInternational MXT-MV4x4 infantry mobility and protected support vehicle familyThe International MXT-MV is Navistar Defense's military 4x4 MXT family, spanning unarmored utility, armored MXT-MVA, cargo, recovery, armored personnel carrier, and U.K. Husky TSV configurations. Its strongest documented combat record comes through the Husky variant: British forces used Huskies in Afghanistan, and the United Kingdom later donated Husky vehicles to Ukraine for protected mobility during the 2014 Russia-Ukraine War.

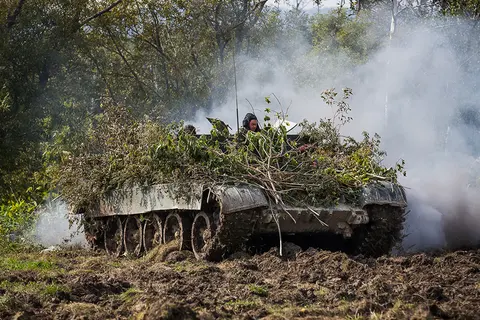

BTS-4, Tracked armored recovery vehicle, Support EquipmentSupport EquipmentBTS-4Tracked armored recovery vehicleThe BTS-4 is a Soviet tracked armored recovery vehicle family built around tank-hull recovery work: towing disabled armor, winching stuck vehicles, lifting heavy components, and supporting field repair teams. Ukrainian and Western reporting describes upgraded BTS-4 vehicles with T-54/T-55 hull lineage, a front crane, dozer blade, and heavy winch package, while visual-loss records document BTS-4-family vehicles on both sides of the Russia-Ukraine War and one BTS-4 captured from Syrian regime forces in 2024.
