HUGIN autonomous underwater vehicle

Also known as
  • HUGIN
  • Hugin AUV
  • HUGIN 1000
  • HUGIN 1000-MR
  • HUGIN MRS
  • HUGIN Mine Reconnaissance System
  • HUGIN 3000
  • HUGIN 4500
  • HUGIN 6000
  • HUGIN Superior
  • HUGIN Endurance
  • HUGIN Edge
  • HUGIN 54
  • Trondheim

HUGIN is a Norwegian autonomous underwater-vehicle family developed by FFI and Kongsberg Maritime for subsea survey, hydrography, offshore inspection, salvage search, and naval missions such as mine countermeasures and seabed warfare support. The family spans configurable HUGIN vehicles, HUGIN Superior, and long-range HUGIN Endurance designs that combine synthetic-aperture sonar, multibeam mapping, inertial navigation, launch-and-recovery equipment, and autonomous mission execution rather than a weapon payload.

HUGIN autonomous underwater vehicle, Autonomous underwater vehicle, Support Equipment

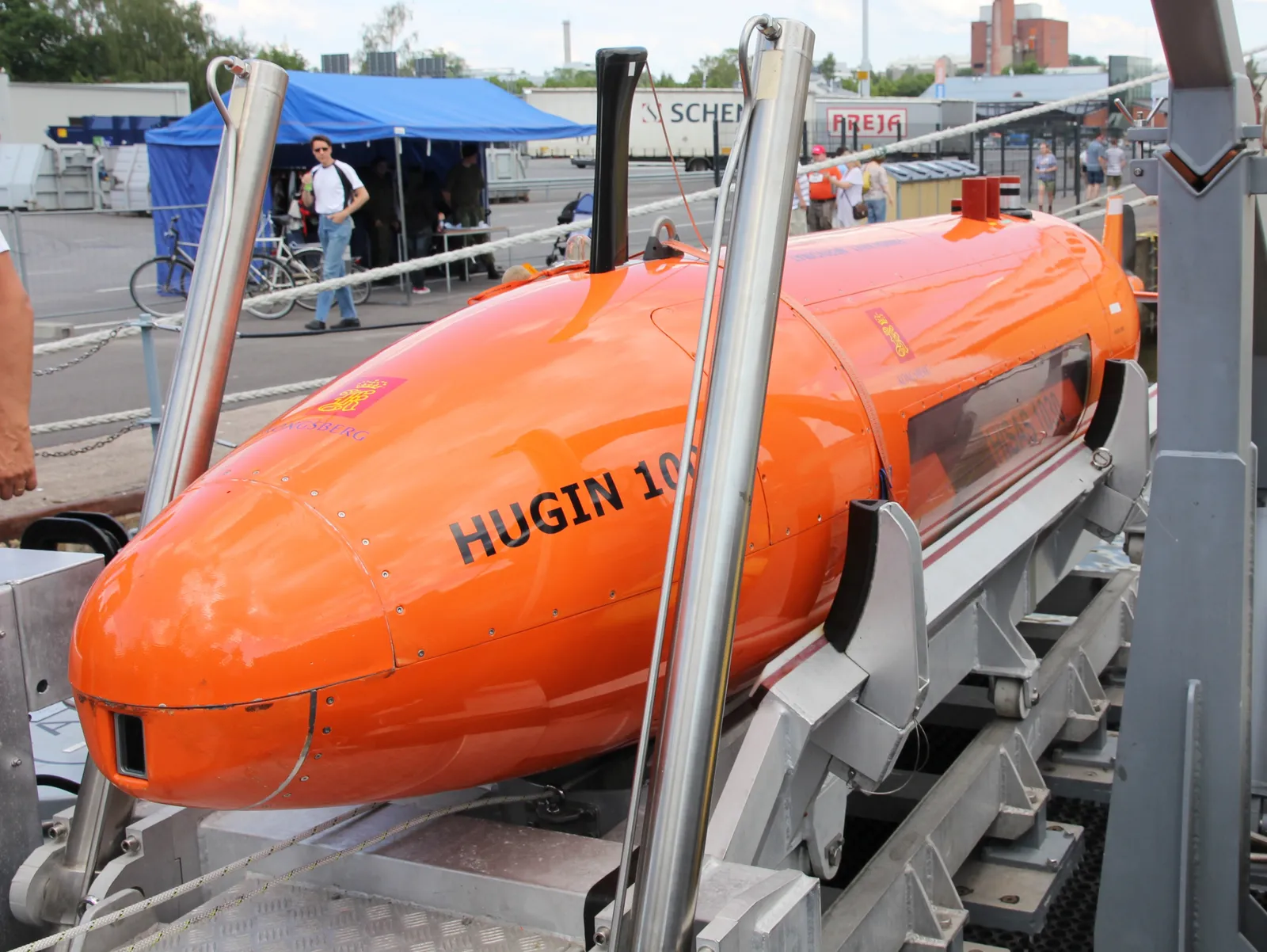

Image source: Wikimedia Commons HUGIN 1000 image
Profile / Specs

Profile

Origin
Norway
Type
Autonomous underwater vehicle
Designer
Norwegian Defence Research Establishment and Kongsberg Maritime AS

Specifications

Vehicle class
Autonomous underwater vehicle
Current product range
Kongsberg lists HUGIN, HUGIN Edge, HUGIN Superior, and HUGIN Endurance as the current product range, with HUGIN 3000 and HUGIN 6000 data sheets under the configurable HUGIN line
Documented defense missions
Mine countermeasures, mine hunting, intelligence preparation of the operational environment, seabed warfare support, and critical-undersea-infrastructure inspection
Operating depths
HUGIN family depth classes include 3,000 m, 4,500 m, and 6,000 m; HUGIN Edge is listed for 5 m to 1,000 m shallow-water operations
Baseline endurance
Kongsberg lists up to 100 hours at 4 knots for current configurable HUGIN vehicles
HUGIN 3000 dimensions/performance
3,000 m depth rating, 750 mm diameter, typical 5.4 m length, typical 1,200 kg weight in air, 2-6 knots, and 27-32 hours at 3 knots with all sensors running
HUGIN 6000 dimensions/performance
6,000 m depth rating, 875 mm diameter, typical 6.2 m length, typical 2,000 kg weight in air, 2-5 knots, and 65-76 hours at 3 knots with all sensors running
HUGIN Superior performance
6,000 m depth rating, about 6.6 m length, about 2,200 kg weight in air, 67 kWh battery capacity, 62 hours with all sensors running, and 0.04 percent distance-travelled CEP50 straight-line navigation
HUGIN Endurance range
Largest HUGIN family member at 1.2 m diameter and 10 m length, with up to 15 days, 2,200 km / 1,200 nmi mission range, 1,100 km2 mapped area, and 6,000 m depth rating in Kongsberg product data
HUGIN Edge compact model
Shallow-water HUGIN Edge data sheet lists 5-1,000 m operational depth, 24 hours at 3 knots, 350-390 kg base weight in air, and 410 cm length
Sensor payloads
Synthetic-aperture sonar or side-scan sonar, multibeam echosounder, sub-bottom profiler, camera, CTD, volume-search sonar, magnetometer, and environmental sensors depending on configuration
Mission support
Kongsberg's 2017 Norwegian Armed Forces delivery included planning, mission execution, analysis, launch-and-recovery, training, and maintenance systems
U.S. Navy HUGIN 54
NAVSEA describes SUPSALV's HUGIN 54 Trondheim as a 6,000 m, 53-hour AUV with sonar, multibeam mapping, sub-bottom profiling, magnetic sensing, and high-resolution still-camera observation
Autonomy And Payload Context

HUGIN is best treated as a sensor and mission-support vehicle rather than as a direct munition. FFI describes the system as interpreting sensor data to adapt its mission pattern, while Kongsberg frames current HUGIN vehicles around seabed mapping, mine-countermeasures support, terrain navigation, target recognition, and containerized launch-and-recovery packages.

Family boundary

The record covers the HUGIN AUV family and named public configurations, not every customer-specific payload fit.

Defense role

Sources support mine hunting, mine countermeasures, IPoE, seabed warfare support, and undersea-infrastructure inspection roles.

Conflict evidence

The reviewed sources document military procurement and operational roles, but not direct use in a named armed conflict.

Source labels used here: FFI HUGIN overview; Kongsberg HUGIN AUV; Kongsberg HUGIN Superior; Kongsberg HUGIN Endurance; Kongsberg HUGIN U.S. Navy tests.

Variants

HUGIN is a family and configuration line rather than a single fixed vehicle; public sources describe depth-rated HUGIN models, HUGIN Superior, HUGIN Endurance, and mission-specific service vehicles.

VariantConfigurationDesignation notes
HUGIN 1000Mine-countermeasures AUV

The HUGIN 1000 line appears in Finnish mine-countermeasures imagery and earlier Kongsberg military-AUV material, with HUGIN 1000 MR described as designed for mine-countermeasure operations.

Sources: Wikimedia Commons HUGIN 1000 image, Kongsberg HUGIN 1000 system

HUGIN 1000-MRMine reconnaissance production lane

Kongsberg's 2004 test notice ties HUGIN 1000 to the Norwegian HUGIN Mine Reconnaissance System program and route-survey, REA, and MCM demonstrations.

Sources: Kongsberg HUGIN 1000 testing

HUGIN 30003,000 m class AUV

Kongsberg's data sheet lists HUGIN 3000 as a 750 mm diameter, roughly 5.4 m, 3,000 m rated deep-water vehicle with SSS and HISAS standard variants.

Sources: Kongsberg HUGIN 3000 data sheet

HUGIN 45004,500 m survey configuration

The Lighthouse SpA delivery was a 4,500 m rated HUGIN with HISAS 1032, EM2040, sub-bottom profiler, camera, laser, and environmental sensors.

Sources: Kongsberg HUGIN Lighthouse

HUGIN 60006,000 m deep-water AUV

Kongsberg's data sheet describes HUGIN 6000 as the deep-water workhorse of the family, with a larger 875 mm body, 67 kWh energy capacity, and HISAS/scientific standard variants.

Sources: Kongsberg HUGIN 6000 data sheet

HUGIN SuperiorLarge deep-water AUV

Kongsberg describes HUGIN Superior with a fixed high-end sensor suite, MicroNavigation accuracy better than 0.04 percent of distance travelled, and defense roles including REA and MCM.

Sources: Kongsberg HUGIN Superior

HUGIN EnduranceLong-range shore-to-shore AUV

Kongsberg lists up to 15 days, 1,200 nmi range, 6,000 m depth rating, and ship-of-opportunity or shore launch-and-recovery for HUGIN Endurance.

Sources: Kongsberg HUGIN Endurance

HUGIN EdgeCompact shallow-water AUV

HUGIN Edge packages HUGIN-family autonomy and SAS/MBES payload options into a roughly four-metre vehicle for shallow-water operations, small-vessel use, USV integration, or containerized deployment.

Sources: Kongsberg HUGIN Edge data sheet

HUGIN 54U.S. Navy salvage-search AUV

NAVSEA identifies SUPSALV's HUGIN 54, Trondheim, as a 6,000 m AUV for long-duration autonomous ocean searches.

Sources: NAVSEA HUGIN 54 AUV

Timeline

HUGIN autonomous underwater vehicle Key Events

  1. HUGIN 1000 military prototype described

    Kongsberg described a new HUGIN 1000 military prototype for the Royal Norwegian Navy, with mine-detection and classification tasks and a planned 20-hour endurance.

    Sources: Kongsberg HUGIN 1000 system

  2. Royal Norwegian Navy tests first HUGIN 1000

    Kongsberg reported successful Royal Norwegian Navy testing of the first HUGIN 1000 AUV under the HUGIN Mine Reconnaissance System program.

    Sources: Kongsberg HUGIN 1000 testing

  3. Norwegian Armed Forces procurement announced

    Kongsberg announced that Kongsberg Maritime would supply HUGIN autonomous underwater-vehicle systems to the Norwegian Armed Forces for mine-countermeasures modernization.

    Sources: Norwegian Armed Forces HUGIN procurement

  4. HUGIN 4500 survey package described

    Kongsberg described a HUGIN 4500 delivery with a full geophysical survey payload including HISAS 1032 synthetic-aperture sonar, EM2040 multibeam echosounder, sub-bottom profiler, camera, laser, and environmental sensors.

    Sources: Kongsberg HUGIN Lighthouse

  5. Polish Navy Kormoran II HUGIN contract reported

    Naval News reported that Kongsberg Maritime would supply three HUGIN AUV and HiPAP shipsets for Polish Navy Kormoran II mine-countermeasures vessels.

    Sources: Naval News Polish HUGIN contract

  6. Italian Navy HUGIN service context described

    EDR reported Italian Navy MARICODRAG use of a 3,000 m HUGIN since 2013 and additional HUGIN procurement for mine-countermeasures and seabed-infrastructure monitoring.

    Sources: EDR Italian Navy MCM interview

  7. HUGIN Endurance multi-week mission reported

    Kongsberg reported that HUGIN Endurance completed a multi-week autonomous mission that met the advertised 1,200 nmi range and operated between 50 m and 3,400 m depth.

    Sources: Kongsberg HUGIN Endurance mission

  8. AUKUS seabed-warfare trial reported

    The Royal Navy reported that UK, U.S., and Australian personnel used HUGIN Superior AUVs to gather sensor data during underwater-warfare trials off Virginia Beach.

    Sources: Royal Navy AUKUS HUGIN trial

  9. U.S. Navy acceptance testing completed

    Kongsberg reported completion of acceptance testing and delivery of the first HUGIN Superior AUV under a Defense Innovation Unit and U.S. Navy large-diameter UUV effort.

    Sources: Kongsberg HUGIN U.S. Navy tests

Naval Service And Trials

Public sources identify HUGIN in mine-countermeasures, seabed-warfare, and ocean-search service contexts across several navies. These rows support operator and mission context only; they are not conflict-use claims.

Service contextDocumented HUGIN useSource-backed detail
NorwayMine reconnaissance and MCMKongsberg reported Royal Norwegian Navy HUGIN 1000 testing under the HUGIN Mine Reconnaissance System program and a 2017 NDMA order for four complete HUGIN systems for mine detection, classification, and identification.
PolandKormoran II minehuntersNaval News reported Kongsberg's contract to supply three HUGIN AUV and HiPAP shipsets for Polish Navy Kormoran II vessels, following earlier integrations on the first three vessels.
ItalyMARICODRAG deep seabed and MCM workEDR reported Italian Navy induction of a 3,000 m HUGIN in 2013, with additional 3,000 m HUGIN procurement for mine-countermeasures and seabed-infrastructure monitoring.
United StatesDIU/U.S. Navy LDUUV and SUPSALV searchKongsberg reported HUGIN Superior acceptance and delivery under a DIU/U.S. Navy LDUUV effort, while NAVSEA lists SUPSALV's HUGIN 54 Trondheim as a 6,000 m ocean-search AUV.
AUKUS trialHUGIN Superior sensor-data collectionThe Royal Navy reported that UK, U.S., and Australian personnel used commercially available HUGIN Superior AUVs during Virginia Beach seabed-warfare trials.

Source labels used here: Kongsberg HUGIN 1000 testing; Norwegian Armed Forces HUGIN procurement; Naval News Polish HUGIN contract; EDR Italian Navy MCM interview; Kongsberg HUGIN U.S. Navy tests; NAVSEA HUGIN 54 AUV; Royal Navy AUKUS HUGIN trial.

Media

HUGIN autonomous underwater vehicle Videos

HUGIN autonomous underwater vehicle Images

HUGIN autonomous underwater vehicle, Autonomous underwater vehicle, Support Equipment - view 1

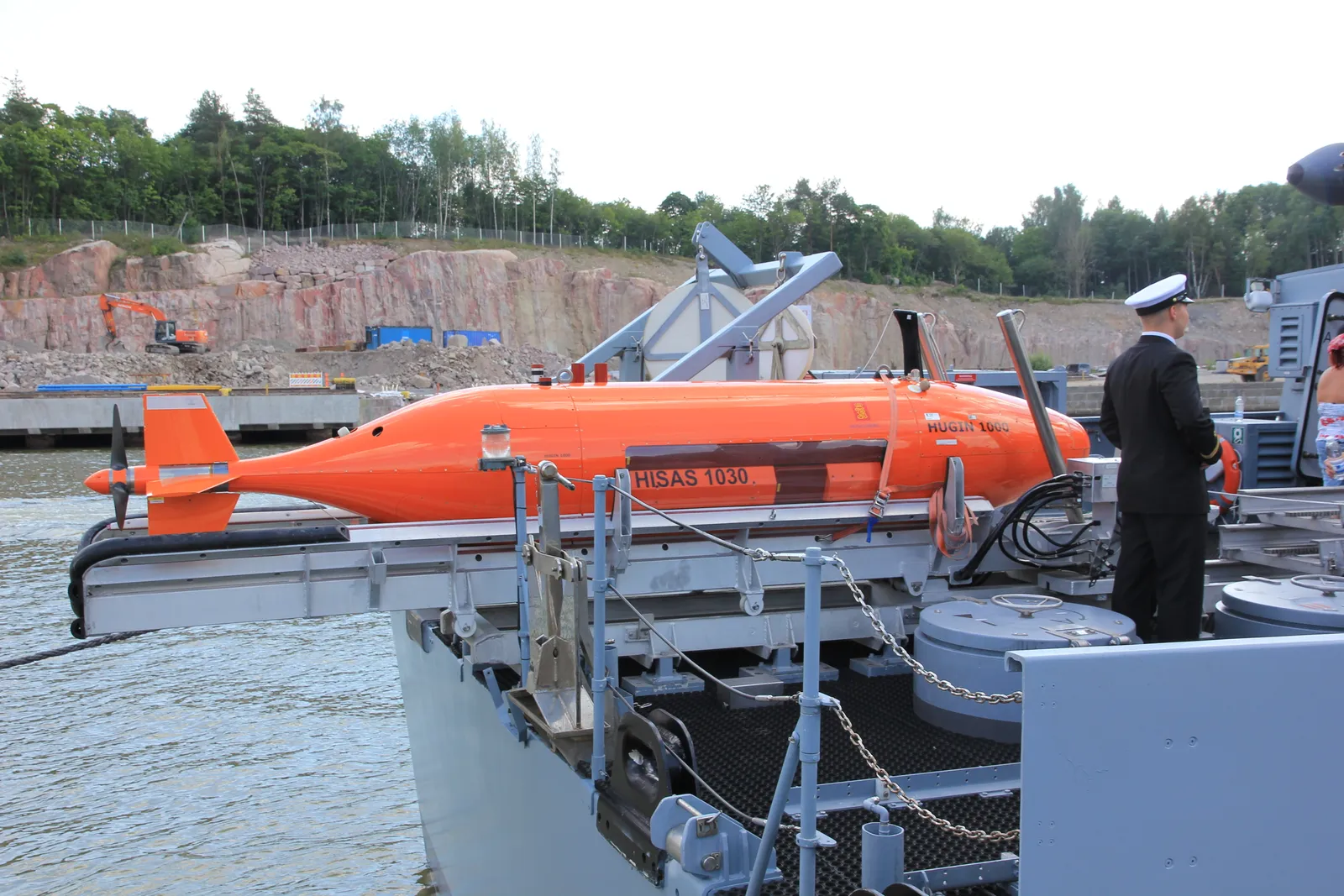

Source: Wikimedia Commons HUGIN 1000 Katanpaa image 04
HUGIN autonomous underwater vehicle, Autonomous underwater vehicle, Support Equipment - view 2

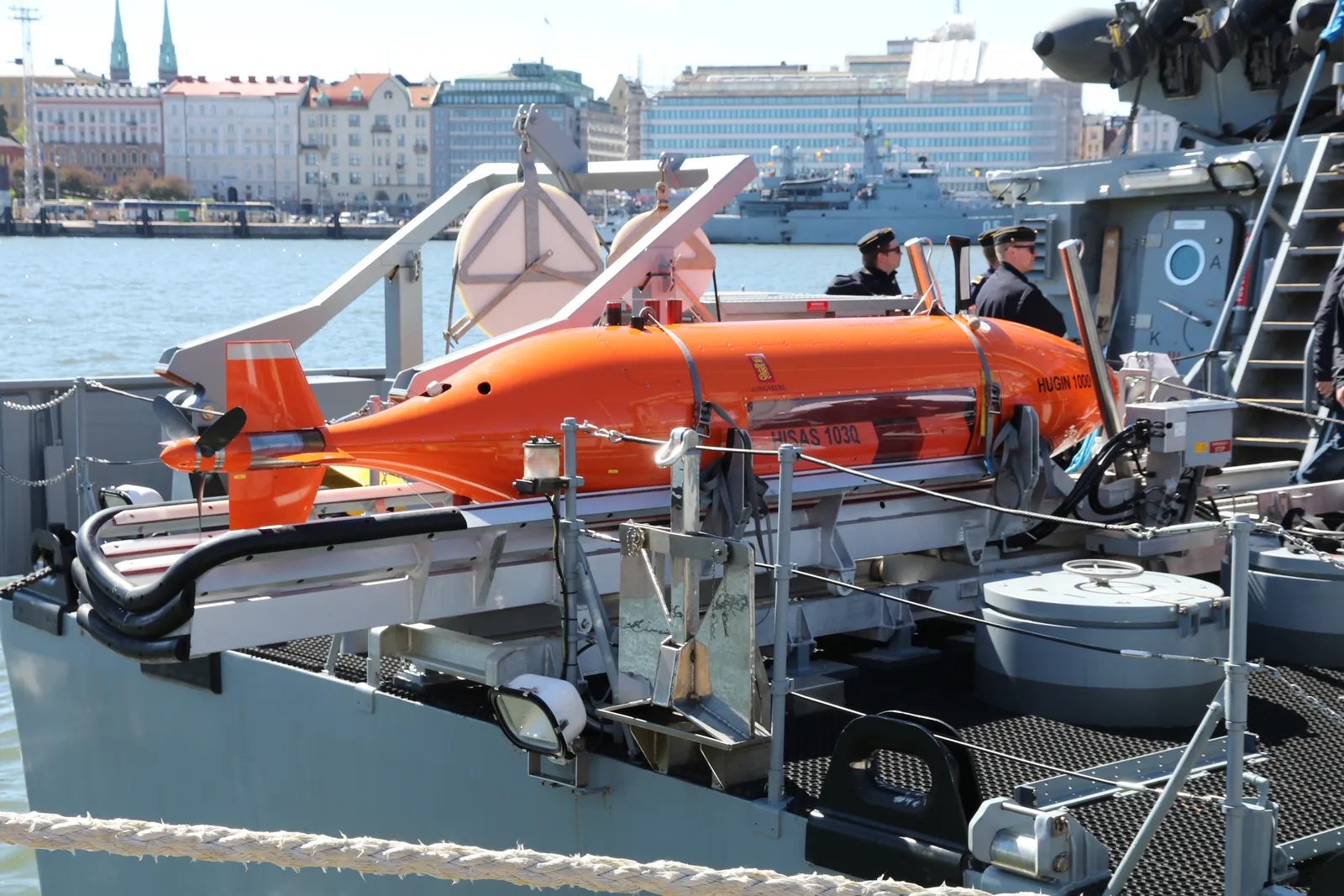

Source: Wikimedia Commons HUGIN 1000 Vahterpaa image
