Aircraft & UAVs

EA-37B Compass Call

Also known as
  • EC-37B

The EA-37B Compass Call is the U.S. Air Force's Gulfstream G550-based airborne electromagnetic attack aircraft, built by BAE Systems and L3Harris to disrupt communications, radar, navigation, and other tactical networks. The program was approved in 2018 to replace the EC-130H, first delivered in 2023, redesignated EA-37B in October 2023, and put into training sorties in 2025.

EA-37B Compass Call, Airborne electromagnetic attack aircraft, Aircraft & UAVs
Image source: DVIDS EA-37B at DM [Image 1 of 5]

Role in Conflicts

2020 United States-Iran Conflict
Role in conflict
Electronic attack support

Used by U.S. forces in the 2020 United States-Iran Conflict; CENTCOM listed EA-37B electronic warfare aircraft among the assets employed against Iran in Operation Epic Fury.

Mission Notes

The EA-37B keeps the Compass Call mission focused on airborne electromagnetic attack, with the sources emphasizing the Gulfstream G550 platform and a modernized mission system integration.

TopicDocumented detail
PlatformGulfstream G550 business jet
Mission systemCompass Call airborne electromagnetic attack suite
Primary effectDisrupts adversary communications, information processing, and navigation systems
Prime contractorsBAE Systems produces the mission system; L3Harris integrates the aircraft
Profile / Specs

Specifications

Crew
Up to 9
Airframe
Gulfstream G550 business jet
Mission system
Compass Call airborne electromagnetic attack suite
Power plant
Two Rolls-Royce BR700-710 C4-11 turbofans
Speed
767 mph (Mach 0.82)
Range
4,410 nautical miles
Ceiling
45,000 feet
Length
96 ft 5 in (29.4 m)
Wingspan
93 ft 6 in (28.5 m)
Maximum takeoff weight
91,000 lb (41,276 kg)
Variants
  • EC-37B Compass Call
Compass Call Lineage

BAE Systems and L3Harris describe the EA-37B as a rehost of the Compass Call mission equipment from the larger EC-130H onto a Gulfstream G550 platform.

Compatible itemItem typeCompatibility evidence
EC-130H Compass Call, Airborne electronic attack aircraft, Aircraft & UAVsEC-130H Compass CallLegacy Compass Call aircraft

BAE Systems and L3Harris said the EA-37B migrated the Compass Call mission equipment from the much larger EC-130H into the G550-based platform.

Sources: BAE Systems and L3Harris Deliver First EC-37B Compass Call Aircraft to the US Air Force

Timeline

EA-37B Compass Call Key Events

  1. Air Force approves the Compass Call rehost

    Air Combat Command's fact sheet says the Air Force approved the request to replace EC-130H Compass Call aircraft with EA-37B aircraft, with the basing decision memo following on November 15, 2018.

    Sources: EA-37B Compass Call Fact Sheet

  2. First EC-37B delivered for testing

    BAE Systems and L3Harris delivered the first of 10 EC-37B Compass Call aircraft to the U.S. Air Force for developmental and operational testing.

    Sources: BAE Systems and L3Harris Deliver First EC-37B Compass Call Aircraft to the US Air Force

  3. Mission design series changes to EA-37B

    Air Combat Command redesignated the EC-37B as the EA-37B to better identify the platform's attack mission.

    Sources: EC-37B Mission Design Series designation change to EA-37B

  4. First ACC aircraft arrives at Davis-Monthan

    Air Combat Command received its first EA-37B Compass Call aircraft at Davis-Monthan Air Force Base for pilot training.

    Sources: First ACC EA-37B delivered to Davis-Monthan AFB

  5. First training sortie flown

    The 43rd Electronic Combat Squadron flew the first mission training sortie for the EA-37B.

    Sources: EA-37B completes first training sortie

Production Funding

DoD's FY2026 mandatory funding overview lists EA-37B production as a line item in the Air Superiority request.

Budget itemAmountContext
EA-37B production$254 millionFY2026 Air Superiority request line item
Media

EA-37B Compass Call Videos

EA-37B Compass Call Images

EA-37B Compass Call, Airborne electromagnetic attack aircraft, Aircraft & UAVs - view 1
Source: DVIDS EA-37B at DM [Image 1 of 5]

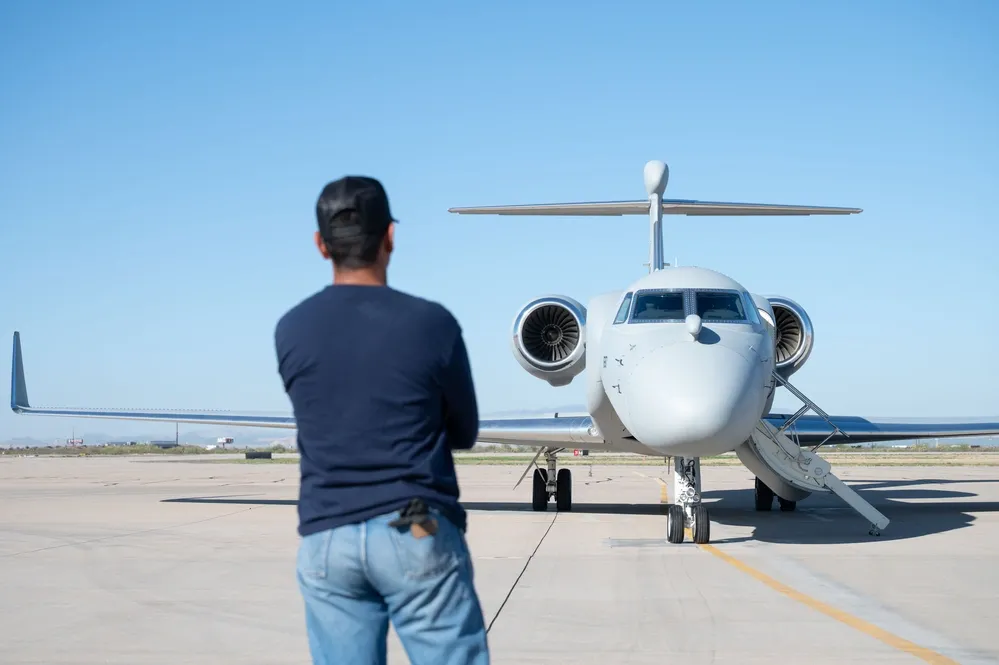

EA-37B Compass Call, Airborne electromagnetic attack aircraft, Aircraft & UAVs - view 2
