Aircraft & UAVs

DJI Matrice 600 weaponized quadcopter

Also known as
  • DJI M600
  • DJI M600 Pro
  • DJI Matrice M600
  • DJI Matrice M600 Pro
  • Matrice 600
  • Matrice 600 Pro

The DJI Matrice 600 is a six-rotor commercial UAV platform designed for aerial imaging, payload carriage, and industrial work, with DJI listing a 6 kg maximum payload and retractable landing gear. Conflict reporting shows the same heavy-lift commercial airframe adapted by non-state armed groups for improvised munition drops, including PKK-linked RPG-projectile carriage and Hamas use against Israeli border surveillance towers on 7 October 2023.

DJI Matrice 600 weaponized quadcopter, Commercial hexacopter UAV adapted for munition drops, Aircraft & UAVs

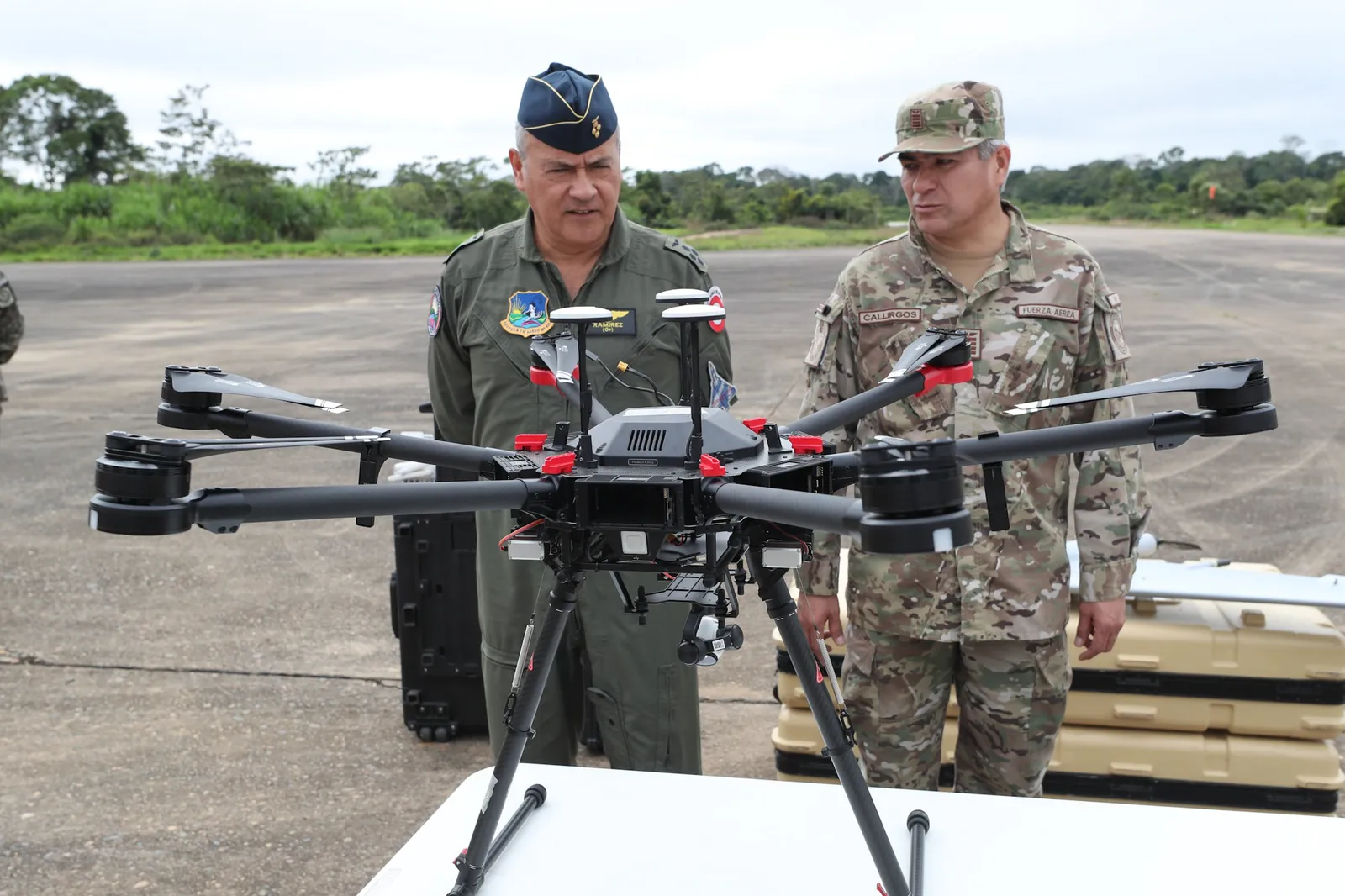

Image source: Peruvian Air Force drone.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
China
Built by
DJI
Type
Commercial hexacopter UAV adapted for munition drops
Service note
Introduced in 2016; documented in non-state improvised strike use by the early 2020s
Designer
DJI
Designed
2016
Unit cost
Varies by payload, camera, and kit
Produced
2016-present
Number built
Not publicly disclosed

Specifications

Configuration
Six-rotor commercial hexacopter UAV
Maximum payload
6 kg
Maximum takeoff weight
15.1 kg
Maximum speed
65 kph
Flight time
Up to 36 minutes with a Zenmuse X5 camera; up to 16 minutes with a larger camera
Dimensions
1668 mm x 1518 mm x 759 mm unfolded
Landing gear
Retractable
Flight-control system
DJI A3 on Matrice 600; A3 Pro pre-installed on Matrice 600 Pro
Carried Munitions

Open-source conflict reporting ties Matrice 600-family airframes to improvised carriage of RPG-family projectiles rather than a factory munition interface.

Carried itemItem typeCarriage evidence
PG-7VM rocket-propelled grenade, RPG-7 HEAT rocket-propelled grenade round, MunitionsPG-7VM rocket-propelled grenadeRocket-propelled grenade projectile

Militant Wire reports PKK DJI Matrice M600-family UAVs carrying PG-7VM and PG-7VL projectiles.

Sources: Weapons Used and Captured by the PKK in 2021

RPG high-explosive rounds, Unguided rocket-propelled grenade ammunition, MunitionsRPG high-explosive roundsOG-7-pattern projectile

Militant Wire reports a PKK DJI Matrice M600 carrying OG-7-pattern projectiles; the related record covers the broader RPG high-explosive/fragmentation family because the public source does not establish a single exact OG model.

Sources: Weapons Used and Captured by the PKK in 2021

Improvised carriage

The relationship is documented as field adaptation by armed groups, not as DJI-designed weapon compatibility.

Sources: DJI Introduces Next-Generation Matrice 600 Aerial Platform, Weapons Used and Captured by the PKK in 2021

Commercial Airframe, Improvised Payload

The Matrice 600's cataloged military relevance comes from adaptation rather than a factory weapon package. DJI marketed the airframe for stabilized cameras and industrial payloads, while conflict sources document non-state users hanging RPG-family projectiles from the heavy-lift frame.

Source contextDocumented adaptationSourcing limit
DJI product familyThe original Matrice 600 used DJI's A3 controller and Lightbridge 2, while Matrice 600 Pro integrated A3 Pro and Lightbridge 2 at the factory.The catalog treats both M600 and M600 Pro wording as the same weaponized heavy-lift family rather than separate weapon pages.
PKK weapons reviewM600 and M600 Pro examples with PG-7VM, PG-7VL, and OG-7-pattern projectiles.The source documents possession and carriage imagery, not a named strike date for each pictured airframe.
7 October Hamas attack reportingMatrice 600 rotary-wing UAVs dropping RPG rounds on surveillance towers at the Gaza border fence.Euro-SD ties the claim to Hamas propaganda video and IDF captured-equipment photos.

Sources: DJI Introduces Next-Generation Matrice 600 Aerial Platform; Matrice 600 Pro; Weapons Used and Captured by the PKK in 2021; IDF knew of Hamas battle plan a year before attack, but dismissed it becoming a reality.

Timeline

DJI Matrice 600 weaponized quadcopter Key Events

  1. DJI introduces the Matrice 600

    DJI announced the Matrice 600 as a six-rotor aerial platform for professional imaging and industrial payload work, listing a 6 kg payload and integrated A3/Lightbridge systems.

    Sources: DJI Introduces Next-Generation Matrice 600 Aerial Platform

  2. PKK M600 projectile carriage review published

    Militant Wire's 2021 PKK weapons review documented DJI Matrice M600-family UAVs with PG-7VM, PG-7VL, and OG-7-pattern projectiles in PKK improvised UAV-bomb context.

    Sources: Weapons Used and Captured by the PKK in 2021

  3. Hamas Matrice 600 drops RPG rounds

    Euro-SD reported Matrice 600 rotary-wing UAVs dropping RPG rounds on Israeli surveillance towers during the Hamas-led 7 October attack.

    Sources: IDF knew of Hamas battle plan a year before attack, but dismissed it becoming a reality, Drones and the Hamas-led Attack of 7 October 2023

Media

DJI Matrice 600 weaponized quadcopter Videos

DJI Matrice 600 weaponized quadcopter Images

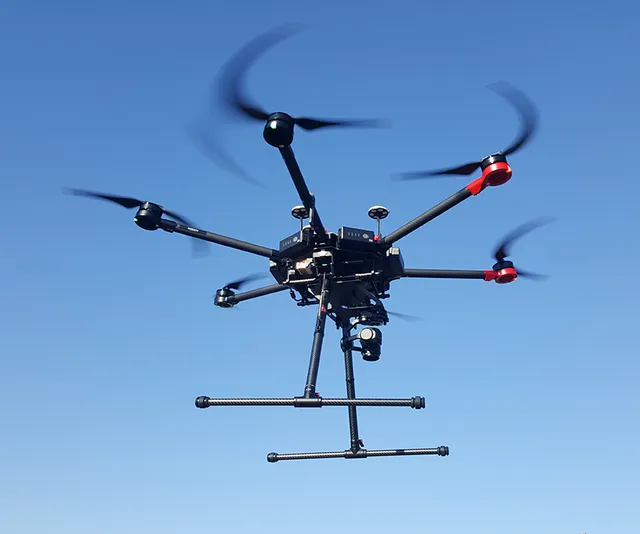

DJI Matrice 600 weaponized quadcopter, Commercial hexacopter UAV adapted for munition drops, Aircraft & UAVs - view 1
Source: DJI Matrice 600 Pro UAS unit by Don Ramey Logan.jpg

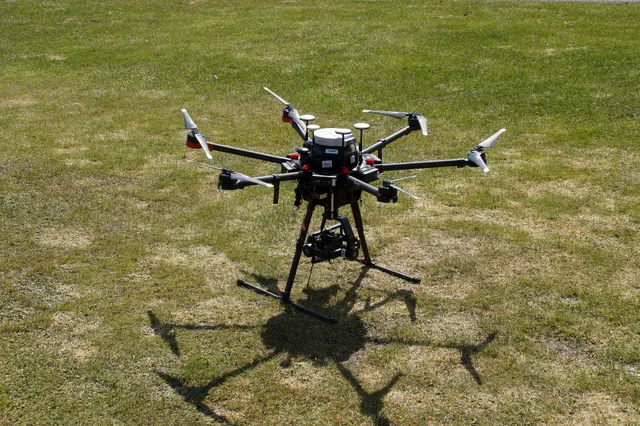

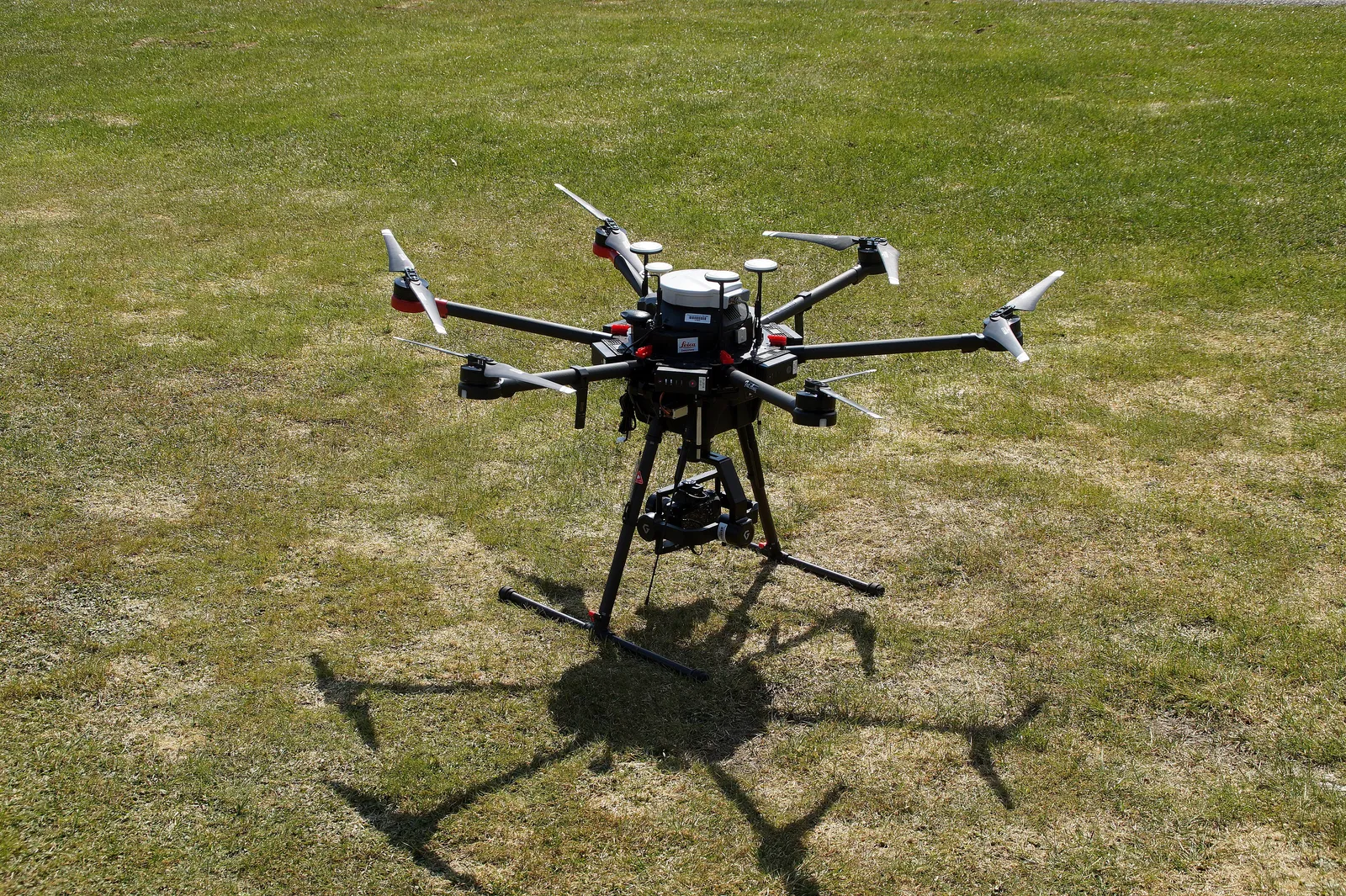

DJI Matrice 600 weaponized quadcopter, Commercial hexacopter UAV adapted for munition drops, Aircraft & UAVs - view 2
Source: 2021-04-16 Matrice 600 Hexacopter10.jpg
