Electronic Warfare

BM/KG300G electronic countermeasures system

Also known as
  • KG300G
  • BM KG300G
  • KG300G self-protection jamming pod
  • KG300G airborne self-defence jammer pod
  • KG300G airborne self-protection jamming pod
  • KG300G EW pod

The BM/KG300G is a Chinese airborne self-protection jamming pod family for external carriage on combat aircraft, with public sources describing I/J-band radar jamming, automatic countermeasure selection, and integration with radar-warning and dispenser subsystems. The baseline pod is associated with CEIEC/CETC and SWIEE/SIWEE reporting, while 2024 coverage showed a smaller rotary-wing form on a Z-10 and compact pods on an FH-95 UAV.

BM/KG300G electronic countermeasures system, Airborne ECM pod, Electronic Warfare

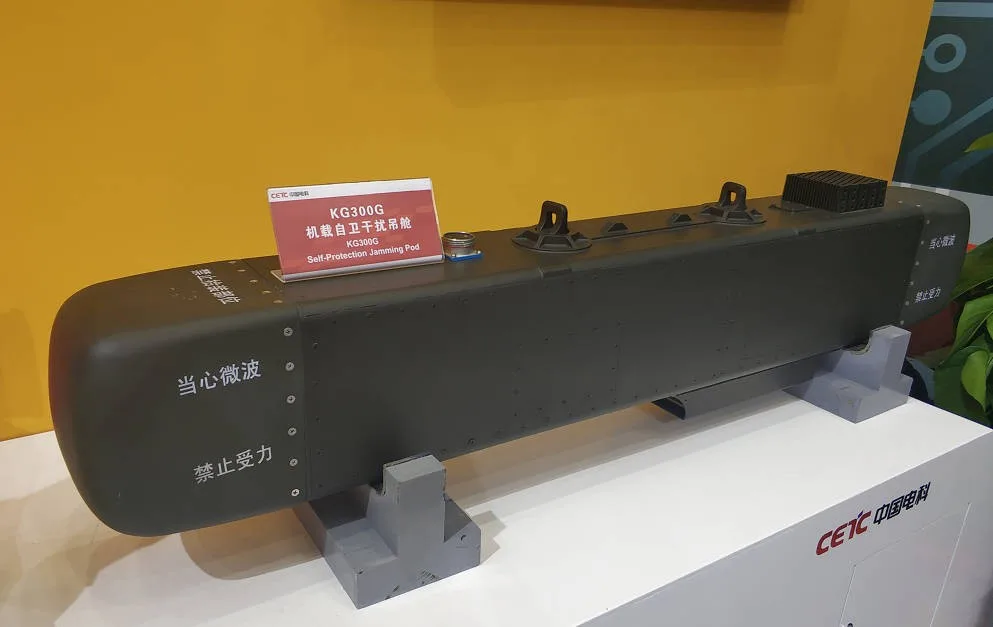

Image source: LinkedIn KG300G jamming pod article
Profile / Specs

Specifications

Role
Self-protection jammer
Countermeasure bands
I/J bands, particularly pulse Doppler radars
Platform fit
Helicopters to heavy bombers; compact variant reported on FH-95 underwing pylons
Operating mode
Fully automatic with manual intervention optional
Integration
Compatible with RWR and countermeasures dispensing systems
Reported dimensions
3.3 m length and 0.33 m diameter for the baseline pod
Reported weight
150 kg
Reported frequency range
6.5-17.5 GHz
Electrical interface
MIL-STD-1760 interface, with 28 V DC / 1,850 W power requirement reported
Variants

Open sources distinguish the original cylindrical fighter-aircraft pod from newer compact forms reported on rotary-wing or UAV platforms; related KG-series pods are not treated as the same item unless a source names the KG300G lineage.

VariantConfigurationDesignation notes
Baseline BM/KG300GFighter-aircraft self-protection jammer

Public descriptions identify the original pod as an externally carried I/J-band self-defence jammer for combat aircraft, with a longer cylindrical body in later comparison reporting.

Sources: GlobalMil KG300G airborne self-defence jammer pod, Janes Chinese Z-10 operates with new electronic warfare pod

Rotary-wing KG300G variantCompact helicopter-carried form

Janes reported CCTV footage of a Z-10 carrying a redesigned KG300G, shorter and more rectangular than the fighter-aircraft baseline, with mounting features suggesting rotary-wing use.

Sources: Janes Chinese Z-10 operates with new electronic warfare pod

KG600 SPJLater related self-protection jammer

Pucara Defensa described the KG600 SPJ as an evolution of the KG300G associated with Pakistan's JF-17, while noting fewer public details for the newer pod.

Sources: Pucara Defensa JF-17 equipment overview

Carrier UAVs

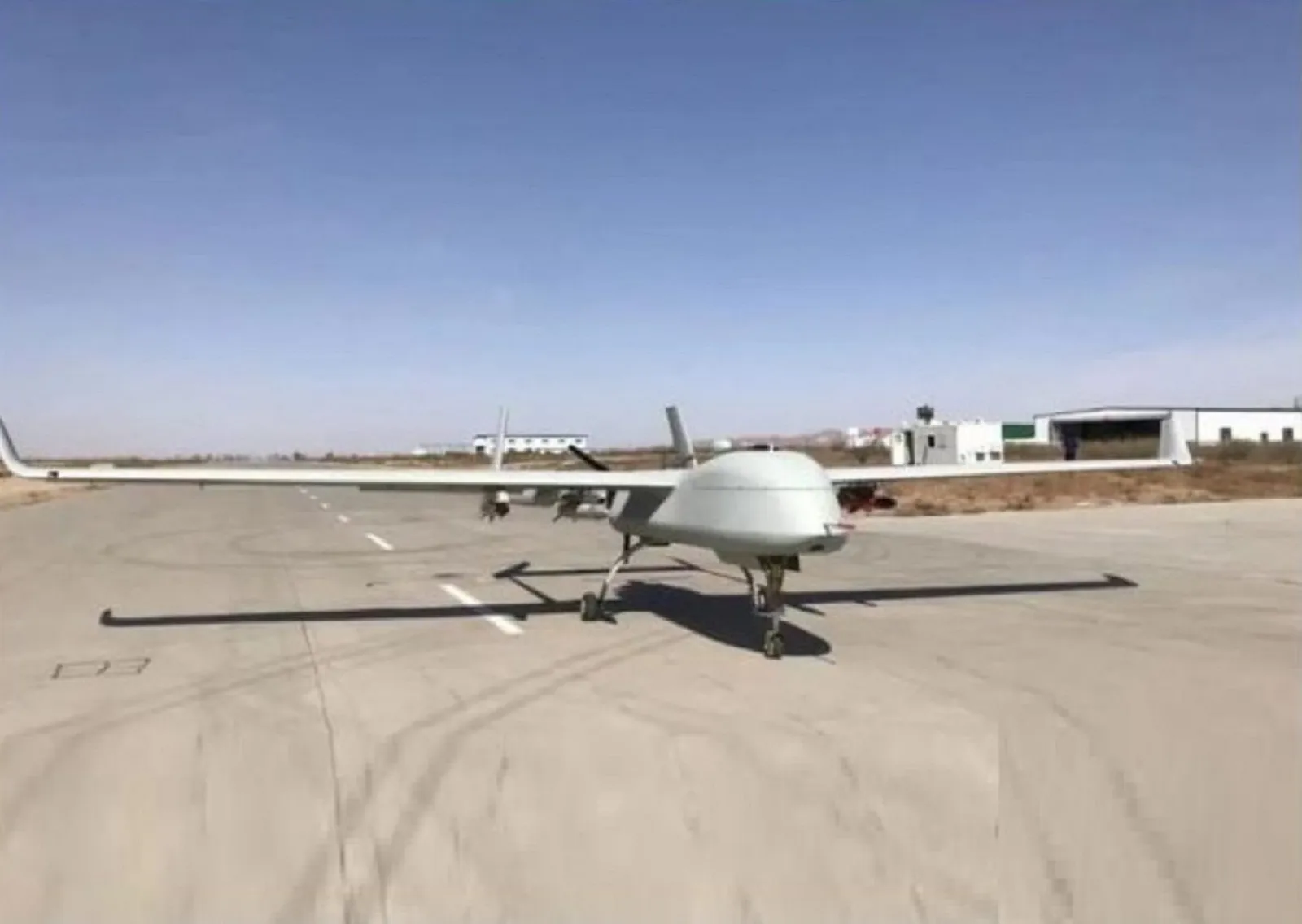

Asian Military Review reported compact jamming pods on FH-95 underwing pylons, appearing to include a miniaturized BM/KG300G ECM system.

CarrierCarrier typeCarriage evidence
FH-95 UAV, Unmanned aerial vehicle, Aircraft & UAVsFH-95 UAVUAV carrier

Asian Military Review said the FH-95 carried compact jamming pods on its underwing pylons, appearing to include a miniaturized BM/KG300G ECM system.

Sources: Asian Military Review Chinese EW article

Carrier And Integration Context

The public record describes the KG300G primarily as a podded self-protection jammer rather than a stand-alone combat system. Platform reporting is useful because it shows how the same family moved from fighter-style external stations into compact forms for helicopters and UAVs.

Baseline carriage

GlobalMil describes the KG300G as an external-store jammer for combat aircraft, intended to counter hostile airborne or land-based weapon radars in the I/J band.

Rotary-wing form

Janes reported a redesigned KG300G on a Z-10 attack helicopter, shorter and more box-like than the baseline fighter-aircraft pod.

UAV carriage

Asian Military Review reported compact jamming pods on FH-95 underwing pylons, appearing to include a miniaturized BM/KG300G system.

Timeline

BM/KG300G electronic countermeasures system Key Events

  1. Public reveal at Zhuhai

    Specialist and secondary reporting place the KG300G's public debut at the 1998 Zhuhai Air Show.

    Sources: LinkedIn KG300G jamming pod article, Pucara Defensa JF-17 equipment overview

  2. Published product description updated

    GlobalMil's KG300G entry records a 7 May 2007 update and describes the pod as a CETC-developed external-store jammer for I/J-band threats.

    Sources: GlobalMil KG300G airborne self-defence jammer pod

  3. Chinese air-force sale reported

    StrategyPage reported that CETC had sold the KG300G self-protection jamming pod to the Chinese air force after years of export marketing.

    Sources: StrategyPage Chinese jammer finds work

  4. Rotary-wing pod shown on Z-10

    Janes reported CCTV footage of a Changhe Z-10 carrying a redesigned KG300G pod with a shorter, box-like shape distinct from the baseline fighter-aircraft pod.

    Sources: Janes Chinese Z-10 operates with new electronic warfare pod

  5. Compact pods reported on FH-95

    Asian Military Review reported compact jamming pods on FH-95 underwing pylons, appearing to include a miniaturized BM/KG300G electronic countermeasures system.

    Sources: Asian Military Review Chinese EW article

Media

BM/KG300G electronic countermeasures system Images

BM/KG300G electronic countermeasures system, Airborne ECM pod, Electronic Warfare - view 1
Source: LinkedIn KG300G jamming pod article
