120 mm HE M62P8 mortar shell

Also known as

M62P8
M62-P8
120 mm M62P8
120mm M62P8
120 mm M62P8 HE mortar projectile
120 mm HE M62P8
120 mm M62P8 HE mortar shell
M62P8 120 mm HE mortar projectile

The 120 mm HE M62P8 is a Yugoslav-origin high-explosive mortar shell for 120 mm mortars, documented by Yugoimport with 606 mm overall length, 12.6 kg mass, TNT fill, and a UTU/M93P1 superquick-delay fuze. In Libya, a UN Panel of Experts report listed Krušik 120 mm M62P8 mortar bombs as an ammunition-transfer violation for Hafter-affiliated forces during the 2014 Second Libyan Civil War.

120 mm HE M62P8 mortar shell, 120 mm high-explosive mortar shell, Munitions

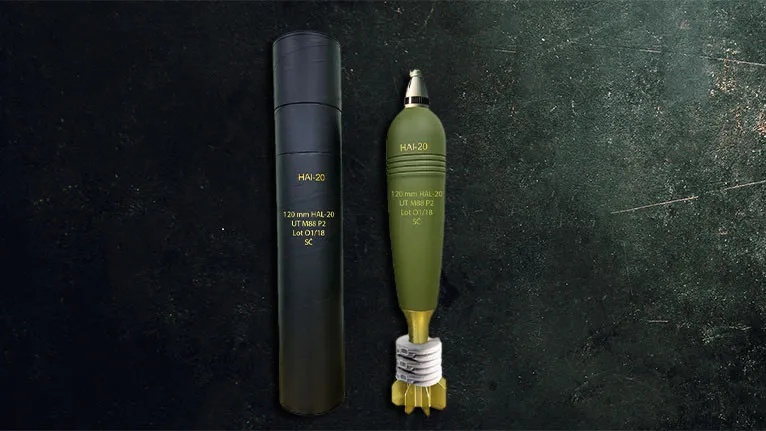

Image source: Yugoimport 120 mm Mortar Shells

Role in Conflicts

Side: Libyan National Army

A UN Panel of Experts report listed Krušik 120 mm M62P8 mortar bombs as an October 2019 ammunition-transfer violation for Hafter-affiliated forces, with the United Arab Emirates identified as responsible and manufacturer-confirmed supply to the UAE.

Profile / Specs

Profile

Origin: Yugoslavia / Serbia
Built by: Yugoimport SDPRKrušik
Built in: Serbia
Type: 120 mm high-explosive mortar shell

Specifications

Caliber: 120 mm
Length: 606 mm
Mass: 12.6 kg with fuze
Explosive charge: TNT, 2.4 kg
Fuze: Impact, superquick, delay action UTU M93 P1
Muzzle safety: 50 m at the lowest initial velocity
Operating temperature: -30 C to +50 C
Launcher compatibility: Smooth-bore 120 mm mortar launchers; older Yugoimport data specifically names the 120 mm Mortar M75 for the 1,500 mm-barrel ballistic table
Ballistic data: For a 120 mm mortar with a 1,500 mm barrel, Yugoimport lists maximum range as 6,555 m and maximum mean operating pressure as 922 bars

Variants

Yugoimport's 120 mm mortar-shells product page groups the M62P8 with adjacent 120 mm HE M62P-series designations and other 120 mm mortar-shell types.

120 mm HE M62P8 TB
120 mm HE M62P9
120 mm HE M62P10
120 mm HE M62P11
120 mm HE M62P13
120 mm HE M62PX

Firing Weapons

Yugoimport catalogs the M62P8 as 120 mm mortar ammunition and gives current ballistic data for smooth-bore 120 mm mortars; an older Yugoimport sheet specifically names the 120 mm Mortar M75 for the same 1,500 mm-barrel firing lane.

Firing weapon

Weapon type

Firing evidence

120 mm M75 mortar, 120 mm towed smoothbore mortar, Artillery

120 mm M75 mortar

120 mm towed smoothbore mortar

The older Yugoimport M62P8 datasheet gives ballistic data for the shell when using the 120 mm Mortar M75, while the current sheet generalizes the same class to smooth-bore 120 mm mortar launchers.

Sources: Yugoimport 2022 M62P8 Datasheet, Yugoimport 120 mm M62P8 Datasheet

Media

120 mm HE M62P8 mortar shell Images

120 mm HE M62P8 mortar shell, 120 mm high-explosive mortar shell, Munitions - view 1 — Source: Yugoimport 120 mm Mortar Shells
