60 mm Mk10 smoke shell

Also known as
  • 60 mm Mk10 smoke mortar shell
  • 60 mm Mk10 Smoke
  • 60 mm smoke mortar shell Mk10

The 60 mm Mk10 smoke shell is a Serbian smoke mortar round in the Krušik and Yugoimport 60 mm mortar-ammunition catalogs. Official sheets identify a 410 mm, 2.1 kg fuzed shell with a UT M88P1 impact fuze, ignition cartridge, increment charges, and M57 mortar ballistic data; the Krušik product image specifies a white-phosphorus smoke charge and a 5.035 km maximum range from a 1200 mm barrel.

60 mm Mk10 smoke shell, 60 mm smoke mortar shell, Munitions

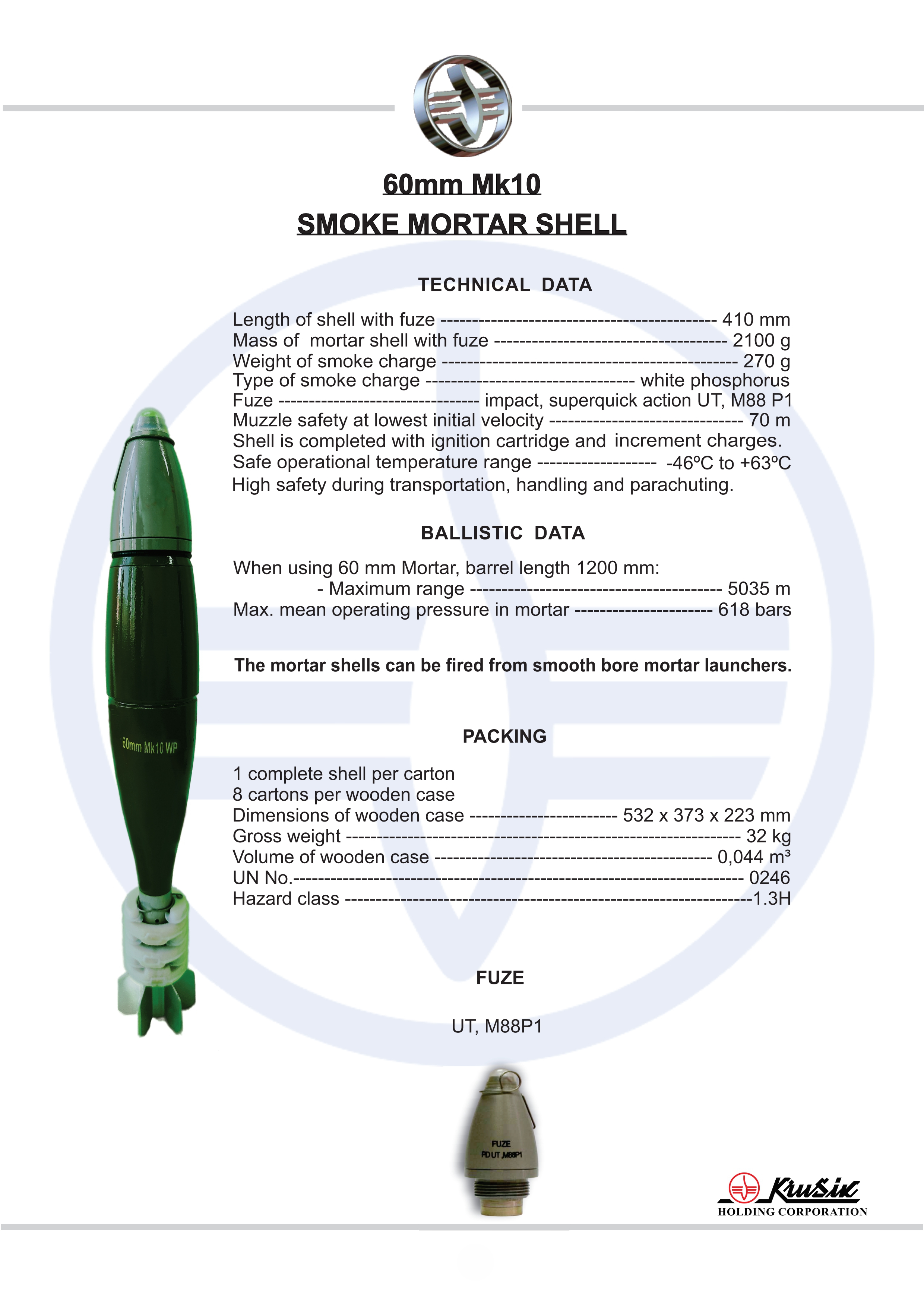

Image source: 60 mm Mk10 product image - Krušik
Profile / Specs

Profile

Origin
Serbia
Built by
Krušik
Type
60 mm smoke mortar shell
Designed
Not publicly identified
Unit cost
Not publicly documented
Produced
In production
Number built
Not publicly disclosed

Specifications

Length of shell with fuze
410 mm
Mass of mortar shell with fuze
2100 g
Smoke charge
Yugoimport brochure: 300 g; Krušik product image: 270 g white phosphorus
Fuze
Impact, superquick-action UT M88P1 / UT M88 P1
Ignition cartridge
M10 waterproof
Increment charges
Six increment charges (0+6)
Muzzle safety
70 m at lowest initial velocity
Ballistic data, Yugoimport sheet
5100 m maximum and 90 m minimum from the 60 mm M57 mortar with 1300 mm barrel
Ballistic data, Krušik image
5035 m maximum range from a 1200 mm barrel; maximum mean operating pressure 618 bars
Temperature range
-46 °C to 63 °C
Packaging
Yugoimport brochure: 1 shell per carton and 12 cartons per wooden box; Krušik product image: 1 shell per carton and 8 cartons per wooden case
Hazard classification
Krušik product image lists UN No. 0246 and hazard class 1.3H
Firing Weapon

Yugoimport's technical sheet gives ballistic data for this smoke shell when fired from the 60 mm M57 mortar.

Firing weaponWeapon typeFiring evidence
60 mm M57 mortar, 60 mm light infantry mortar, Artillery60 mm M57 mortar60 mm light infantry mortar

Yugoimport lists maximum and minimum range figures for the shell specifically when using the 60 mm Mortar M57 with a 1300 mm barrel.

Sources: 60 mm, Mk10 - Yugoimport

Source-Specific Technical Notes

Yugoimport and Krušik publish overlapping Mk10 smoke-shell data, but the sheets are not identical. The entry keeps the differences visible rather than merging them into a single contract configuration.

Smoke fill

Yugoimport lists a 300 g smoke charge; Krušik's current product image lists 270 g of white phosphorus.

Both sources identify the shell as a 60 mm Mk10 smoke mortar shell.

Firing data

Yugoimport gives M57 mortar data for a 1300 mm barrel, while the Krušik image gives a 5035 m maximum range from a 1200 mm barrel.

The M57 link is therefore a documented ballistic-data relationship, not direct conflict-use evidence for this shell.

Contract caveat

Yugoimport states that final configuration and technical specification are defined for each contract.

That caveat explains why catalog values may differ across official sheets.

Timeline

60 mm Mk10 smoke shell Key Events

  1. Yugoimport publishes the Mk10 smoke brochure

    The official brochure gives the Mk10 smoke-shell dimensions, ballistic data, temperature range, and packing details for use from the 60 mm Mortar M57.

    Sources: 60 mm, Mk10 - Yugoimport

  2. Krušik keeps Mk10 in the smoke-shell catalog

    Krušik's current 60 mm smoke-shell page lists Mk10 in the product lineup, and the product image gives white-phosphorus smoke-charge, pressure, hazard-class, and 1200 mm-barrel ballistic data.

    Sources: 60 mm Mk10 - Krušik, 60 mm Mk10 product image - Krušik
