PIRANHA 5T is Piranha Tech's stationary anti-drone jammer for protecting high-risk sites and fixed positions. Official materials describe a five-channel Ukrainian system with directional interference, tripod or mechanized-tripod mounting, configurable frequency bands, and cataloged wartime use by Ukraine's Defense Forces.
Piranha Tech's 2025 catalog includes PIRANHA 5T and says Piranha Tech equipment is actively used by Ukraine's Defense Forces in the 2014 Russia-Ukraine War; a company reel specifically says a PIRANHA 5T goes to the frontline for Ukraine's Special Operations Forces.
Role detailsPIRANHA 5T is built for fixed-site interference, not carry-around use. The official product page and 2024-2025 catalogs show a powered tripod installation, remote wired control, and configurable band plans for site-specific tuning.
| Feature | Documented detail | Reader takeaway |
|---|---|---|
| Channels | Up to 5 simultaneously active channels | Lets the jammer cover more than one drone-control band at once. |
| Output power | 30/50 W per channel | Places the system above handheld anti-drone rifles and in a fixed-site power class. |

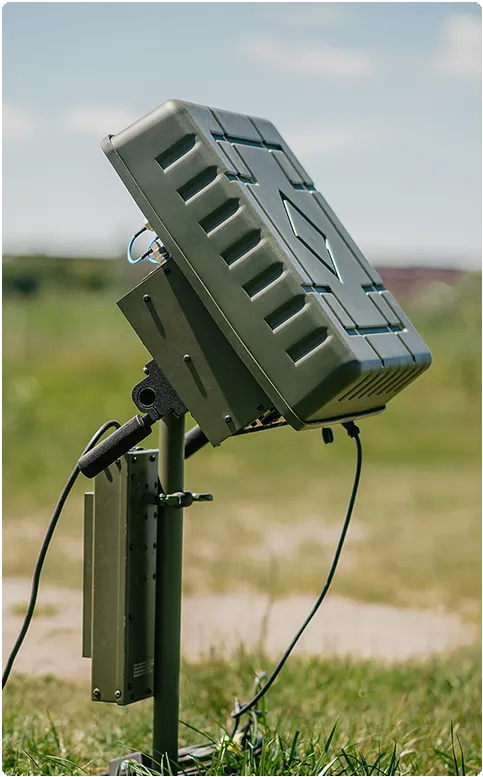

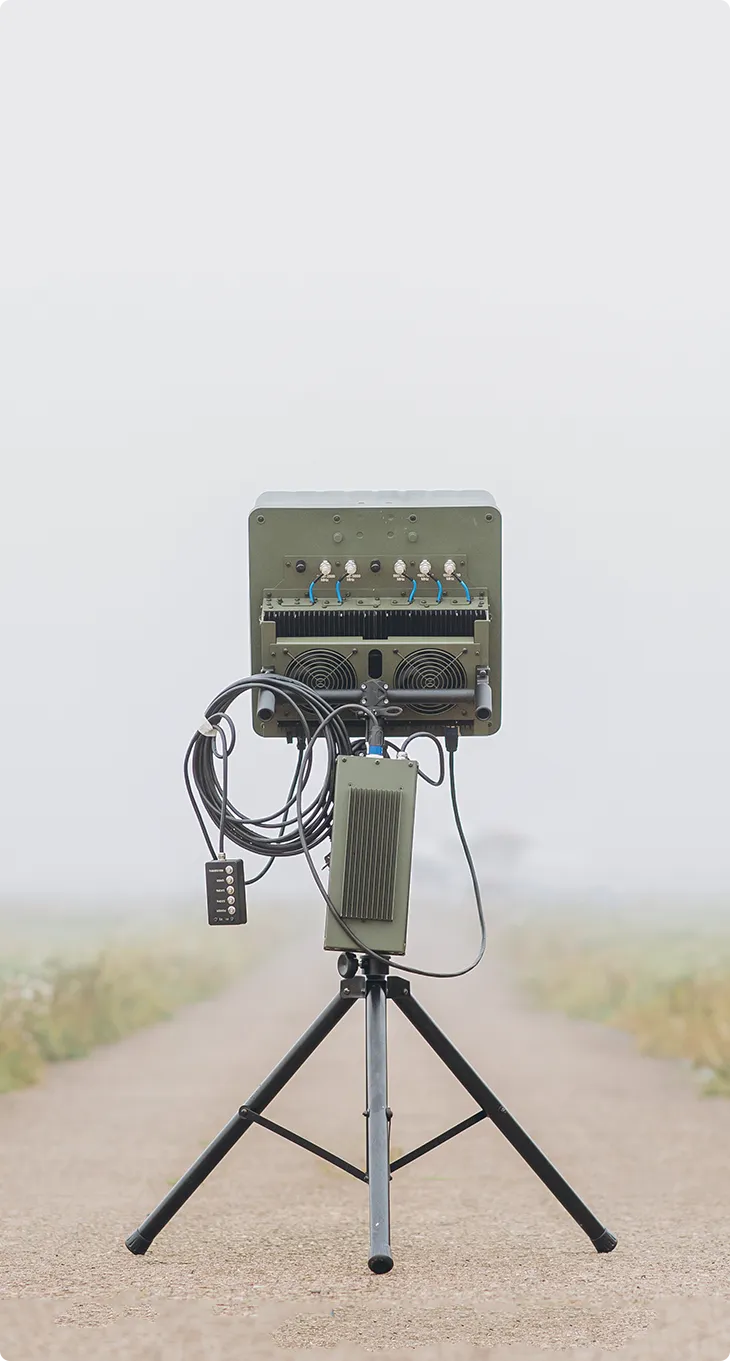

| Mounting | Tripod or mechanized tripod, up to 3 m | Helps raise the antenna package above clutter around a fixed site. |
| Control | Remote wired control with digital adjustment, temperature monitoring, and VSWR monitoring | Operators can tune and supervise the system from a safer position while watching RF-equipment health. |
| Power | Battery or 220V AC; at least 1 hour on battery | Supports both standalone and mains-powered deployments. |
PIRANHA 5T sits in Piranha Tech's stationary directed-action T-series; the official catalogs place it between two-channel 2T and six-channel 6T configurations.
| Variant | Configuration | Designation notes |
|---|---|---|
| PIRANHA 2T | Two-channel stationary directed-action anti-drone complex | Cataloged as the lower-channel stationary T-series configuration adjacent to PIRANHA 5T. Sources: PIRANHA Tech 2024 catalog PDF, Piranha Tech 2025 catalog |
| PIRANHA 6T | Six-channel stationary directed-action anti-drone complex | Cataloged as the higher-channel stationary T-series configuration adjacent to PIRANHA 5T. Sources: PIRANHA Tech 2024 catalog PDF, Piranha Tech 2025 catalog |
Piranha Tech's official navigation and the KI Insights Warcrafted catalog extract place PIRANHA 5T inside a wider Ukrainian counter-UAV electronic-warfare line that spans portable, backpack, dome-protection, and stationary systems.
| Cataloged system | Documented role | Relationship to PIRANHA 5T |
|---|---|---|
 | Stationary counter-UAV EW system | Shares the fixed-site counter-UAV mission while using a larger externally cued stationary architecture. |
 | Portable counter-UAV jamming rifle | Moves Piranha Tech's radio-interference approach into a handheld field device. |
 | Backpack dome-protection system | Provides a mobile point-protection counterpart to the 5T fixed-site configuration. |
 | Portable or installed direct-action jammer | Sits in the same counter-UAV family but is packaged around carried or permanent panel deployment. |
 | Mobile omnidirectional dome-protection EW complex | Provides omnidirectional area protection rather than the 5T's directed stationary interference model. |
Piranha Tech's 2024 catalog describes PIRANHA 5T as a stationary directional anti-drone complex with customer-selectable frequency options and tripod or mechanized-tripod mounting.
Sources: PIRANHA Tech 2024 catalog PDF
Piranha Tech's 2025 Ukrainian catalog includes the PIRANHA 5T sheet and states that the company's equipment is actively used by Ukraine's Defense Forces.
Sources: Piranha Tech 2025 catalog
A Piranha Tech Instagram reel says PIRANHA 5T goes to the frontline for Ukraine's Special Operations Forces.
Sources: Piranha Tech Instagram reel on PIRANHA 5T
