Electronic Warfare

RIFF anti-drone system

Also known as
  • RIFF
  • Anti-Drone System RIFF
  • RIFF-P
  • RIFF-M
  • RIFF-S
  • InterProInvest RIFF

RIFF is an InterProInvest counter-UAV jamming family built around portable, mobile, and stationary configurations. The Ukrainian system is designed to disrupt drone control, video, and satellite-navigation links against rotary-wing and fixed-wing UAVs, with RIFF-P packaged as a shoulder-fired jammer derived from the Malyuk/Vulcan small-arms chassis and documented in Ukrainian army service context during the Russia-Ukraine War.

Role in Conflicts

Profile / Specs

Profile

Origin
Ukraine
Type
Portable and mobile counter-UAV jamming system
Service note
Modern Ukrainian counter-UAV equipment
Designer
InterProInvest

Specifications

Role
Counter-UAV radio-frequency disruption, detection, and monitoring
Targets
Rotary-type UAVs and fixed-wing drones
Portable configuration
RIFF-P gun-form system with directional 20-degree antenna
Portable range
Up to 1.5 km for RIFF-P
Portable output
100 W across four lines in the official page; brochure material also lists a 200 W six-line option
Portable endurance
At least 60 minutes battery operation in ArmyInform and brochure descriptions
Portable weight
About 4.8 kg in ArmyInform reporting; official page lists up to 5 kg
Mobile and stationary range
Up to 3 km, with detection listed up to 5 km
Mobile and stationary output
1 kW across eight lines
Mobile and stationary endurance
Up to 24 hours offline operation
Operating bands
Published bands include 400-470 MHz, 860-950 MHz, GPS L1/L2, 1200-1300 MHz video, 2.4 GHz, 5.8 GHz, and optional 1800-2000 MHz channels
Configuration And Chassis Context

RIFF combines Ukrainian army service context with InterProInvest's small-arms and counter-UAV design work. RIFF-P is the portable member and uses a gun-form layout derived from the Malyuk / Vulcan bullpup chassis, while RIFF-M and RIFF-S move the same counter-UAV mission into mobile and fixed-site packages.

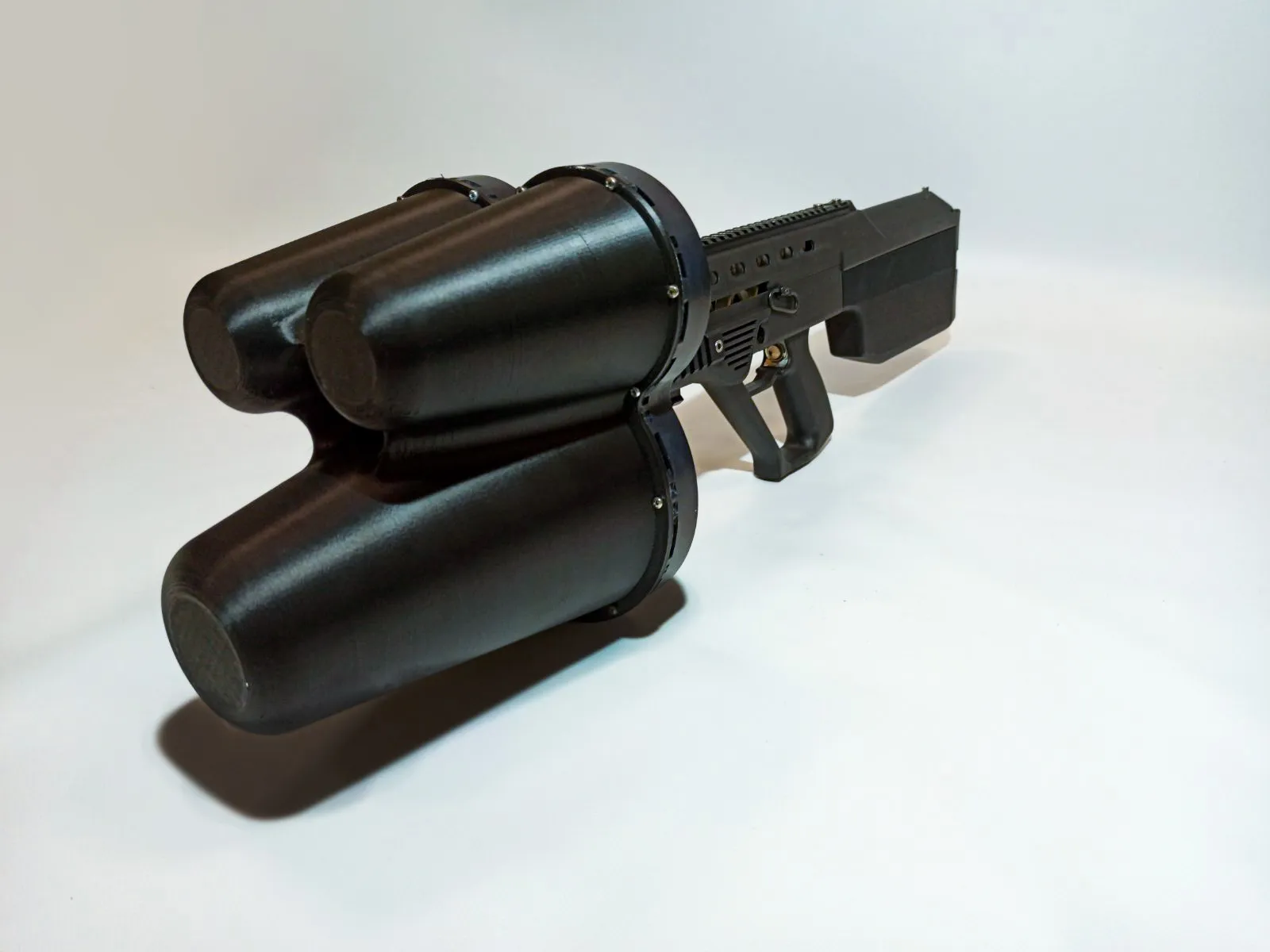

Portable RIFF-P

Shoulder-carried directional jammer for disrupting control, video, and GNSS links at short range.

Sources: ArmyInform RIFF-P; Anti-Drone System RIFF.

Mobile RIFF-M

Vehicle-suitable configuration with 360-degree antenna coverage, detection listed to 5 km, and jamming range listed to 3 km.

Sources: Anti-Drone System RIFF; RIFF on Guard Against Drone Threats.

Stationary RIFF-S

Fixed-site system with optional monitoring, intervention-recording, and mapping modules for protected areas.

Sources: Anti-Drone System RIFF; RIFF Anti Drone Security Solutions.

Variants

Public InterProInvest material presents RIFF as a three-configuration counter-UAV family rather than a single launcher: RIFF-P is the portable gun-form system, RIFF-M is the mobile system, and RIFF-S is the stationary site-protection system.

VariantConfigurationDesignation notes
RIFF-PPortable anti-drone jammer

Portable configuration with a directional 20-degree antenna, roughly one-hour battery endurance, four-band 100 W output in public reporting, and a suppression range listed around 1.5 km.

Sources: Anti-Drone System RIFF, ArmyInform RIFF-P

RIFF-MMobile anti-drone system

Vehicle-oriented configuration with 360-degree antenna coverage, detection listed up to 5 km, jamming range up to 3 km, 1 kW output across eight lines, and up to 24 hours of offline operation.

Sources: Anti-Drone System RIFF, RIFF on Guard Against Drone Threats

RIFF-SStationary anti-drone system

Fixed-site configuration sharing RIFF-M's published range, detection, power, endurance, and omnidirectional antenna figures, with optional monitoring, event recording, and mapping modules.

Sources: Anti-Drone System RIFF, RIFF Anti Drone Security Solutions

Timeline

RIFF anti-drone system Key Events

  1. RIFF-P prototype unveiled

    Defense Express reported that InterProInvest unveiled the first RIFF-P working prototype at the 2019 Arms & Security trade show in Kyiv.

    Sources: RIFF on Guard Against Drone Threats

  2. ArmyInform profiles RIFF-P

    ArmyInform described RIFF-P as a Ukrainian portable counter-drone complex from InterProInvest and detailed its Malyuk-derived layout, one-button operation, 20-degree antenna, and one-hour battery endurance.

    Sources: ArmyInform RIFF-P

  3. Shown during counter-UAV training

    Ukrainian reporting said RIFF-P was shown at Zhytomyr Military Institute training sessions where security-force UAV specialists worked on UAV use and countermeasures.

    Sources: Zhytomyr anti-drone demonstration

  4. Listed for UMEX 2022 display

    Defense Express reported that RIFF-P by Kyiv-based InterProInvest was among Ukrainian drone and counter-drone systems slated for display at UMEX 2022.

    Sources: UMEX 2022 Ukrainian counter-drone systems
