PIRANHA HAD-5 Omni dome-protection complex

Also known as

PIRANHA HAD-5 Omni
PIRANHA HAD-5 (OMNI)

PIRANHA HAD-5 Omni is a Ukrainian backpack electronic-warfare complex for local counter-UAV protection, with the current product page describing up to five selectable jamming channels, omni antennas, and battery-powered field use.

PIRANHA HAD-5 Omni dome-protection complex, Backpack counter-UAV electronic warfare complex, Electronic Warfare

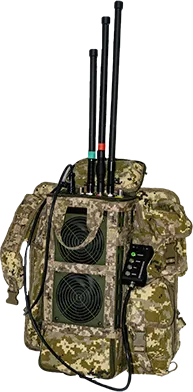

Image source: HAD-5 Omni product page

Role in Conflicts

Side: Ukraine

A Finnish National Defence University survey of Ukrainian Armed Forces C-UAS systems in 2022-2024 lists Piranha HAD-5 Omni, and Piranha Tech describes HAD-5 Omni as a backpack counter-UAV signal-suppression system.

Role details

Profile / Specs

Profile

Origin: Ukraine
Built by: Piranha Tech
Type: Backpack counter-UAV electronic warfare complex
Service note: 2014 Russia-Ukraine War
Designer: Piranha Tech
Designed: 2024
Unit cost: Not publicly stated
Produced: 2024-present
Number built: Not publicly stated

Specifications

Output power: 30/50 W per channel
Concurrent channels: Up to 5
Frequency bands: 860-930 MHz, 1160-1300 MHz, 1550-1630 MHz, 2400-2500 MHz, 5700-5850 MHz
Weight: Backpack with battery up to 12 kg; guns up to 5 kg
Battery life: At least 30 minutes
Protection: IP55
Control: Handheld remote control with optional external control
Cooling: Forced-air cooling with 140 mm fans
Antenna polarization: Vertical and horizontal
NATO code: 5865-61-017-908817

Key Product Facts

The official product page and 2025 catalog present HAD-5 Omni as a backpack jammer built around selectable channels, omnidirectional antennas, and backpack power. The public sources describe different example frequency sets, so the table separates the current web page values from the catalog example set.

Attribute	Current web product page	2025 catalog example
Channels	Up to 5 concurrent channels	May operate simultaneously on the listed bands
Frequency bands	860-930 MHz, 1160-1300 MHz, 1550-1630 MHz, 2400-2500 MHz, 5700-5850 MHz	700-760 MHz, 860-960 MHz, 960-1000 MHz, 1160-1300 MHz, 2400-2500 MHz, 5150-5850 MHz
Power	30/50 W per channel	Total output up to 250 W; up to 50 W per listed band
Weight	Backpack with battery up to 12 kg; guns up to 5 kg	Backpack up to 12 kg with battery
Protection and cooling	IP55; forced-air cooling with 140 mm fans	IP54; forced-air cooling with adjustable fan speed
Control	Handheld remote or optional external control	Wired control panel with 10 m cable
NATO code	5865-61-017-908817	Not listed in the catalog extract checked

Variants

Piranha Tech presents HAD-5 Omni inside a wider HAD-5 portable counter-UAV family rather than as a standalone launcher or munition.

Variant	Configuration	Designation notes
PIRANHA HAD-5 Panel direct-action complex	Directional HAD-5 configuration	The official navigation places HAD-5 Panel beside HAD-5 Omni as another HAD-5-family counter-UAV system. Sources: HAD-5 Omni product page
HAD-5 Anti FPV	Anti-FPV HAD-5 configuration	The official homepage lists a HAD-5 Anti FPV dome-protection system in the same public product family. Sources: Piranha Tech homepage

Variant

Configuration

Designation notes

PIRANHA HAD-5 Panel direct-action complex

Directional HAD-5 configuration

The official navigation places HAD-5 Panel beside HAD-5 Omni as another HAD-5-family counter-UAV system.

Sources: HAD-5 Omni product page

HAD-5 Anti FPV

Anti-FPV HAD-5 configuration

The official homepage lists a HAD-5 Anti FPV dome-protection system in the same public product family.

Sources: Piranha Tech homepage

Related Piranha Counter-UAV Systems

Piranha Tech's public product navigation places HAD-5 Omni among portable, dome-protection, and stationary counter-UAV systems from the same Ukrainian EW maker.

Compatible item	Item type	Compatibility evidence
PIRANHA HAD-5 Panel direct-action complex	Portable HAD-5 system	HAD-5 Panel appears next to HAD-5 Omni in the official HAD-5 product navigation. Sources: HAD-5 Omni product page
PIRANHA DF-1 dome protection EW complex	Dome-protection EW system	DF-1 is linked from the same product navigation as a related dome-protection EW system. Sources: HAD-5 Omni product page
PIRANHA SPR UAV counter system	Stationary counter-UAV EW system	SPR is listed with the Piranha counter-UAV product line and linked from the HAD-5 Omni product navigation. Sources: Piranha Tech homepage, HAD-5 Omni product page

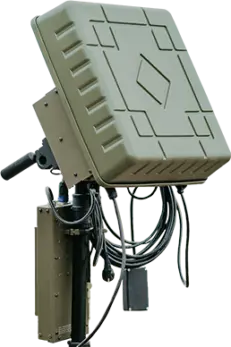

PIRANHA 5T stationary anti-drone complex	Stationary anti-drone jammer	Piranha Tech lists stationary anti-drone systems alongside the HAD-5 portable systems in its product line. Sources: Piranha Tech homepage

Timeline

PIRANHA HAD-5 Omni dome-protection complex Key Events

Jan 1, 2014
Piranha-Tech's EW work begins
The company says its director and co-founder has been developing electronic-warfare equipment since 2014.
Sources: Our mission is to create a safe sky
Jan 1, 2019
Piranha-Tech starts operating under its current name
The same official interview says the company began operating as Piranha-Tech in 2019.
Sources: Our mission is to create a safe sky
Apr 1, 2022
Production relocates to Drohobych
After the full-scale invasion began, Piranha-Tech relocated production from the Dnipropetrovsk region to Drohobych in Lviv region.
Sources: Our mission is to create a safe sky
Nov 12, 2024
Official interview publishes the company context
Piranha Tech published its interview describing the company as an EW producer working to protect Ukrainian airspace from drones and UAVs.
Sources: Our mission is to create a safe sky
