Lockheed Martin's Mission Readiness Test Set (MRTS) is a portable, standalone Windows tester for Paveway II laser-guided bomb guidance assemblies and related smart-munition guidance units. The company says it performs nine go/no-go checks, weighs under 60 pounds, and supports O-, I-, and D-level maintenance while replacing older TTU-594A/E test sets.

Mission Readiness Test Set (MRTS), Portable mission readiness test set, Support Equipment

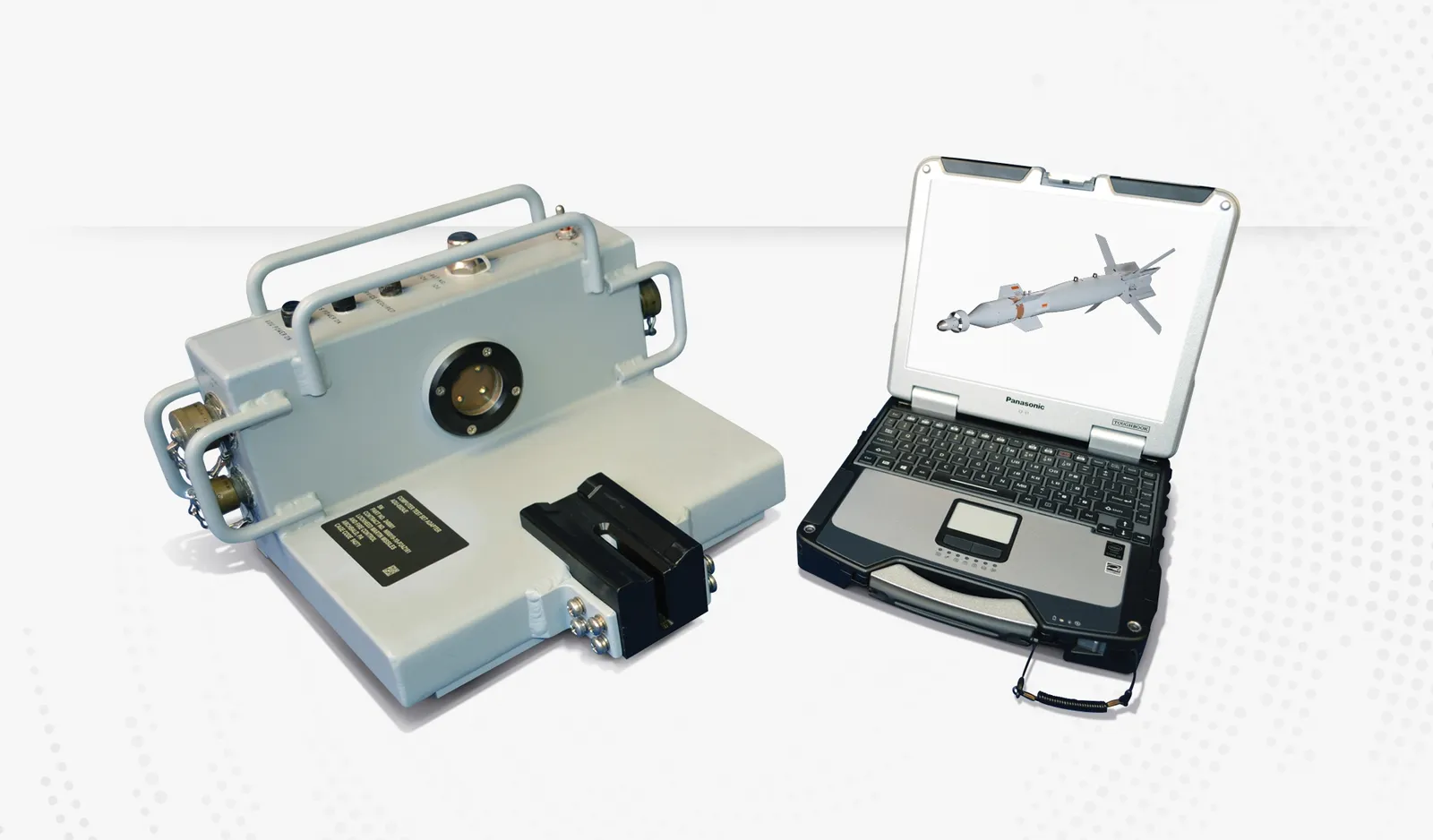

Image source: Mission Readiness Test Set (MRTS)
Test Coverage And Maintenance

Lockheed Martin says MRTS provides laser functional mission readiness testing for Paveway II LGB computer control group guidance assemblies, plus Paragon direct attack munition and Dual Mode LGB Weapon Guidance Units.

Measured factValue
Go/No-Go functionsNine, including self-test, code correlation/missing pulse logic, inter pulse stability, long and short last pulse logic, pulse width discrimination, squib fire delay, steering/tracking accuracy, voltage/continuity, and multi/dual laser.
Maintenance levelsSupports O-, I-, and D-level maintenance activities.
Legacy equipmentReplaces TTU-594A/E and is an affordable alternative to TTU-595 test sets.

Lockheed Martin describes MRTS as lightweight, easy to set up, and Windows-based.

Profile / Specs

Profile

Origin
United States
Type
Portable mission readiness test set
Service note
2020s
Designed
Not publicly documented
Unit cost
Not publicly documented
Produced
Documented in Lockheed Martin materials by 2021; product page published in 2023
Number built
Not publicly documented

Specifications

Form factor
Man-portable tester
Operating system
Standalone Windows-based system
Weight
<60 lb / <27.2 kg
Dimensions
Height 16 in x Width 21 in x Length 31.5 in (41 cm x 53 cm x 80 cm)
Test coverage
Go/No-Go mission readiness testing for nine unique functions
Supported systems
Paveway II LGB guidance assemblies; Paragon direct attack munition; Dual Mode LGB Weapon Guidance Units
Maintenance role
Supports O-, I-, and D-level maintenance activities
Legacy equipment
Replaces TTU-594A/E; alternative to TTU-595 test sets
Compatible Systems

Lockheed Martin describes MRTS as a universal mission-ready tester for Paveway II LGBs and dual-mode guidance kits.

Compatible itemItem typeCompatibility evidence
Paveway II Plus Laser Guided Bomb, Laser-guidance kit for gravity bombs, MunitionsPaveway II Plus Laser Guided BombPaveway II laser-guided bomb kit

Lockheed Martin's Paveway II Plus brochure lists MRTS among the existing test sets compatible with the family.

Sources: Mission Readiness Test Set (MRTS), Paveway II Plus Laser Guided Bomb (LGB)

Why this matters

MRTS sits on the maintenance side of the Paveway II ecosystem, where compatibility and bench testing help confirm guidance assemblies before use.

Sources: Mission Readiness Test Set (MRTS)

Timeline

Mission Readiness Test Set (MRTS) Key Events

  1. Brochure file date

    Lockheed Martin's MRTS brochure PDF carries a 2021-01-04 creation date in its embedded metadata.

    Sources: Mission Readiness Test Set brochure

  2. Product page published

    Lockheed Martin's MRTS product page metadata shows a 2023-03-29 publication date.

    Sources: Mission Readiness Test Set (MRTS)

Media

Mission Readiness Test Set (MRTS) Images

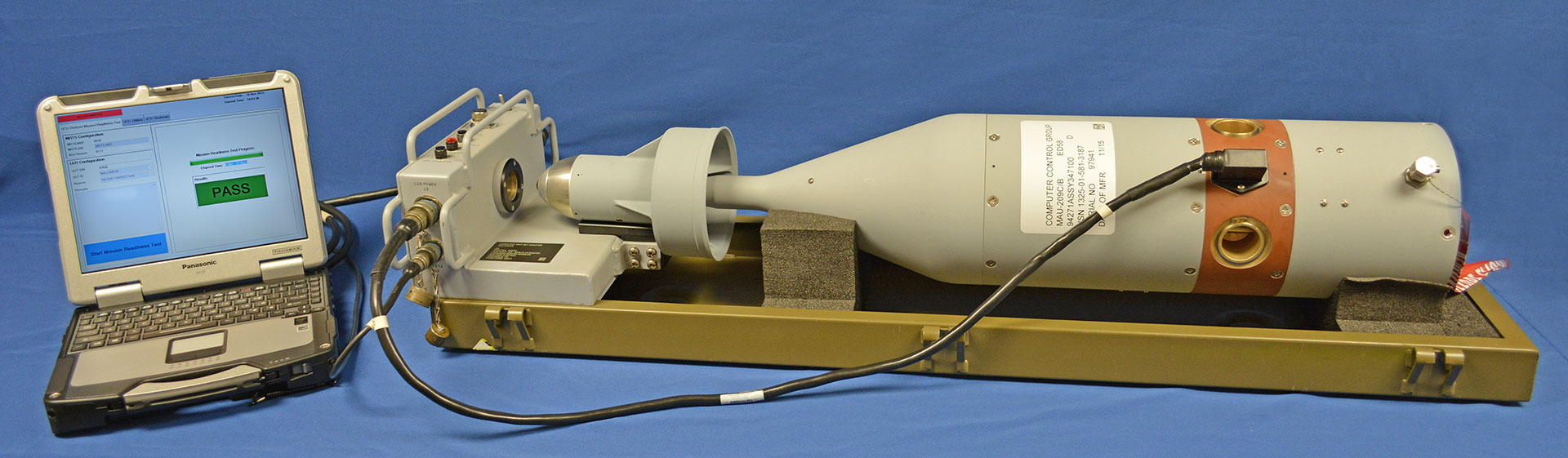

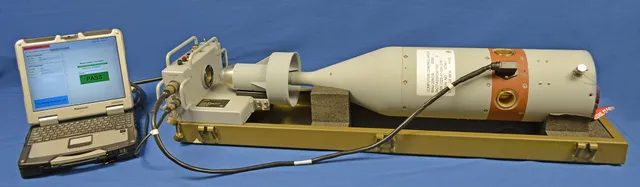

Mission Readiness Test Set (MRTS), Portable mission readiness test set, Support Equipment - view 1
