Armored Vehicles

INKAS Sentry APC

Also known as
  • INKAS Sentry
  • Sentry APC
  • INKAS Armored Sentry APC
  • Armored Special Purpose based on INKAS Sentry APC

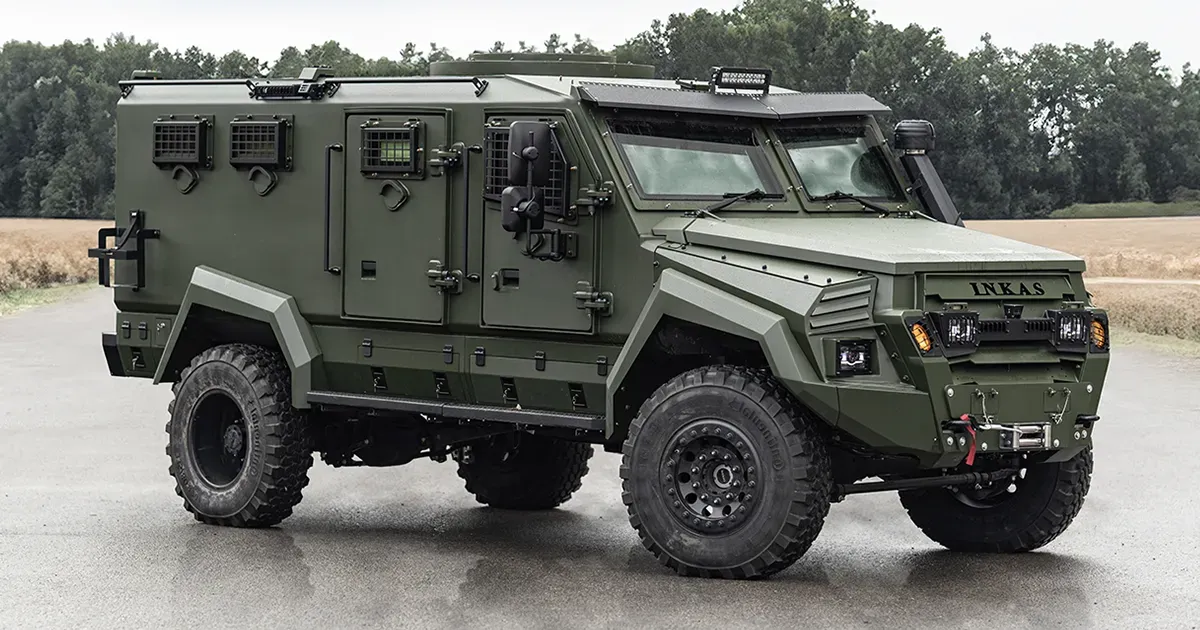

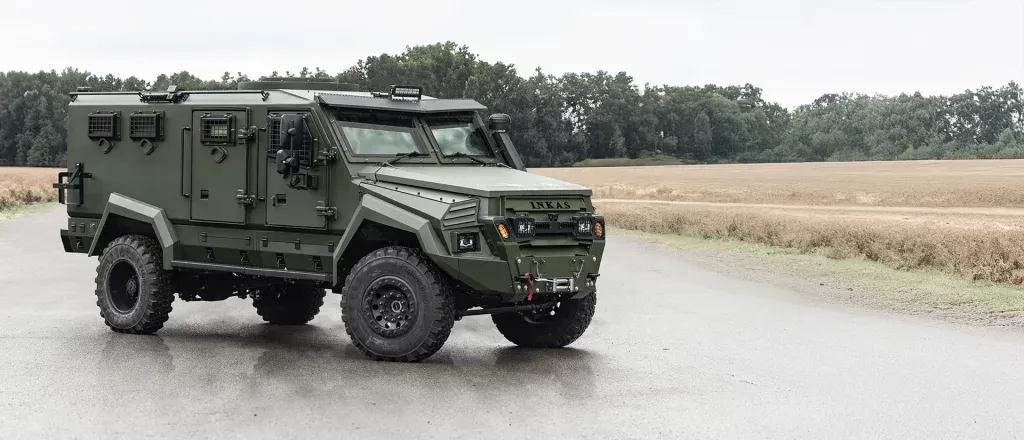

The INKAS Sentry APC is a Canadian-built Sentry-family armored personnel carrier for protected mobility, tactical response, rescue, evacuation, command-center, and crowd-control missions. Public sourcing supports the vehicle as a configurable law-enforcement, government, commercial, and institutional platform rather than a directly documented conflict-use system, so the catalog keeps it as relationship-only until conflict-specific evidence appears.

Profile / Specs

Profile

Origin
Canada
Type
multipurpose armored personnel carrier
Service note
2010s-present protected mobility and law-enforcement vehicle
Designer
INKAS Armored Vehicles
Designed
Public launch announced in 2015; later Sentry-family configurations followed through the late 2010s and 2020s

Specifications

Base platform
Heavy-duty truck chassis; official RHD page identifies a heavy-duty Ford chassis for the RHD Sentry APC
Drivetrain
4x4 drivetrain listed on INKAS Aerospace and Defense Sentry APC specification line
Transmission
10-speed automatic listed on INKAS Aerospace and Defense Sentry APC specification line
Engine
6.7L diesel V8, 330 hp at 2,800 rpm listed on INKAS Aerospace and Defense Sentry APC specification line
Dimensions
6259 x 2374 x 2458 mm listed on INKAS Aerospace and Defense Sentry APC specification line
Wheelbase
3691 mm listed on INKAS Aerospace and Defense Sentry APC specification line
Seating
10 seats listed on INKAS Aerospace and Defense Sentry APC specification line; Sentry MPV announcement lists four to six seats for the lighter MPV variant
Protection
Dual protective layers, perimeter armoring for passenger compartment, engine bay, and key mechanical components, with multi-layer ballistic glass and door-overlap protection
Ballistic and blast standards
Official pages cite NIJ-STD-0108.01 Level III/CEN BR7 or STANAG 2 / 2A / 2B depending on product channel and configuration
Standard features
Advanced door locks, escape hatch, wide driver field of view, electronic night-vision system, and heavy-duty winch
Optional equipment
Front plow, crowd-control barrier, acoustic hailing device, siren/PA, emergency lights, air filtration, fire-source detection, advanced optics, engine-bay armoring, and 360-degree external cameras
Sales restriction
Official product page states the vehicle is for qualified law-enforcement, commercial, or institutional bodies only
Mission Configuration Notes

The Sentry APC is best documented as a modular protected-mobility platform rather than a single fixed military fit. INKAS describes mission packages for passenger transport, search and rescue, medical evacuation, command and control, surveillance, and crowd-control support.

Base architecture

Heavy-duty truck chassis, 4x4 drivetrain in the defense specification, configurable seating, and reinforced mechanical components for armored-vehicle weight.

Protection package

Public pages cite perimeter armoring, multi-layer ballistic glass, door-overlap protection, and ballistic/blast standards ranging from CEN BR7 marketing claims to STANAG 2 / 2A / 2B defense-page specification language.

Operational fit

Supported add-ons include night vision, winch, roof hatch or turret, PA/siren, emergency lighting, 360-degree cameras, front plow or barrier, air filtration, fire-source detection, and advanced optics.

Variants

INKAS presents Sentry as a modular protected-vehicle family. Public pages identify the core APC, right-hand-drive APC, lighter MPV, longer XL/CCV, TIV, ARV, Medevac, SWAT, ADS, and MLRS-oriented configurations, with several pages emphasizing customer-specific mission modules rather than fixed military marks.

VariantConfigurationDesignation notes
Sentry APCCore armored personnel carrier

Official pages describe the baseline Sentry APC as a heavy-duty truck-chassis protected-mobility vehicle with configurable seating, perimeter armoring, command-center or evacuation options, and ballistic/blast protection packages.

Sources: INKAS Sentry APC Product Page, INKAS Aerospace and Defense Sentry APC

Sentry APC (RHD)Right-hand-drive configuration

INKAS and Army Recognition describe a right-hand-drive Sentry APC reengineered around a heavy-duty Ford chassis for markets where right-hand drive is required.

Sources: INKAS Sentry APC RHD Product Page, Army Recognition Sentry APC RHD

Sentry MPVLighter multipurpose Sentry-family vehicle

INKAS announced the MPV as a lighter Sentry-family vehicle with four-to-six-person seating, a pickup-style rear bed, and roles including first response, law enforcement, border control, rescue, surveillance, and command-and-control work.

Sources: INKAS Sentry MPV Product Page, INKAS Sentry MPV Announcement

Sentry XL / CCVExtended and crowd-control configuration

INKAS lists Sentry XL and CCV configurations with longer-wheelbase or crowd-control equipment, including front barrier or plow, public-address, surveillance, and area-control options.

Sources: INKAS Aerospace and Defense Sentry APC, INKAS Sentry XL CCV Product Page

Sentry ARVArmored recovery configuration

INKAS describes the Sentry ARV with a 12-ton retracted recovery boom, dual 6-ton winches, tool storage, and STANAG-rated ballistic and blast protection.

Sources: INKAS Sentry ARV Product Page

Sentry AMEV / MedevacArmored medical evacuation configuration

INKAS describes the Sentry AMEV as a fully armored medical evacuation vehicle with patient transport, medical-personnel seating, urgent-care storage, a wash basin, rear hydraulic ramp, and medevac equipment.

Sources: INKAS Sentry AMEV Product Page

Sentry TIVTactical intervention configuration

INKAS describes the Sentry TIV with a vehicle-mounted vertical assault ramp for special operations involving buildings, aircraft, buses, rail vehicles, fences, and elevated positions.

Sources: INKAS Sentry TIV Product Page

Sentry SWAT, ADS, and MLRS configurationsSpecialized mission configurations

The INKAS Aerospace and Defense page lists SWAT, active-defense/counter-UAS, and multi-rocket launcher configurations as additional Sentry options.

Sources: INKAS Aerospace and Defense Sentry APC

Timeline

INKAS Sentry APC Key Events

  1. Canadian-made Sentry APC public launch reported

    Vanguard Canada reported INKAS launching the Canadian-made Sentry APC, describing the platform as a heavy-duty truck-chassis APC customized for off-road performance, reliability, weight capacity, and passenger protection.

    Sources: Vanguard Canada Sentry APC Launch

  2. Sentry MPV video release followed CANSEC debut

    INKAS said the Sentry MPV had debuted at CANSEC 2018 and was developed for first responders, law enforcement, SWAT, and border-control agencies with lighter armor components and four-to-six-person seating.

    Sources: INKAS Sentry MPV Video Release

  3. Right-hand-drive Sentry APC announced

    Army Recognition reported INKAS had reengineered the Sentry APC into a road-ready right-hand-drive version, including drivetrain, steering, exhaust, and wiring redesign work for RHD markets.

    Sources: Army Recognition Sentry APC RHD

  4. INKAS announced Ukraine expansion

    INKAS announced a Kyiv presence with manufacturing facilities and an armored-vehicle showroom, saying INKAS Ukraine would offer products ranging from armored personnel carriers to drones and software; this supports regional commercial context, not conflict use by the Sentry APC.

    Sources: INKAS Ukraine Expansion Announcement
