GBU-63 JDAM-ER

Also known as
  • GBU-63
  • GBU-63/B
  • GBU-63 JDAM-ER
  • GBU-63 Joint Direct Attack Munition-Extended Range
  • GBU-63 Joint Direct Attack Munition Extended Range
  • 1,000-pound JDAM-ER
  • Mk 83 JDAM-ER

The GBU-63 JDAM-ER is a commonly reported but not fully confirmed 1,000-pound-class JDAM-ER designation associated with the Mk 83 / BLU-110 bomb-body class. It sits between the standard GBU-32 JDAM and the wider Boeing-Australian JDAM-ER wing-kit family, whose deployable wings turn GPS/INS JDAM bombs into longer-range glide weapons.

GBU-63 JDAM-ER, Reported 1,000-pound extended-range GPS/INS-guided bomb configuration, Munitions
Image source: JDAM family rendering
Profile / Specs

Profile

Origin
United States / Australia
Type
Reported 1,000-pound extended-range GPS/INS-guided bomb configuration
Service note
2010s-present JDAM-ER family
Designer
Boeing / Defence Science and Technology Group

Specifications

Reported warhead
Mk 83 / BLU-110 1,000-pound class bomb body
Guidance
GPS-aided inertial navigation with an extended-range wing kit
JDAM-ER family range
Boeing reported RAAF tests extending JDAM range from about 15 miles to more than 45 miles with the wing kit
Weight class
1,000-pound class; reported JDAM article table value about 490 kg / 1,080 lb
Designation status
Designation-Systems lists the GBU-63 slot as no-information and possibly reserved for a 1,000-pound JDAM-ER
Standard counterpart
GBU-32 1,000-pound JDAM class
Variants

JDAM-ER naming is complicated by overlapping bomb-body and Quickstrike mine designations. GBU-63 is treated as a reported 1,000-pound JDAM-ER designation until a source directly confirms the exact operational weapon designation.

VariantConfigurationDesignation notes
GBU-32 1,000-pound Joint Direct Attack Munition, 1,000-pound GPS/INS-guided bomb kit, MunitionsGBU-32 1,000-pound Joint Direct Attack MunitionStandard 1,000-pound JDAM counterpart

Air Force material places the standard GBU-32 1,000-pound JDAM in the Mk 83 / BLU-110 bomb-body class; the reported GBU-63 applies the JDAM-ER wing-kit concept to that weight class.

Sources: Air Force JDAM fact sheet, Wikipedia JDAM article

Mk-82 JDAM-ER, Extended-range GPS/INS-guided bomb, MunitionsMk-82 JDAM-ER500-pound JDAM-ER family member

Boeing's 2015 RAAF test release documents the 500-pound JDAM-ER wing-kit family, and separate conflict-use sources document Mk-82 JDAM-ER use in Ukrainian service.

Sources: Boeing RAAF extended-range weapon test

GBU-64/B2,000-pound Quickstrike-ER designation

Designation-Systems lists GBU-64/B as a 2,000-pound Mk 64 Quickstrike mine with a JDAM-ER guidance kit, which helps explain why GBU-63 remains a designation caveat rather than a fully confirmed bomb designation.

Sources: Designation-Systems guided bombs appendix

JDAM Family Context

The most useful sourced context for GBU-63 is its place among the 1,000-pound bomb-body class and adjacent JDAM/JDAM-ER family members.

Compatible itemItem typeCompatibility evidence
1,000-pound drop bomb, Free-fall bomb, Munitions1,000-pound drop bombMk 83 / BLU-110 bomb-body class

The reported GBU-63 designation is associated with the same 1,000-pound Mk 83 / BLU-110 body class used by the standard GBU-32 JDAM family.

Sources: Air Force JDAM fact sheet, Wikipedia JDAM article

GBU-32 1,000-pound Joint Direct Attack Munition, 1,000-pound GPS/INS-guided bomb kit, MunitionsGBU-32 1,000-pound Joint Direct Attack MunitionStandard-range counterpart

The standard GBU-32 is the established 1,000-pound JDAM counterpart; GBU-63 is treated here as the reported extended-range counterpart with a designation caveat.

Sources: Air Force JDAM fact sheet, Wikipedia JDAM article

Mk-82 JDAM-ER, Extended-range GPS/INS-guided bomb, MunitionsMk-82 JDAM-ER500-pound JDAM-ER family member

The Mk-82 JDAM-ER entry covers the directly documented 500-pound wing-kit family; its Boeing/RAAF development evidence supports the JDAM-ER technology context without proving GBU-63 combat use.

Sources: Boeing RAAF extended-range weapon test, Boeing JDAM-ER product card

Source boundary

Open reporting has described a 1,000-pound JDAM-ER in Ukrainian use, but the same reporting says the designation is unknown and only likely GBU-63. That is not enough to support a direct 2014 Russia-Ukraine War use claim for this designation.

Sources: Aviationist 1,000 lb JDAM-ER report, Designation-Systems guided bombs appendix

Designation Notes

The GBU-63 label is useful for family navigation, but the public designation evidence is weaker than for the standard GBU-32 or the conflict-backed Mk-82 JDAM-ER.

TopicSource-backed noteReader takeaway
GBU-63 slotDesignation-Systems lists GBU-63 as no-information and possibly reserved for a 1,000-pound JDAM-ER.Treat the name as a reported designation-family reference, not as confirmed combat-use evidence.
1,000-pound classAir Force and JDAM-family references place the standard GBU-32 in the Mk 83 / BLU-110 1,000-pound class.This is the bomb-body context for the reported GBU-63 role.
Ukraine reportingThe Aviationist reported Ukrainian 1,000-pound JDAM-ER footage but called the exact designation unknown and only likely GBU-63.The public source trail supports a caution, not a direct 2014 Russia-Ukraine War use claim for GBU-63.

Sources: Designation-Systems guided bombs appendix; Air Force JDAM fact sheet; Wikipedia JDAM article; Aviationist 1,000 lb JDAM-ER report.

Timeline

GBU-63 JDAM-ER Key Events

  1. Boeing and DSTO begin JDAM-ER collaboration

    Boeing and Australia's Defence Science and Technology Organisation began the collaboration that combined the JDAM tail kit with Australian wing-kit work.

    Sources: DSTO smart bomb collaboration

  2. JDAM-ER concept trials demonstrate range extension

    Australian JDAM-ER concept trials in this period demonstrated the deployable wing kit's range-extension value before the later production program.

    Sources: DSTO smart bomb collaboration

  3. Boeing and the RAAF announce extended-range testing

    Boeing reported RAAF F/A-18 Classic Hornet tests at Woomera in which a 500-pound JDAM-ER wing kit extended range from about 15 miles to more than 45 miles.

    Sources: Boeing RAAF extended-range weapon test

  4. First production JDAM-ER wing kits delivered

    DST reported the first production set of Australian-designed and manufactured JDAM-ER wing kits being delivered for Royal Australian Air Force use.

    Sources: DSTO smart bomb collaboration

  5. 1,000-pound Ukraine footage remains designation-limited

    The Aviationist reported Ukrainian Su-27 footage of 1,000-pound JDAM-ER bombs, but described the weapon's designation as unknown and only likely GBU-63.

    Sources: Aviationist 1,000 lb JDAM-ER report

Media

GBU-63 JDAM-ER Videos

GBU-63 JDAM-ER Images

GBU-63 JDAM-ER, Reported 1,000-pound extended-range GPS/INS-guided bomb configuration, Munitions - view 1

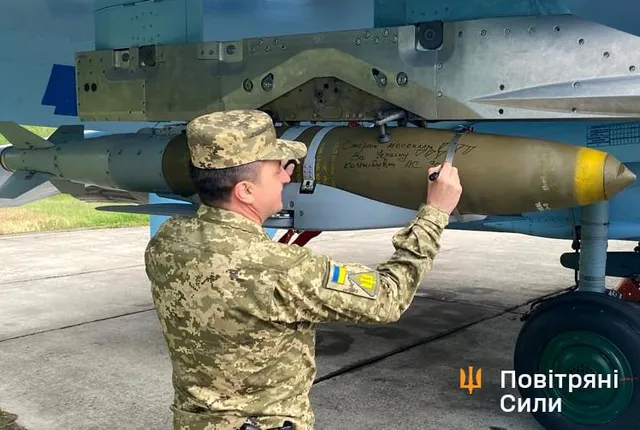

Source: JDAM-ER Ukrainian air force Su-27 photo
GBU-63 JDAM-ER, Reported 1,000-pound extended-range GPS/INS-guided bomb configuration, Munitions - view 2

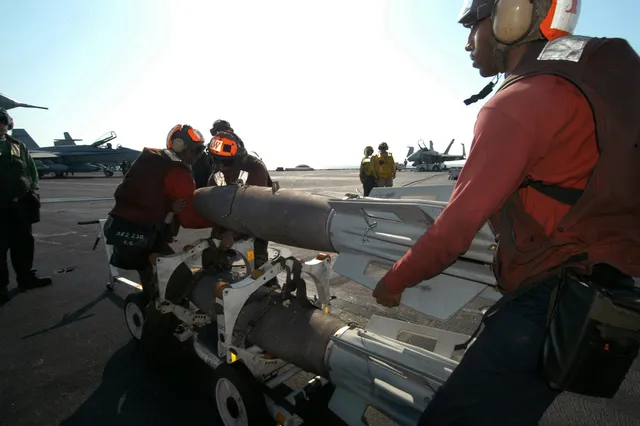

Source: Wikimedia Commons Mark 83 bombs
Related Weapon Systems
GBU-32 1,000-pound Joint Direct Attack Munition, 1,000-pound GPS/INS-guided bomb kit, MunitionsMunitionsGBU-32 1,000-pound Joint Direct Attack Munition1,000-pound GPS/INS-guided bomb kitThe GBU-32 1,000-pound Joint Direct Attack Munition is Boeing's GPS/INS JDAM guidance kit applied to the Mk 83 or BLU-110 1,000-pound bomb-body class. JDAM is a conversion kit rather than a stand-alone bomb, and the GBU-32 sits in the middle of the JDAM family between 500-pound and 2,000-pound variants. Direct conflict-use sources connect the GBU-32 to U.S. Navy, U.S. Air Force, and NATO-led coalition operations in Afghanistan, Iraq, Libya, and 2014 Operation Inherent Resolve, while OHCHR reported suspected Israeli use of GBU-32 bombs in Gaza strikes during the 2023 Israel-Hamas War.
GBU-31 JDAM (Mk 84 / BLU-109), 2,000-pound GPS/INS-guided bomb configuration, MunitionsMunitionsGBU-31 JDAM (Mk 84 / BLU-109)2,000-pound GPS/INS-guided bomb configurationThe GBU-31 JDAM is the 2,000-pound Joint Direct Attack Munition configuration built around Boeing's GPS/INS tail kit and either a Mk 84-class general-purpose bomb body or a BLU-109 hard-target penetrator body. U.S. military and Federal Register sources distinguish the KMU-556 Mk 84 configuration from the KMU-557 BLU-109 configuration, while direct conflict-use reporting traces GBU-31/JDAM employment from Kosovo and Afghanistan to Iraq, Yemen, Operation Inherent Resolve, the Israel-Hamas war, and the 2025 Israel-Iran conflict.
Joint Direct Attack Munition (JDAM) guidance kit, GPS/INS guidance tail kit for free-fall bombs, MunitionsMunitionsJoint Direct Attack Munition (JDAM) guidance kitGPS/INS guidance tail kit for free-fall bombsJoint Direct Attack Munition (JDAM) is Boeing's U.S.-origin GPS/INS tail-kit family for converting compatible Mk 80- and BLU-series free-fall bomb bodies into all-weather guided bombs. The family spans 500-, 1,000-, and 2,000-pound bomb-body classes, with standard GBU-31, GBU-32, and GBU-38 records separated from later Laser JDAM and JDAM-ER derivatives. Official Air Force and Navy records document JDAM's 1999 combat debut with NATO B-2 operations during Operation Allied Force.
GBU-55 Laser Joint Direct Attack Munition, Reserved 1,000-pound laser/GPS-guided bomb designation, MunitionsMunitionsGBU-55 Laser Joint Direct Attack MunitionReserved 1,000-pound laser/GPS-guided bomb designationThe GBU-55 Laser Joint Direct Attack Munition is the reserved 1,000-pound Laser JDAM designation associated with the GBU-32 JDAM and Mk 83 or BLU-110 bomb-body class. Public sources describe the Laser JDAM concept as a Boeing GPS/INS JDAM fitted with a laser terminal seeker for moving or relocatable targets, while designation references treat GBU-55 as the 1,000-pound member between the 500-pound GBU-54 and 2,000-pound GBU-56 Laser JDAMs.
GBU-38 Joint Direct Attack Munition, 500-pound GPS/INS-guided bomb, MunitionsMunitionsGBU-38 Joint Direct Attack Munition500-pound GPS/INS-guided bombGBU-38 Mk-82 JDAM is Boeing's 500-pound GPS/INS-guided Joint Direct Attack Munition, turning the Mk 82 bomb body into an all-weather precision air-to-surface weapon. U.S. Air Force sources list the GBU-38 at 92.6 inches long, 558 pounds at launch, a 14-inch wingspan, up to 15 miles range, and 5-meter-or-less CEP when GPS data is available, while combat reporting documents F-15E, F-16, B-1B, and MQ-9 employment in Afghanistan, Iraq, and 2014 Operation Inherent Resolve.
GBU-31(V)1 Joint Direct Attack Munition, 2,000-pound JDAM bomb, MunitionsMunitionsGBU-31(V)1 Joint Direct Attack Munition2,000-pound JDAM bombThe GBU-31(V)1/B Joint Direct Attack Munition is the Mk 84 general-purpose lane of the 2,000-pound JDAM family, combining Boeing's GPS/INS tail-control kit with a 2,000-pound-class bomb body. Official Air Force, Navy, Boeing, and security-assistance sources separate this KMU-556/Mk 84 configuration from BLU-109 penetrator GBU-31 variants, while direct records document exact or Mk 84-specific GBU-31 use in the 2011 Libya air campaign and the 2025 Israel-Iran Conflict.
