Armored Vehicles

Al-Wahsh armored vehicle

Also known as
  • Al-Wahsh
  • Al Wahsh
  • Al-Wahsh Vehicle
  • KADDB Al-Wahsh
  • JODDB Al-Wahsh
  • Al-Wahsh Al-Kaser
  • Al-Wahsh 105mm

Al-Wahsh is a Jordanian 4x4 armored vehicle family developed by KADDB/JODDB and manufactured by Jordan Light Vehicle Manufacturing on a Tatra chassis. The baseline vehicle serves as a protected troop carrier and patrol vehicle, while displayed configurations include a 105 mm gun carrier and the sensor-heavy Al-Kaser reconnaissance and convoy-protection variant. Open sources document Libyan National Army use during the 2014 Second Libyan Civil War.

Al-Wahsh armored vehicle, 4x4 armored personnel carrier / protected patrol vehicle, Armored Vehicles

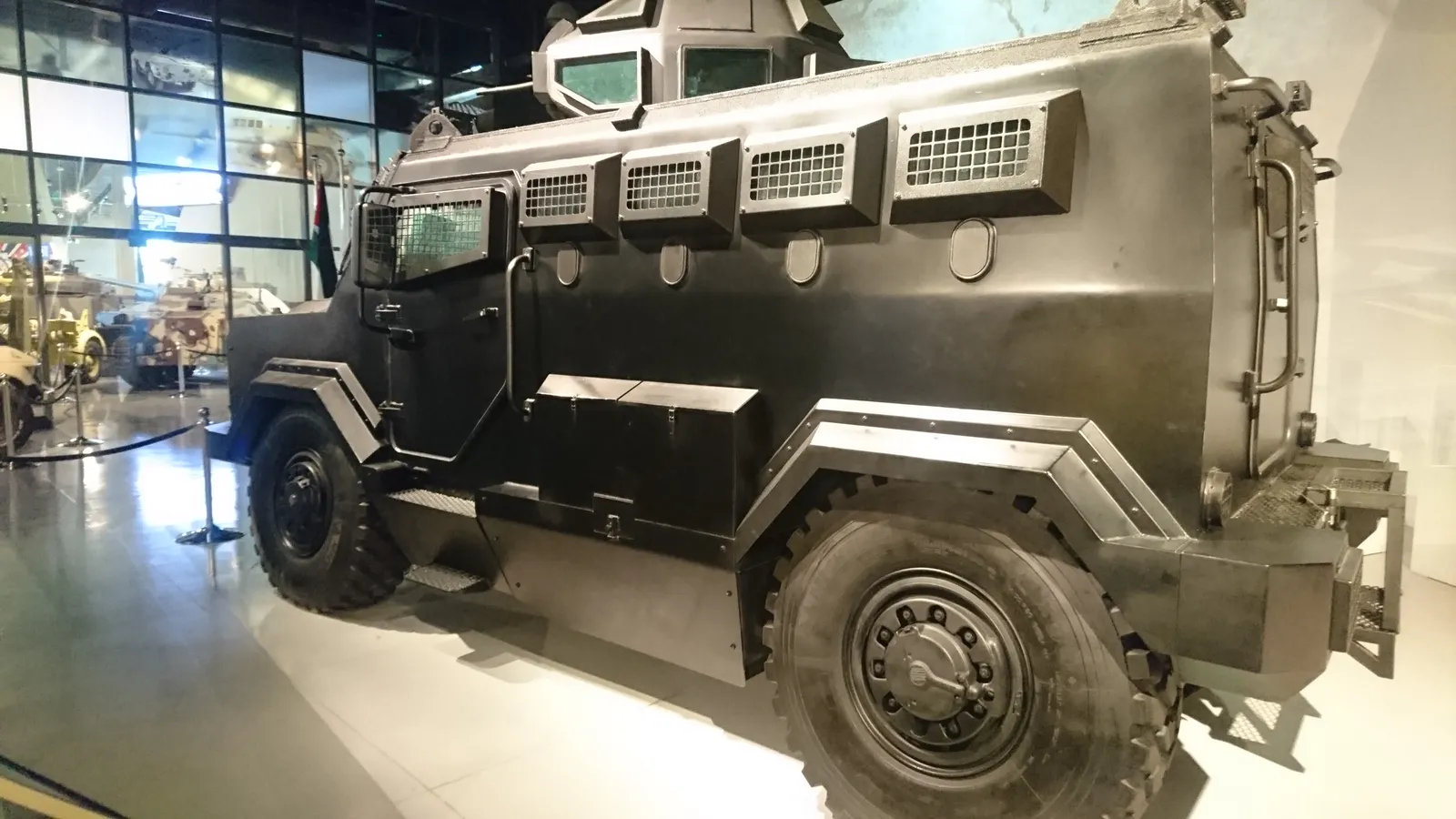

Image source: Wikimedia Commons Royal Tank Museum Al-Wahsh Image

Role in Conflicts

Profile / Specs

Specifications

Crew and passengers
2 crew plus up to 8 personnel in the baseline troop-carrier layout
Configuration
4x4 armored personnel carrier / protected patrol vehicle
Chassis
Tatra heavy-duty 4x4 cross-country chassis
Combat weight
About 18 tonnes in the patrol-vehicle reporting
Dimensions
5,800 mm long, 2,500 mm wide, 2,530 mm high to hull top
Ground clearance
380 mm
Engine
Diesel engine rated at 370 hp
Transmission
6-speed automatic
Maximum road speed
110 km/h
Protection
JLVM lists STANAG II and STANAG III ballistic-protection levels; other reporting describes STANAG 4569 Level 1-2 claims for early vehicles
Mobility
Independent suspension with CTIS and run-flat wheels
Armament provisions
Snakehead cupola with one or two 7.62 mm machine guns, or remote weapon station with machine gun or cannon up to 30 mm, according to Joint Forces
Platform And Mission Fit

Al-Wahsh is a protected 4x4 vehicle platform rather than a single fixed battlefield fit. The baseline vehicle emphasizes troop carriage and patrol protection, while public show reports document heavier fire-support and surveillance variants.

Chassis

Sources identify a Tatra 4x4 cross-country chassis under the armored body.

Troop Carrier

JLVM lists a 2+8 crew/passenger layout with STANAG II/III ballistic-protection claims and optional turret or anti-mine configuration.

Mission Variants

Public display reporting covers a 105 mm gun demonstrator and the Al-Kaser reconnaissance and convoy-protection variant.

Sources: JLVM Al-Wahsh Vehicle; Spotted At SOFEX - JLVM Al-Wahsh; Army Recognition Al-Wahsh 105mm at SOFEX 2016; Joint Forces Al-Wahsh Al-Kaser at IDEX 2025.

Variants

Al-Wahsh is best treated as a modular 4x4 platform: sources describe the baseline troop carrier, a 105 mm gun demonstrator, and later sensor-heavy Al-Kaser configuration rather than one fixed armament standard.

VariantConfigurationDesignation notes
Al-Wahsh protected patrol vehicleBaseline APC / protected patrol configuration

JLVM describes the standard vehicle as a troop-transport platform for armored personnel carrier, border-security, command-and-control, armored fighting, and support roles.

Sources: JLVM Al-Wahsh Vehicle, Spotted At SOFEX - JLVM Al-Wahsh

Al-Wahsh 105mmMobile artillery demonstrator

Army Recognition reported the SOFEX 2016 configuration with a 105 mm towed gun on the rear platform and a four-person armored cabin.

Sources: Army Recognition Al-Wahsh 105mm at SOFEX 2016

Al-Wahsh Al-KaserReconnaissance and convoy-protection variant

Joint Forces and ASELSAN Middle East describe Al-Kaser as an Al-Wahsh variant integrating surveillance, electronic-warfare, gunshot-detection, jamming, and remote-weapon-station features.

Sources: Joint Forces Al-Wahsh Al-Kaser at IDEX 2025, ASELSAN Middle East Al-Wahsh Al-Kaser

Timeline

Al-Wahsh armored vehicle Key Events

  1. Al-Wahsh 105mm displayed at SOFEX

    KADDB displayed a 105 mm gun configuration of the Al-Wahsh platform at SOFEX 2016 in Amman.

    Sources: Army Recognition Al-Wahsh 105mm at SOFEX 2016

  2. Production examples shown at SOFEX

    Joint Forces reported several production Al-Wahsh protected patrol vehicles on display at SOFEX 2018.

    Sources: Spotted At SOFEX - JLVM Al-Wahsh

  3. Al-Wahsh documented with the LNA

    DefenceWeb and Military Africa reported a Jordanian Al-Wahsh in Libyan National Army service in connection with fighting around Derna.

    Sources: DefenceWeb Jordanian Armoured Vehicles in Libya, Military Africa LNA Jordanian Armoured Vehicles

  4. Tatra chassis order reported

    CZDEFENCE reported a 328-unit Tatra Force 4x4 chassis order for Jordan, tying the chassis family to Al-Wahsh production.

    Sources: CZDEFENCE Hundreds of Chassis for Jordan

  5. Al-Kaser variant reported at IDEX

    Joint Forces reported JODDB's Al-Wahsh Al-Kaser variant at IDEX 2025 with radar, camera, jamming, gunshot-detection, and remote-weapon-station features.

    Sources: Joint Forces Al-Wahsh Al-Kaser at IDEX 2025

Media

Al-Wahsh armored vehicle Videos

Related Weapon Systems
Al-Shibl 2 armored vehicle, 4x4 light armored personnel carrier, Armored VehiclesArmored VehiclesAl-Shibl 2 armored vehicle4x4 light armored personnel carrierThe Al-Shibl 2 is a Saudi-built 4x4 light armored personnel carrier developed by Armored Vehicles & Heavy Equipment Factory on a Toyota Land Cruiser chassis. Its longer wheelbase distinguishes it from the Al-Shibl 1 by adding a two-person crew and troop compartment, while steel armor, run-flat tires, firing ports, and roof weapon-mount options make it a compact protected-mobility vehicle for personnel transport, scouting, border patrol, and convoy support roles.

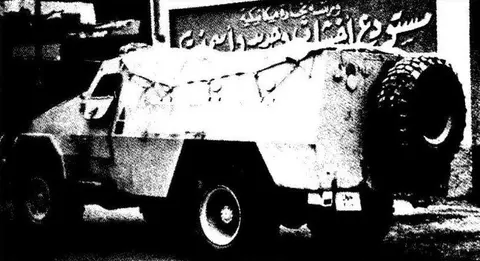

Walid armored personnel carrier, 4x4 wheeled armored personnel carrier, Armored VehiclesArmored VehiclesWalid armored personnel carrier4x4 wheeled armored personnel carrierThe Walid, also rendered Al Walid or Waleed, is an Egyptian 4x4 armored personnel carrier produced by Kader Factory for Developed Industries. Open sources describe it as a BTR-40-like open-topped APC using a German Magirus-Deutz/UNIMOG-derived truck chassis made under licence in Egypt with a locally produced armored body, two crew, space for about ten troops, a pintle 7.62 mm machine gun, central tire-pressure regulation, and no amphibious, NBC, or night-vision equipment. It first saw combat in the 1967 Arab-Israeli war, later appeared in captured Israeli service, and was followed in Egyptian production by the Fahd APC family.
