9M51 fuel-air explosive rocket

Also known as

9M51
9М51
9M51 Uragan rocket
9M51 artillery rocket

The 9M51 is a Soviet-era 220 mm Uragan-family artillery rocket fitted with a 9N515 fuel-air explosive submunition and a reported 5-13 km range. Open reference sources describe it as a short-range unguided rocket designed for manpower, light vehicles, and concealed positions.

9M51 fuel-air explosive rocket, 220 mm Uragan fuel-air explosive rocket, Munitions

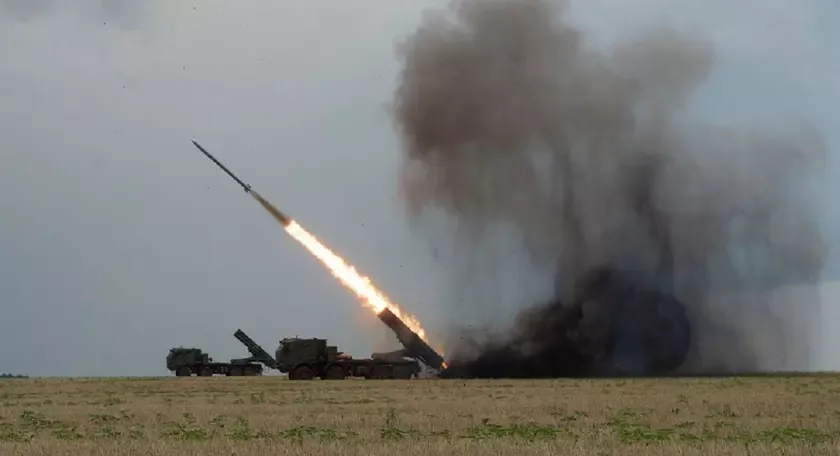

Image source: General Staff showed video of joint missile launches from Ukrainian Uragan and Bureviy multiple launch rocket systems

Profile / Specs

Profile

Origin: Soviet Union / Russia
Built by: Splav State Research and Production Enterprise
Type: 220 mm Uragan fuel-air explosive rocket
Service note: Soviet-era Uragan-family rocket in post-Soviet inventories
Produced: Soviet-era production

rocket thermobaric unguided

Specifications

Caliber: 220 mm
Range: 5-13 km
Projectile mass: 256 kg
Combat unit mass: 143.5 kg
Fuel-air explosive fill: 30.2 kg
Length: 5,147 mm with fuze
Warhead: 9N515 parachute-retarded fuel-air explosive submunition
Container load: 9Y248 container carries four rockets
Operating temperature: -50 to +50 C

Launcher Platforms

The 9M51 is documented as part of the Uragan family, and Bureviy is reported to fire current Uragan-compatible rockets.

Carrier

Carrier type

Carriage evidence

Bureviy, 220 mm self-propelled multiple launch rocket system, Artillery

220 mm multiple rocket launcher

Bureviy is reported to fire current Uragan-compatible rockets.

Sources: Ukraine develops new Bureviy heavy rocket artillery system

Service And Conflict Use

Service History

In service: Referenced as a 220 mm Uragan-family rocket in post-Soviet technical sources.

Media

9M51 fuel-air explosive rocket Images

9M51 fuel-air explosive rocket, 220 mm Uragan fuel-air explosive rocket, Munitions - view 1 — Source: General Staff showed video of joint missile launches from Ukrainian Uragan and Bureviy multiple launch rocket systems
