91N6A surveillance and tracking radar

Also known as
  • 91N6A
  • 91N6
  • 91N6A(M)
  • 91N6M
  • 91N6E
  • Big Bird radar
  • S-400M radar
  • S-500 acquisition and battle-management radar

The 91N6A is a Russian 91N6-family mobile surveillance and tracking radar tied to Almaz-Antey's long-range air-defense architecture. Open sources describe the 91N6 family as the S-band Big Bird acquisition radar for the S-400 Triumf, with the 91N6A identified as a modernized S-400M form and the 91N6A(M)/91N6M discussed as a later S-500 acquisition and battle-management radar.

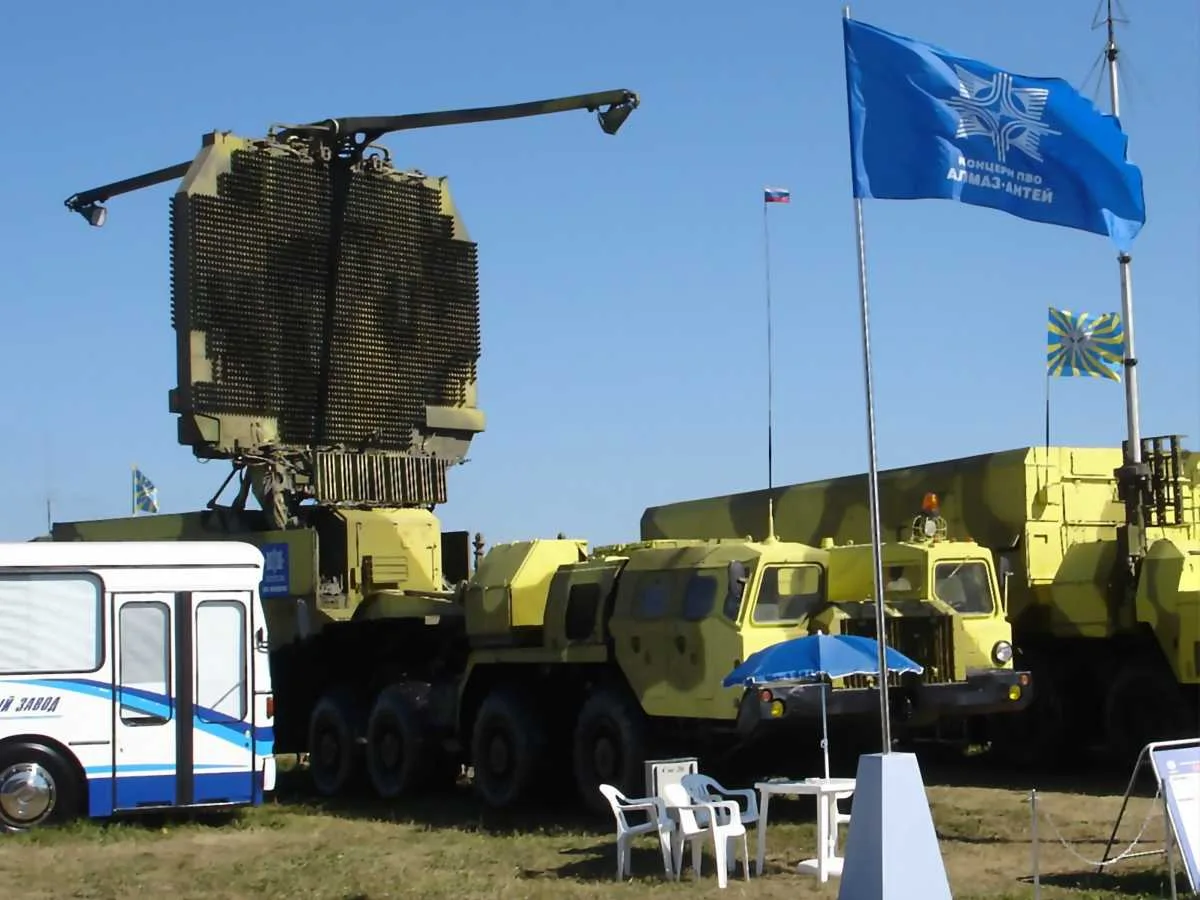

91N6A surveillance and tracking radar, Mobile air-surveillance and battle-management radar, Air Defense
Image source: 91N6
Profile / Specs

Profile

Origin
Russia
Built by
Almaz-Antey
Type
Mobile air-surveillance and battle-management radar
Service note
Modernized 91N6-family radar associated with S-400M and later S-500-family architecture in open sources
Designer
Almaz-Antey / NIIIP radar design lineage in open-source descriptions
Designed
91N6A described by Radartutorial as a modernization developed in the mid-1980s
Produced
Not publicly confirmed for the 91N6A subtype
Number built
Not publicly confirmed
Developed from
64N6E / Big Bird radar family

Specifications

Radar family
91N6 Big Bird S-band surveillance and tracking radar family
Public subtype
91N6A, described as a modernized S-400M form in Radartutorial; 91N6A(M)/91N6M appears in S-500 open-source descriptions
Role
Detects and tracks aerodynamic and ballistic targets and provides radar information to the air-defense command post in the export 91N6E description
Frequency band
S band; Radartutorial lists 2.9-3.3 GHz for the 91N6 family
Instrumented range
600 km listed by Radartutorial for 91N6-family data; Air Power Australia lists 640 km for the 91N6A(M) S-500 discussion
Targets tracked
Up to 300 targets in Radartutorial's 91N6-family description
Antenna
Back-to-back phased-array antennas with scan modes including continuous rotation, sector view, stopped antenna drive, and added antenna tilt in Radartutorial's description
Associated systems
S-400/S-400M family, export 91N6E within S-400, and 91N6A(M)/91N6M in S-500 open-source architecture descriptions
Radar Role

The 91N6 family is described as the Big Bird S-band search radar layer in Russian long-range air-defense systems. The radar is separate from the engagement radar: it builds the long-range air picture, tracks targets, supports identification, and passes radar information to command-post elements that can cue fire-control radars and launch units.

Primary function

Long-range surveillance, target tracking, and battle-management radar information for S-400/S-500-family air-defense architecture.

Public subtype caution

Open sources distinguish 91N6, 91N6A, 91N6E, and 91N6A(M)/91N6M, but detailed subtype differences are not consistently public.

Source references: 91N6; S-400 "Triumph"; Defending Mother Russia's Skies.

Variants

Open sources use the 91N6 designator across domestic, export, and later modernized Big Bird radar forms; public descriptions do not always separate 91N6A, 91N6E, and 91N6A(M) details cleanly.

VariantConfigurationDesignation notes
91N6Baseline Big Bird surveillance radar

Radartutorial describes 91N6 as a surveillance and tracking radar for the SA-21/S-400 family, derived from earlier Big Bird architecture.

Sources: 91N6

91N6AModernized S-400M form

Radartutorial identifies 91N6A as a modernization for S-400M Triumf systems.

Sources: 91N6

91N6EExport S-400 radar system

Rosoboronexport lists the 91N6E radar system in the S-400 export set and describes it as detecting and tracking aerodynamic and ballistic targets while feeding radar information to the 55K6E command post.

Sources: S-400 "Triumph"

91N6A(M) / 91N6MLater S-500-family acquisition and battle-management form

RUSI and Air Power Australia describe the S-500 ensemble as including a 91N6A(M) air-surveillance and battle-management radar, with Air Power Australia cautioning that public detail is insufficient to infer design changes from the baseline 91N6.

Sources: Defending Mother Russia's Skies, Almaz-Antey S-500 Triumfator M

Air-Defense System Context

The 91N6A page is treated as a component record because the radar's public conflict record is normally reported through complete S-400 or S-500 batteries rather than through a standalone radar subtype.

Compatible itemItem typeCompatibility evidence
S-400 Triumf, Long-range mobile surface-to-air missile system, Air DefenseS-400 TriumfLong-range surface-to-air missile system

Rosoboronexport's S-400 export description lists the 91N6E radar system as the search-and-tracking radar that detects aerodynamic and ballistic targets and provides radar information to the 55K6E command post.

Sources: S-400 "Triumph"

Why the radar matters

The radar supplies the long-range air picture and battle-management track data that lets the broader S-400/S-500 family cue command posts and engagement radars.

Sources: 91N6, Defending Mother Russia's Skies

Timeline

91N6A surveillance and tracking radar Key Events

  1. S-400 service-entry context

    CSIS Missile Threat lists the S-400 Triumf entering Russian service in 2007, providing the parent architecture for the 91N6-family radar role.

    Sources: S-400 Triumf

  2. S-500 radar architecture discussed

    RUSI described the expected S-500 radar ensemble as including a 91N6A(M) air-surveillance and battle-management radar enhanced from the 91N6A associated with S-400.

    Sources: Defending Mother Russia's Skies
