M769 60 mm full range practice cartridge

Also known as
  • M769 FRPC
  • M769 full range practice cartridge
  • M769 60 mm FRPC
  • BA15 M769
  • 60 mm M769 full range practice cartridge
  • M769 full range practice round

The M769 is a U.S. 60 mm full range practice cartridge for the M224/M224A1 Lightweight Company Mortar System. Army sources describe it as a low-cost training round that mirrors the M720/M720A1 high-explosive cartridges in shape, size, and weight, while a DLA ASSIST listing ties the M775 point-detonating practice fuze to the M769 FRPC.

M769 60 mm full range practice cartridge, 60 mm full range practice cartridge, Munitions

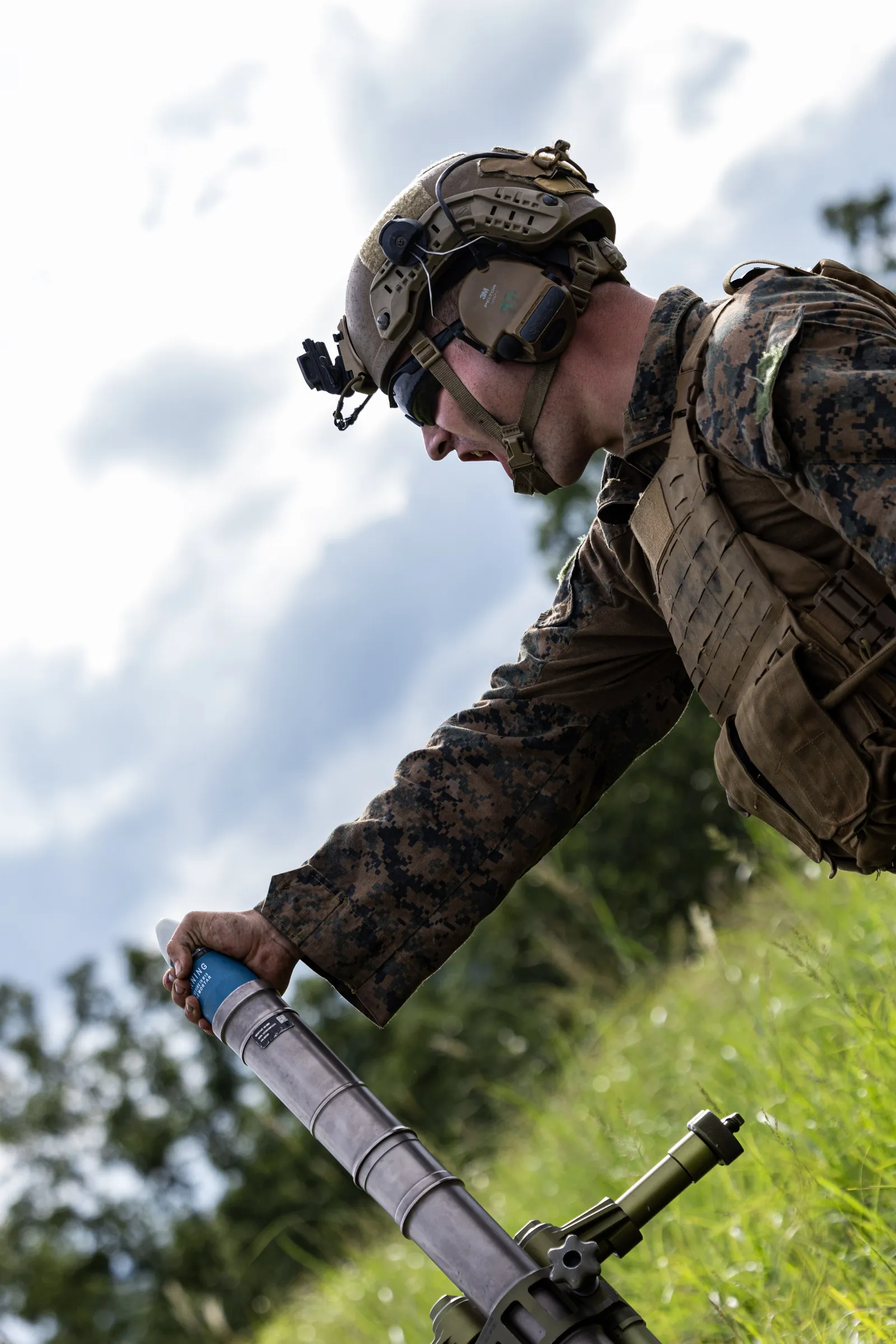

Image source: M769 mortar range image 1
Profile / Specs

Specifications

Caliber
60 mm
Range
70 to 3,500 m
Rate of fire
30 rounds/minute maximum; 20 rounds/minute sustained
Weight
3.75 lb
Length
14.88 in
Fuze
M775 point-detonating practice fuze
DODIC
BA15
Reliability
98.7% at 90% confidence level
Effectiveness
Visual effect allows adjustment from 2,000 m
Construction
Hollow projectile body with vent tube and four vent holes, practice fuze, fin assembly, four propellant increments, ignition cartridge, and obturating ring
Compatibility
M224/M224A1 Lightweight Company Mortar System
Compatible Mortar Systems

The Army describes the M769 as a full range practice cartridge for the M224/M224A1 Lightweight Company Mortar System.

Firing weaponWeapon typeFiring evidence
M224, 60 mm lightweight company mortar, ArtilleryM22460 mm lightweight company mortar

The Army portfolio book identifies the M769 FRPC as a low-cost training cartridge for the M224/M224A1 Lightweight Company Mortar System.

Sources: M769 Full Range Practice Cartridge

Training-cartridge limit

The M224 mortar has documented conflict use in the catalog, but the M769 record stays relationship-only because the direct sources describe this exact cartridge as inert training ammunition rather than combat ammunition.

Sources: Mortar training rounds tested as rigorously as other rounds at U.S. Army Yuma Proving Ground

Training Cartridge Context

The M769 gives M224/M224A1 mortar crews a full-range training cartridge with the handling and ballistic envelope needed for realistic practice, without treating the cartridge as a combat munition.

ScopeDocumented detailReader context
Firing systemM224, 60 mm lightweight company mortar, ArtilleryM224/M224A1 Lightweight Company Mortar System.The Army portfolio book identifies this as the cartridge's intended mortar system.
Training roleLow-cost full range practice round matching the M720/M720A1 shape, size, and weight.The budget justification book frames the cartridge as a realistic substitute for high-explosive training expenditure.
Fuze connectionM775 point-detonating practice fuze.DLA ASSIST identifies the M775 practice fuze as used on the M769 60 mm FRPC.
Combat-use boundaryArmy reporting describes the M769 as an inert training round and says it is not used in combat.Compatible mortar conflict records are not copied onto this cartridge without direct conflict-use evidence for the M769 itself.

Sources: M769 Full Range Practice Cartridge; FY 2018 Ammunition Justification Book; Fuze, Point Detonating: Practice - M775; Mortar training rounds tested as rigorously as other rounds at U.S. Army Yuma Proving Ground.

Timeline

M769 60 mm full range practice cartridge Key Events

  1. Production and deployment begin

    The Army portfolio book lists M769 production and deployment as beginning in June 2004 for the 60 mm full range practice cartridge.

    Sources: M769 Full Range Practice Cartridge

  2. Yuma describes lot-acceptance testing

    The Army's Yuma Proving Ground article describes M769 test firing and lot-acceptance work for inert training cartridges used by Army and Marine Corps mortar crews.

    Sources: Mortar training rounds tested as rigorously as other rounds at U.S. Army Yuma Proving Ground

  3. DLA validates the M775 practice-fuze listing

    DLA ASSIST lists a validation notice for the M775 point-detonating practice fuze and identifies the fuze as used on the M769 60 mm FRPC and M880 81 mm SRPC.

    Sources: Fuze, Point Detonating: Practice - M775

Media

M769 60 mm full range practice cartridge Images

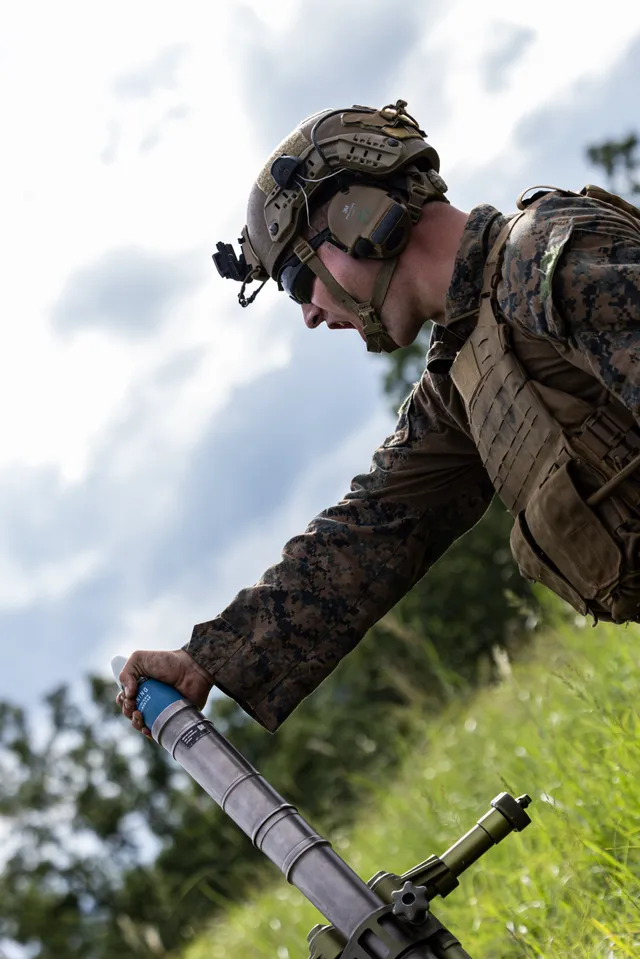

M769 60 mm full range practice cartridge, 60 mm full range practice cartridge, Munitions - view 1
Source: M769 mortar range image 2
