Air Defense

KVERTUS AD MW FROM DROPS

Also known as
  • AD MW FROM DROPS
  • Kvertus AD MW From Drops
  • Kvertus AD MW vid skydiv
  • KVERTUS AD MW ANTI-UAV DROP

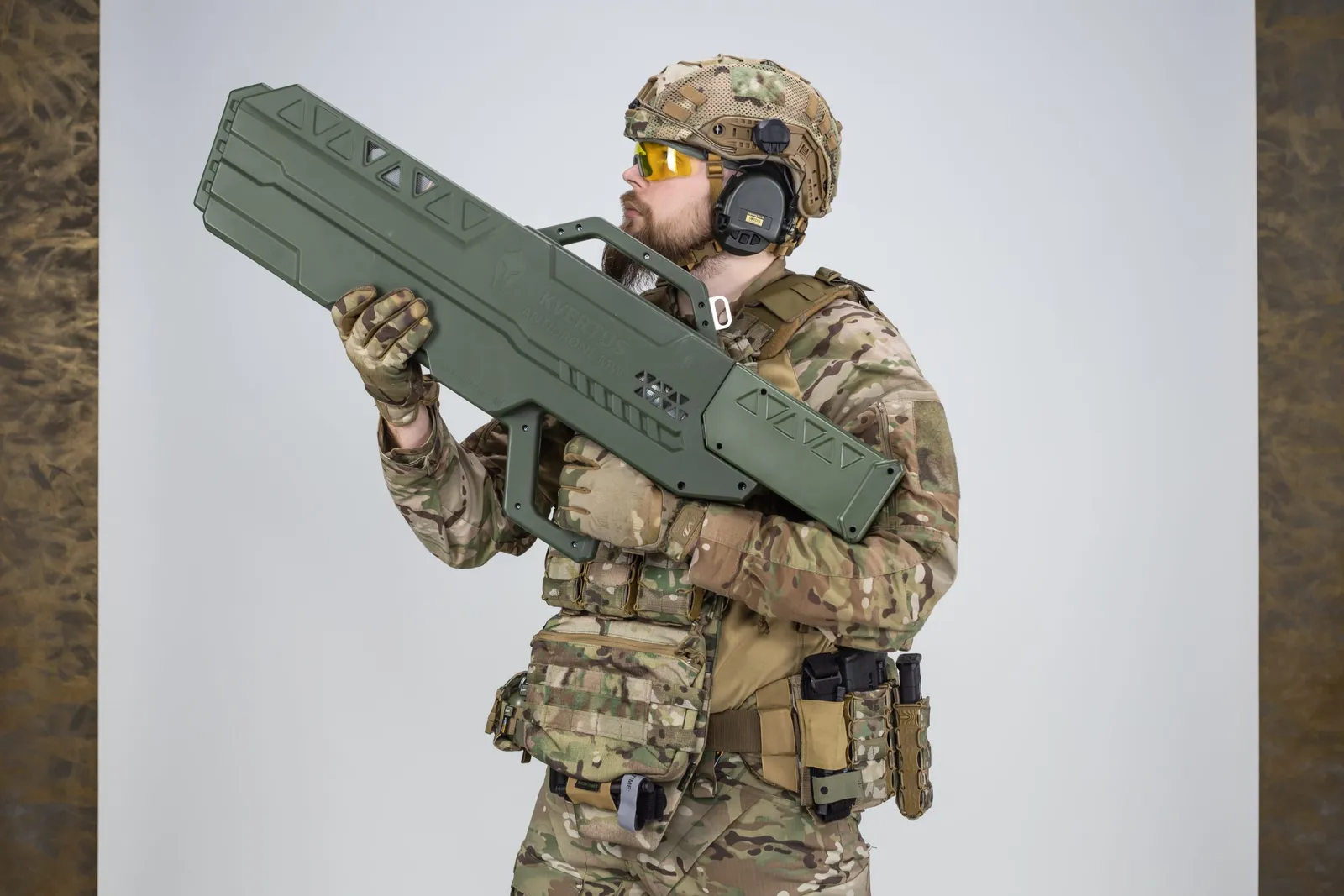

KVERTUS AD MW FROM DROPS is a Ukrainian AD MW-family anti-drone rifle variant built by Kvertus for payload-dropping UAVs. Defense Express described the 2025 AD MW revision as a two-version split for FPV drones and heavier airdrop drones, while Kvertus publishes this FROM DROPS configuration as a 90 W jammer using control and video-transmission bands.

Family Role

Kvertus positions FROM DROPS as an AD MW-family rifle for payload-dropping UAVs rather than as a separate launcher or sensor. Defense Express described the same 2025 AD MW revision as a split between FPV-drone and bomber-drone versions.

Family memberPublished focusOutputPublished bands
KVERTUS AD MW, Man-portable anti-drone jammer, Air DefenseKVERTUS AD MWFPV-drone-focused anti-drone rifle100 WCustomer-selected channels from 300-1350 MHz
FROM DROPSPayload-dropping UAVs90 W2400-2500 MHz; 5150-5250 MHz; 5700-5900 MHz
Field kit

Kvertus lists two 24V, 15Ah rechargeable batteries, an IP-1 field indicator, active cooling, and IP65 protection for this configuration.

Handling

Defense Express cites Kvertus representatives on the revised rifle body, rear extension, shifted center of mass, and Picatinny rails used across the 2025 AD MW versions.

Profile / Specs

Profile

Origin
Ukraine
Built by
Kvertus
Type
Man-portable anti-drone jammer variant
Service note
2014 Russia-Ukraine War-era electronic warfare system
Designer
Kvertus
Designed
2025
Unit cost
Not stated publicly
Produced
2025-present
Number built
Not stated publicly

Specifications

Target set
Payload-dropping UAVs using control and video-transmission links
Interference bands
2400-2500 MHz; 5150-5250 MHz; 5700-5900 MHz
Output power
90 W
Jamming type
White noise
Effective range
Up to 1,500 m and more depending on conditions
Battery operation
80 min, with a 5 min break after every 20 min
Power supply
24V, 15Ah rechargeable battery; two batteries included
Battery charging
220 V, 50 Hz mains power
Antenna beamwidth
Up to 80 degrees horizontal and 60 degrees elevation
Weight
8 kg
Protection level
IP65
Operational readiness
Up to 30 sec
Custom frequency ranges
Available by agreement with Kvertus
Variants

Kvertus separates this payload-dropping-drone configuration from the base AD MW page, which is presented as the FPV-drone-focused member of the same rifle family.

VariantConfigurationDesignation notes
KVERTUS AD MW, Man-portable anti-drone jammer, Air DefenseKVERTUS AD MWBase AD MW anti-FPV configuration

The base product page publishes the AD MW as a 100 W anti-drone rifle for FPV drones, while the FROM DROPS page and Defense Express coverage describe a 90 W configuration for payload-dropping or bomber drones.

Sources: KVERTUS AD MW FROM DROPS product page, KVERTUS AD MW product page, Defense Express on Kvertus AD MW variants

Timeline

KVERTUS AD MW FROM DROPS Key Events

  1. AD MW split reported

    Defense Express reports that Kvertus has presented a revised AD MW anti-drone rifle family with separate FPV-drone and bomber-drone configurations.

    Sources: Defense Express on Kvertus AD MW variants
