KVERTUS AD CERBERUS

Also known as

AD Cerberus
Cerberus

KVERTUS AD CERBERUS is a Ukrainian modular vehicle-mounted electronic warfare system from Kvertus. The company describes it as a generator-block system for protecting vehicles from radio-controlled UAVs, with external antennas, selectable vehicle or generator power, and up to 12 fixed jamming bands across 130-6000 MHz.

KVERTUS AD CERBERUS, Vehicle-mounted electronic warfare system, Electronic Warfare

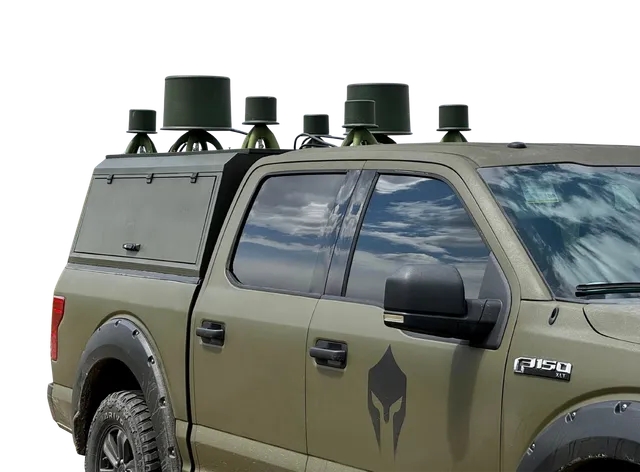

Image source: KVERTUS AD CERBERUS product image

Role in Conflicts

Side: Ukraine

Ukrainska Pravda described Cerberus as a vehicle-mounted mobile EW device used on the front line by Ukrainian forces.

Role details

Antenna Options

Kvertus frames Cerberus as a modular car-mounted system that can mix antenna types and cable lengths to match the bands a crew needs to cover.

Antenna	Pattern	Mounting
Quadrifilar	Dome-shaped pattern, circular polarization, up to 4 dBi	Magnetic vehicle base
Collinear	360-degree horizontal coverage, vertical polarization, up to 6 dBi	Magnetic base with spring-loaded connector
Patch	Directional, 60-90 degree pattern, up to 10 dBi	Magnetic base with tilt adjustment from 0 to 80 degrees

Profile / Specs

Profile

Origin: Ukraine
Built by: Kvertus
Type: Vehicle-mounted electronic warfare system
Service note: 2020s
Designer: Kvertus
Designed: 2024
Unit cost: Not stated publicly
Produced: 2024-present
Number built: Not stated publicly

Specifications

Jamming frequency range: 130-6000 MHz
Generator architecture: Up to three blocks with 1-4 generators per block
Jamming bands: Up to 12 frequency bands
Channel bandwidth: 50, 80, 100, or 200 MHz depending on selected frequency
Antenna options: Quadrifilar, collinear, or patch antennas
Antenna mounting: Magnetic vehicle mounts; patch tilt adjustable from 0 to 80 degrees
Cable length: 1.5 m or 3 m
Effective operating range: Up to 500 m depending on conditions
Vehicle installation radius: 80 m or more in the November 2025 Kvertus catalogue
Output power: 30 or 50 W per generator
Power supply: 220 V AC, 12 V or 24 V vehicle power, battery, or generator
Remote control: Cable-connected control with individual channel activation and master activation
Operational readiness: Up to 30 seconds
Deployment option: Tripod available for trench deployment
Protection rating: IP65

Generator And Power Architecture

Kvertus presents Cerberus as a vehicle-installation kit assembled from generator units rather than as a single fixed-band box.

Element	Published configuration	Why it matters
Generator units	One to three units, each with one to four generators	Allows a crew to scale the installation from a small set of protected bands to a 12-band vehicle system.
Jamming channels	Fixed bands inside 130-6000 MHz with 50, 80, 100, or 200 MHz bandwidth	The band package can be selected for the drone-control and video-link threats expected around the vehicle.
Power sources	220 V AC, 12 V or 24 V vehicle power, battery, or generator	The same kit can run from a vehicle electrical system or from field power at a fixed position.
Control	Cable remote with individual channel activation and a master activation control	Operators can switch bands independently instead of running every channel continuously.

Timeline

KVERTUS AD CERBERUS Key Events

Sep 18, 2024
Vehicle-installation article published
Kvertus publishes an article describing Cerberus as a building-block EW installation for cars, designed for easy vehicle mounting and configurable frequency coverage.
Sources: KVERTUS EW Installations for cars page
Aug 8, 2025
Front-line use noted
Ukrainska Pravda describes Cerberus as a mobile EW device for vehicles in a front-line discussion of modular battlefield systems.
Sources: Ukrainska Pravda frontline EW feature
