Gaia Thunder

Also known as
  • GAIA Thunder
  • Thunder APC
  • Thunder 4x4
  • Thunder MK-II

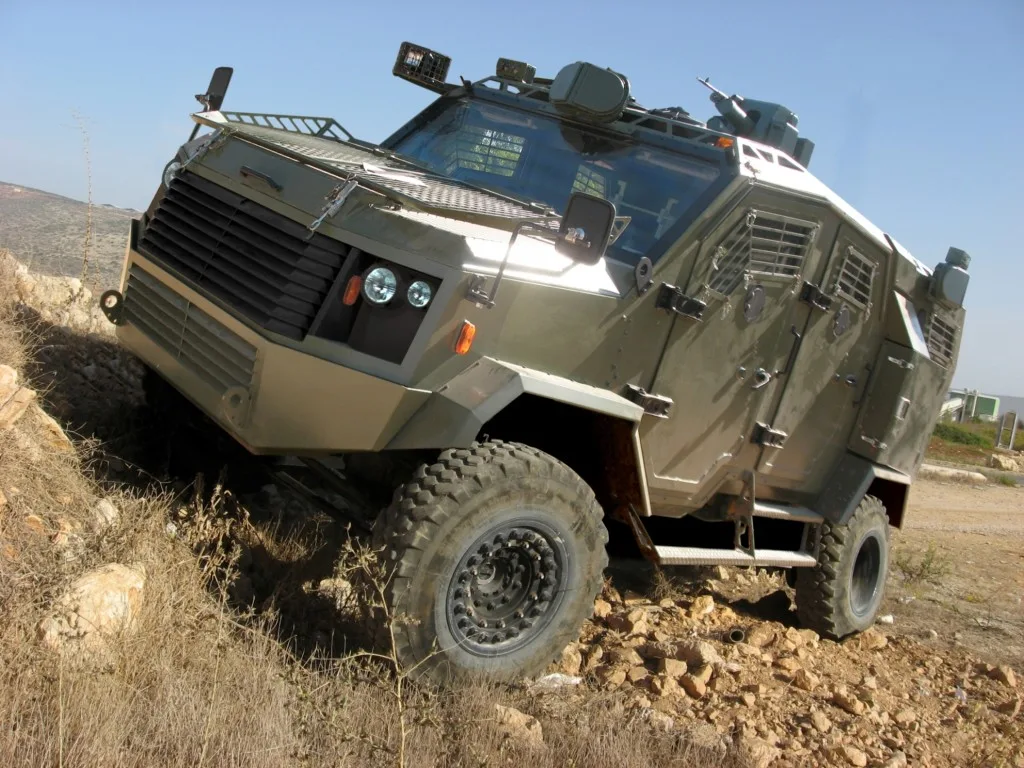

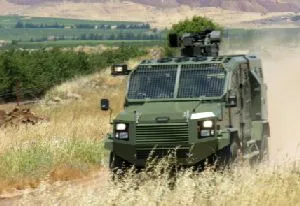

Gaia Thunder is an Israeli 4x4 armored personnel carrier from Gaia Automotive Industries, based on a Ford F-550-class commercial chassis and marketed for protected troop transport, logistics, police, peacekeeping, ambulance, and rapid-intervention missions. May 2026 Ukrainian-war reporting described a rare Thunder with GUR Kraken artillery personnel, with the supply route and number of vehicles not publicly confirmed.

Role in Conflicts

Profile / Specs

Profile

Origin
Israel
Type
4x4 armored personnel carrier
Service note
2010s-present armored vehicle
Designer
Gaia Automotive Industries
Designed
Publicly marketed by the mid-2010s
Produced
2011-present, including Ethiopian production-line work

Specifications

Configuration
4x4 wheeled armored personnel carrier
Crew and capacity
Up to 12 total occupants in Gaia material; Army Guide lists 3 crew plus 8 troops
Payload
1,800 kg in Gaia's technical brochure and Army Guide data; Gaia's current product page markets up to 2 tonnes
Chassis
Ford F-550 latest-model 4x4 commercial chassis in Gaia's technical brochure; defense reporting describes commercial chassis options such as the Ford F-550
Powertrain
6.7L Power Stroke V8 turbo-diesel engine with 10-speed automatic Ford transmission in Gaia's technical brochure
Protection
Gaia's technical brochure lists standard STANAG 4569 level 2 / VPAM level 8 ballistic protection; Army Recognition's Eurosatory 2018 report described Level II/III STANAG 4569 crew-compartment protection
Weight
8,850 kg maximum permissible weight in Gaia's technical brochure; Army Guide lists 8,700 kg
Dimensions
5,658 mm long; 2,353 mm wide; 2,480 mm high
Engine output
300 hp with 894 Nm maximum torque
Road speed
130 km/h maximum road speed
Road range
600 km
Obstacle mobility
Gaia's technical brochure lists 40 degree approach, 34 degree departure, 700 mm fording, 730 mm trench, and 420 mm vertical step; Army Guide lists 60 percent gradient, 35 percent side slope, and 800 mm fording
Variants

Gaia presents Thunder as a configurable 4x4 APC platform rather than a set of separate model designations.

VariantConfigurationDesignation notes
Thunder - APCBase armored personnel carrier

Gaia's product page identifies Thunder as an APC and describes it as a multi-purpose 4x4 armored vehicle.

Sources: Gaia Thunder Product Page, Gaia Thunder Technical Specifications Brochure

APC Command VehicleCommand configuration

Listed by Gaia as one of the Thunder configurations.

Sources: Gaia Thunder Product Page, Gaia Thunder Technical Specifications Brochure

Armored Emergency Rescue VehicleEmergency rescue configuration

Listed by Gaia as a Thunder emergency-rescue configuration.

Sources: Gaia Thunder Product Page

Armored Rapid Intervention VehicleRapid-intervention configuration

Listed by Gaia as one of the Thunder configurations.

Sources: Gaia Thunder Product Page

Armored Riot Control VehicleRiot-control configuration

Listed by Gaia as one of the Thunder configurations.

Sources: Gaia Thunder Product Page

AmbulanceMedical evacuation configuration

Gaia's technical brochure lists ambulance as a typical Thunder application.

Sources: Gaia Thunder Technical Specifications Brochure

Timeline

Gaia Thunder Key Events

  1. Ethiopian APC production project begins

    Gaia says it worked during 2011-2013 to deliver and manufacture 80 armored vehicles for the Ethiopian government, beginning with Israeli-built prototypes and then transferring materials, equipment, and training for local assembly.

  2. Thunder and Amir promoted for Eurosatory

    Defense reporting from Eurosatory 2018 described Thunder as Gaia's 4x4 armored vehicle family, with a Ford F-550-type commercial chassis basis, 12-person capacity, 1.8-tonne payload, Level II/III STANAG 4569 protection, and optional mission equipment.

  3. Gaia brochure specifies Thunder baseline

    Gaia's Thunder technical brochure, version 09, listed the platform as a multi-purpose armored personnel carrier on a Ford F-550 4x4 chassis with 1,800 kg payload, 8,850 kg GVW, 130 km/h maximum speed, and STANAG 4569 level 2 standard protection.

  4. Gaia Thunder reported with Ukrainian GUR unit

    Ukrainian reporting described a rare Gaia Thunder 4x4 on the armament of GUR Kraken artillery personnel, while noting that the vehicle's route into Ukraine was unknown.
