9M526 self-guiding submunition rocket

Also known as

9M526
9M526 rocket
9M526 Smerch rocket

The 9M526 self-guiding submunition rocket is a Russian 300 mm Smerch-family round with a cluster warhead carrying five Motiv-3M self-targeting submunitions. Missilery describes it as a top-attack rocket for armoured groupings and tanks, with work completed in 2004 for use from the Smerch multiple launch rocket system.

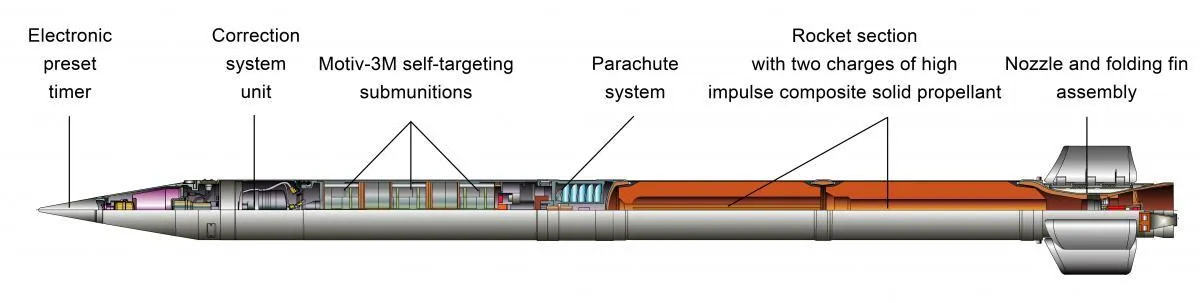

9M526 self-guiding submunition rocket, 300 mm rocket with self-guiding submunitions, Munitions

Image source: 9M526 rocket | Missilery.info

Profile / Specs

Profile

Origin: Russia
Built by: NPO Splav
Type: 300 mm rocket with self-guiding submunitions
Service note: 2000s-present
Designer: NPO Splav
Designed: 2004

Specifications

Caliber: 300 mm
Weight: 815 kg
Length: 7,600 mm
Warhead weight: 243 kg
Warhead length: 2,049 mm
Submunitions: 5 Motiv-3M self-targeting submunitions
Submunition weight: 15 kg
Submunition explosive weight: 4.5 kg
Range: 25-90 km
Armor penetration: 70 mm homogeneous armor at 100 m and 30 degrees from normal
Time to self-destruction: 50 s

Variants

The 9M526 belongs to the extended-range 300 mm Smerch guided-rocket family and is closely related to other self-guiding and specialized Smerch rounds.

Variant

Configuration

Designation notes

9M533 self-guiding submunition rocket, 300 mm rocket with 9N268 self-guiding submunitions, Munitions

9M533 self-guiding submunition rocket

Related self-guiding submunition rocket

METIS groups the 9M526 with the 9M533 and other extended-range 300 mm guided rockets in the same family.

Sources: METIS 300 mm guided rocket family

9M55K6 self-guiding submunition rocket, 300 mm rocket with 9N268 self-guiding submunitions, Munitions

9M55K6 self-guiding submunition rocket

Related self-guiding submunition rocket

The 9M526 and 9M55K6 share the same Smerch self-guiding submunition concept within the 300 mm family.

Sources: METIS 300 mm guided rocket family

Launch Platforms

The 9M526 is a 300 mm Smerch family rocket designed for the BM-30 / 9K58 launcher family.

Launcher

Launcher type

Launch evidence

BM-30 Smerch, 300 mm heavy multiple launch rocket system, Artillery

300 mm multiple launch rocket system

Missilery identifies the 9M526 as designed for use from the Smerch multiple launch rocket system.

Sources: 9M526 rocket | Missilery.info, 9K58 Smerch multiple launch rocket system

Timeline

9M526 self-guiding submunition rocket Key Events

Jan 1, 2004
Completion
Missilery states that work on the 9M526 was completed in 2004.
